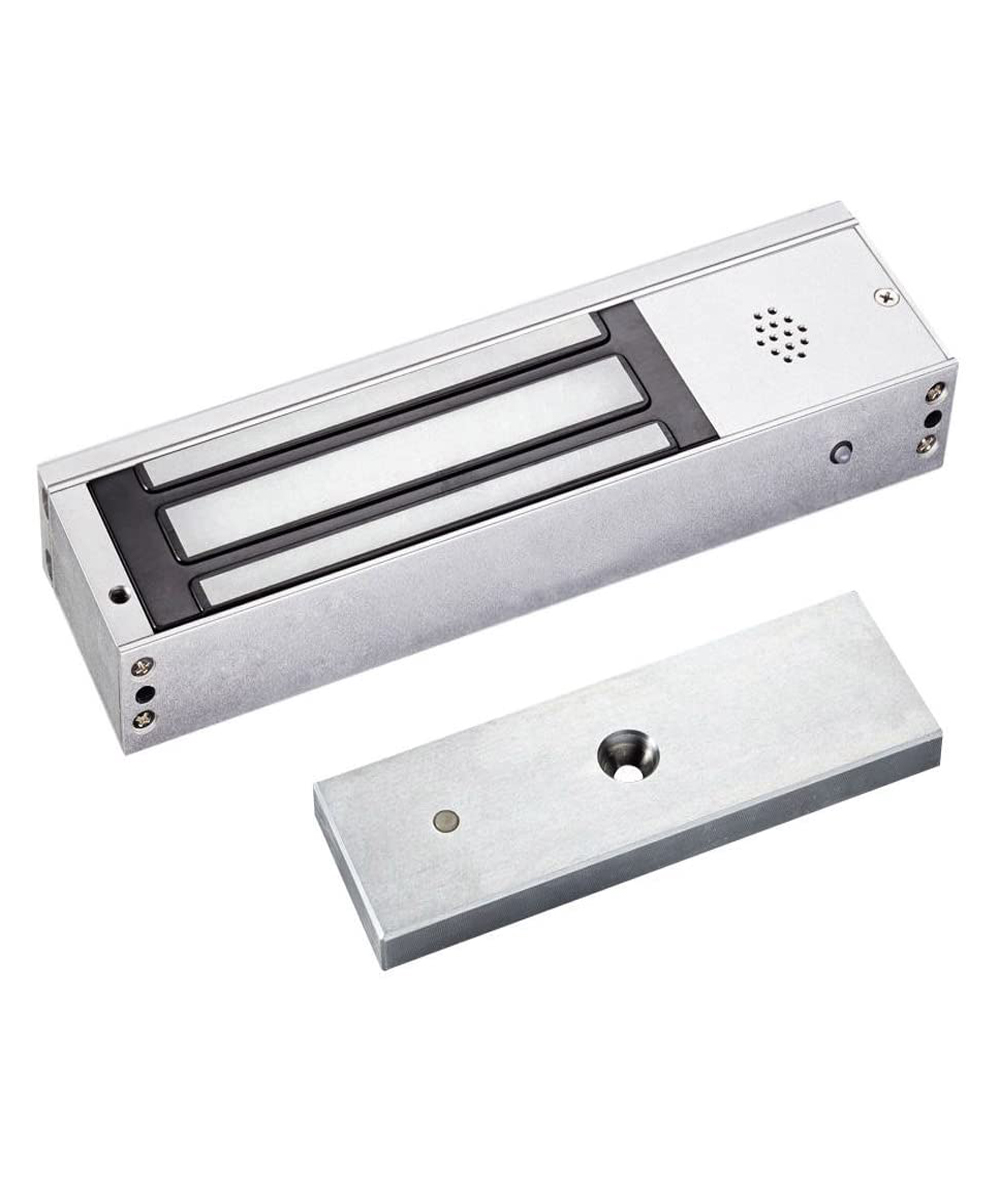

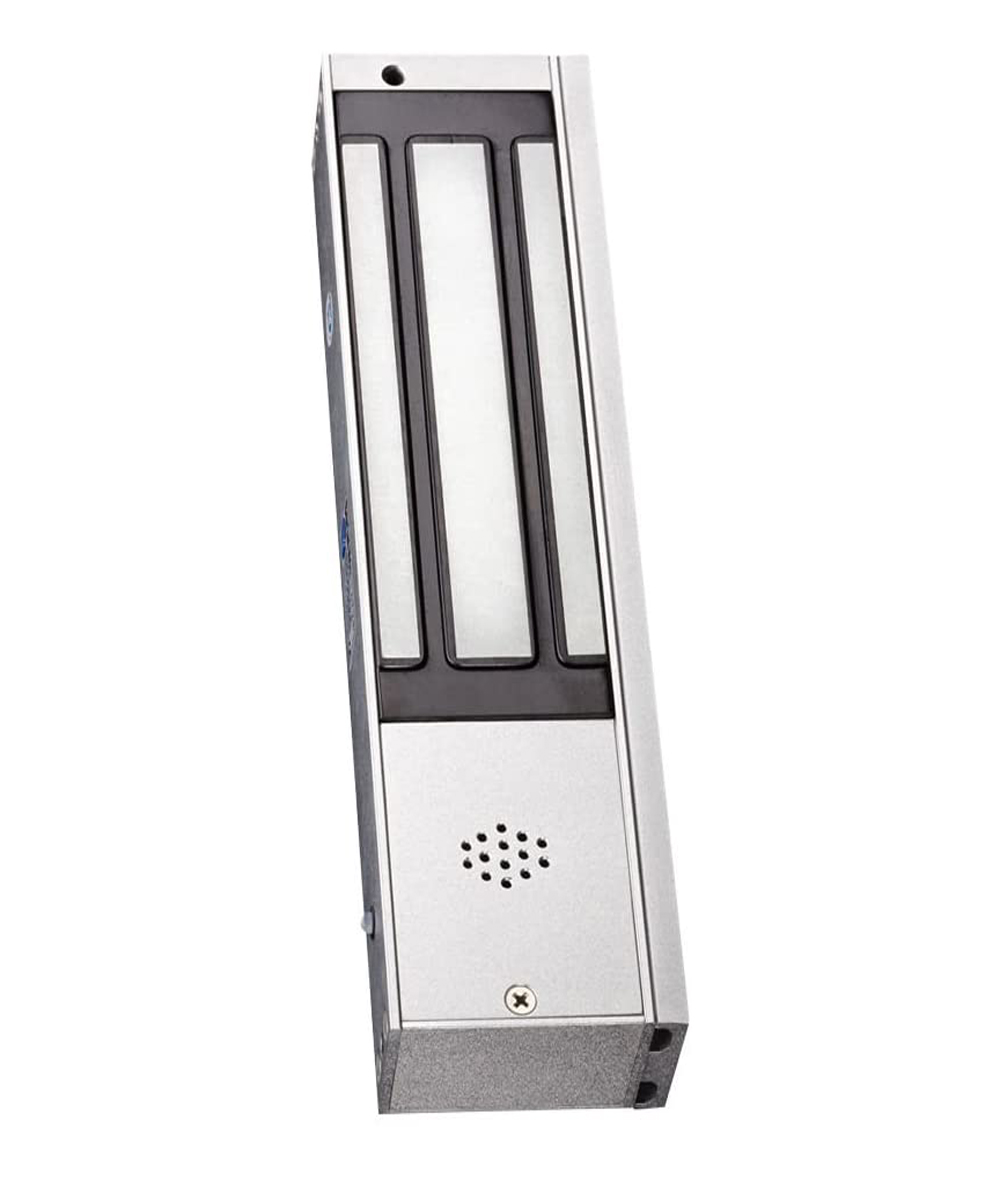

500Kg 1200Lbs Holding Force Electric Magnetic Lock for Single Door with Buzzer

$243.80

  • Collinear Load Test 500kg / 1200lb
  • Voltage 12VDC or 24VDC
  • MOV Provides Reverse Current Protection
  • LED Indicates the Door Status
  • Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door
SKU: UT-YM-500BZ Categories: ,

500Kg 1200Lbs Holding Force Electric Magnetic Lock for Single Door with Buzzer



Features:

  • Collinear Load Test 500kg / 1200lb
  • Voltage 12VDC or 24VDC
  • The Standard Voltage is 12VDC when Finished
  • MOV Provides Reverse Current Protection
  • Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door
  • LED Indicates the Door Status

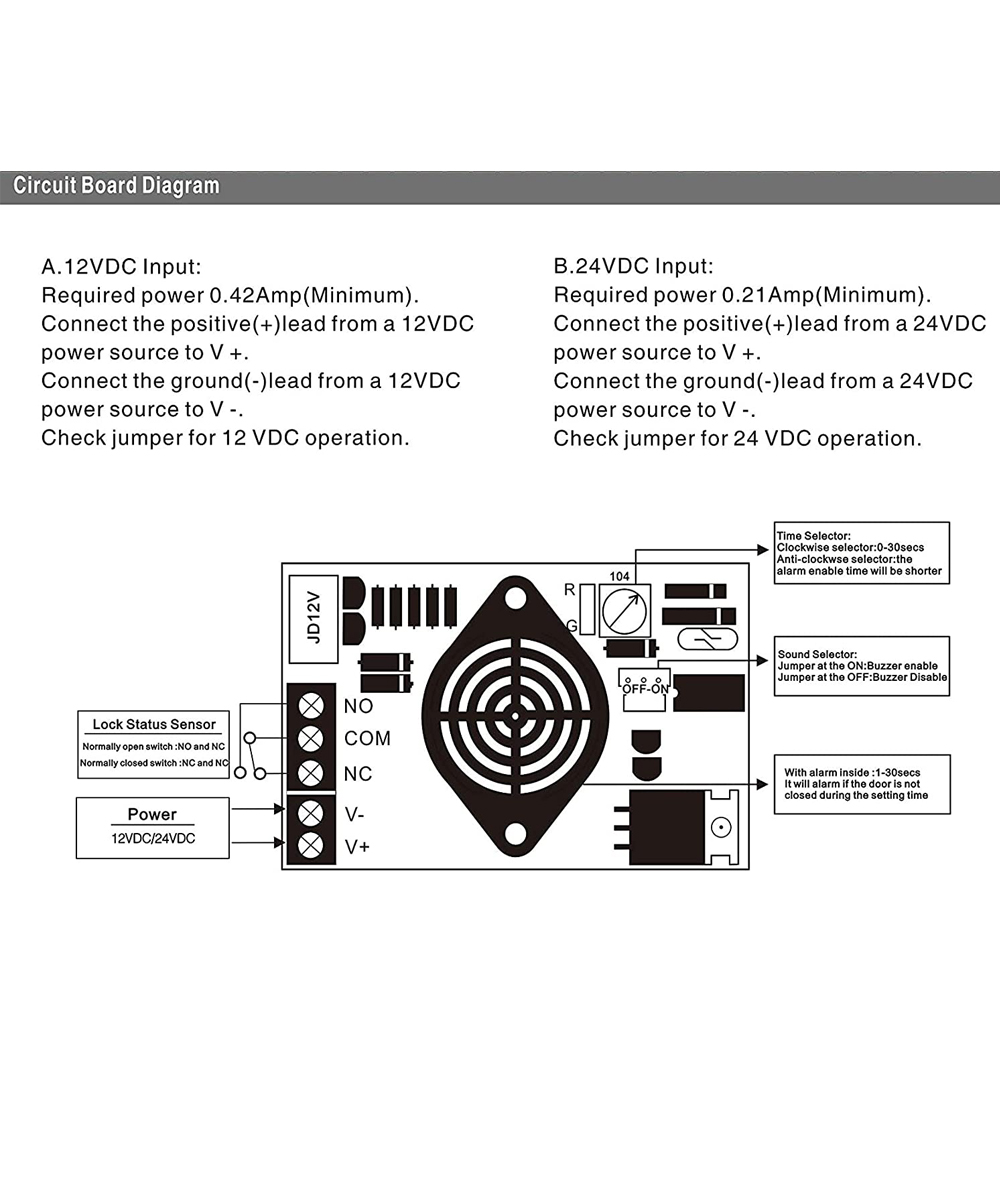

  • Lock Status sensor (NO/NC/COM)
  • Time: 0/3/6/9sec
  • Anti-Residual Magnetism Designed
  • High Strength Material,Anodized Aluminum Housing
  • Design without Mechanical Failure
  • Increase the holding Force,Dual Insulative Housing
  • CE Certificate by European Union,MA Certificate by China Public Security Office

Specifications:

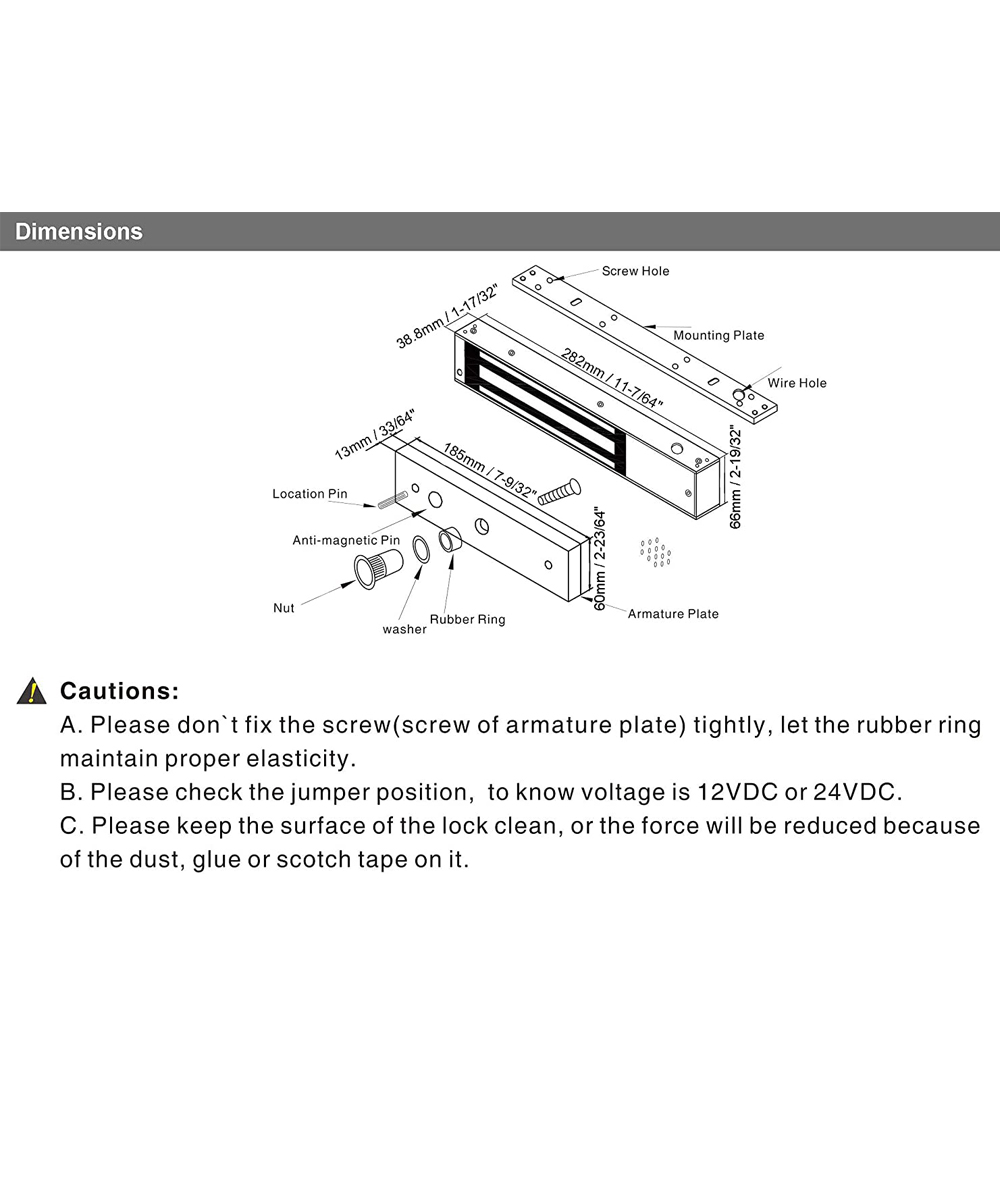

  • Size: 282Lx71.8Wx38.8H(mm) / 11.1″x2.8″x1.5″
  • Armature plate: 185Lx60Wx13H(mm) / 7.3″x2.4″x0.5″
  • Holding Force: 500kg / 1200Lbs
  • Voltage: 12 or 24VDC
  • Current Draw: 12V/420mA or 24V/210mA
  • Signal Output: Dry Contact,Max Rating of Contact Current 3A
  • LED: Red indicates the door is unlock,Green indicates the door is lock
  • Buzzer: 5/10/20/30sec
  • Surface Temp: <+20℃ / 68℉
  • Operating Temp: -10℃~+55℃(14℉-131℉)
  • Suitable Humidity: 0-95%(non-condensing)
  • Finishes for Shell: Anodized aluminum
  • Finishes for Magnetic: Zinc
  • Finishes for Armature: Zinc
  • Weight: 4.5kg / 9.9lb

Package:

  • 1 xElectric Magnetic Lock
  • 1 x User manual
  • 1 x Installation Kit

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 4.5 kg
