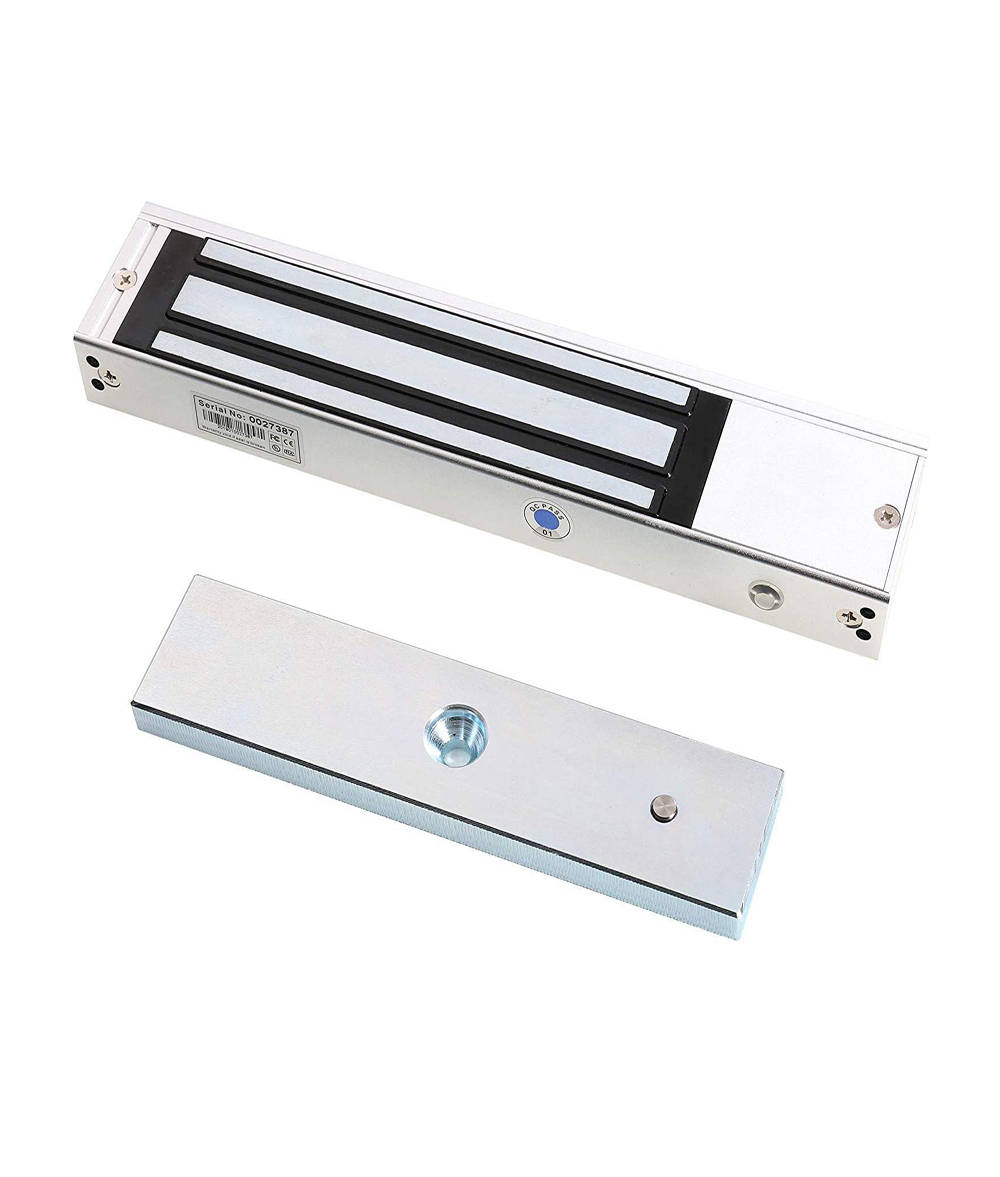

350kg 800Lbs Holding Force Fail-Safe Single Door Access Control Electric Magnetic Lock Outdoor Gate Lock with NO/NC/COM Output

$163.00

This electric magnetic lock with NO/NC/COM ouput is made of high strength material, anodized aluminum housing, increasing the holding force. It is suitable for wooden door, glass door, metal door, fireproof door.

SKU: UT-YM-350N(LED) Categories: ,

350kg 800Lbs Holding Force Fail-Safe Single Door Access Control Electric Magnetic Lock Outdoor Gate Lock with NO/NC/COM Output



Features:

  • Holding force about 350kg (800lbs)
  • MOV provides reverse current protection.
  • High strength material, anodized aluminum housing.
  • Anti-Residual magnetism designed.
  • CE Certificate by European Union,MA Certificate by China Public Security Office.
  • Dual voltage 12 or 24 VDC (optional), the standard voltage is 12VDC when finished.
  • Suitable For wooden door, glass door, metal door, fireproof door.
  • LED indicates the door status.
  • Lock status sensor (NO/NC/COM).
  • High strength material, anodized aluminum housing, increasing the holding force
  • Design without mechanical failure.

Specifications:

UT YM 350NLED 2

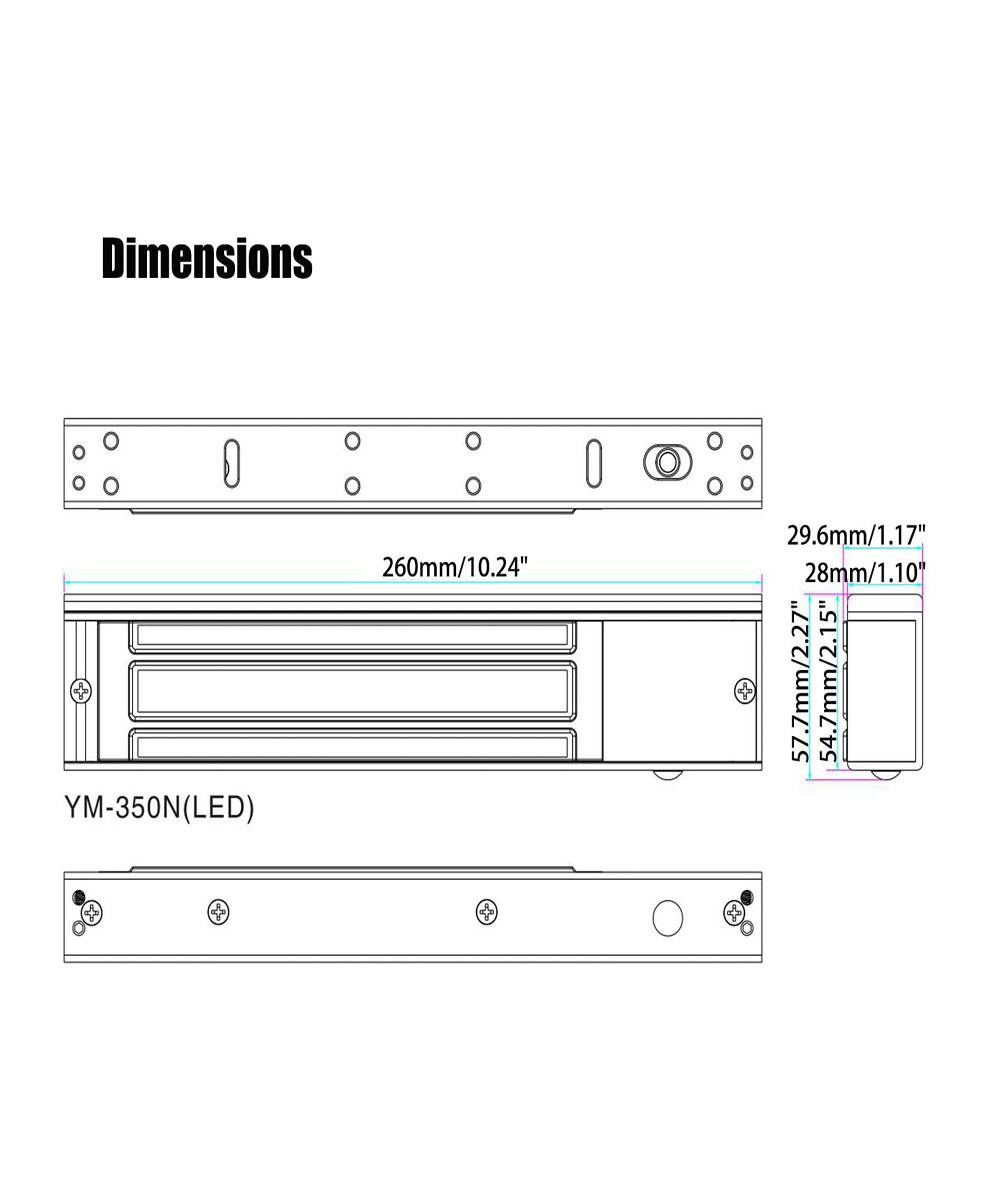

  • Size: 260Lx57.7Wx29.6H(mm)/10.24″Lx2.27″Wx1.17″H
  • Armature Plate Dimension: 190Lx45Wx13H(mm)/7.45″Lx1.77″Wx0.51″H
  • Holding Force: 350kg(800Lbs)
  • Input Voltage: 12 or 24VDC
  • Current: 12V/500mA or 24V/250mA
  • LED: Red shows locked ;green shows unlocked

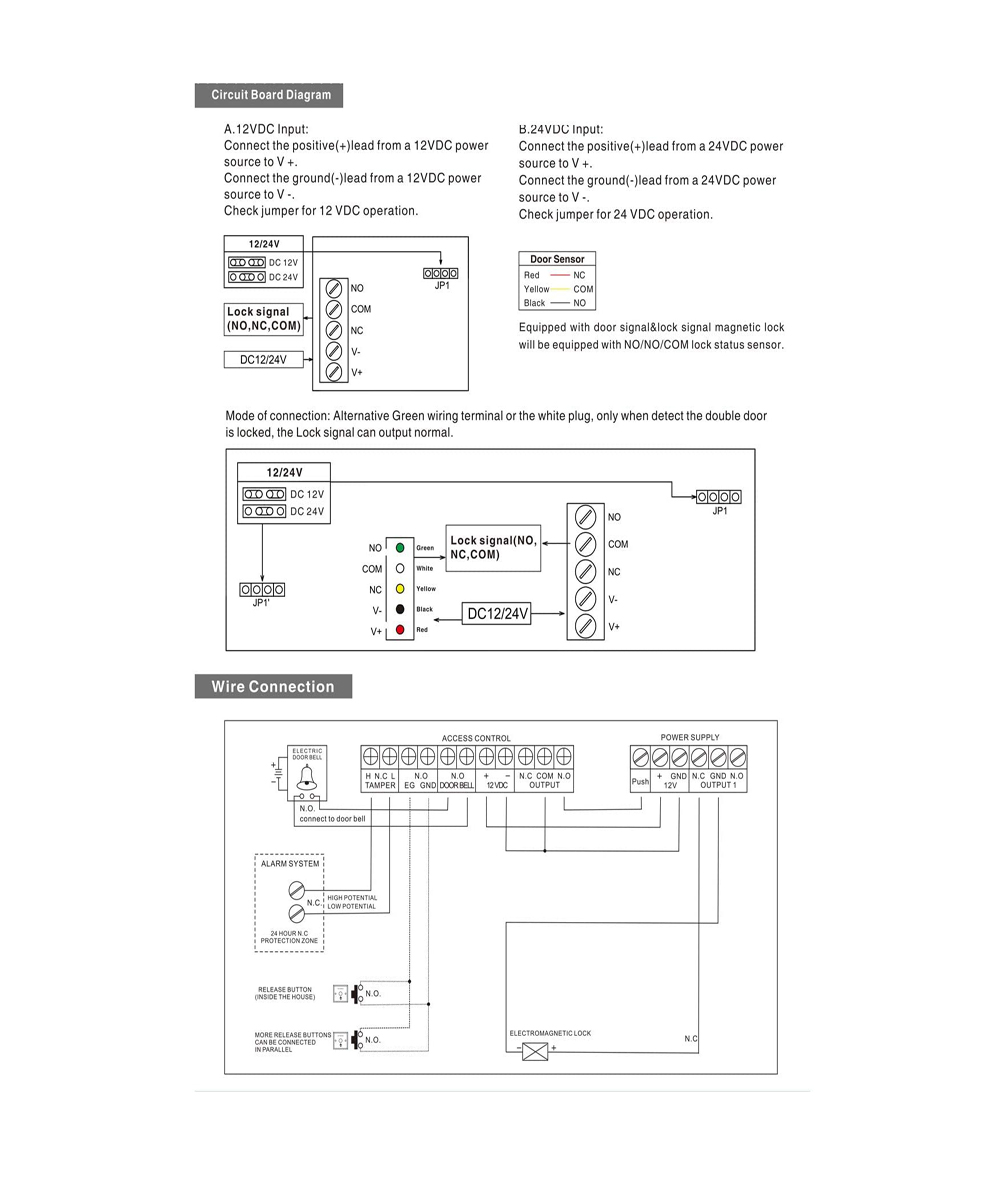

  • Signal Output: lock signal (NO/NC/COM)
  • Suitable: wooden door, glass door, metal door, fireproof door
  • Net. Weight: 2.5KG

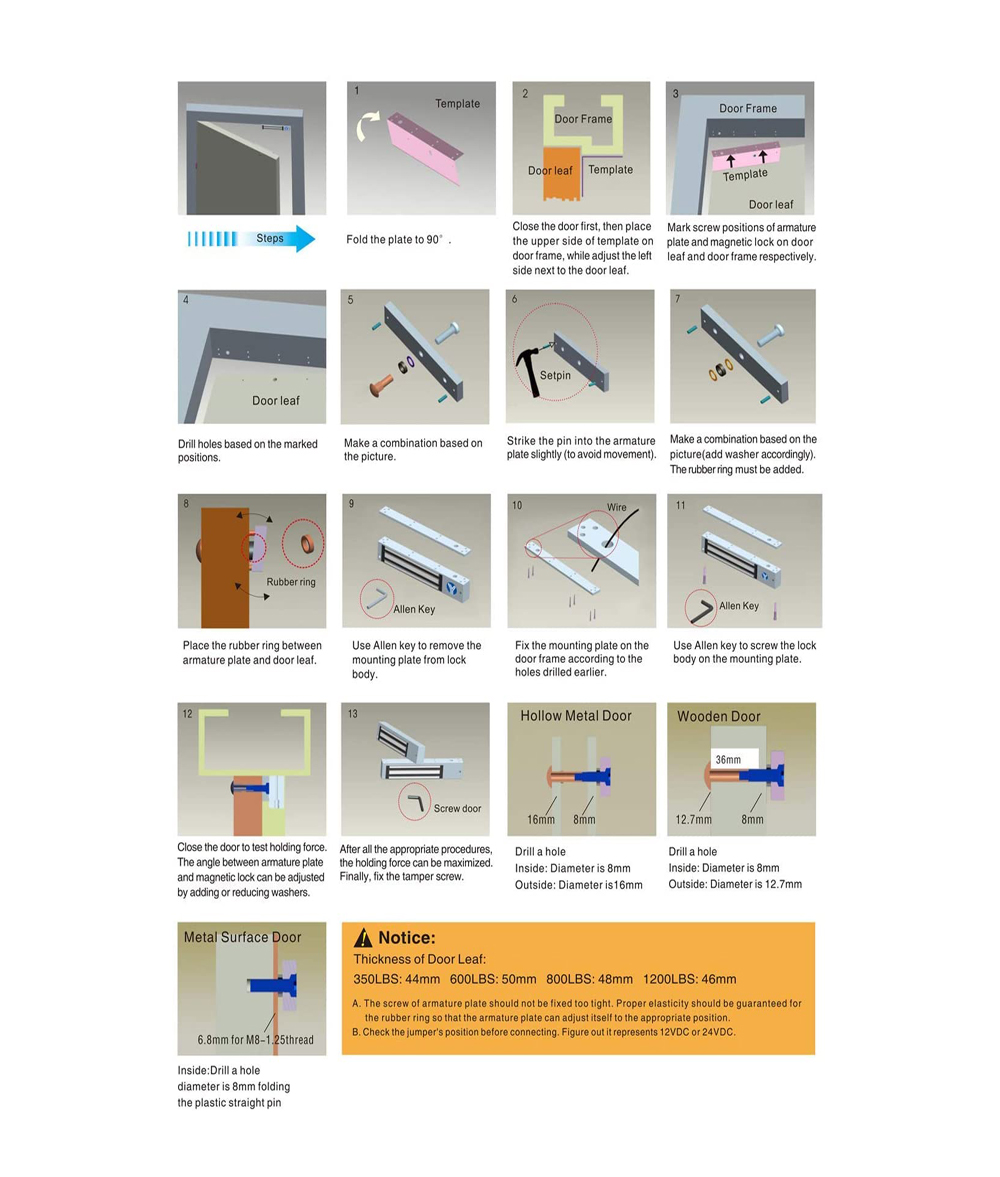

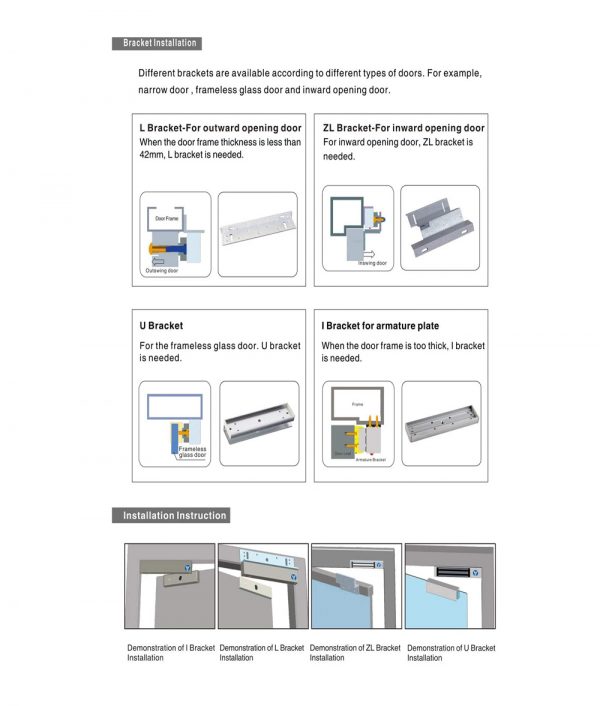

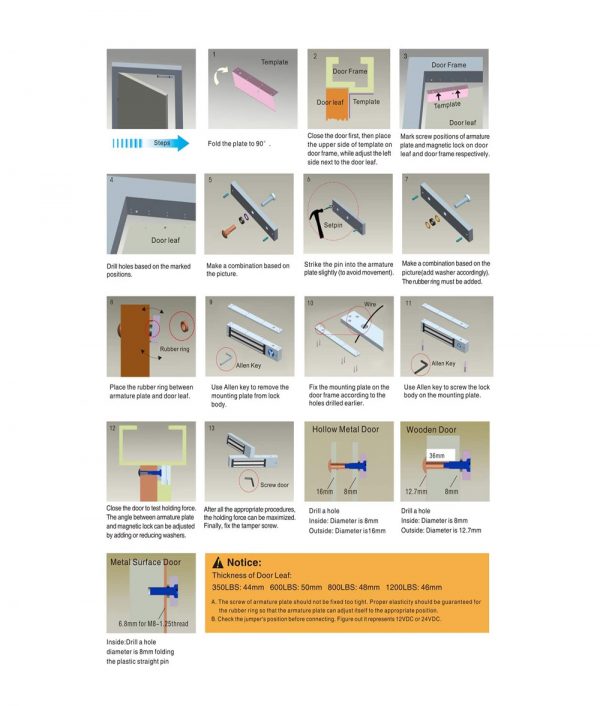

Installation:



Package:

1 x Electric magnetic door lock
1 x Installation kit
1 x User manual
