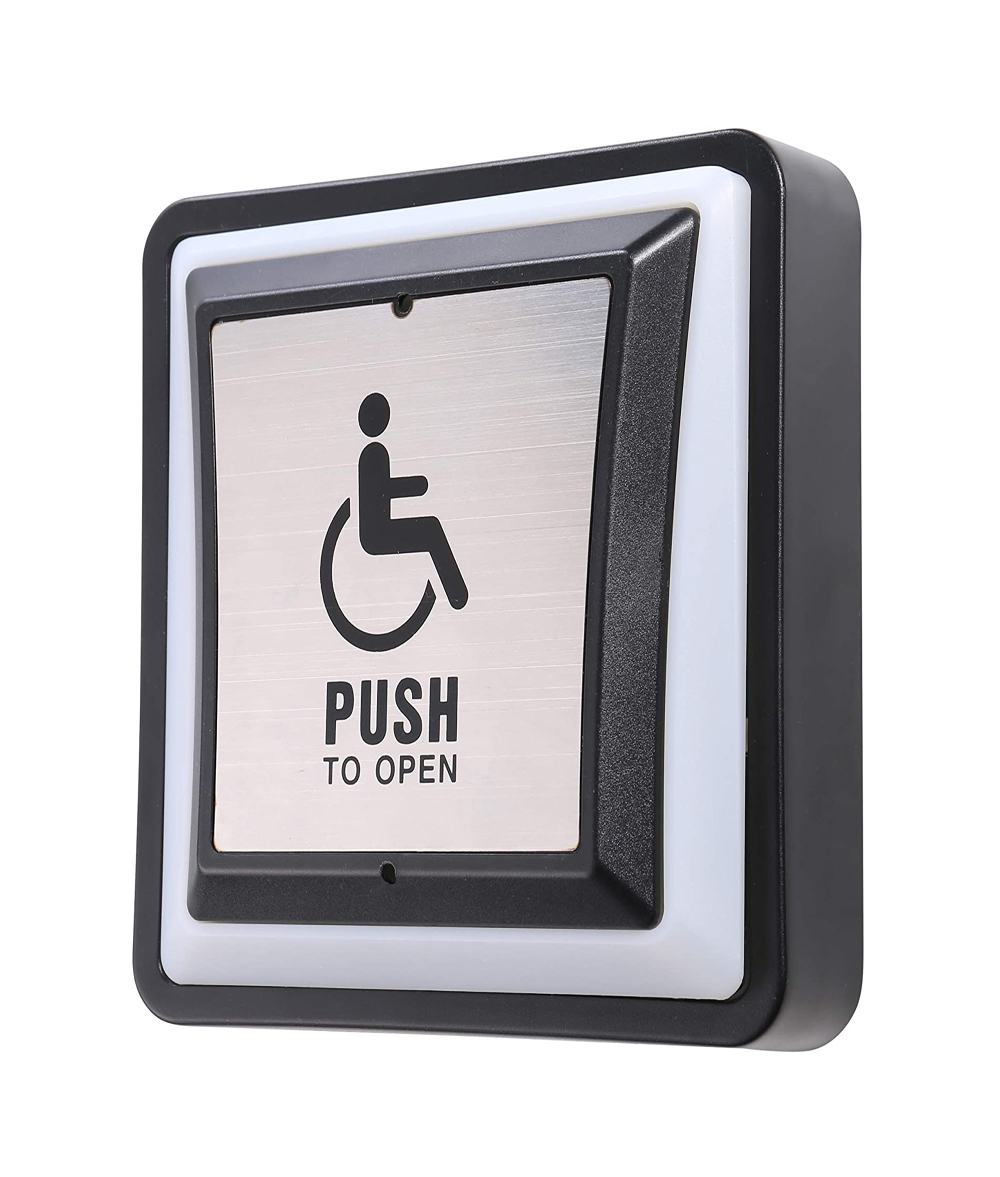

Door Access Control Push to Exit Button for The Disabled

$36.50

This exit button is specially designed for the disabled, with no mechanical bolt, the bottom box for easy installation, and red and green color LED light. Also elegant style and good durability makes it a good choice for access control.

SKU: UT-PBK-871(LED) Categories: ,

Door Access Control Push to Exit Button for The Disabled



Features:

  • Design with no mechanical bolt
  • Aluminum panel with elegant style

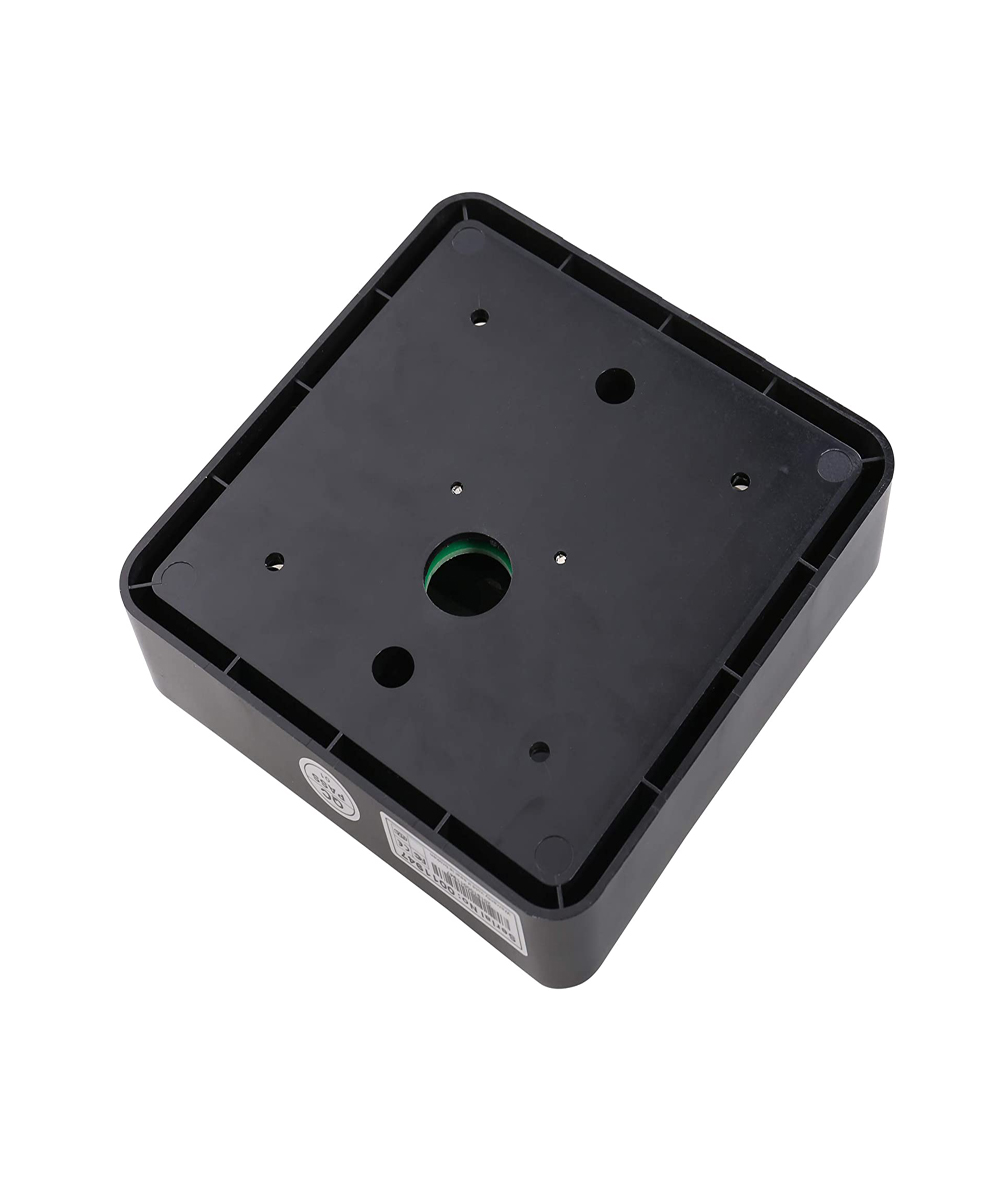

  • With the bottom box, easy to install
  • 500000 cycles tests
  • Two contact output,suitable for all kinds of locks
  • The best choice for access control

Specifications:

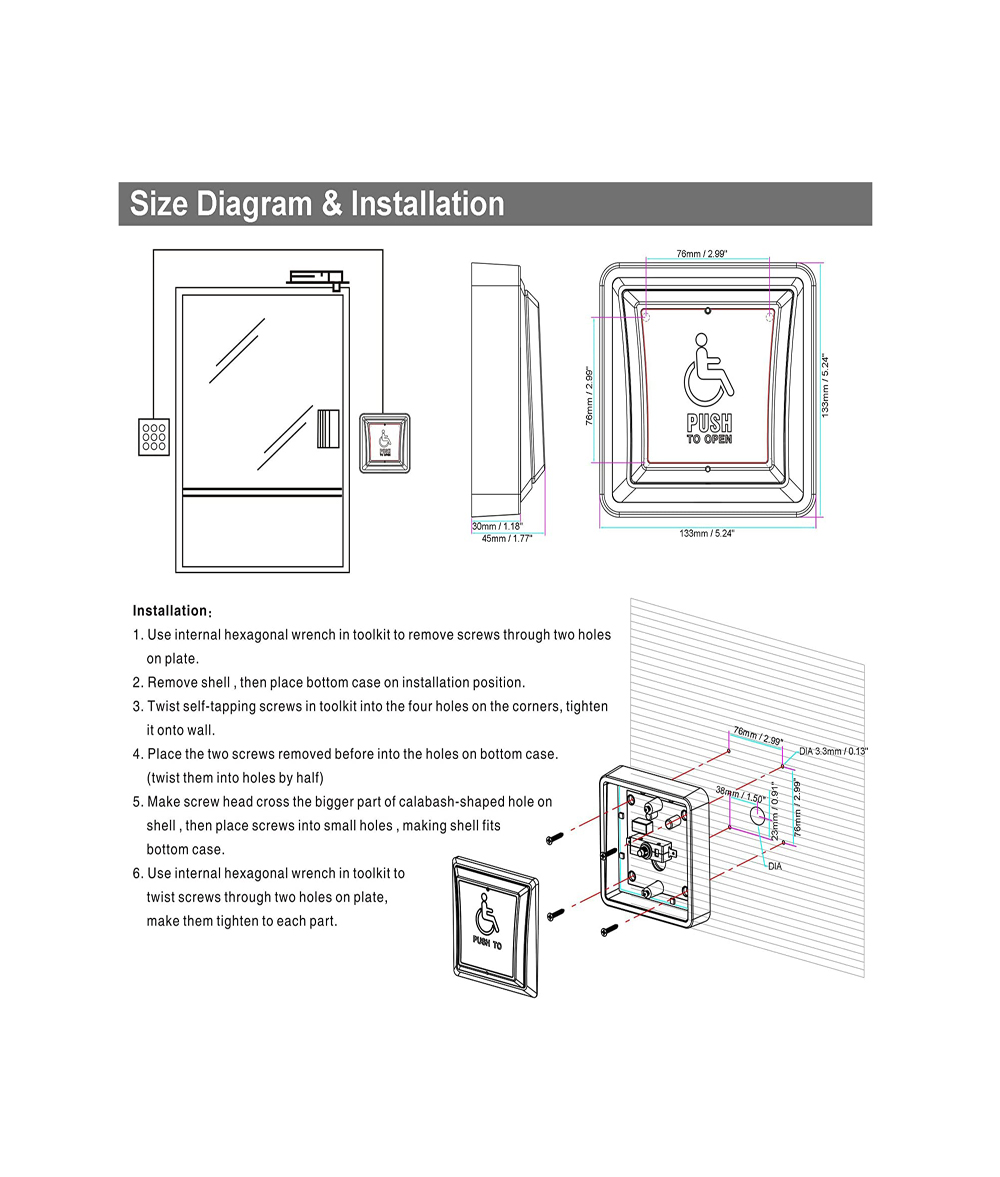

  • Dimensions: 133x133x45(mm) / 5.24×5.24×1.77(inches)
  • Input Voltage: 12~24VAC/DC
  • Current: ≤120mA
  • Current Rating: 2A@30VDC
  • Output Contact: NO/NC/COM

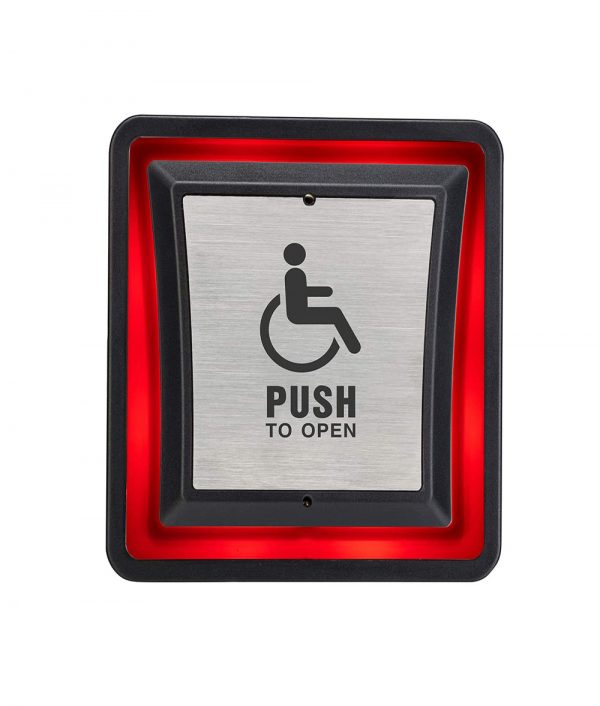

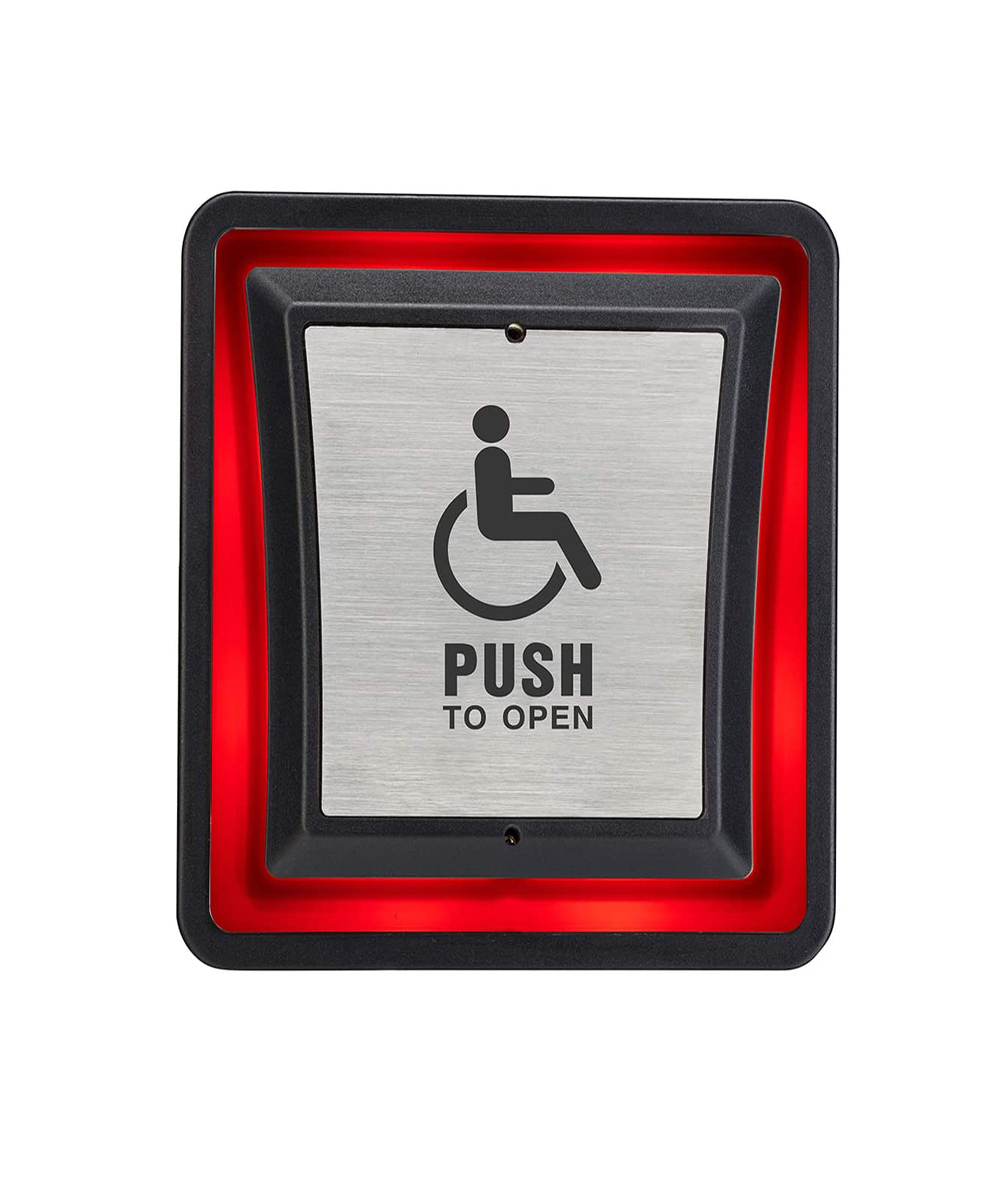

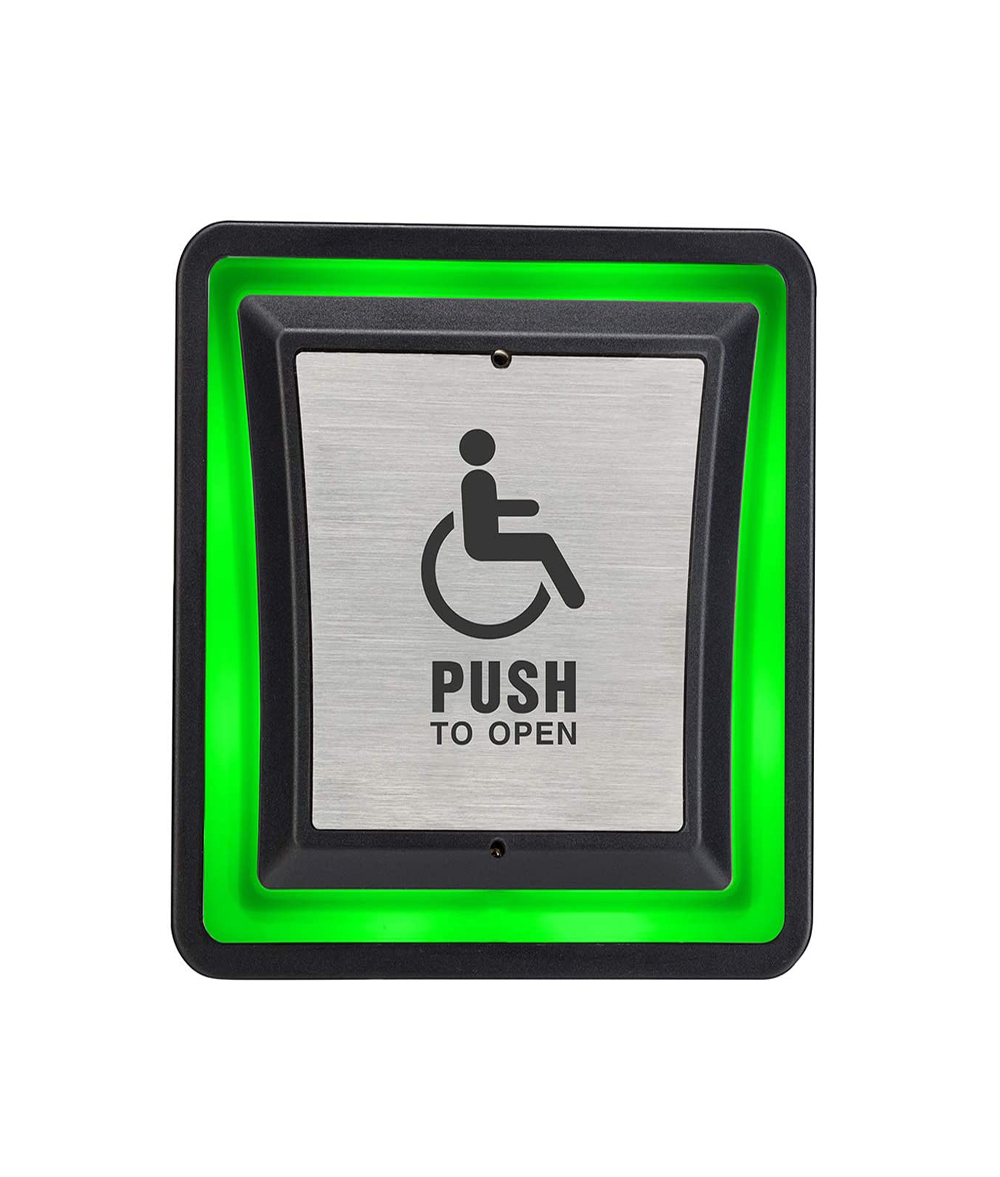

  • LED: Mode A or Mode B(A: Red when standby, Green when action; B: Green when standby, Red when action)
  • Operating temp: -20℃~+50℃ / -4℉~122℉
  • Operating humidity: 0~95%RH
  • Net Weight: 0.25kg / 8.8oz

Package:

  • 1 x Push Button
  • 4 x Screws
  • 1 x English Manual

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.







Weight 0.25 kg
Dimensions 13.3 × 13.3 × 4.5 cm
