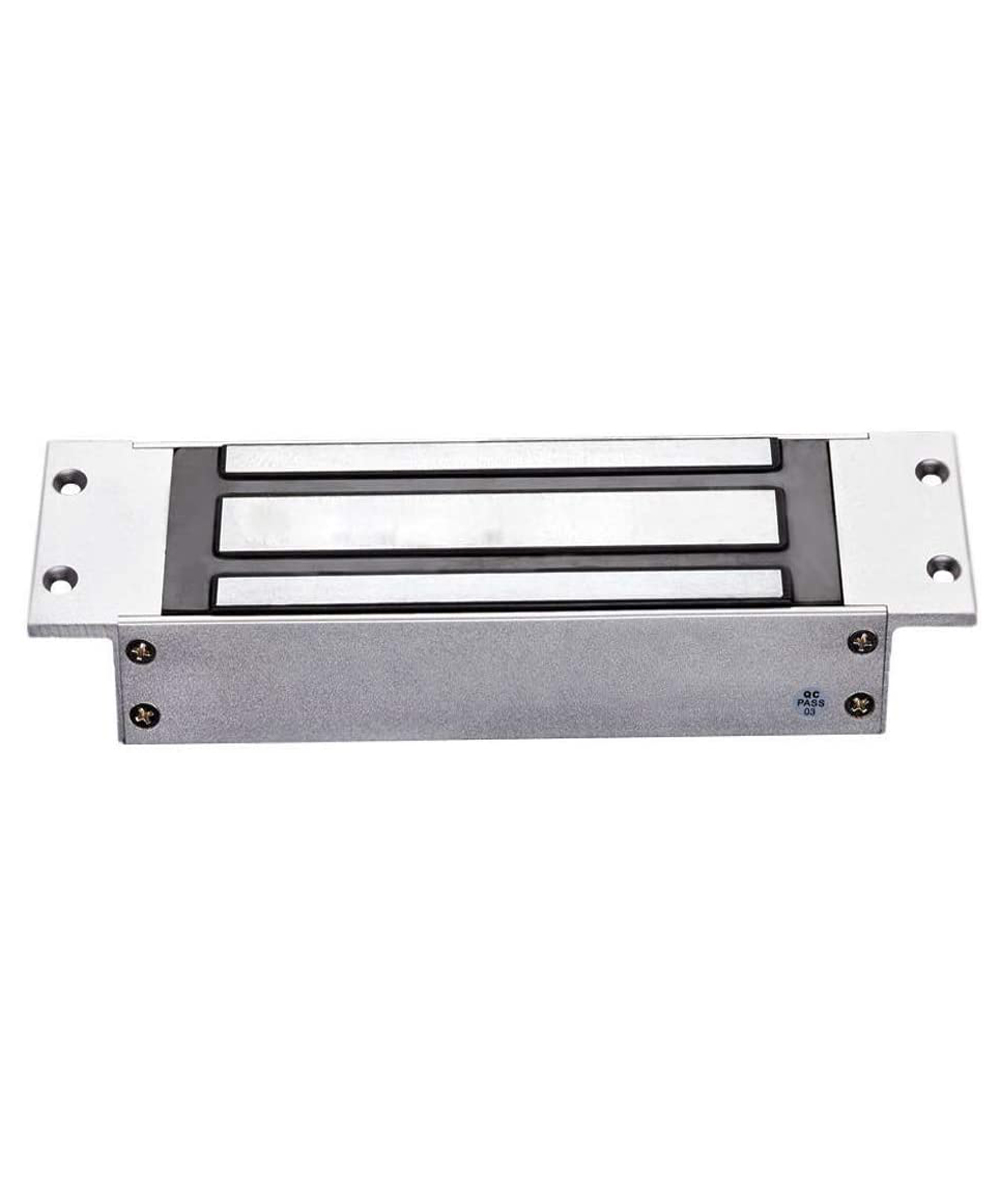

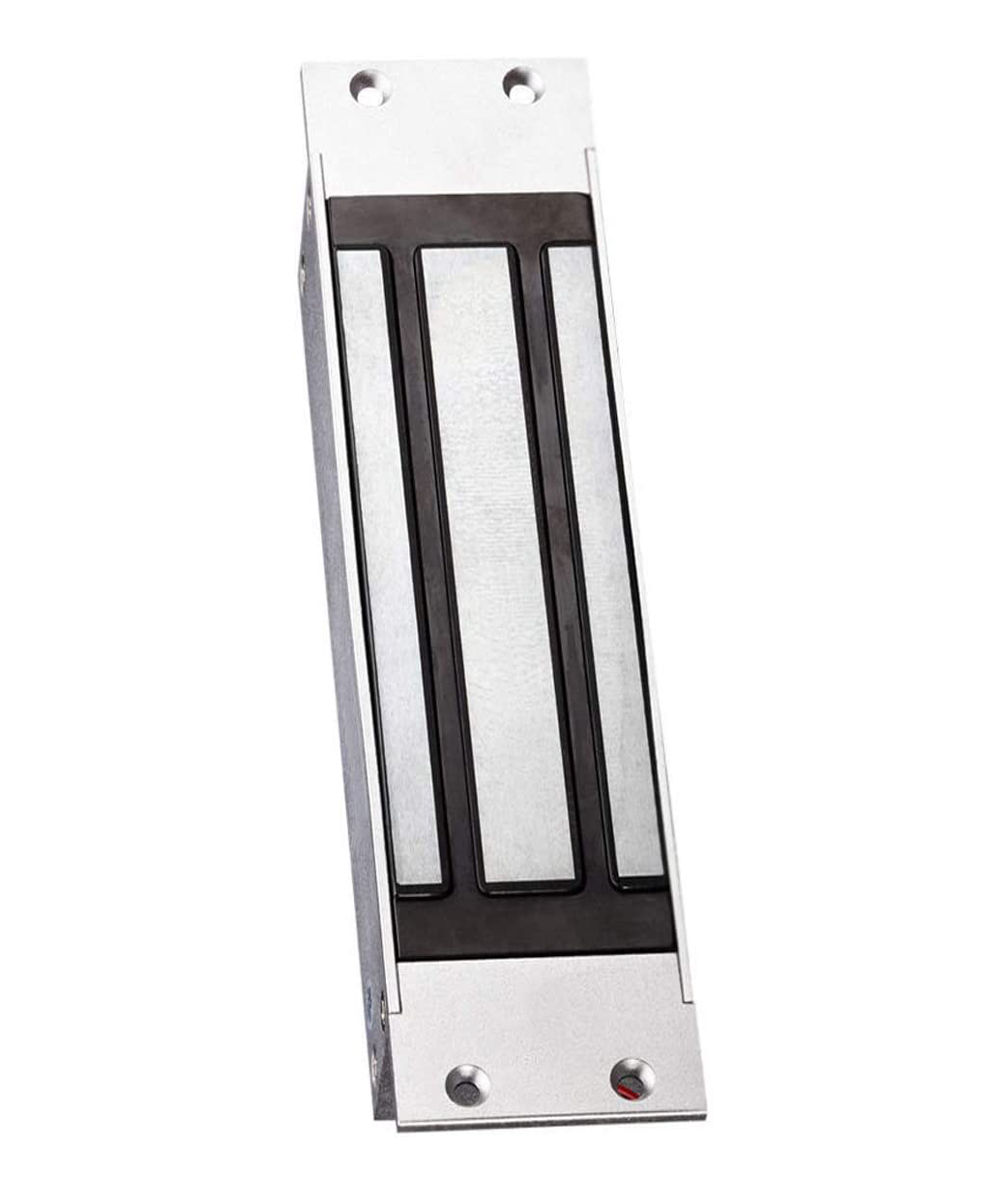

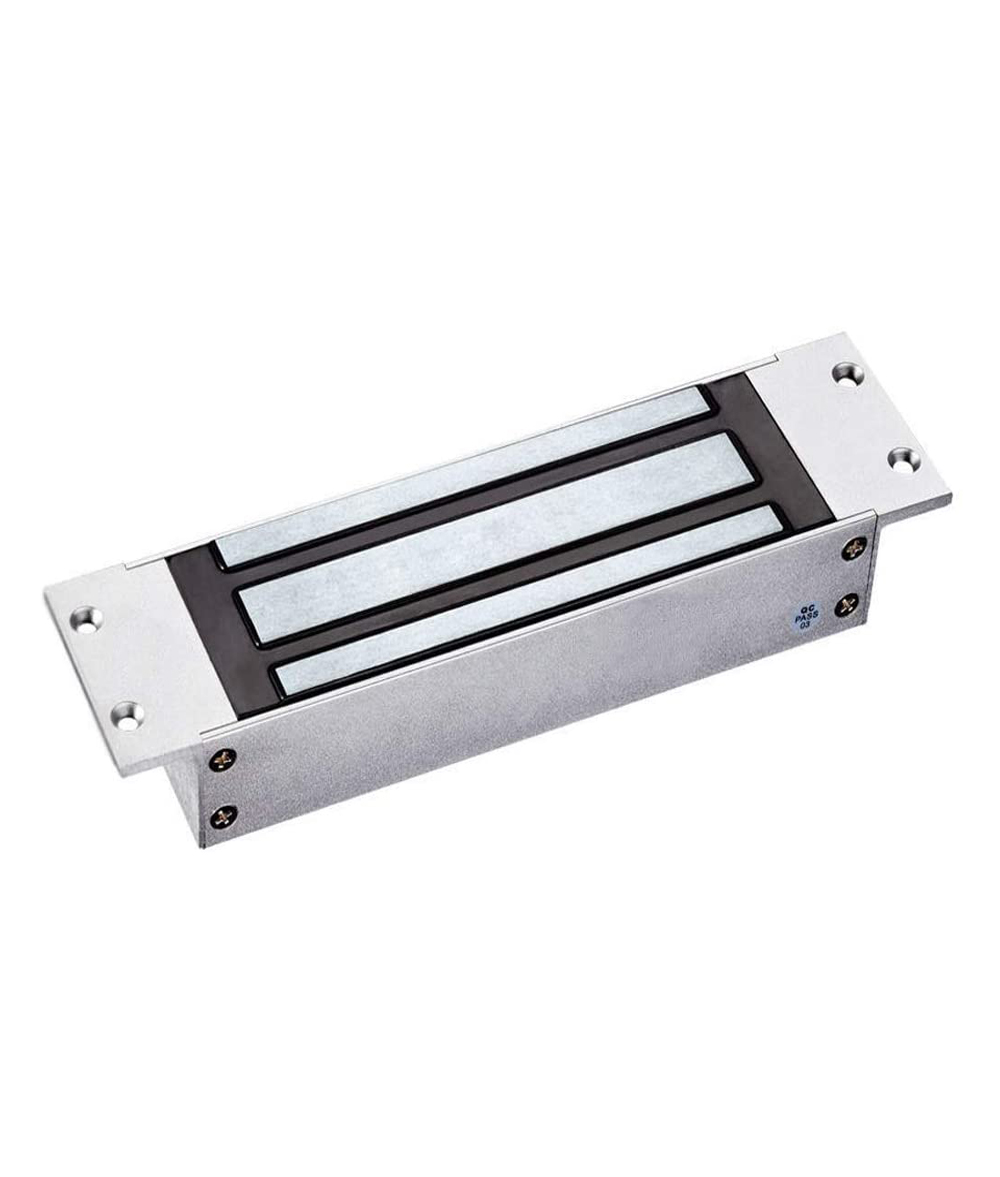

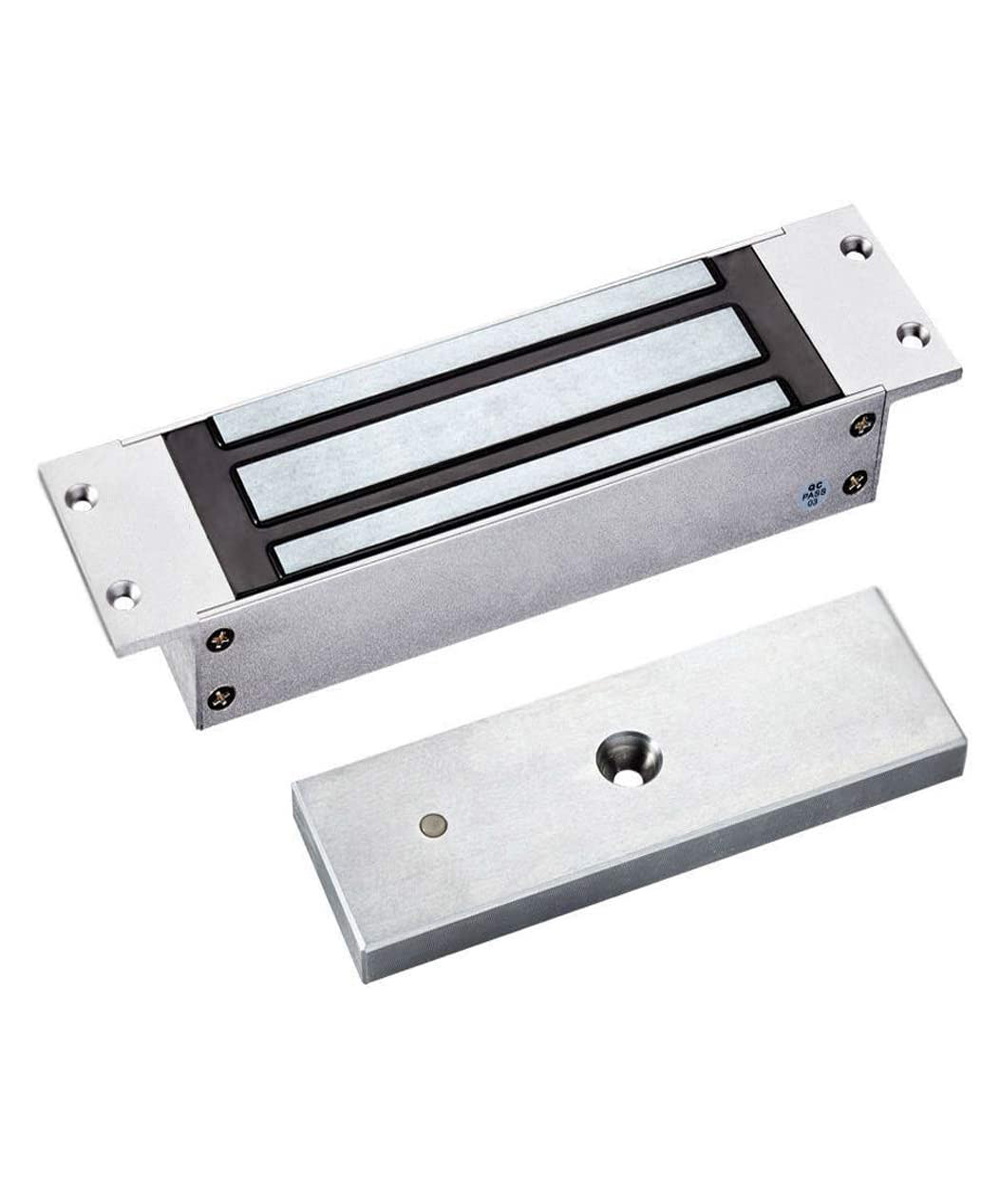

Mortise Mount 500Kg 1200Lbs Holding Force Single Door Electric Magnetic Lock

$226.00

  • Collinear Load Test 500kg / 1200lb
  • Dual Voltage 12 or 24 VDC(optional)
  • MOV Provides Reverse Current Protection
  • Anti-Residual Magnetism Designed
  • High Strength Material, Anodized Aluminum Housing
SKU: UT-YM-500M-S Categories: ,

Mortise Mount 500Kg 1200Lbs Holding Force Single Door Electric Magnetic Lock



Features:

  • Collinear Load Test 500kg / 1200lb
  • Dual Voltage 12 or 24 VDC(optional)
  • The Standard Voltage is 12VDC when Finished
  • MOV Provides Reverse Current Protection
  • Anti-Residual Magnetism Designed
  • High Strength Material, Anodized Aluminum Housing
  • Design without Mechanical Failure
  • Increase the holding Force, Dual Insulative Housing
  • CE Certificate by European Union, MA Certificate by China Public Security Office

Specifications:

  • Size: 254Lx65.8Wx38.8H(mm) / 10Lx2.59Wx1.53H(in)
  • Armature plate: 185Lx60Wx13H(mm) / 7.28Lx2.36Wx0.51H
  • Holding Force: 500kg / 1200Lbs
  • Voltage: 12 or 24VDC
  • Current Draw: 12V/420mA or 24V/210mA
  • Suitable for: Wooden door, Glass door, Metal door, Fireproof door
  • Signal Output: Dry Contact,Max Rating of Contact Current 3A
  • Surface Temp: Less than +20℃
  • Operating Temp: -10℃~+55℃(14℉~131℉)
  • Suitable Humidity: 0~95%(non-condensing)
  • Finishes for Shell: Anodized aluminum
  • Finishes for Magnetic: Zinc
  • Finishes for Armature: Zinc
  • Weight: 4.5kg / 9.9lb

Installation:

Package:

  • 1 x electromagnetic Lock
  • 1 x Installation Kit
  • 1 x User Manual

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 4.5 kg
