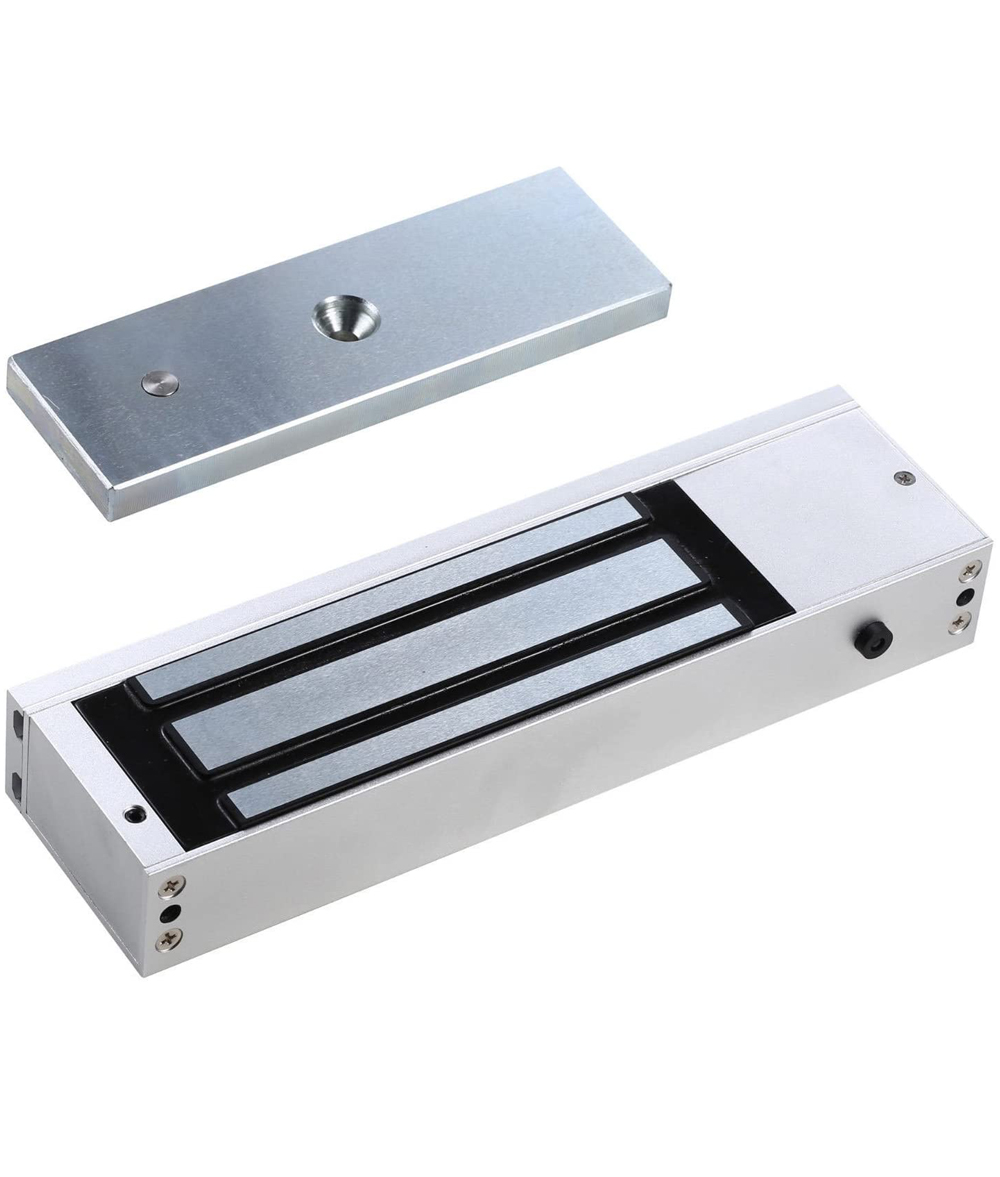

1200Lbs Holding Force Single Door Electric Magnetic Lock Fail Safe Mode

1200Lbs Holding Force Single Door Electric Magnetic Lock Fail Safe Mode

Features:

• Collinear Load Test 500kg/1200lb
• Dual Voltage 12 or 24 VDC
• LED Indicates the Door Status

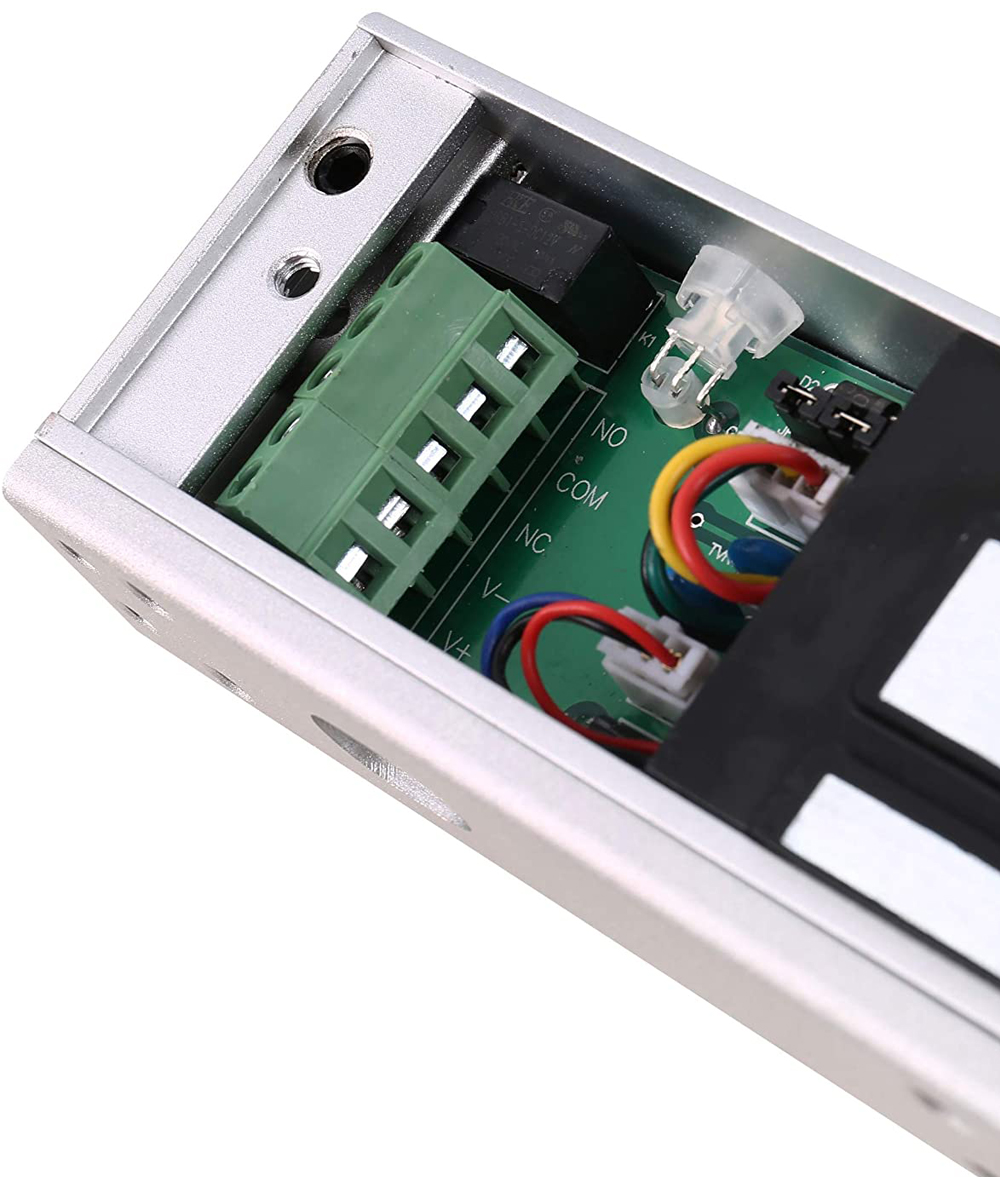

• Lock Status sensor(NO/NC/COM)
• Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door
• Dual Voltage 12 or 24 VDC(optional)
• The Standard Voltage is 12VDC when Finished
• MOV Provides Reverse Current Protection
• Anti-Residual Magnetism Designed
• High Strength Material, Anodized Aluminum Housing
• Design without Mechanical Failure
• Increase the holding Force, Dual Insulative Housing
• CE Certificate by European Union, MA Certificate by China Public Security Office

Specifications:

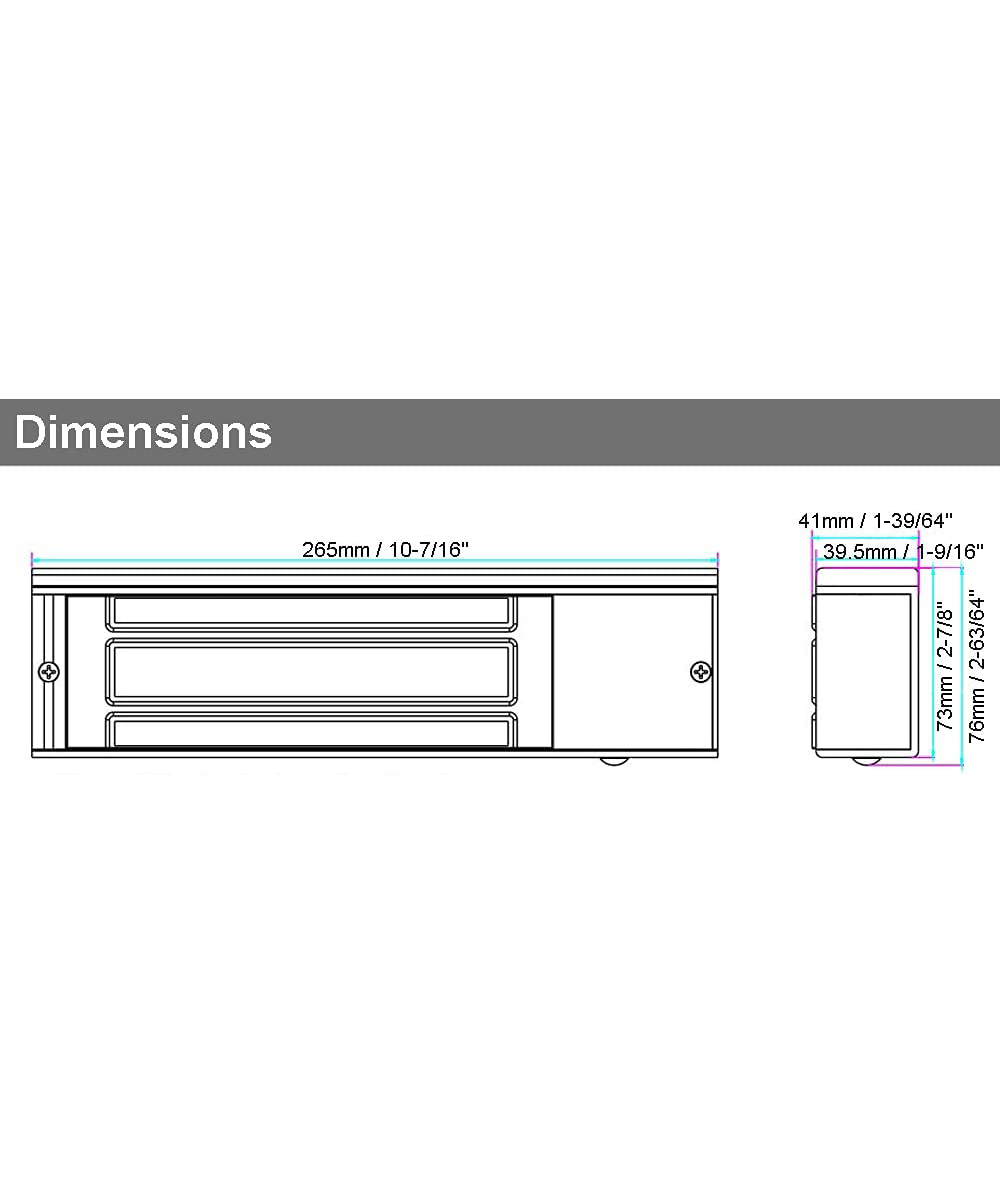

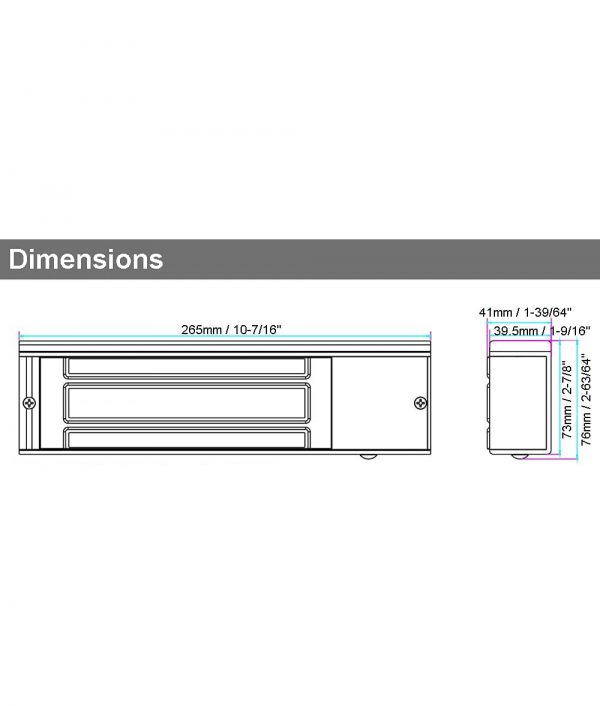

• Size: 265Lx71.8Wx38.8H(mm) / 10.4″x2.”x1.5″
• Armature plate: 185Lx60Wx13H(mm) / 7.3″x2.4″x0.5″
• Holding Force: 500kg/1200Lbs
• Voltage: 12 or 24VDC
• Current Draw: 12V/420mA or 24V/210mA
• Signal Output: Dry Contact, Max Rating of Contact Current 3A
• LED: Red indicates the door is unlock, Green indicates the door is lock
• Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
• Surface Temp: Less than +20℃ / 68℉
• Operating Temp: -10℃~+55℃(14℉-131℉)
• Suitable Humidity: 0~95%(non-condensing)
• Finishes for Shell: Anodized aluminum
• Finishes for Magnetic: Zinc
• Finishes for Armature: Zinc
• Weight: 4.5kg / 9.9lb

Attention:

• Armature plate installed too tight will lead to result the lock weak force, recommend loosen the armature plate screws a little in this case.
