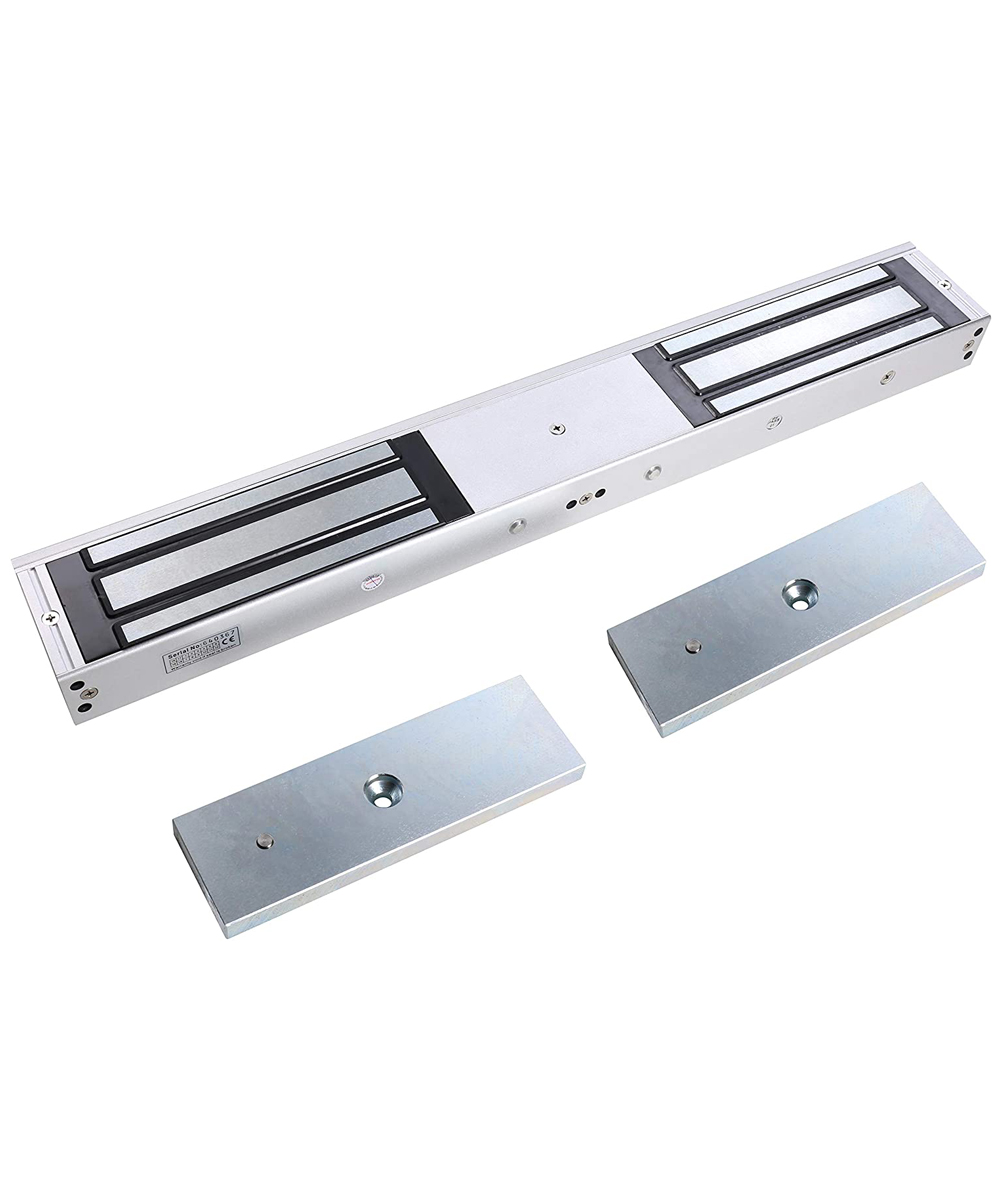

500Kg/1200Lbs Holding Force Electric Magnetic Lock for Double Door

$390.90

  • Collinear Load Test 500x2kg / 1200x2lb
  • Dual Voltage 12 or 24 VDC(optional)
  • LED Indicates the door status
  • Suitable for wooden door, glass door, metal door, fireproof door
SKU: UT-YM-500D(LED) Categories: ,

500Kg/1200Lbs Holding Force Electric Magnetic Lock for Double Door



Features:

  • Collinear Load Test 500x2kg / 1200x2lb
  • Dual Voltage 12 or 24 VDC(optional)
  • The Standard Voltage is 12VDC when Finished
  • MOV Provides Reverse Current Protection
  • Suitable for wooden door, glass door, metal door, fireproof door
  • LED Indicates the Door Status
  • Lock Status sensor (NO/NC/COM)
  • Anti-Residual Magnetism Designed
  • High Strength Material, Anodized Aluminum Housing
  • Design without Mechanical Failure
  • Increase the holding Force, Dual Insulative Housing

Specifications:

  • Size: 530Lx71.8Wx38.8H(mm) / 20.87Lx2.83Wx1.53H(in)
  • Armature plate: 185Lx60Wx13H(mm) / 7.28Lx2.36Wx0.51H(in)
  • Holding Force: 500kgx2 / 1200Lbsx2
  • Voltage: 12 or 24VDC
  • Current Draw: 12V/500mA*2 or 24V/250mA*2
  • Signal Output: Dry Contact,Max Rating of Contact Current 3A
  • LED: Red indicates the door is unlock,Green indicates the door is lock
  • Suitable for: Wooden door, Glass door ,Metal door, Fireproof door
  • Surface Temp: Less than +20℃ / 68℉
  • Operating Temp: -10℃~+55℃(14℉-131℉)
  • Suitable Humidity: 0~95%(non-condensing)
  • Finishes for Shell: Anodized aluminum
  • Finishes for Magnetic: Zinc
  • Finishes for Armature: Zinc
  • Weight: 9.0kg / 19.84lb

Package:

  • 1 x Lock
  • 1 x Installation Kit
  • 1 x User Manual

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 9 kg
