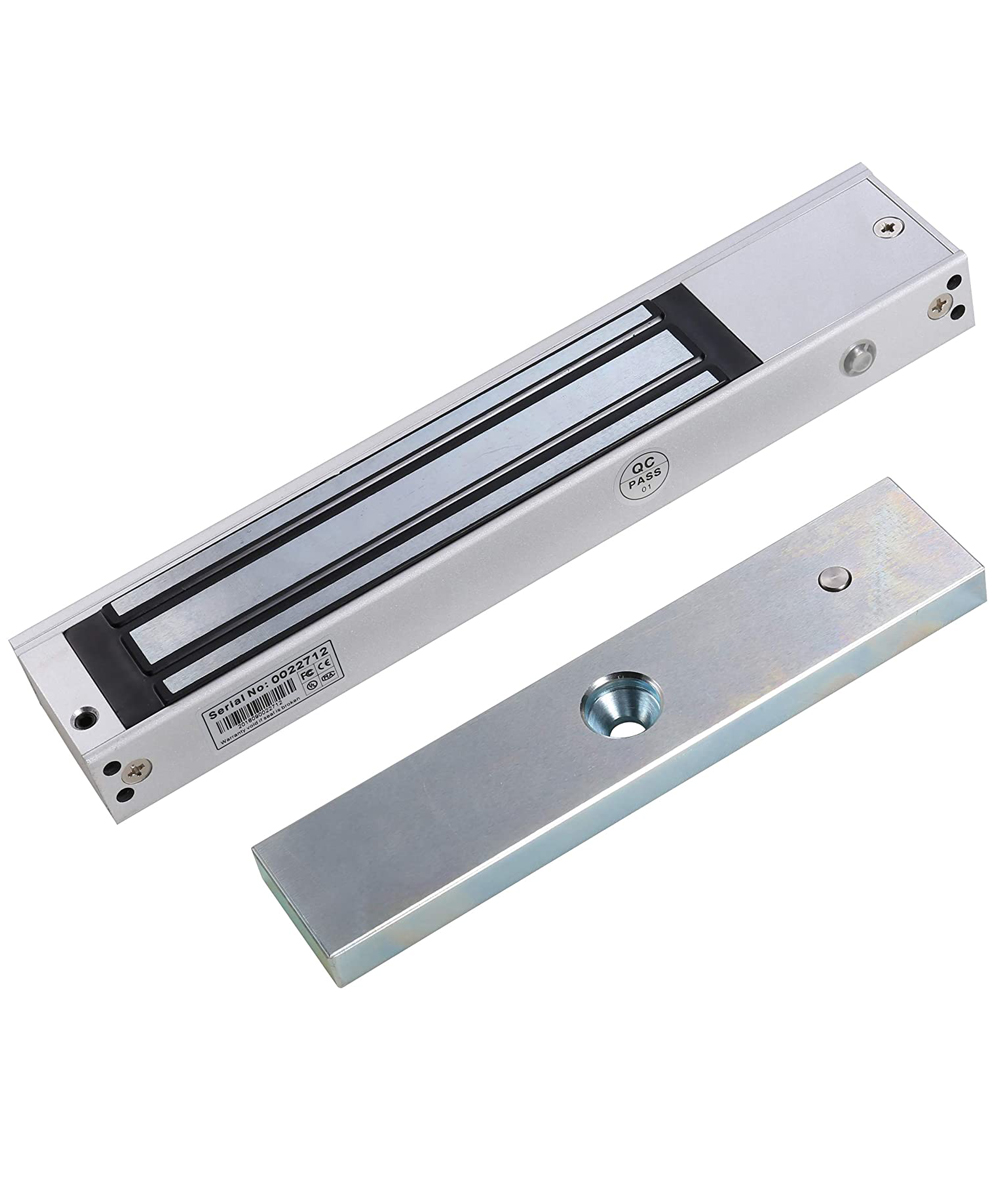

Electric magnetic Lock 600lb Holding Force Fail Safe with LED Sensor for Out-Swing Door

$96.99

  • NC mode – (locked while supplied with power), fail safe mode
  • LED Indicates the door Status
  • Holding force about 280kg (600lbs)
  • Suitable For: Wooden door, Glass door, Metal door, Fireproof door
SKU: UT0531-280 Categories: ,

Electric magnetic Lock 600lb Holding Force Fail Safe with LED Sensor for Out-Swing Door

Features:

  • NC mode – (locked while supplied with power), fail safe mode
  • LED Indicates the door Status
  • Holding force about 280kg (600lbs)
  • Suitable For: Wooden door, Glass door, Metal door, Fireproof door
  • Dual Voltage 12 or 24 VDC (Optional)
  • The Standard Voltage is 12VDC when Finished

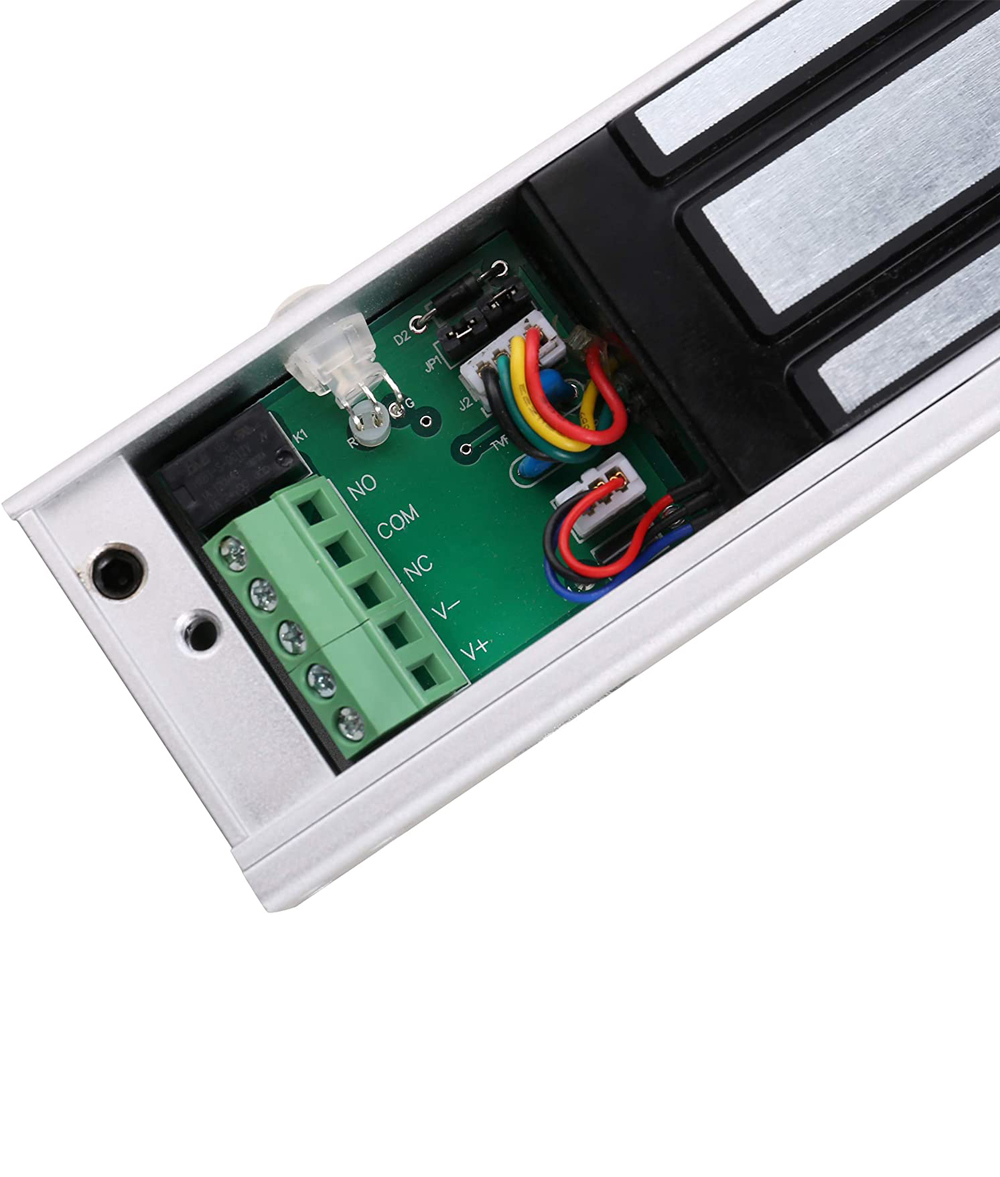

  • Output Contact: NO/NC/COM
  • MOV Provides Reverse Current Protection
  • Anti-Residual Magnetism Designed
  • High Strength Material, Anodized Aluminum Housing
  • Design without Mechanical Failure
  • Increase the holding Force,Dual Isolative Housing

Specifications:

  • Size (LxWxH): 250×48.8×27.9(mm) / 9.84″ x 1.92″ x 1.10″
  • Armature Plate Dimension (LxWxH): 180×38.8×13(mm) / 7.09″ x 1.53″ x 0.51″
  • Holding Force: 280kg / 600Lbs
  • Input Voltage: 12 or 24VDC
  • Current Draw: 12V/520mA or 24V/260mA
  • LED: Red shows locked; Green shows unlocked
  • Signal Output: Lock signal (NO/NC/COM)
  • Suitable: Wooden door, Glass door, Metal door, Fireproof door
  • Surface Temp: Less than +20℃ / 68℉
  • Operating Temp: -10℃~+55℃(14℉-131℉)
  • Humidity: 0~90%(non-condensing)
  • Cover Finish: Anodized aluminum
  • Lock Finish: Zinc
  • Armature Plate Finish: Zinc
  • Thickness of door leaf: 50mm
  • Product: Weight: 1.95KG / 4.3lb

Caution:

083f7d6b 7dfb 4c21 abb3 11af7311e426. CR00807807 PT0 SX300 V1

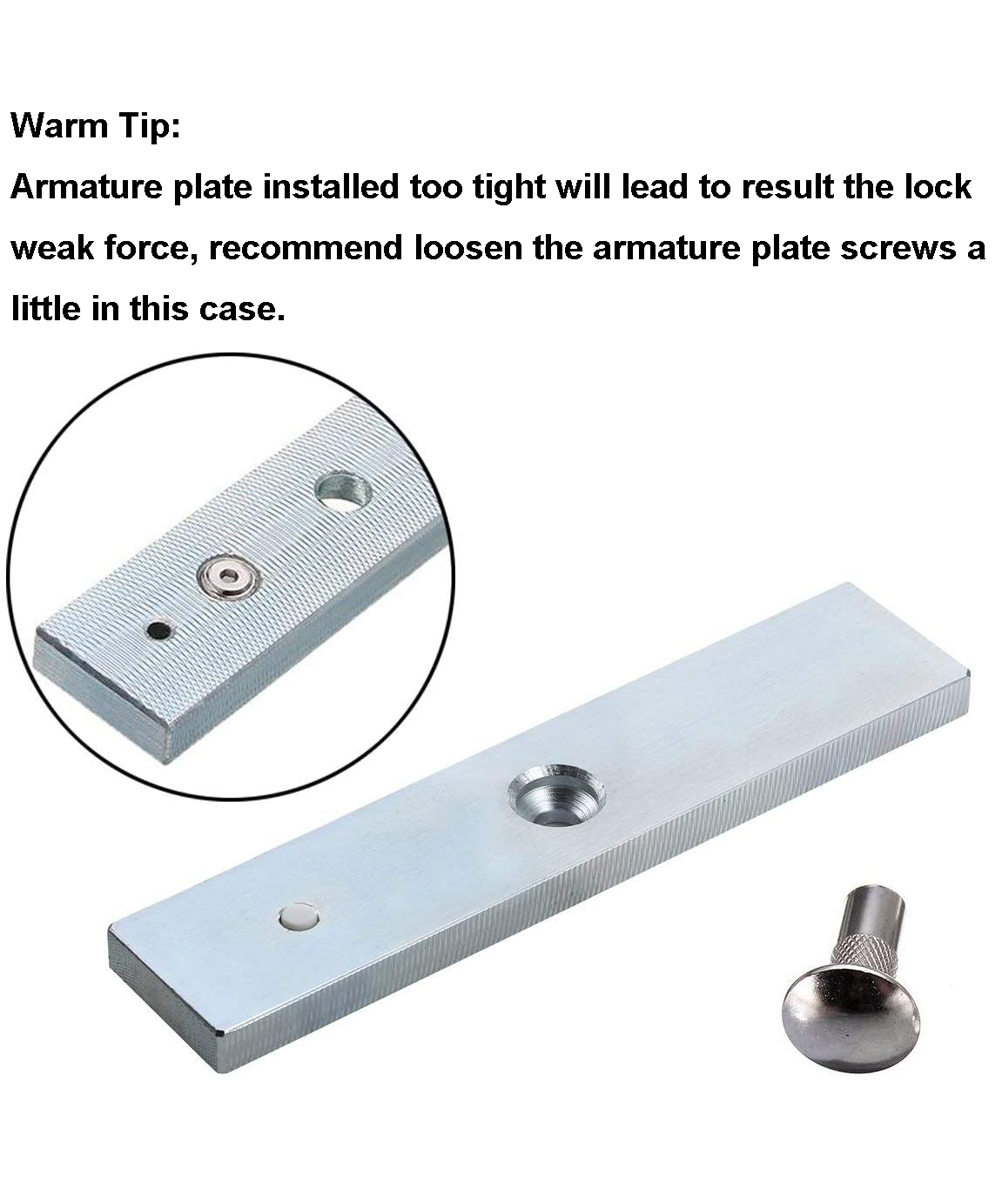

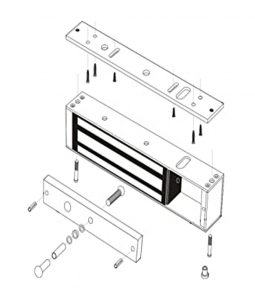

  • The screw of armature plate should not be fixed too tight. Proper elasticity should be guraranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.
  • Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.











dcd37545 129c 48b3 9c66 135498539e9b. CR00910910 PT0 SX300 V1

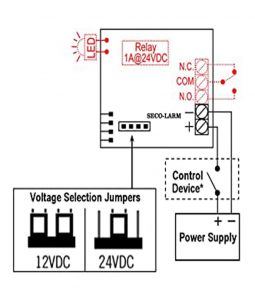

  • Dual Voltage 12 or 24 VDC (optional)
  • The Standard Voltage is 12VDC when Finished
  • Check the jumper’s position before connection. Figure out it represents 12VDC or 24VDC

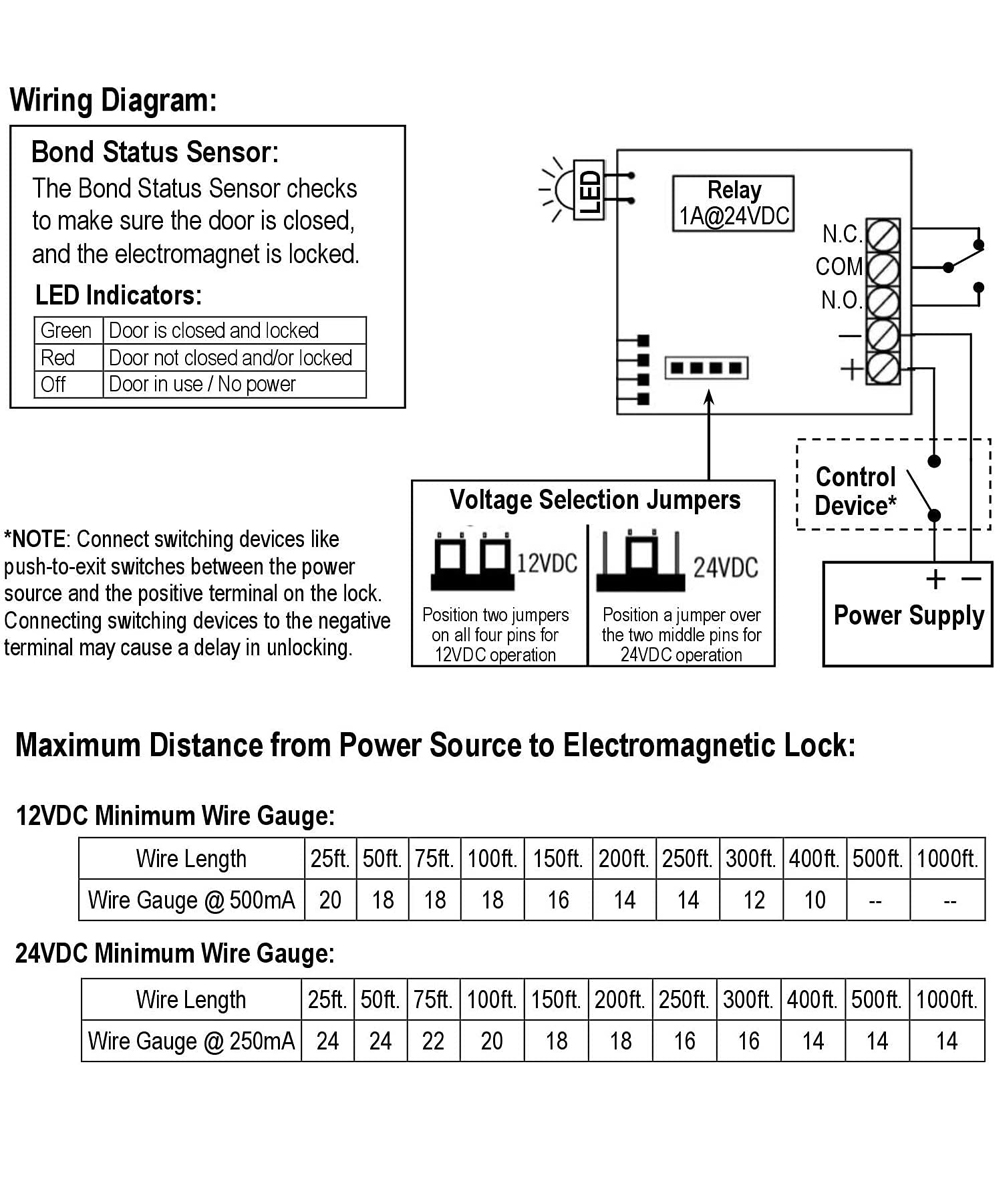

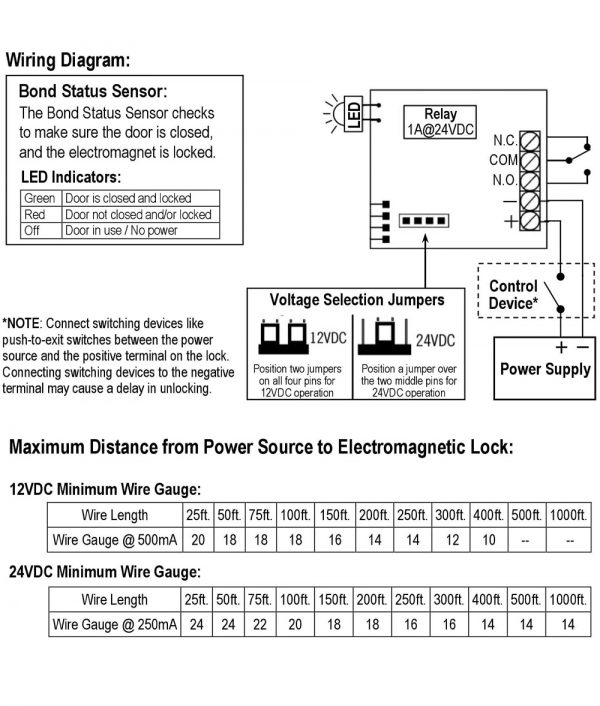

Wiring Video:

Package:

  • 1 x Electric Magnetic Lock
  • 1 x Armature Plate
  • 1 x User manual
  • 1 x Installation Kit

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.



Weight 1.95 kg

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

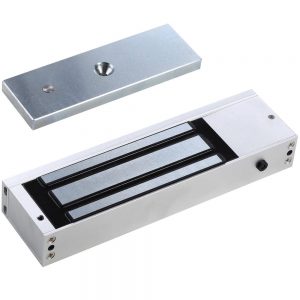

You may also like…
