Middle Reading Distance Range (Up to 40inches) RS232 Interface 125KHz RFID Proximity Card Reader for Access Control Parking System
- Data Output Format: RS232; Mainly used for parking, elevator, logistics industry,etc
- Card Type: 125khz EM-ID Card (Can’t support encrypted cards, such as HID, Indala, Cobra, APCiK , Paradox, Radio, Honeywell,etc)

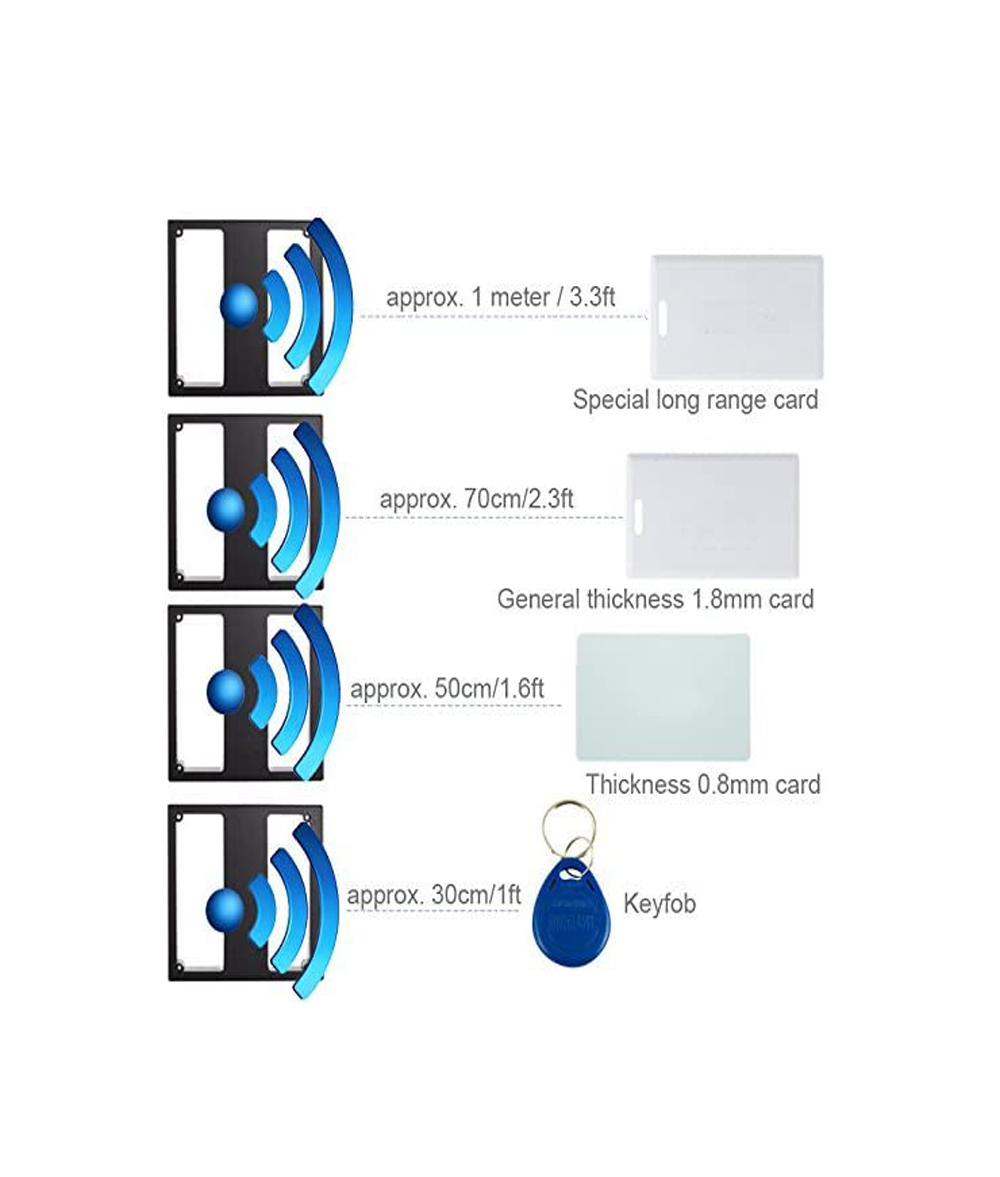

- 30cm-100cm proximity range dependence on cards quality
- The Reading range is a complex parameter,so called “Middle Range”,only means the unit works with the special long range card, that is a 2mm thickness credit size card
- Normally, the unit can also work with normal EM cards, normal 2mm/0.08″ thickness card can reach 60cm/23.6″ range, 0.8mm/0.03″ card can reach 40cm/15.7″ range
- Decode time: <0.2s
- Communication: RS232
- Card type: EM card, EM compatible card, EM4100/TK4100 (Can’t support some encrypted cards, such as HID, Cobra, APCiK, Paradox, etc)
- Frequency: 125KHz
- Induction Distance: Common Card up to 30-40cm / Long range proximity card up to 80-100cm
- Power supply: 12VDC
- Data transfer range: max.80mA
- Current: <200mA
- Working temperature: 0℃~70℃ / 32℉~158℉
- Working humidity: Less than 80%
- Dimension (LxWxH): 230*230*35mm / 9.1″x9.1″x1.4″
- Material: Plastic casing & epoxy saturated
- Built-in antenna: Yes
- Built-in buzzer: Yes
- Application: Parking, elevator, logistics industry, etc.
- The Reading range is a complex parameter, so called “1M range”,only means the unit works with the special long range card, that is a 2mm thickness credit size card.
Normally, the unit can also work with normal EM cards, normal 2mm thickness card can reach 60cm range, 0.8mm thickness card can reach 40cm range.

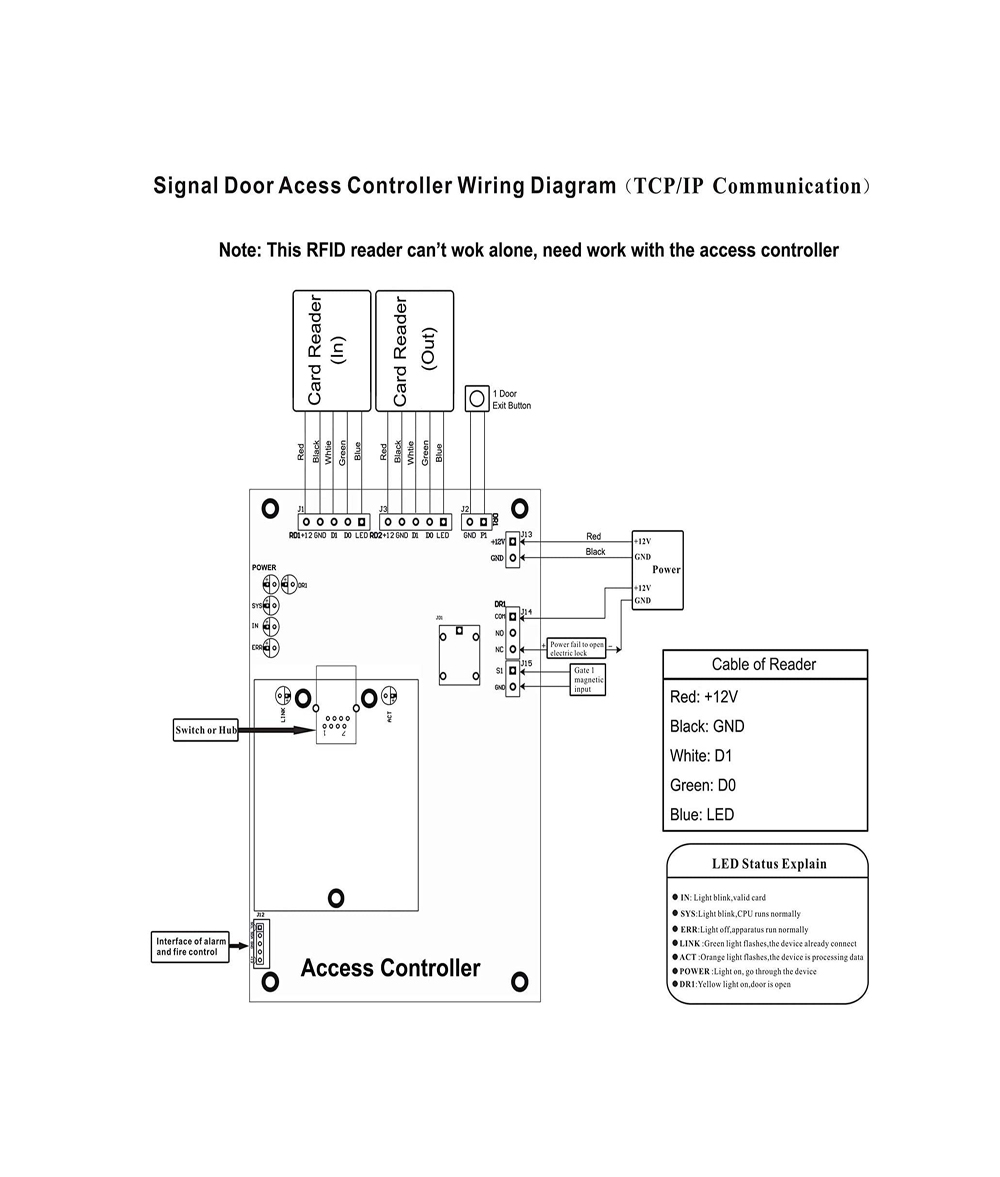

- Can’t work alone, need to work with access control panel.
- 1 x RFID Reader (Access control panel should buy seperately)
- 1 x English manual
