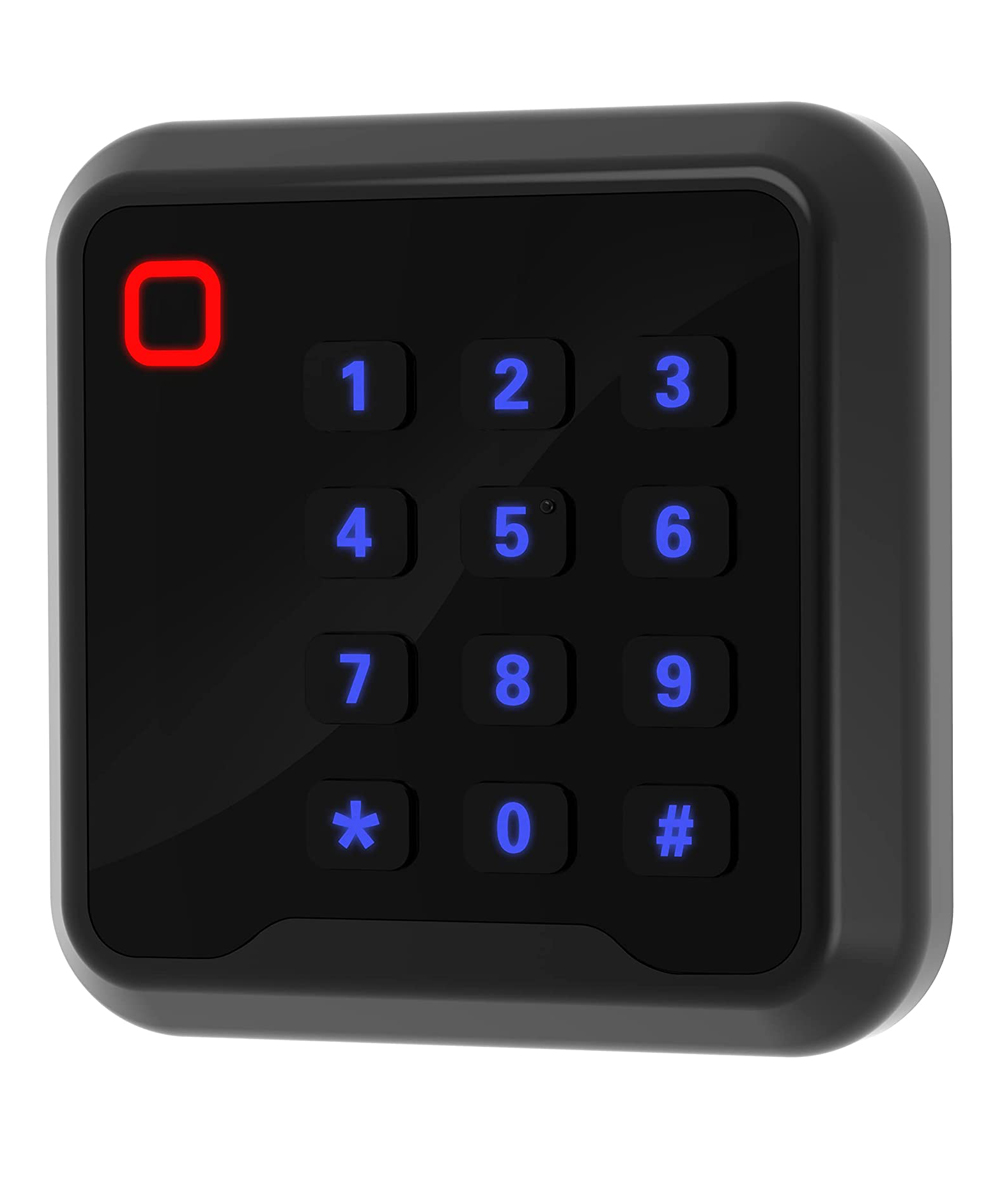

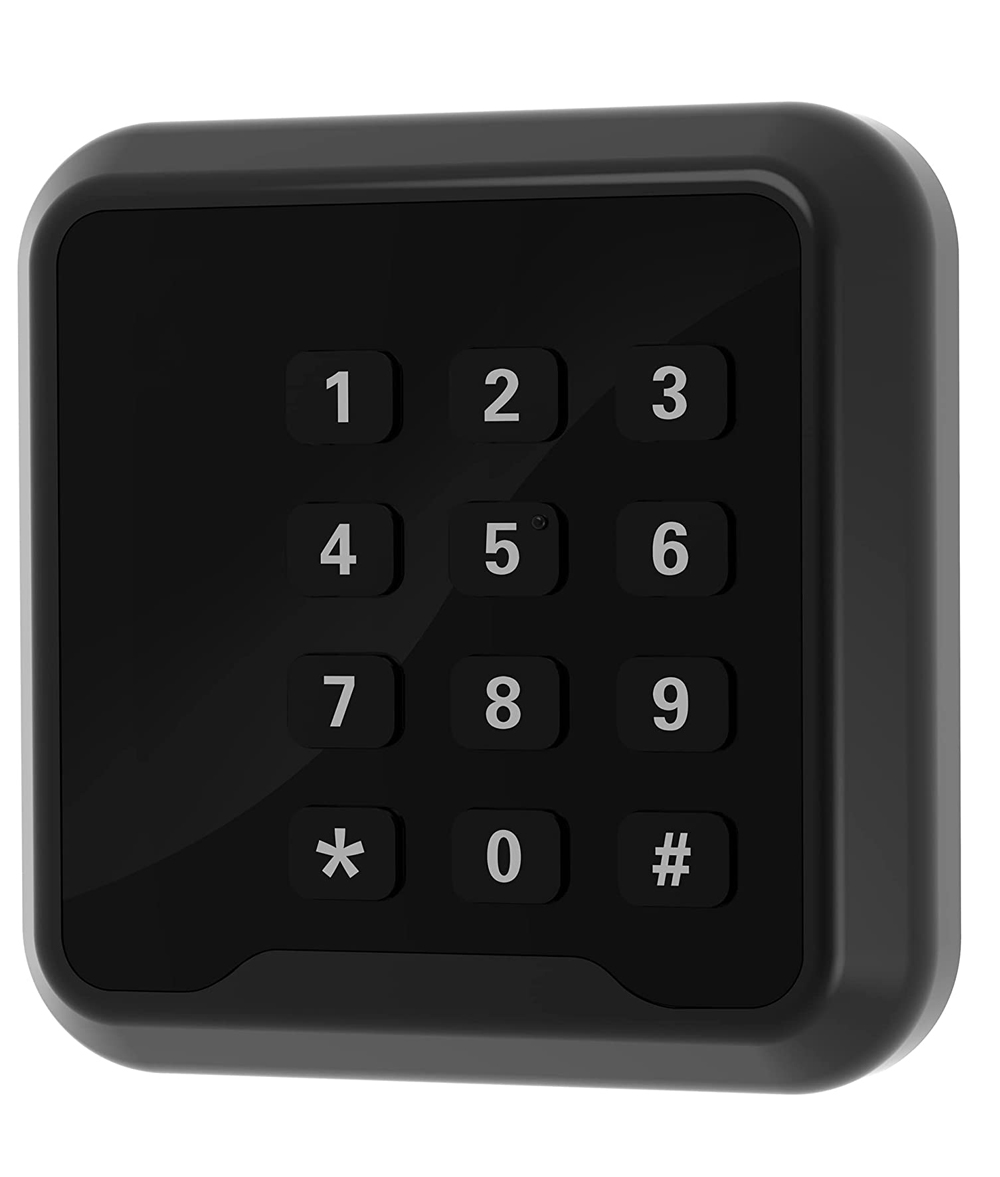

125KHz Wiegand 26/34 RFID EM ID Card Reader Keypad Connect for Access Control Board

$26.20

  • The RFID card reader can’t work-alone and it needs to work with Wiegand protocol access controller, such as access control panel, fingerprint device or master controller.
  • Support wiegand 26bits or wiegand 34bits output format.
  • Ultra-low power consumption, the standby current is less than 50mA
  • It uses high performance MCU to ensure stable performance, and low-power circuit makes the service life longer.
  • Widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.
SKU: UT0112-1003A Categories: ,

125KHz Wiegand 26/34 RFID EM ID Card Reader Keypad Connect for Access Control Board



Features:

  • The maximum reading distance is 6cm.
  • Waterproof, conforms to IP66.
  • It is useful for safety door system, easy to connect and use.
  • Ultra-low power consumption, the standby current is less than 50mA.
  • Support wiegand 26bits or wiegand 34bits output format.
  • Fast response speed, the door opening time is less than 0.3s.
  • This device uses high performance MCU to ensure stable performance, and low-power circuit makes the service life longer.
  • Widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.
  • This RFID card reader can’t work-alone and it needs to work with Wiegand protocol access controller, such as access control panel, fingerprint device or master controller.

Specifications:

  • Working Voltage: 12VDC
  • Static Current: ≤50mA
  • Card Type: EM-ID
  • Frequency: 125KHz
  • Working Temperature: -40 to +140°F
  • Working Humidity: 10%-90%RH
  • Waterproof Rating: IP66
  • Enclosure Material: Plastic
  • Panel Material: PC
  • Enclosure Color: Black
  • Enclosure Size: 86x86x18mm
  • Communication Distance: Less than 328ft
  • Lead Cable Length: 25cm
  • Status Indication: Bi-color LED + Buzzer
  • Output Format: Wiegand 26 bit or Wiegand 34 bit (Selectable)

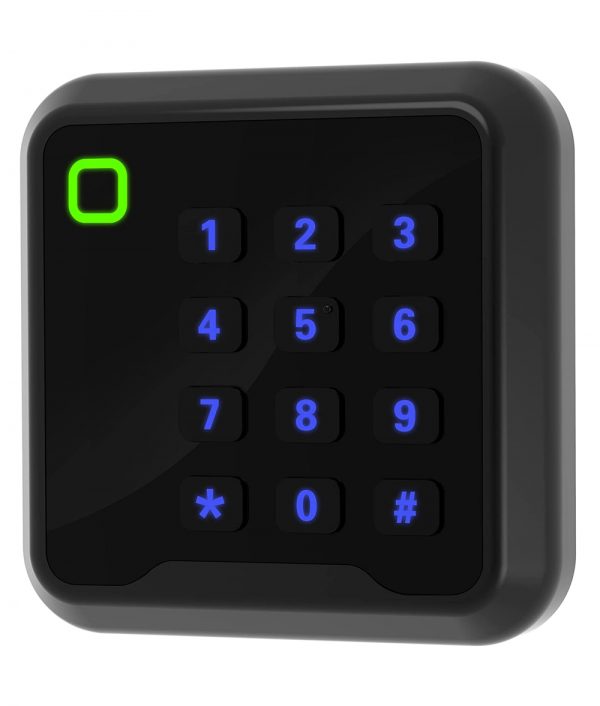

  • LED Status Indication: Red means standby, Green means activated

Note:

  • Please notice that our wiegand reader can’t be compatible with some encrypted cards, such as HID, Indala, Cobra, APCiK, Paradox, Radio, Honeywell,etc.
  • Can’t work alone, need work with access control panel.

Package:

  • 1 x Wiegand Reader
  • 1 x English User Manual
  • 4 x Plastic Anchors
  • 4 x #7 x 1″ Self-Tapping Screw

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 0.17 kg
Dimensions 8.6 × 8.6 × 2.1 cm
