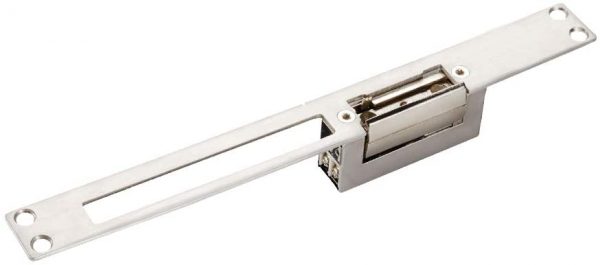

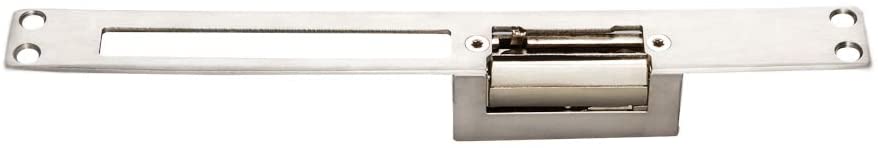

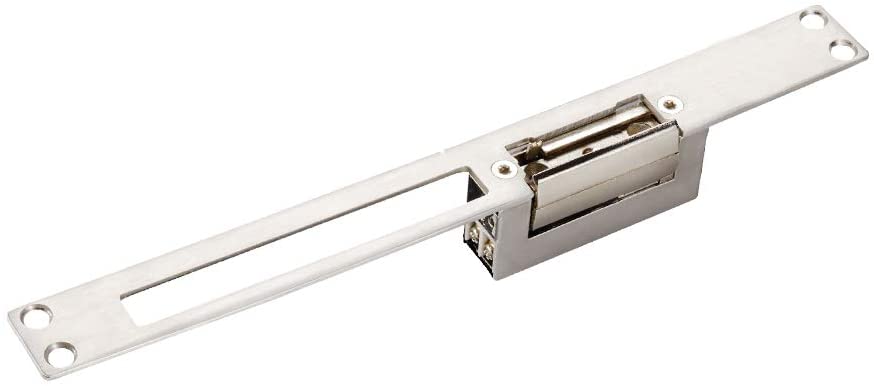

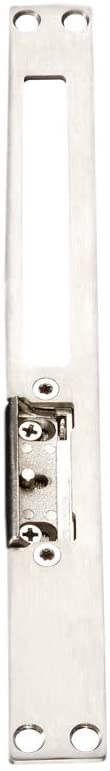

European Narrow Type Long Faceplate Fail Secure NO Electric lock Guard Cathode Strike Lock


This electric lock of  NO mode (fail secure) is high-temperature painted, durable and has classic elegant style, a good choice for home security.


SKU: UT-YS-134NO(L) Categories: ,

European Narrow Type Long Faceplate Fail Secure NO Electric Guard Cathode Strike Lock



  • Fail secure, NO mode (Locked when power is removed)
  • Special design,easy to adjust the distance of the Lock-tongue
  • The special design is that the spring bolt can be adjusted to be open all the time
  • Designed for Metal Frame drill a hole,then install it directly
  • Testing to 1000000 cycles
  • High-Temperature Painted,Duable and Beatiful Artical
  • CE Certificate by European Union, MA Certificate by China Public Security office

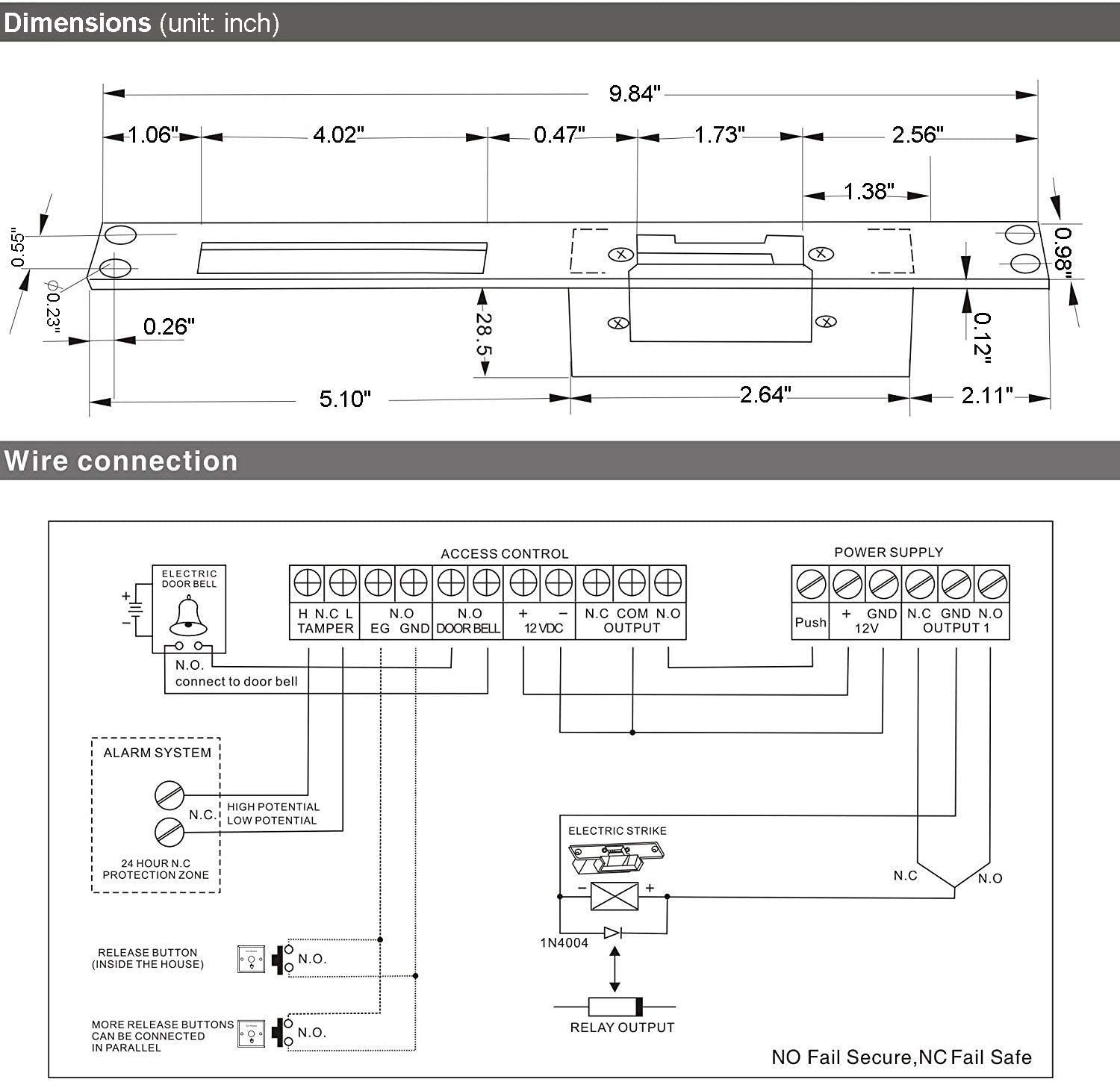

  • Lock Size: 250Lx25Wx31.5H(mm) / 9.42Lx0.98Wx1.23H(in)
  • Strike Structure: Zinc die-casting
  • Holding Force: 300kg / 661lb
  • Current: DC12V
  • Current: 650mA
  • Special Design: Adjust Lock-tongue to NO style
  • Suitable For: Narrow Wooden Door, Narrow Metal Door
  • Surface Temperature: Within +20℃ / 68℉
  • Suitable Temperature: -10℃~+55℃(14℉~131℉)
  • Operating Humidity: 0~90%(non-condensing)
  • Face plate Housing: Surface by coating nickel
  • Function: Built-out MOV
  • Weight: 0.35kg / 0.77lb


  • 1 x Lock

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 0.35 kg
Dimensions 25 × 2.5 × 3.15 cm
