Proximity 125KHz RFID Card Reader Wiegand 26 bit or Wiegand 34 bit for Door Access Control System
Features:
- The maximum reading distance is 6cm.
- Waterproof, conforms to IP66.
- It is useful for safety door system, easy to connect and use.
- Ultra-low power consumption, the standby current is less than 50mA.
- Support wiegand 26bits or wiegand 34bits output format.
- Fast response speed, the door opening time is less than 0.3s.
- This device uses high performance MCU to ensure stable performance, and low-power circuit makes the service life longer.
- Widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.
- The RFID card reader can’t work-alone and it needs to work with Wiegand protocol access controller, such as access control panel, fingerprint device or master controller.
Specifications:
- Working Voltage: 12VDC
- Static Current: ≤50mA
- Card Type: Standard EM-ID
- Transmit Frequency: 125KHz
- Working Temperature: -40 to +140°F
- Working Humidity: 10%-90%RH
- Waterproof Rating: IP66
- Enclosure Material: ABS Plastic
- Panel Material: PC
- Enclosure Size: 4-23/64″x2-53/64″x7/8″ [110.8×71.8×22.2mm]
- Communication Distance: Less than 328ft
- Lead Cable Length: 9-27/32″ [25cm]
- Status Indication: Bi-color LED + Buzzer
- Wiegand Output: Wiegand 26 bit or Wiegand 34 bit (Selectable)

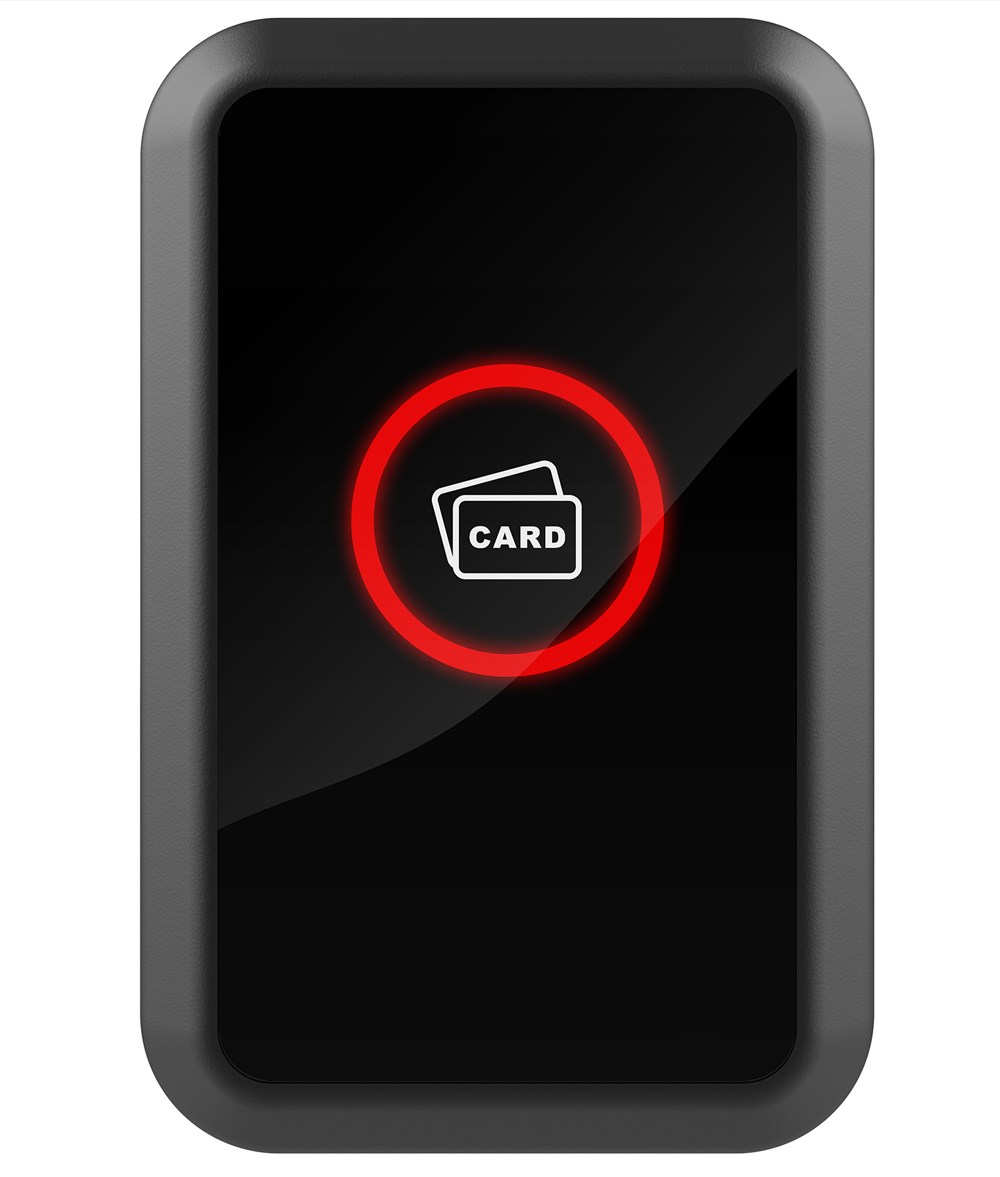

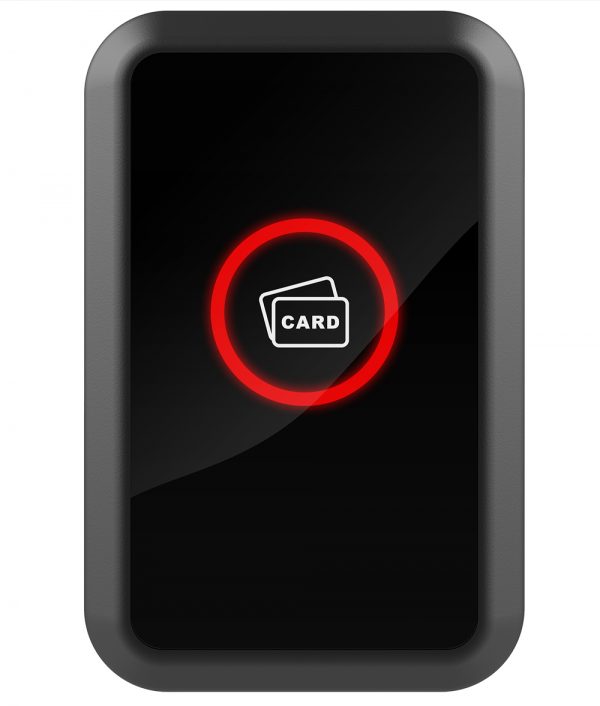

- LED Status Indication: Red means standby, Green means activated
Note:
- Please notice that our wiegand reader can’t be compatible with some encrypted cards, such as HID, Indala, Cobra, APCiK, Paradox, Radio, Honeywell,etc.
Package:
- 1 x Wiegand Reader
- Tip: As the RFID reader controlled by access control board, please refer to the manual of access control board for operate it.
More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.
