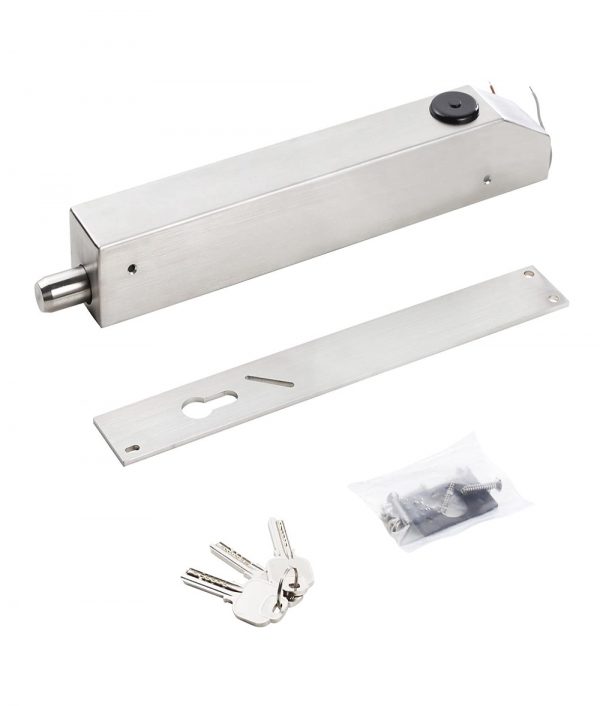

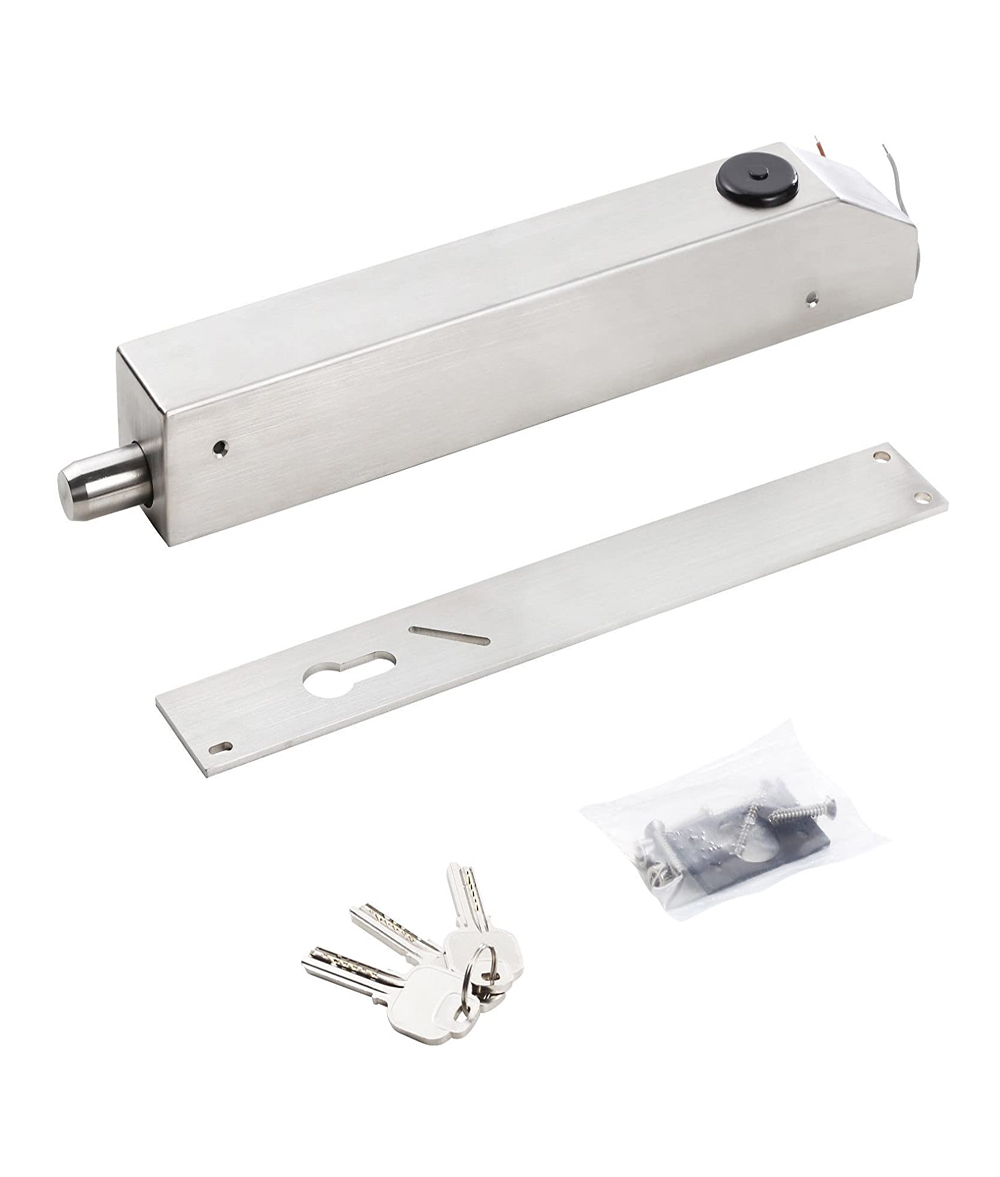

Fail Secure Electric Bolt Lock Surface Mounted W/ Cylinder for Steel Heavy Door
- Surface-mounted design,easy to install, stable and durable
- Designed for 180°double swing door, can be installed to the left or down.
- The professional Durable electromagnetic valve Design, The service life more than 500000 times(the special design guarantee the use for 5-10 years)
- Enhanced metal construction, the linkage parts use the strengthen Treatment Design, warranty the product more durable, more strong, can be normally operated under the the temperature of heat or severe cold
- Integral stainless steel Solid material can withstand 2000kg holding force. It’s different from the hollow lock bolt on market which after the processing of hollow tube plug with rubber and fall off easily under impact force or severe cold environment.

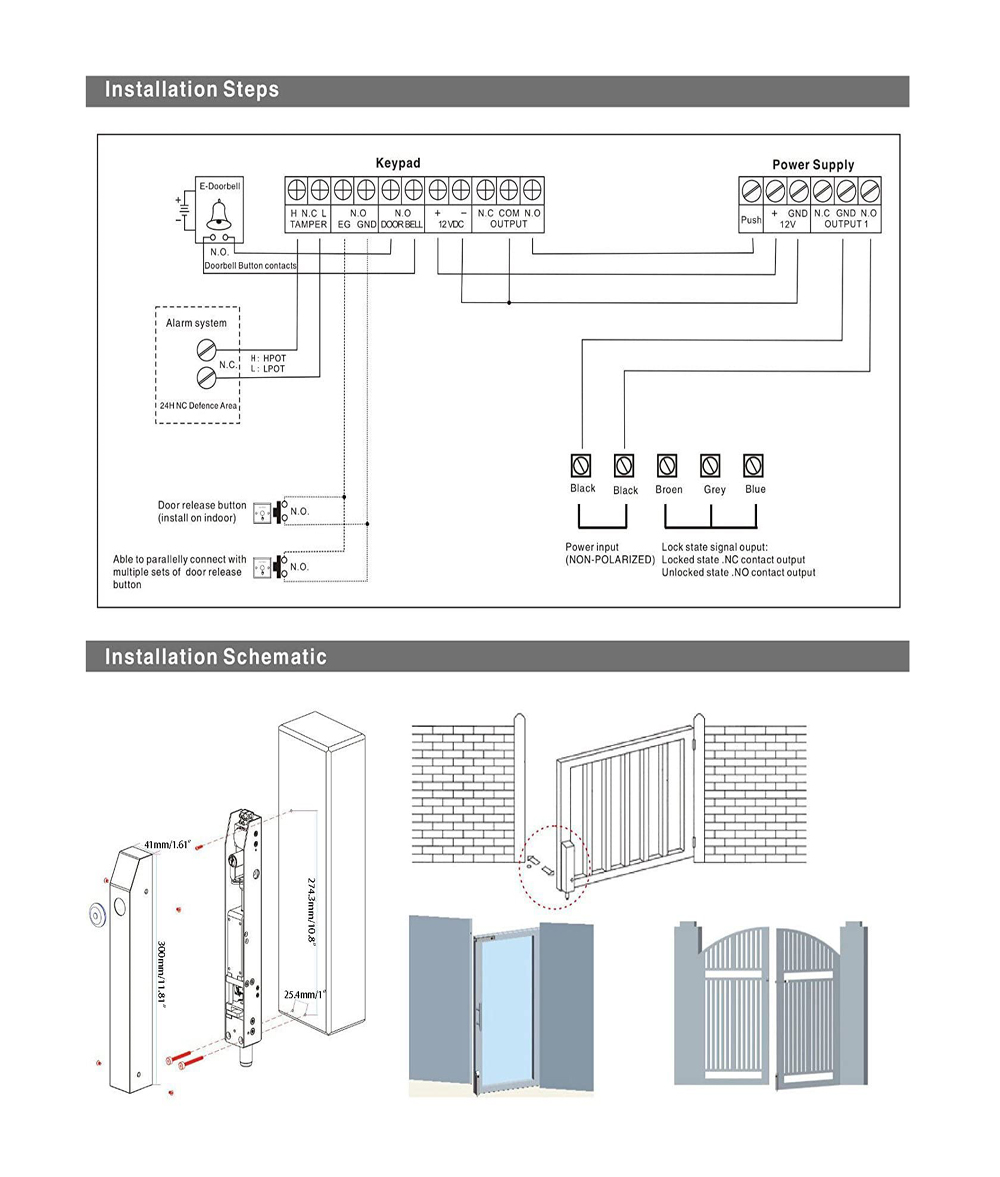

- A standard set of NO/NC/COM lock signal output.
- Special European-type cylinder design, In the daily able to use double function, both entrance guard control “electronic control” and emergency use “manual”
- The standard factory supporting is 35mm Unilateral key, the single cylinder or Double cylinder is optional
- Rain-proof design satisfy the installation request of indoor and outdoor.
- Feature: Fail secure, NO mode (Locked when power is removed)

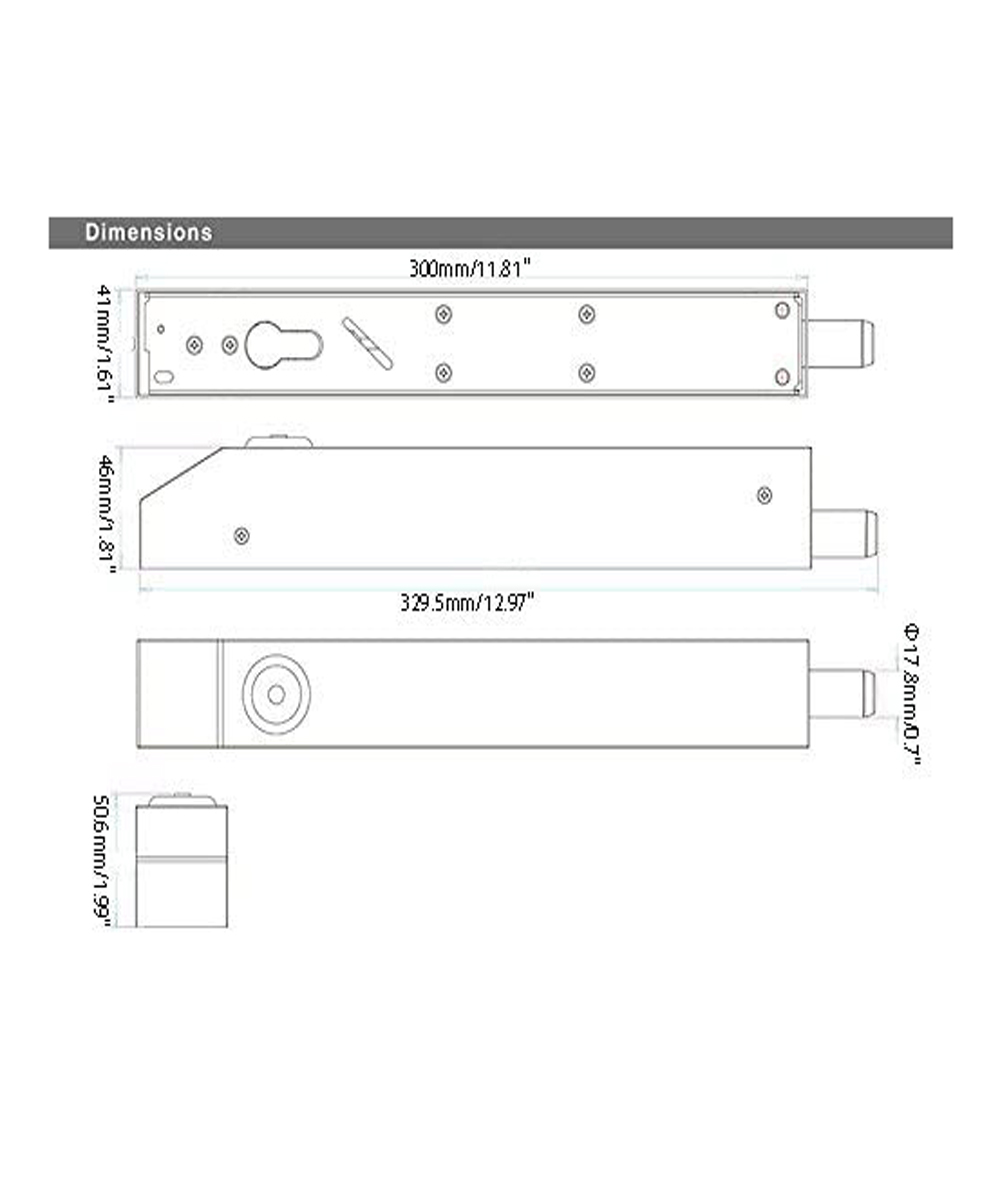

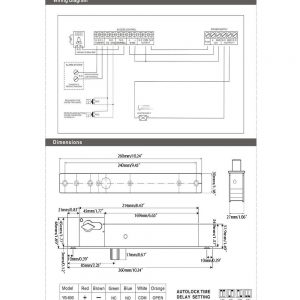

- Lock Body: 329.5Lx41Wx46H(mm) / 12.97″x1.61″x1.81″
- Bolt: 29.5(prolongation)*17.8(diameter)(mm) / 1.16″x0.7″
- Voltage: DC12V
- Start Current: 5.0A
- Standby Current: 0.6A
- Signal Output: Lock signal(NO/NC/COM)
- Bolt strength: 304 stainless steel, 2000kg/4409lb holding force
- Installation: Can be installed to the left or down
- Suitable For: Steel gates; Heavy door
- Material: 304 stainless steel
- Waterproof Level: IP-55
- Weight: 1.8kg / 3.97lb
- 1 x Electric Bolt Lock
