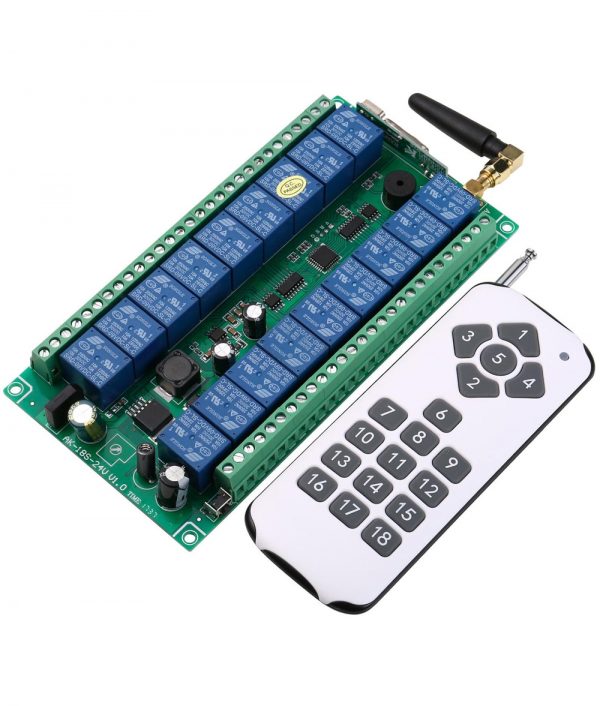

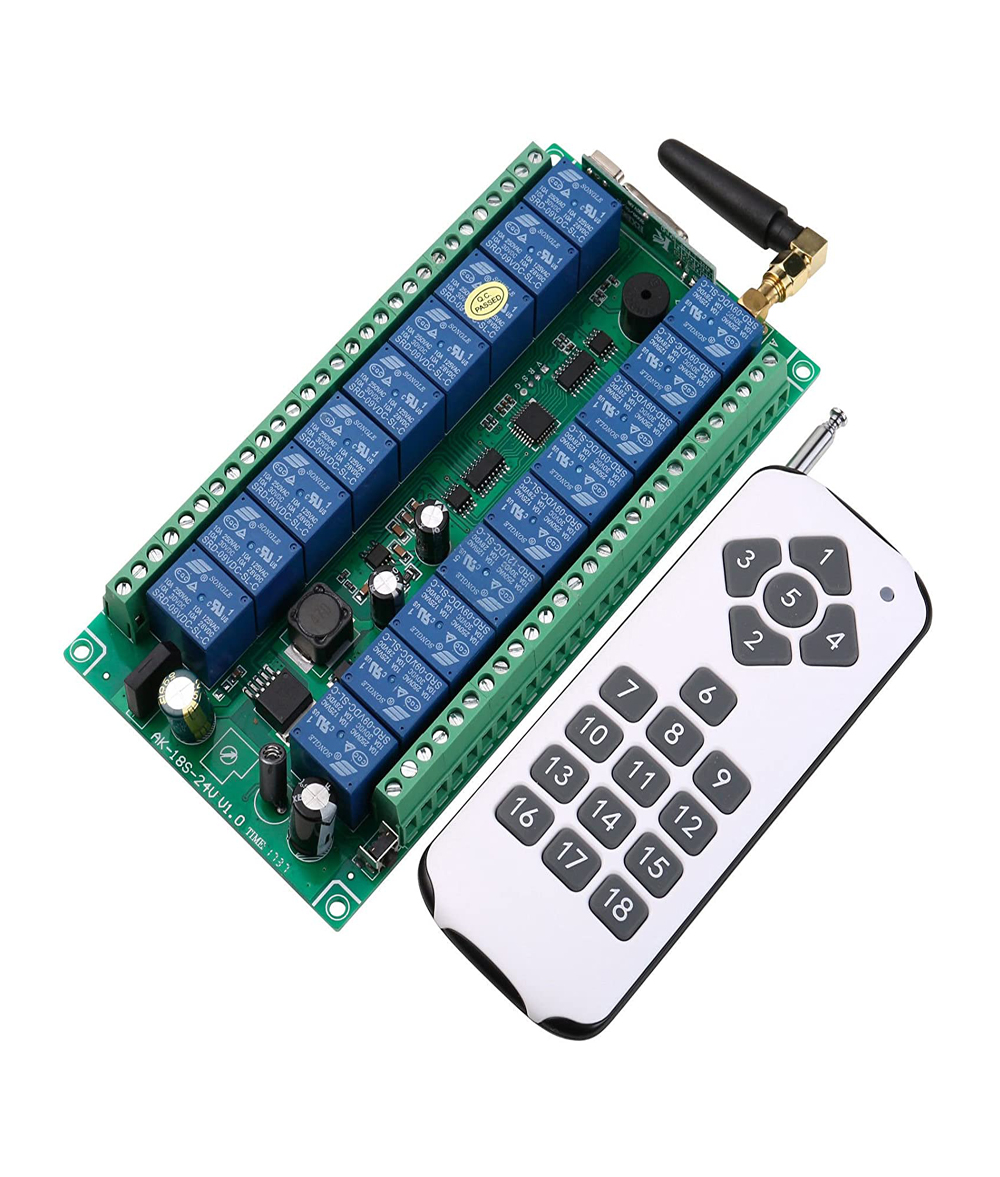

18CH 12-24VDC Wireless Remote Control Relay Switch Transmitter & Receiver 433Mhz

18CH 12-24VDC Wireless Remote Control Relay Switch Transmitter & Receiver 433MHz



Features

• Input Voltage: DC12V-24V
• The wireless RF signal can pass through walls, floors and doors.
• You can turn on/off the receiver with transmitter from any place within a reliable distance.
• It is a learning code wireless remote control switch (receiver), and the working mode can be changed according to your needs, it is easy to match the transmitter.
• Widely Used: Home appliances switch, lighting switch, wireless control products, switches, intelligent switches and other electronic equipment

Specifications

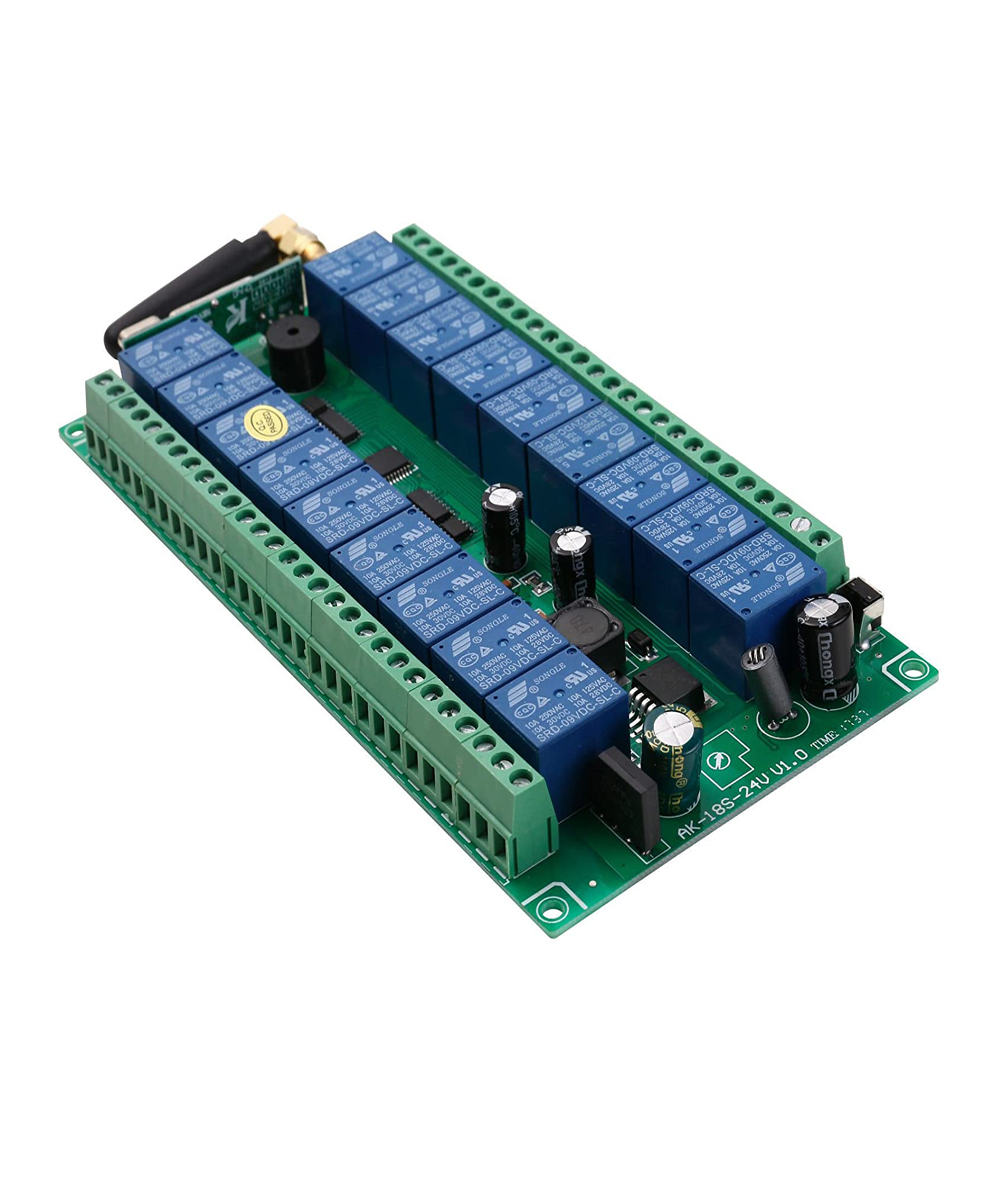

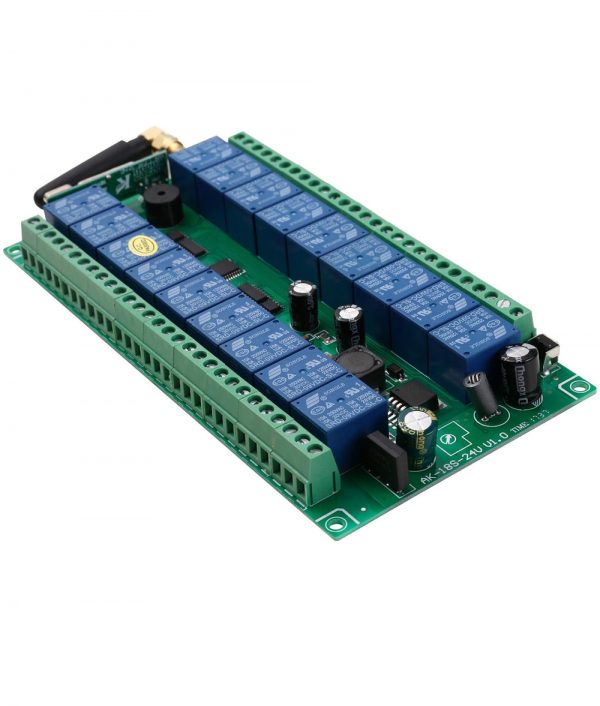

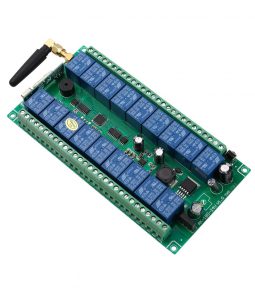

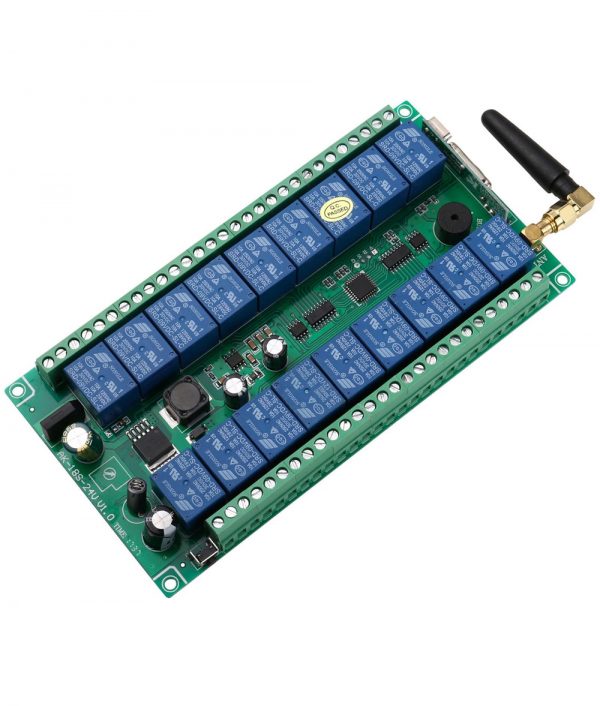

Receiver

• Input Voltage: DC12V-24V
• Coding Way: Learning code
• Standby Current: ≤15mA
• Working Frequency: 433MHz
• Max. Load: ≤10A
• Receive Sensitivity: ≥-105dBm
• Working Temperature: -4℉~158℉ (-20℃~70℃)
• Receiver Size: 6-11/16″x3-25/64″x11/16″ (170x86x17.3mm)
• Attention: Mount case not included

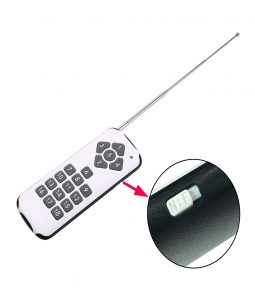

Transmitter

• Operating Voltage: 12V
• Operating Frequency: 433MHz
• Vibration Resistance: 4.7M
• Modulation: ASK (Stable, less interference)
• Battery Type: 12V 23A (Included)
• Remote Control Distance: 98-27/64ft ~ 656-11/64ft (30~200m) without Block
• Working Temperature: -22℉~158℉ (-30℃~70℃)
• Working Humidity: <95%
• Dimensions: 5-3/16″x2-3/32″x39/64″ (131.7x53x15.3mm)

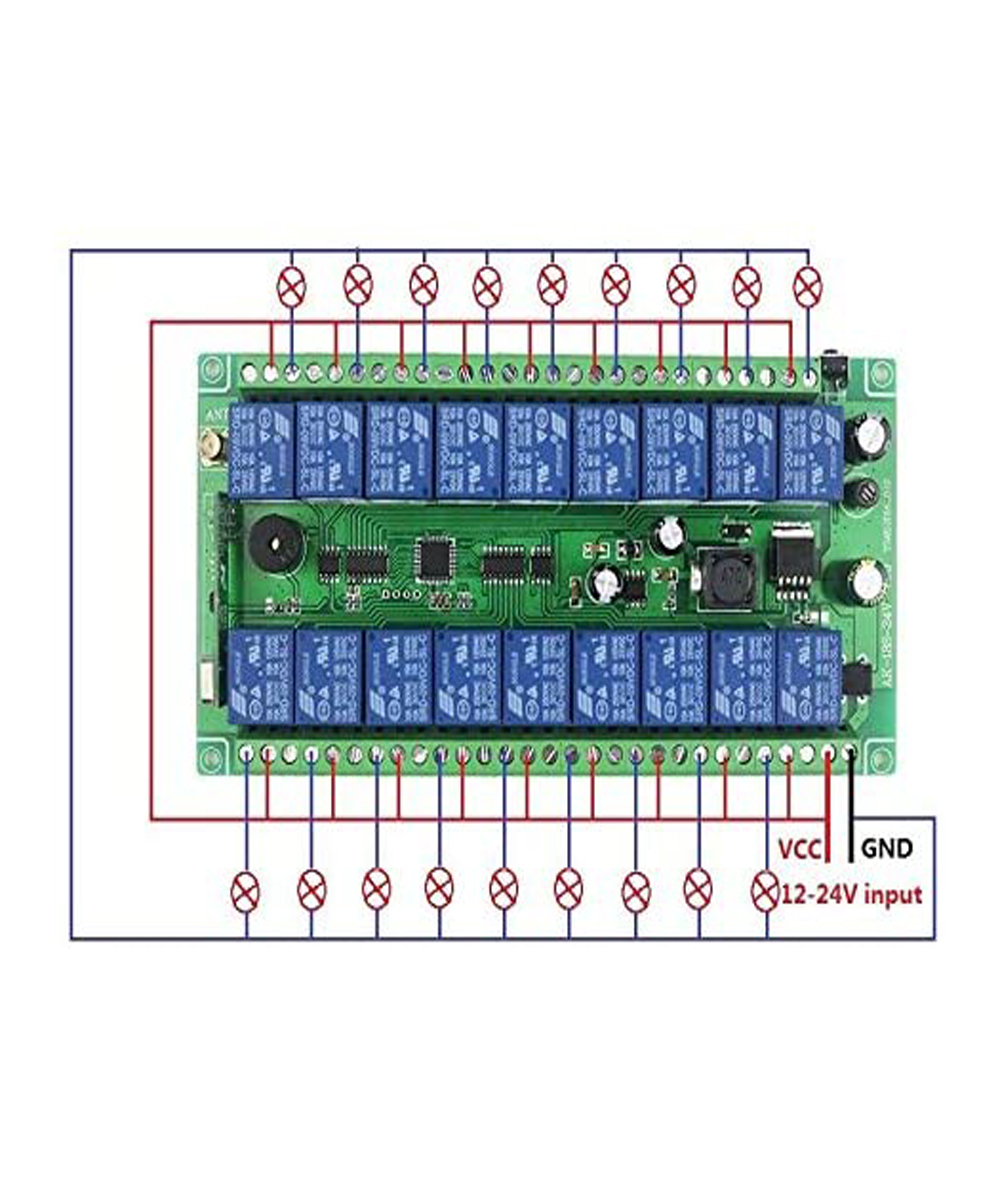

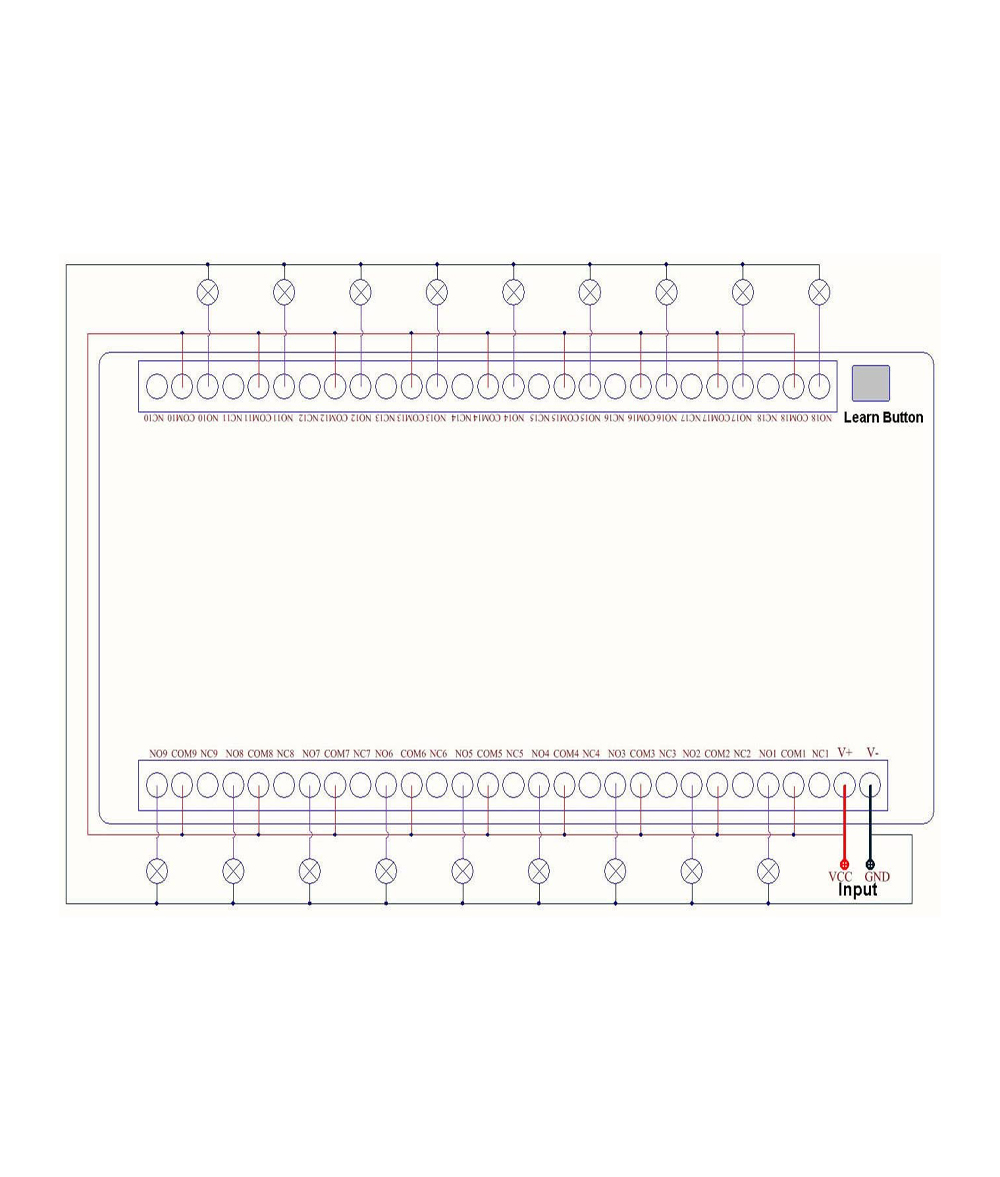

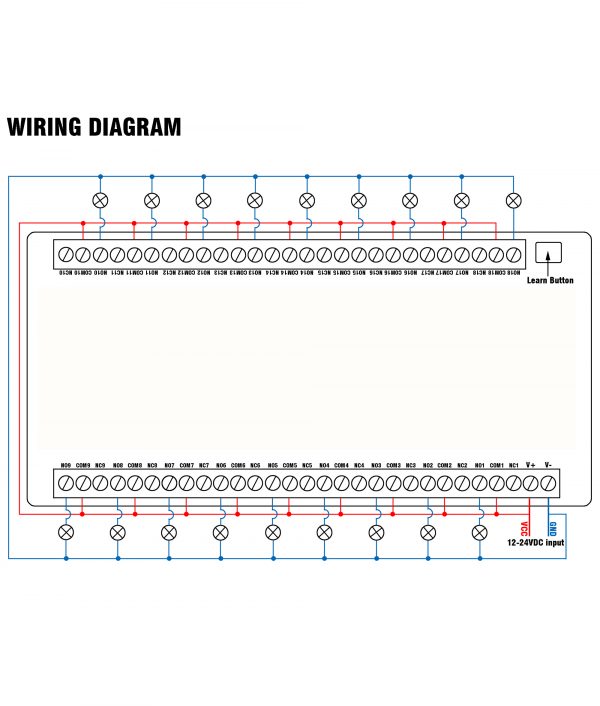

Instructions

Operating Method

• Pairing: Press the learn button on the receiver, the buzzer beeps. Release the learn button and press the button on the transmitter which needs to be paired about 2 seconds. The buzzer beeps 8 times and stops to indicate the pairing is successful.
• Unpairing: Press and hold the learn button on the receiver, the buzzer beeps until it stops. It indicates the unpairing is successful.

Working Mode Switching

1) Momentary

• Press the learn button on the receiver for 3 seconds, the buzzer beeps once. Then press button “1” on the transmitter, the buzzer beeps again. The working mode of all channels is set to Momentary. (Default)

2) Latched

• Press the learn button on the receiver for 3 seconds, the buzzer beeps once. Then press button “2” on the transmitter, the buzzer beeps again. The working mode of all channels is set to Latched.

3) Toggle

• Press the learn button on the receiver for 3 seconds, the buzzer beeps once. Then press button “3” on the transmitter, the buzzer beeps again. The working mode of all channels is set to Toggle.

4) 1CH-9CH is Momentary and 10CH-18CH is Toggle

• Press the learn button on the receiver for 3 seconds, the buzzer beeps once. Then press button “4” on the transmitter, the buzzer beeps again. The working mode of 1CH to 9CH is set to Momentary, and 10CH to 18CH is set to Toggle.

5) 1CH-9CH is Momentary and 10CH-18CH is Latched

• Press the learn button on the receiver for 3 seconds, the buzzer beeps once. Then press button “5” on the transmitter, the buzzer beeps again. The working mode of 1CH to 9CH is set to Momentary, and 10CH to 18CH is set to Latched.

6) 1CH-9CH is Latched and 10CH-18CH is Toggle

• Press the learn button on the receiver for 3 seconds, the buzzer beeps once. Then press button “6” on the transmitter, the buzzer beeps again. The working mode of 1CH to 9CH is set to Latched, and 10CH to 18CH is set to Toggle.

Package

• 1 x Transmitter
• 1 x Receiver
• 1 x English Manual
