HBK-RW01+T01 | 2.4GHz WiFi Remote Control Switch with DC Power Connector Specially Applied to Access Control Lock


“该 套件的主要功能是,您只需按下无线RF遥控器即可打开门,而无需在有人拜访时实际移动到门上。遥控器与无线接收器进行通信,该接收器可以对多达40个遥控器进行编程,射程为160英尺

HBK-RW01 + T01 2.4GHz WiFi Remote Control Switch with DC Power Connector Specially Applied to Access Control Lock



  • The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the wireless receiver, which can program up to 40 remotes, and it has a range of 160 feet.
  • EASY USE: Transmits data to a cloud platform through the Wi-Fi Router, which enables you to remotely control the connected appliances via free eWeLink App. You can download the iOS version in App Store and the Android version in Google Play.
  • SHARE CONTROL: Share control with your family and friends. Also you can DIY set this by yourself easy handling and can be activated immediately and stably.
  • TIMING FUNCTION: Another feature available if to set timing schedules for the appliances, which can include countdown, scheduled on/off. It’s simple, giving you one less thing to worry about in your busy life.
  • Attention: Specialized for the electric access control lock

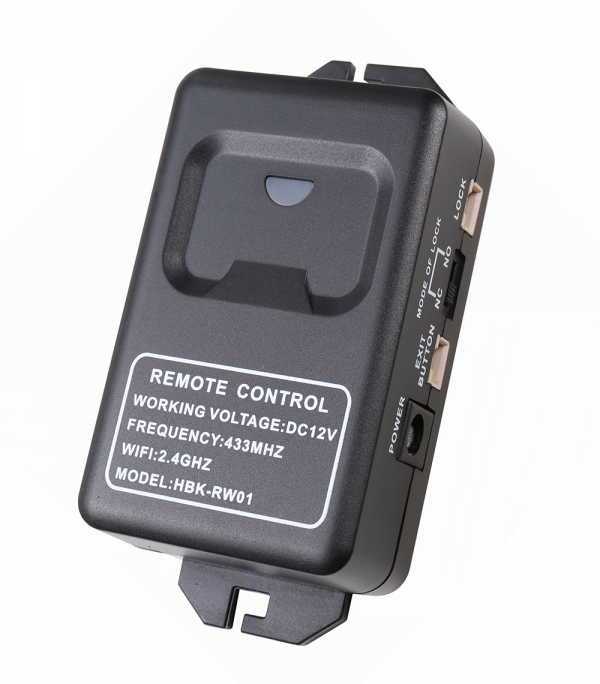

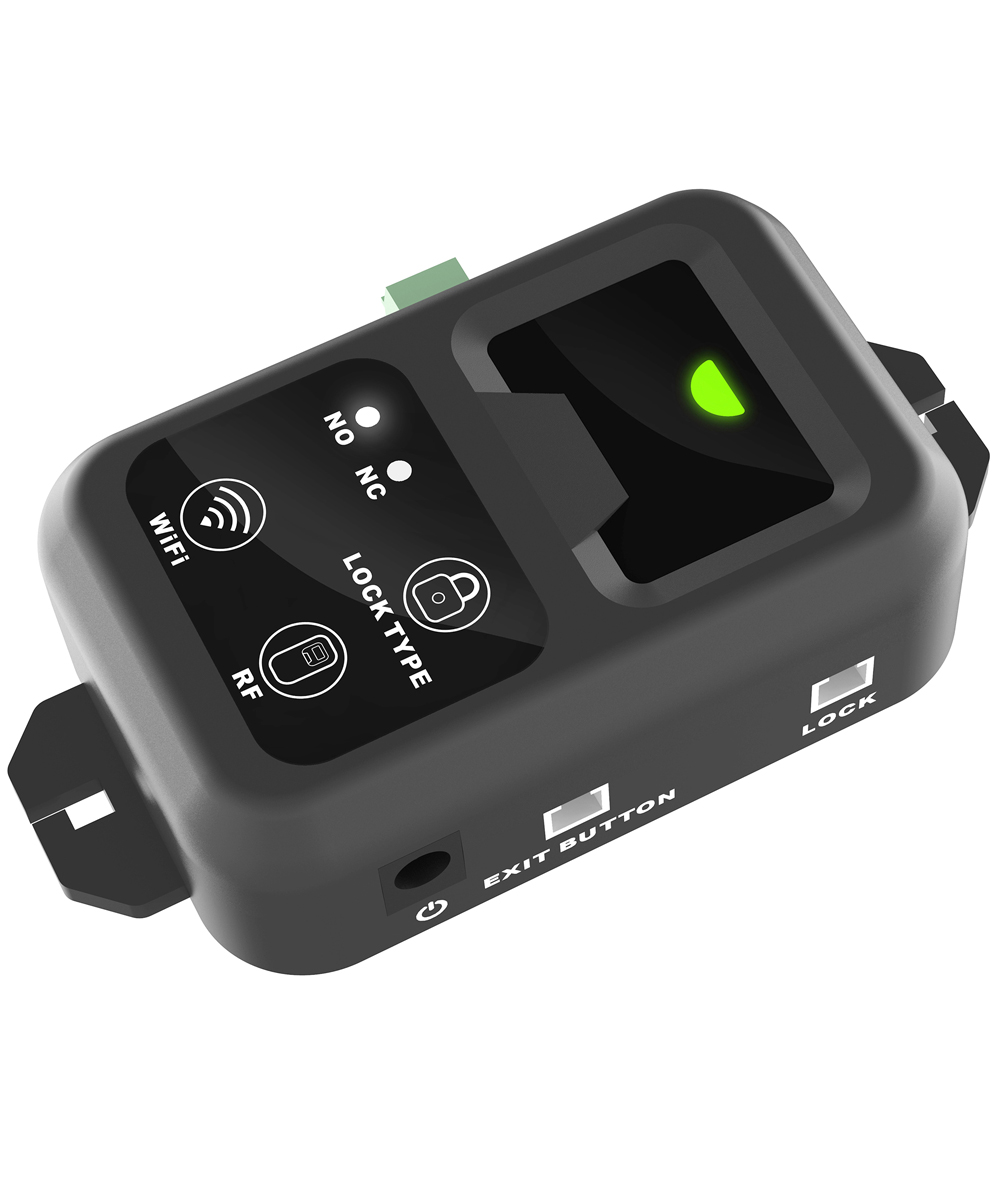

WIFI Remote Receiver:

  • Voltage: 12VDC
  • WIFI Standard: Wi-Fi 2.4GHz
  • Frequency: 433MHz
  • RF channels: One
  • DC Encoding Type: Learning code
  • No. of Remotes that are able to connect to one Receiver: Up to 40
  • Firing Range: 160 feet (open) in theory, 15%-30% in reality
  • Working Mode: Momentary/Toggle
  • Built-in DC power connector, wiring easy

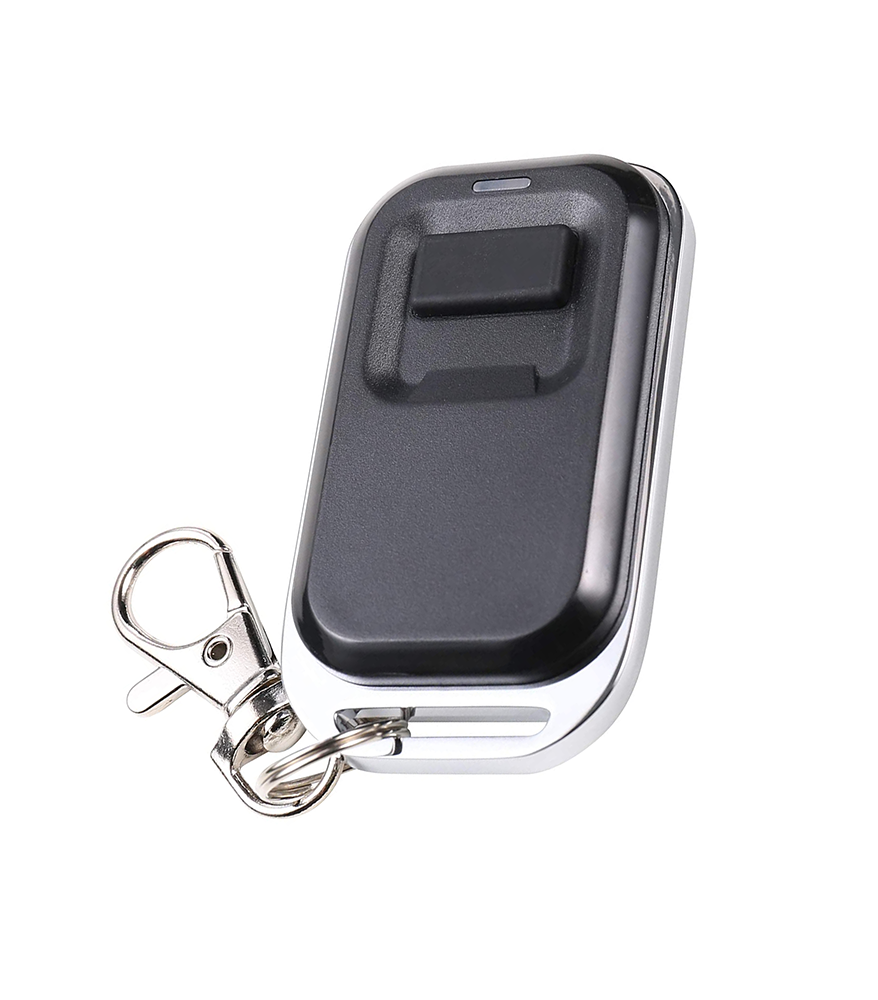

Remote Transmitter:

  • Working Voltage: 6VDC (Built-in button battery)
  • Operating Current: 8MA
  • Powered By: 2 pcs CR2016/3V batteries
  • Service Life of the Battery: 50000 cycles tested
  • Transmitting Frequency: 433MHZ
  • Case Material: PC+ABS
  • Key: 1 Key
  • EncodingType: Fixed code

12V Power Adapter:

  • Type: 12V/1A Power Supply Wall Charger
  • Input: AC100V-240V 50/60Hz
  • Max Output: DC12V / 1.2A (1200mA)
  • AC Cord length: 4 feet / 1.2 meter
  • Wire Type: 22AWG
  • Output transformer adapter : 5.5 X 2.1 mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
  • Net weight: 66g / 2.3oz

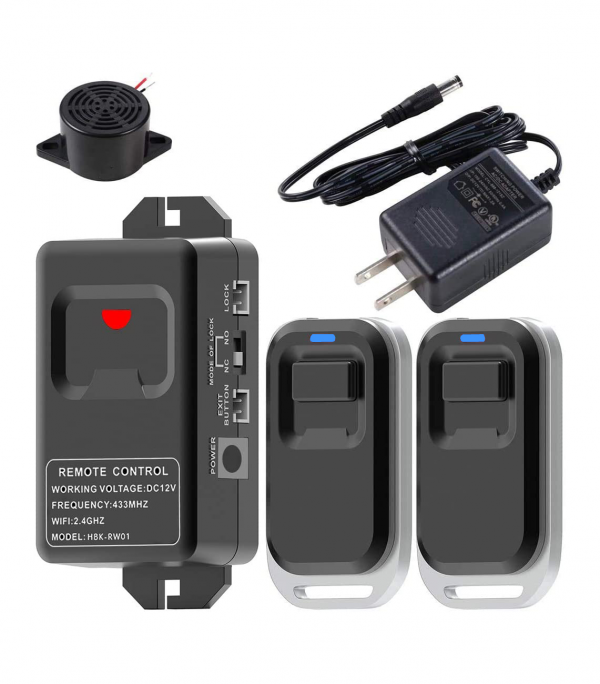

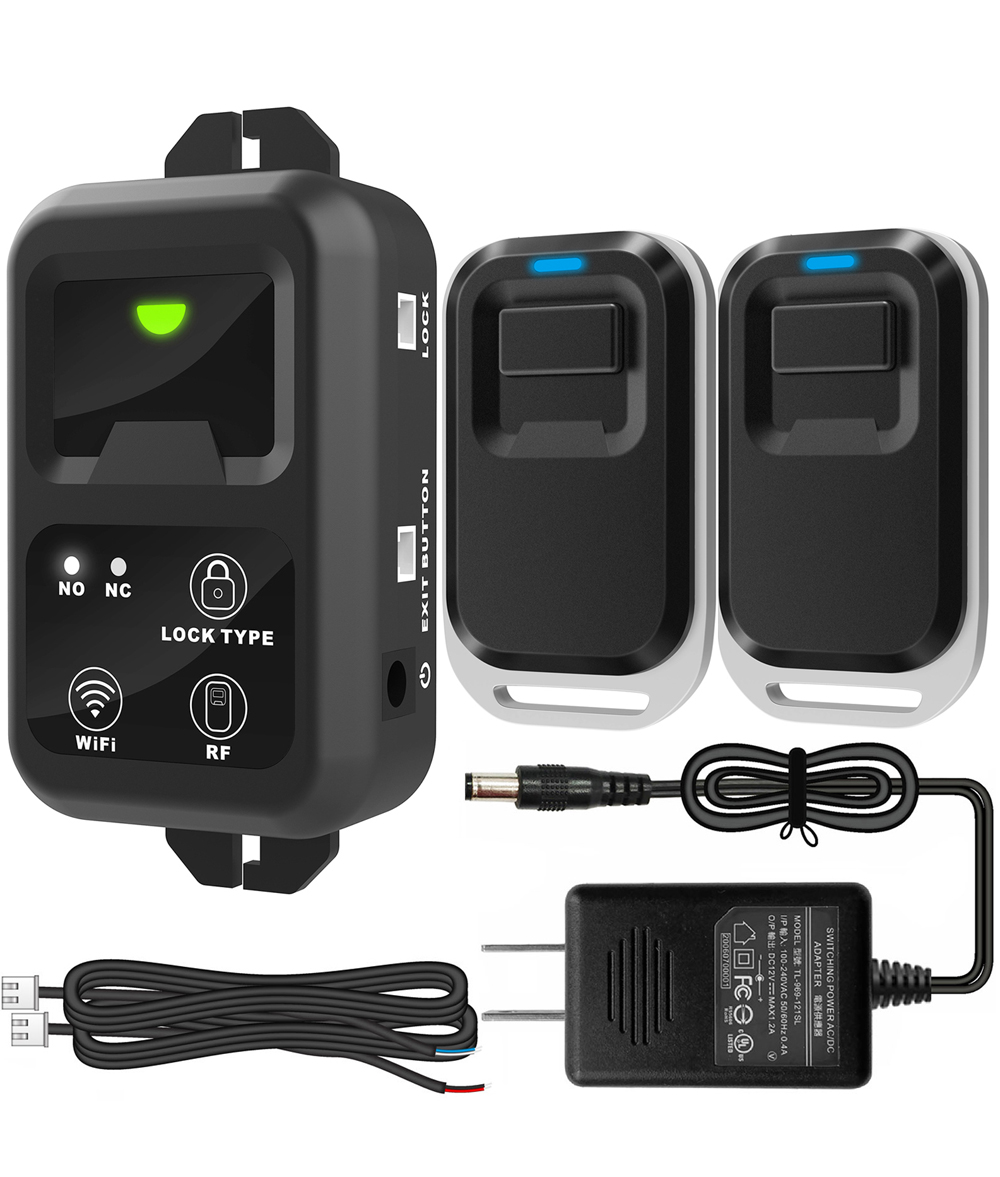

  • 1 x Receiver
  • 2 x Transmitters
  • 1 x Power Adapter
  • 1 x Buzzer
  • 2 x JST 2 pin plug
  • 1 x English Manual


  • This remote control is specialized for the access control lock and unable to be applied to other fields.
