2.4GHz WiFi Indoor 600lb Electromagnetic Double Door Lock Kit with Remote and Smartphone app Control

2.4GHz WiFi Indoor 600lb Electromagnetic Double Door Lock Kit with Remote and Smartphone app Control

Features

• Transmits data to a cloud platform through the Wi-Fi Router, which enables you to remotely control the connected appliances, via free Tuya App. You can download the iOS version in App Store and the Android version in Google Play.
• Requires 2.4GHz Wi-Fi connection. Quick & easy installation without the need of a professional.
• Tuya Smart is a smart home center that can let you control and manage your favorite smart devices of different brands in a single APP.
• Grouping Function: It allows users to assign all added devices to different groups so that they can easily check and manage the devices. To use this feature, simply click the drop-down menu on the top of device list.
• Smart Scene: The smart scene allows users to use one device to automatically trigger ON/OFF one or more devices.
• Share Control: Device owners can share control of their own devices to other Tuya users. Invite your family members to control your smart home together!
• Scheduled Timing: User can reset repeat or single timing schedules to turn on/off devices according to your needs.Imaging that the door is off in the evening and on in the morning every day automatically.
• Loop Timing: A loop timer allows users to turn on/off the door at preset intervals.
• Tuya provides a multi-language version, which supports Chinese, English, Danish, French, Russian, Italian, Polish, Deutsch, Spanish, Japanese etc.
• Tuya offers cloud service at a global scale, ranging from Asia, North America, South America to Europe, etc.
• An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.

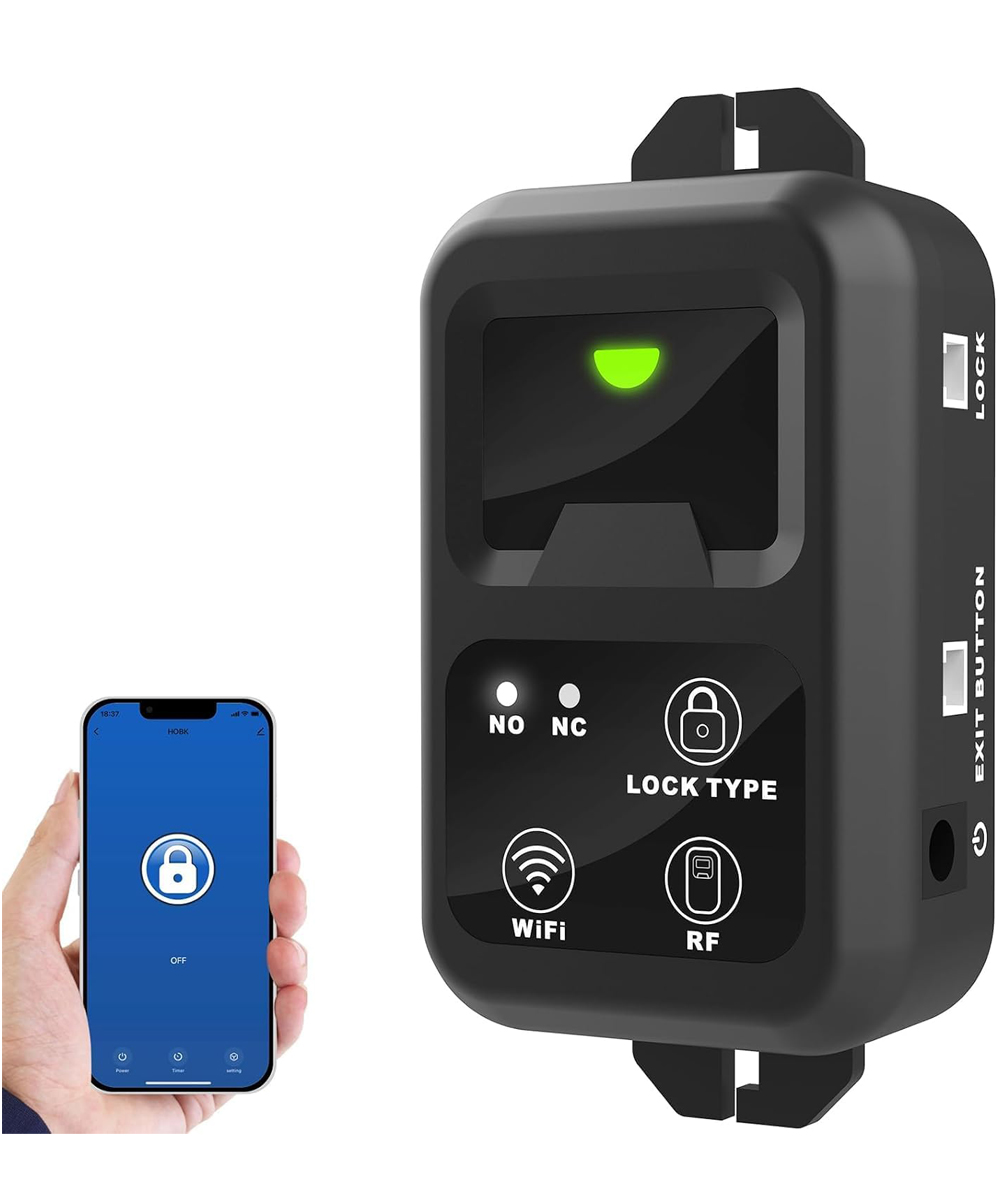

Remote Control Receiver

• Wi-Fi Standard: 2.4GHz (Can’t support 5GHz)
• Operating Voltage: 12VDC
• RF Frequency: 433MHz
• Output Current: 1A
• Built-in Buzzer: Yes
• Working Mode: Momentary/Toggle
• DC Encoding Type: Learning code
• Adjustable Time Delay: 0/5/10sec
• Operating Distance: 164 feet without block
• Transmitter Support: Max. 40

Remote Transmitter



• Working Voltage: 6VDC
• Operating Current: 3mA
• Powered By: 2 pcs CR2016 batteries (Built-in)
• Life of the Battery: 50,000 cycles tested
• Transmitting Frequency: 433MHZ
• Enclosure Material: ABS Plastic
• Button: 1
• EncodingType: Fixed code
• Modulation: OOK/ASK (Less interference)

Electric Magnetic Lock



• Input Voltage: 12VDC
• Current: 12V/500mAx2
• Holding Force: 280kgx2 / 600Lbsx2
• NC mode – (Unlocked while power is removed), fail safe
• Size (LxWxH): 500×48.5x25mm / 19-11/16″x1-29/32″x63/64″
• Armature Plate Dimension (LxWxH): 180x38x11mm / 7-3/32″x1-1/2″x7/16″
• LED: Red shows locked; Green shows unlocked
• Suitable: Wooden door, Glass door, Metal door, Fireproof door

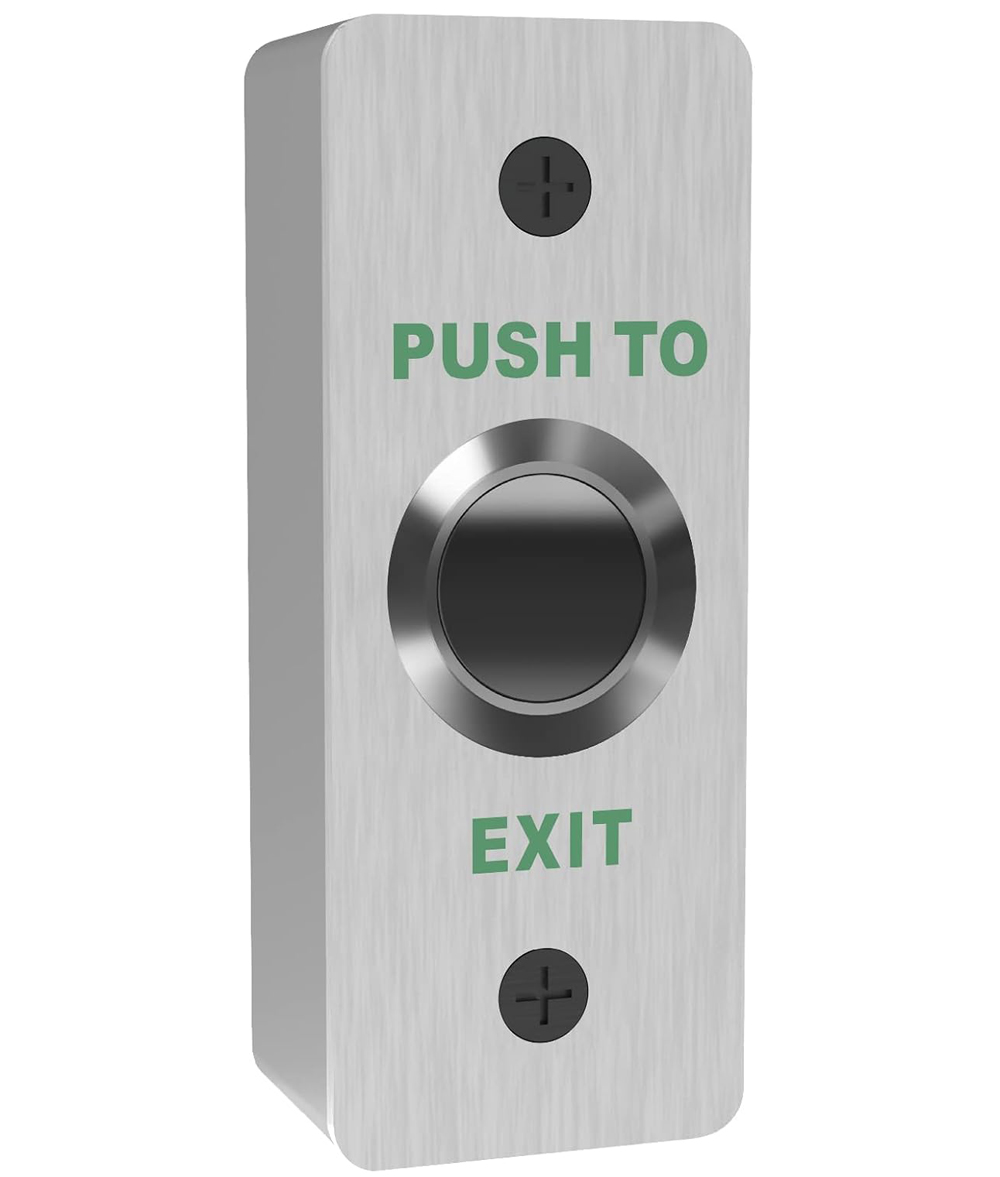

Push to Exit Button

• Dimensions (LxWxH): 90x35x26.5mm / 3-35/64″x1-3/8″x1-3/64″
• Standard Structure: Stainless steel Panel, Steel Button
• Mechanical Life: 500,000 tested
• Current Rating: 3A@36VDC Max
• Output Contact: NO/COM
• Operating Temp: 10～+55℃(14-131F)
• Operating Humidity: 0-95% (relative humidity)
• Panel Material: Stainless steel Panel, Wire Drawing Finished
• Suitable for hollow door

Power Adapter



• Input: AC100V-240V 50/60Hz
• Max Output: DC12V / 1A (1000mA)
• AC Cord length: 4 feet / 1.2 meter
• Wire Type: 22AWG
• Output transformer adapter : 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
• Net weight: 66g / 2.3oz
• Certificate: FCC

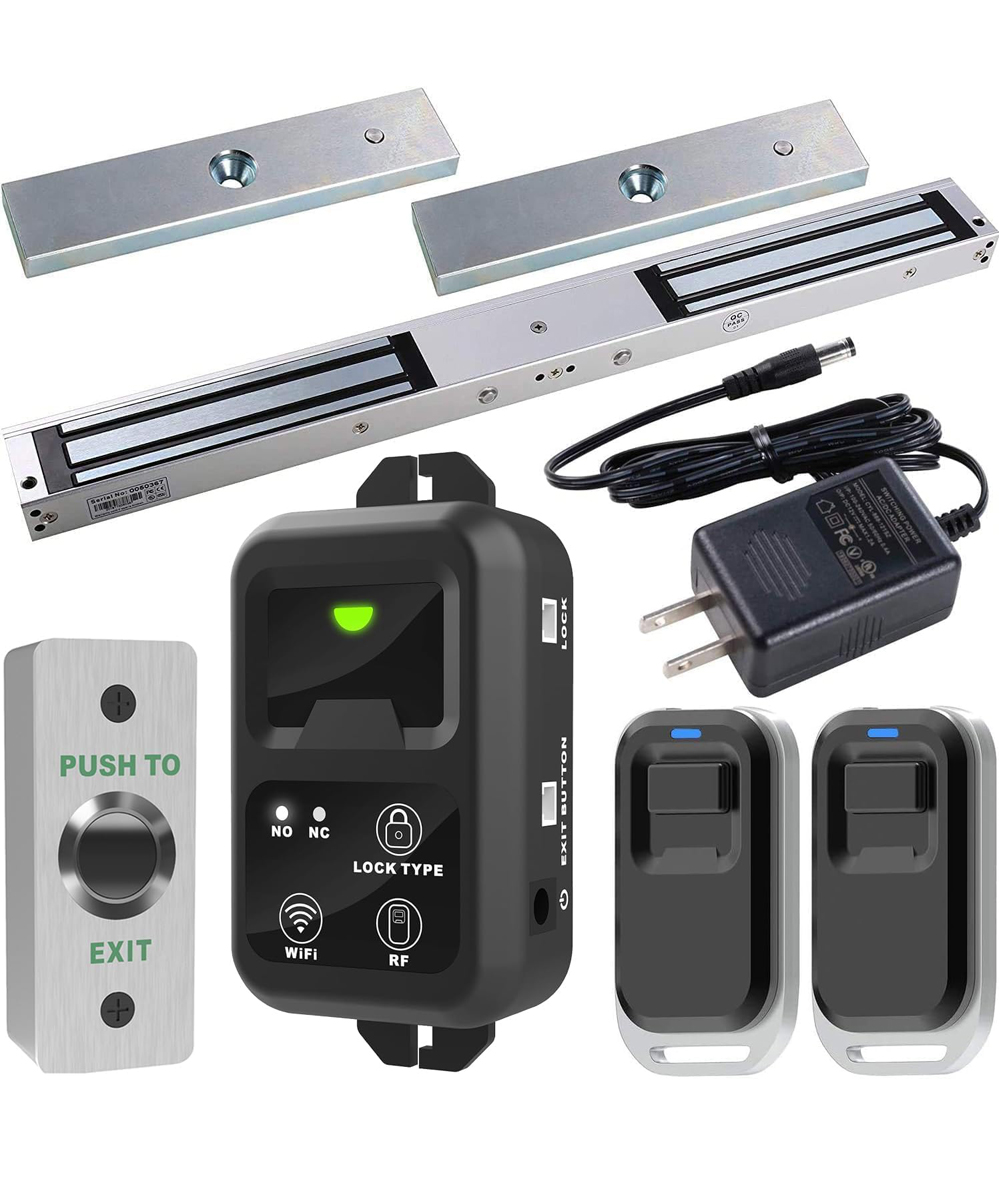

Package

• 1 x Magnetic Lock
• 1 x Remote Receiver
• 2 x Remote Transmitter
• 1 x Exit Button
• 1 x Power Adapter
• 1 x User Manual
