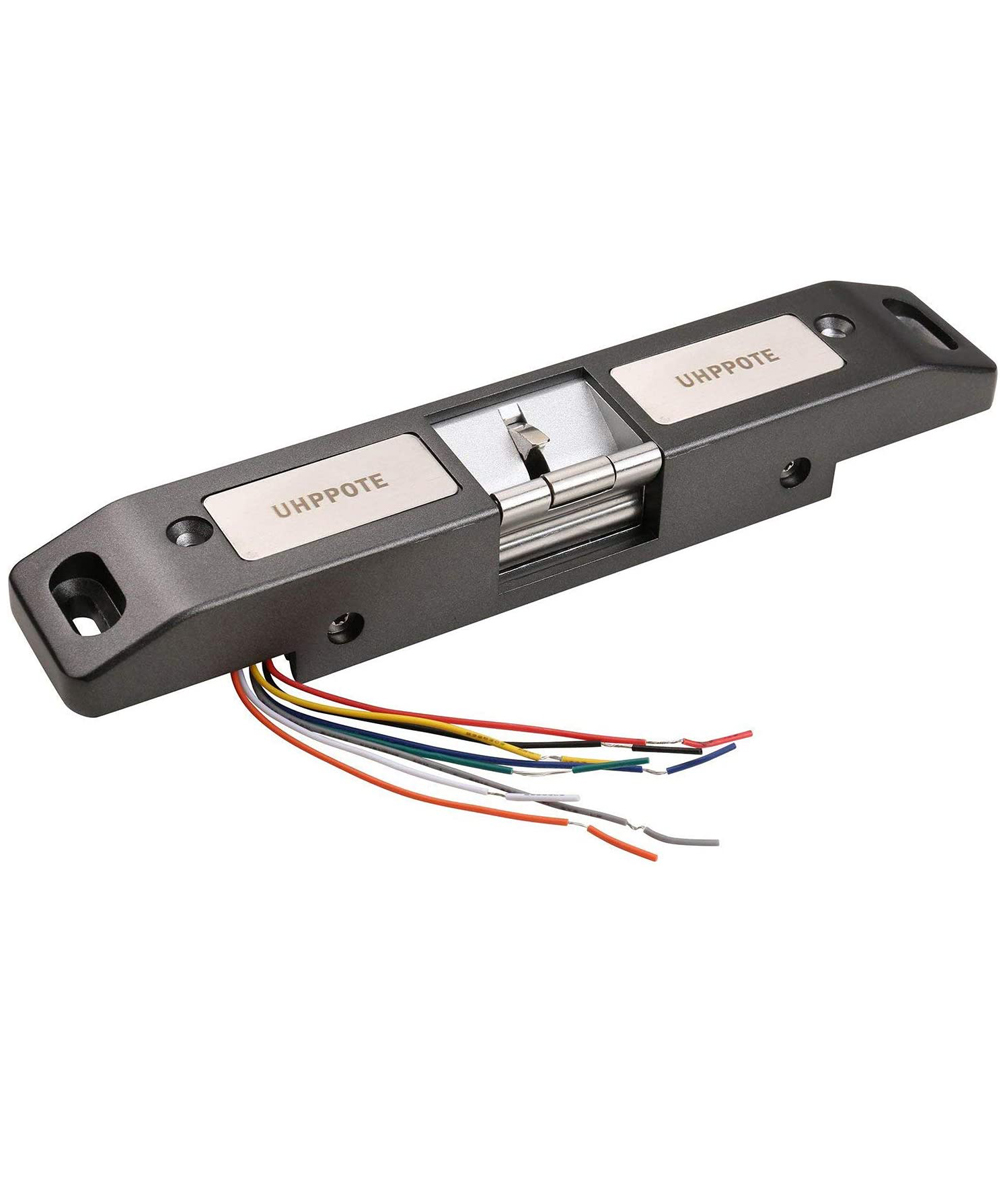

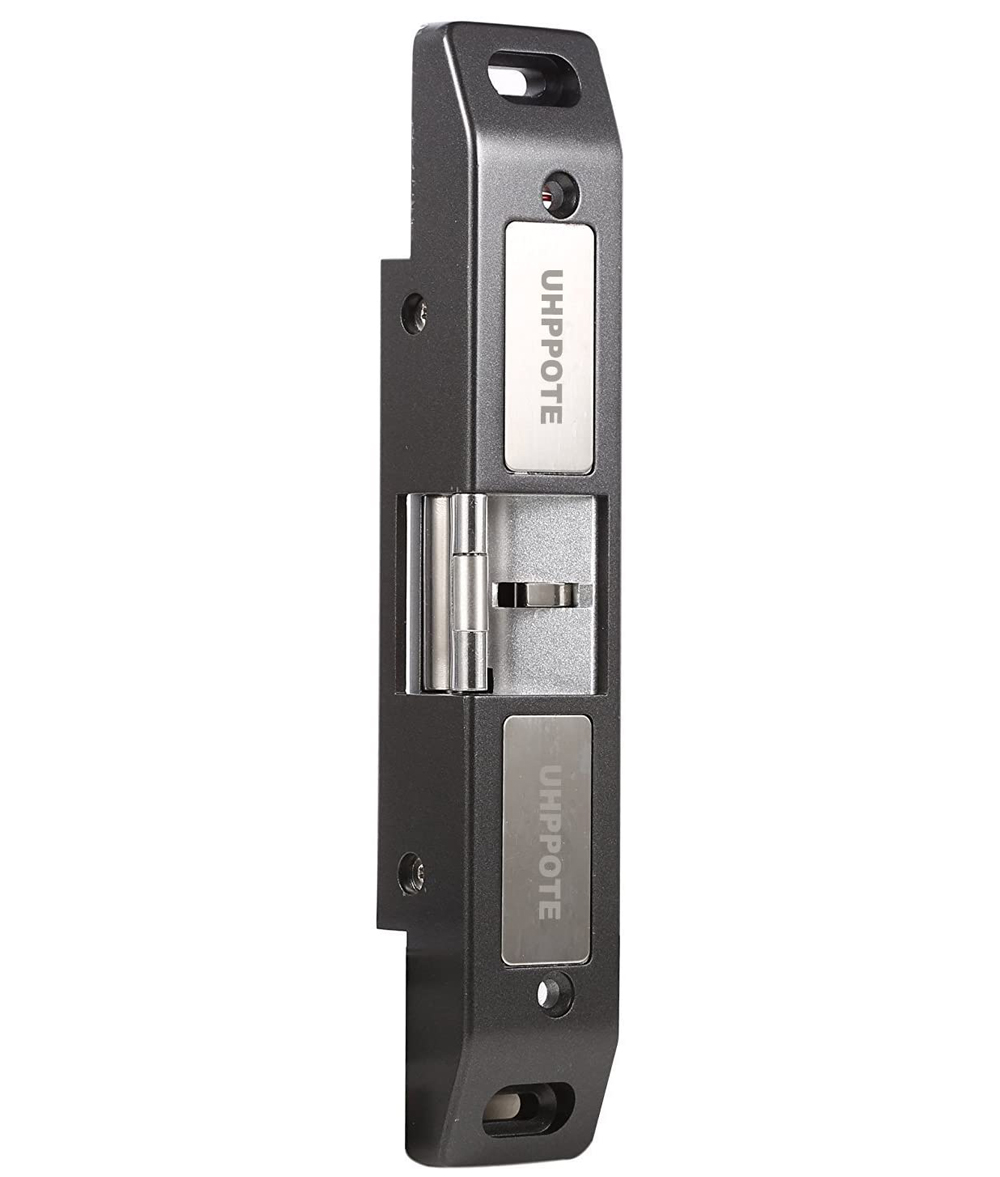

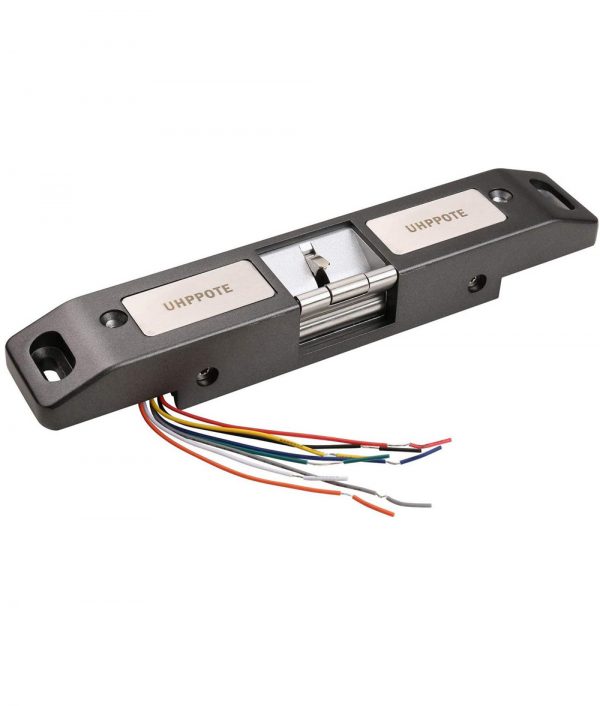

Electric Strike Lock 12VDC for Access Control Fire Exit Door Rim Exit Devices with Push Bar
Features:

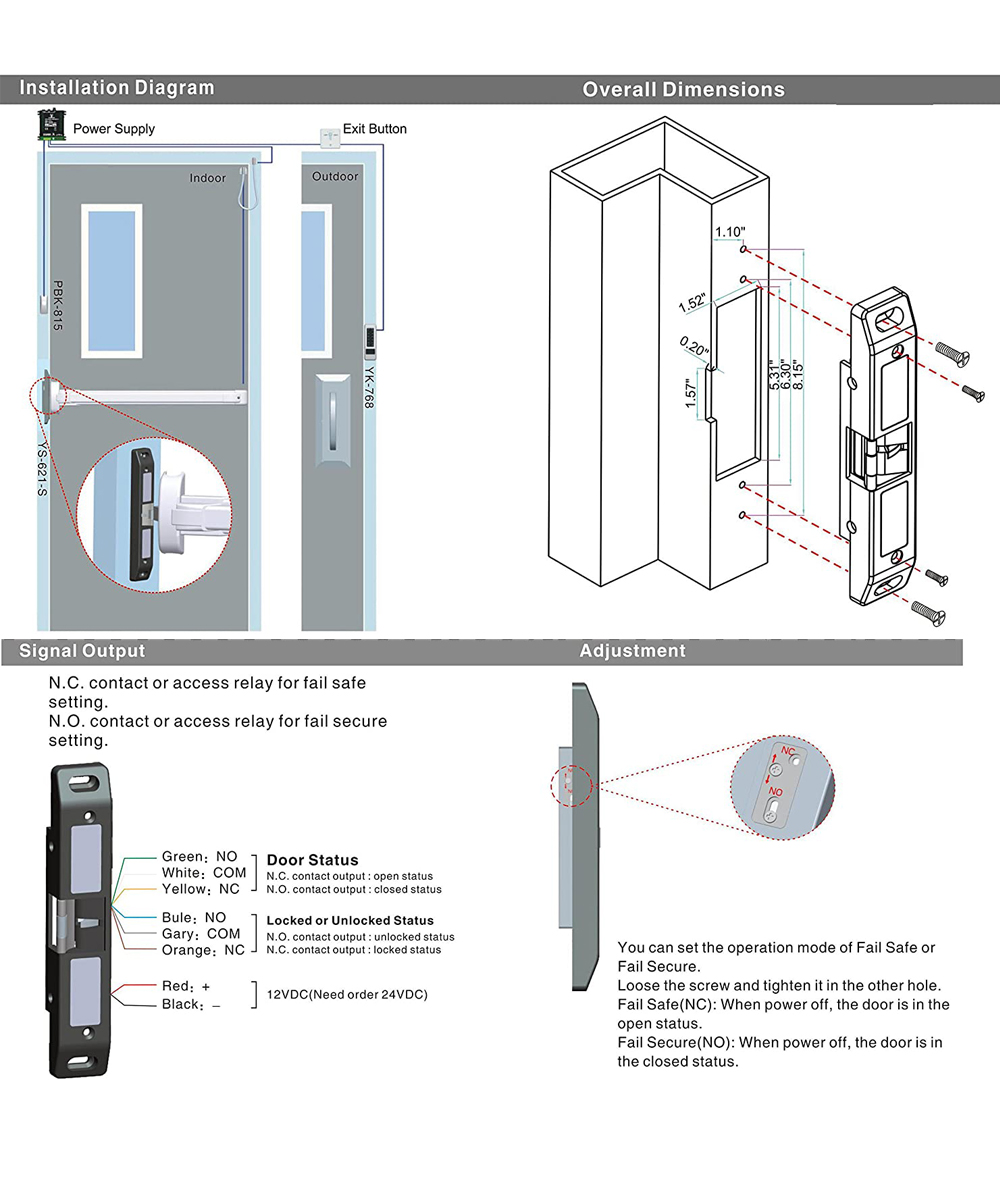

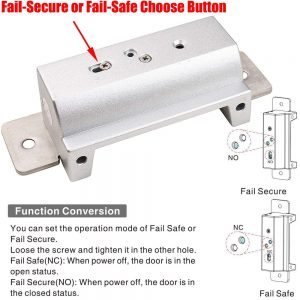

- Field-selectable for fail-safe or fail-secure operation
- This strikes feature an ultra-compact design and adjustable stainless steel keepers with over 2,200lbs [1000kg] of holding force in fail secure mode. The strikes release electrically with up to 25 lbs of door preload. Single solenoid operates on 12VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.
- Suitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door

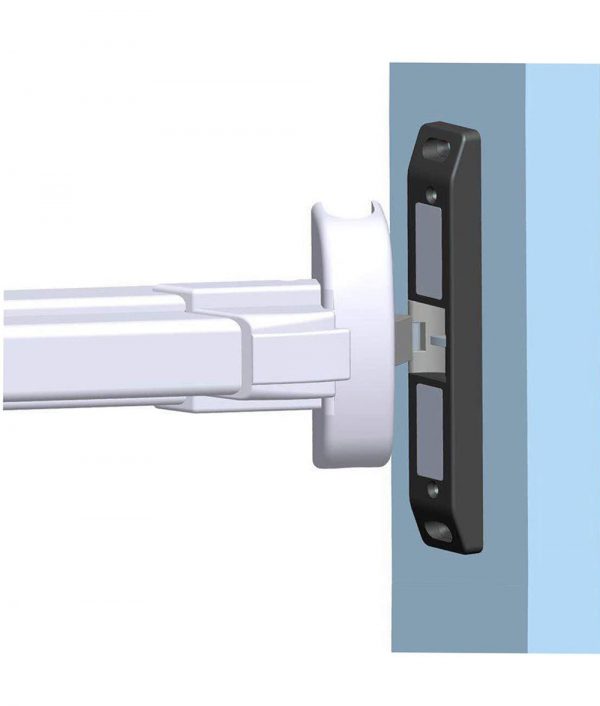

- This electric Strike is designed for rim exit devices with 3/4″ [19.1 mm] Pullman latchbolts. For Indoor Use Only.
- Enhanced stress structure design
- 1000000 solenoid valve special design
- Power to open the door or door adjustable power supply
- Push panic bar need buy seperately
Specifications:
- Faceplate Size (LxW): 230×40.5mm [9-1/16″ x 1-19/32″]
- Strike Opening: 39.9×29.5x24mm deep [1-37/64″ x 1-5/32″ x 15/16″ deep]
- lock tongue structure: 304 Stainless Steel
- Holding Force: 1000kg / 2204lb
- Voltage: DC12V
- Current: 12V/220mA
- Signal Output: Lock Status OutputNO/NC/COM
- Special design: applies to all brands of fire push rod lock
- Suitable For: Supporting rod lock fire door
- Surface Temperature: Within +20℃ / 68℉
- Suitable Temperature: -10℃~+55℃(14℉-131℉)
- Operating Humidity: 0~90%(non-condensing)
- Face plate Housing: High temperature paint
- Lock tongue: Surface by coating nickel
- The door open: 90 degrees
- Weight: 0.75kg / 1.65lb
Attention:
- For Indoor Use Only
- Faceplate Size (LxW): 230×40.5mm [9-1/16″ x 1-19/32″]
- Before placing order, please check the size of your door’s frame to avoid wrong purchase
Package:
- 1 x Electric strike lock designed for rim exit devices
- 1 x Install kit
- 1 x User manual
