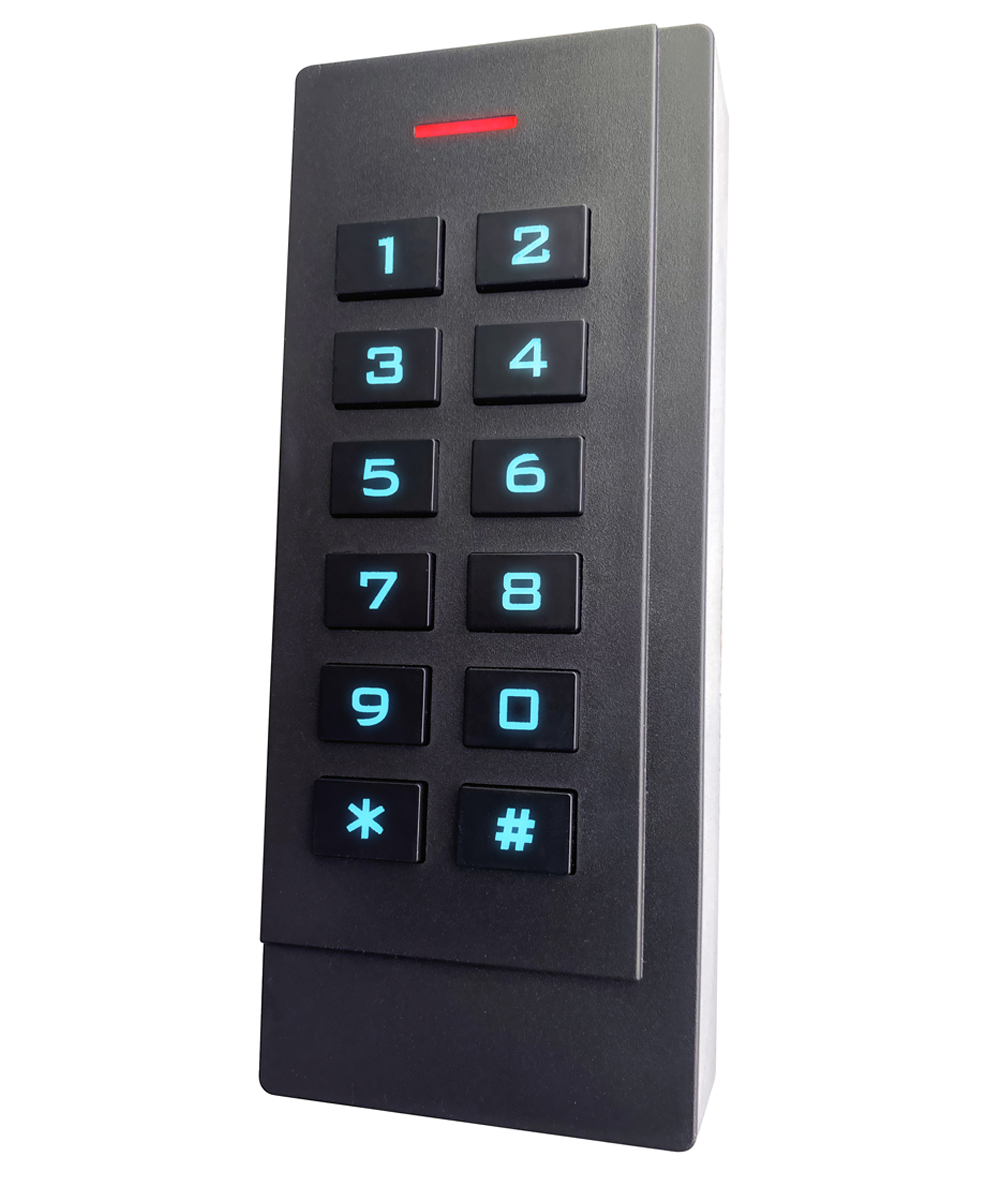

WiFi Door Access Control Keypad Proximity Card Reader Compatible with Tuya Smart App 2.4GHz

WiFi Door Access Control Keypad Proximity Card Reader Compatible with Tuya Smart App 2.4GHz

Features of Access Keypad:

• Supports Card, PIN, Card + PIN, Card or PIN.
• Can be used as standalone keypad.
• Adjustable door delay time.
• Lock output current short circuit protection.
• Adopt the switch mode power supply (SMPS) solution.
• With bell function, supports external bell.
• Built-in buzzer.
• The keypad backlight mode can be set. (ON/OFF/Auto)
• Red, blue, white, yellow and green LED indicators display the working status.

Specifications of Access Control Keypad:

• Operating Voltage: 12VDC
• Lock Output Load: Max. 1.5A
• Idle Current: 50mA
• Card User Capacity: 1000
• PIN User Capacity: 500
• Door Delay Time: 0-99 seconds
• Card Reading Distance: Max. 6cm
• Card Type: Standard 125KHz
• WiFi Standard: 2.4GHz (Tuya Smart)
• Enclosure Material: ABS Plastic
• Waterproof: No
• Operating Temperature: -30℃~60℃
• Operating Humidity: 0%-90%RH
• Certification: FCC
• Product Weight: 100g
• Dimensions: 110x71x23mm

Package:

• 1 x WiFi Access Control Keypad
• 1 x English User Manual

Features of Tuya Smart APP:

• Requires 2.4GHz Wi-Fi connection. Quick & easy installation without the need of a professional.
• Tuya Smart is a smart home center that can let you control and manage your favorite smart devices of different brands in a single APP.
• Easy Use: It enables you to remotely control the connected appliances via free Tuya Smart App
• Smart Scene: The smart scene allows users to use one device to automatically trigger ON/OFF one or more devices.
