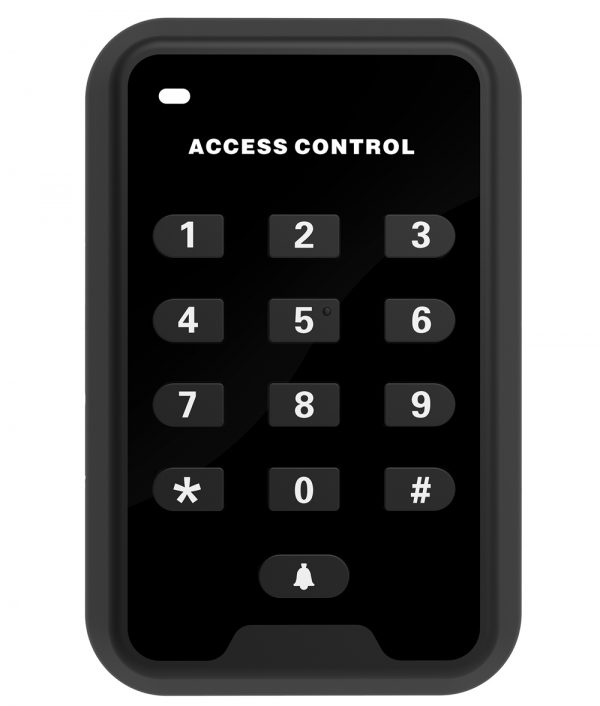

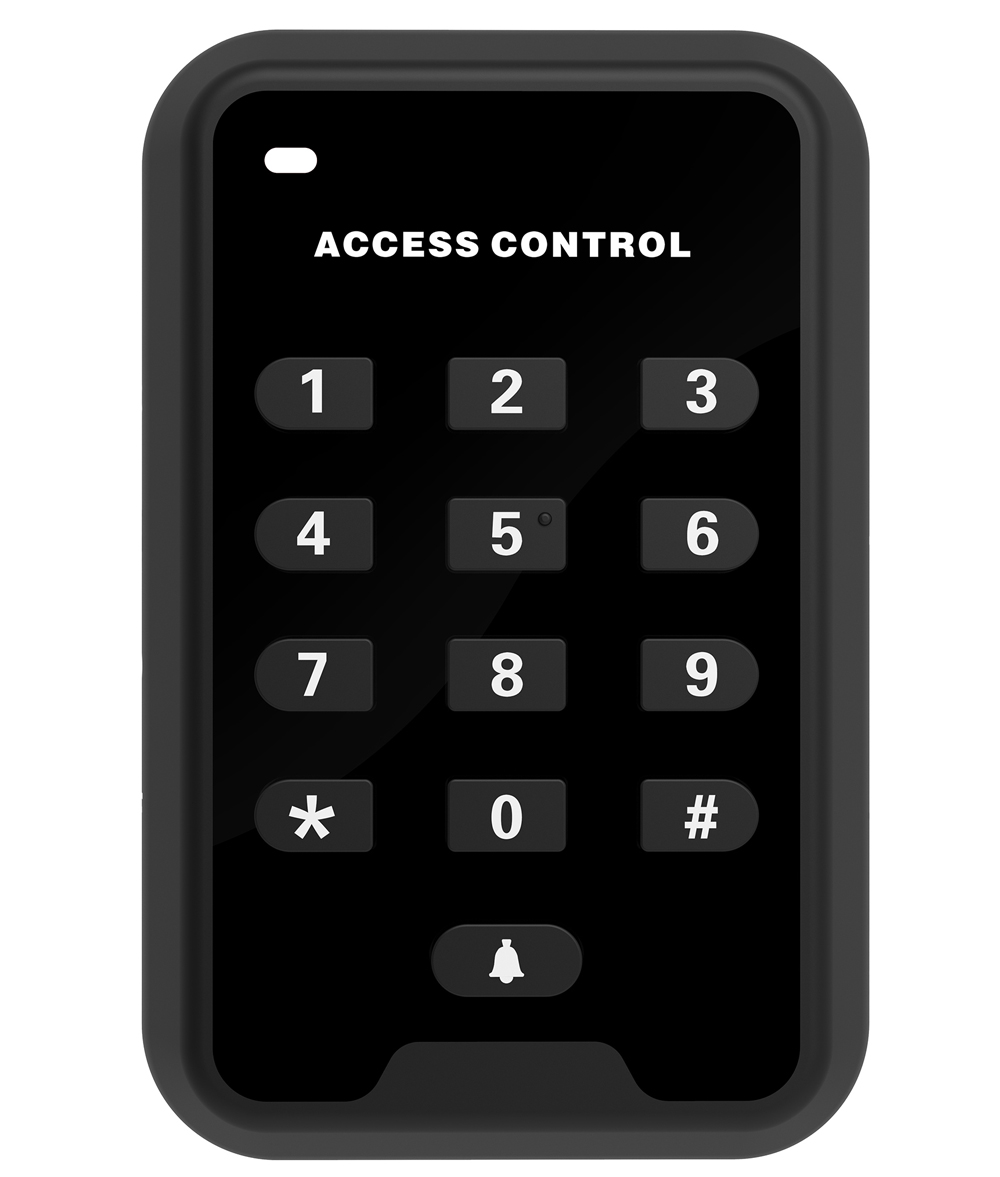

125KHz Proximity RFID Card Access Control Keypad Support 1500 Users

125KHz Proximity RFID Card Access Control Keypad Support 1500 Users

Introduction:

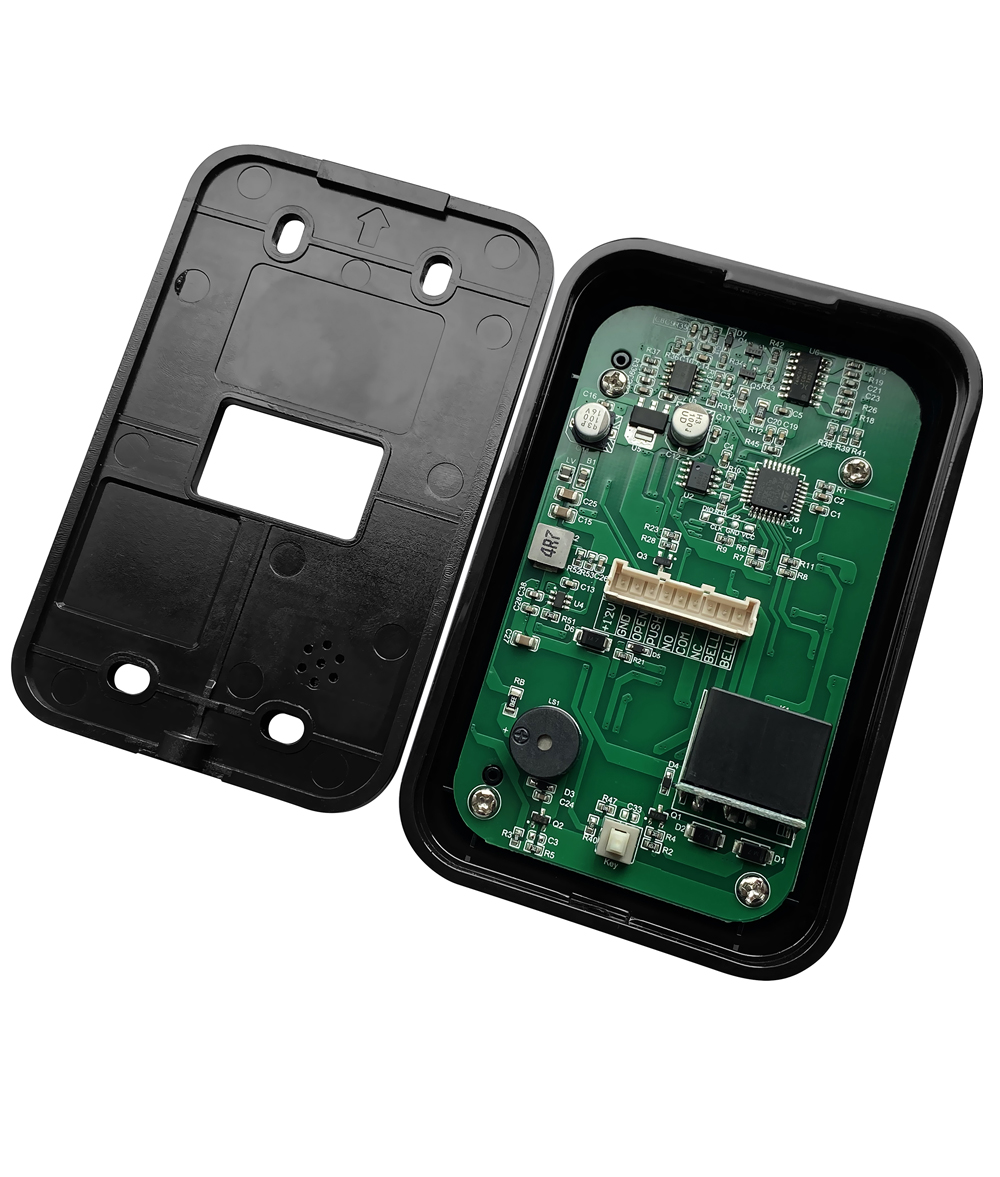

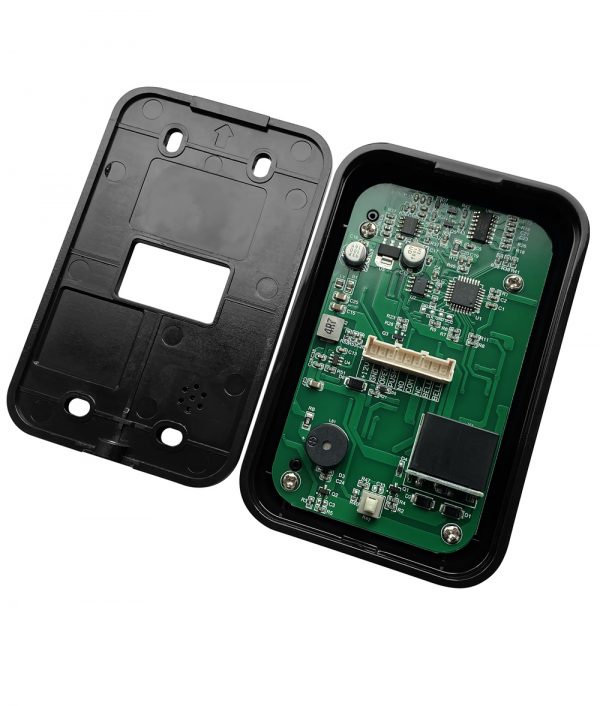

• This RFID card access control unit controls 1 door. It uses ST MCU to ensure stable performance, and low-power circuit makes the service life longer.
• OMRON power relay with 10A switching capacity provides an excellent switching performance for electric locks.
• It is widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.

Features:

• Full programming from the keypad.
• Supports Card, PIN, Card + PIN, Card or PIN.
• Can be used as standalone keypad.
• Adjustable door open time.
• Very low power consumption.
• Lock output current short circuit protection.
• Adopt the switch mode power supply (SMPS) solution.
• With bell function, supports external bell.
• Built-in buzzer.
• Red, blue, white, yellow and green LED indicators display the working status.

Specifications:

• Operating Voltage: 12VDC
• Lock Output Load: Max. 1.5A
• Idle Current: 50mA
• Card Capacity: 1000
• PIN Capacity: 500
• Card Type: Standard 125KHz EM
• Door Open Time: 0-99 seconds
• Card Reading Distance: Max. 6cm
• Wiring Connections: Electric Lock, Exit Button, Bell
• Operating Temperature: -40℉-140℉
• Operating Humidity: 10%-90%RH
• Waterproof: No
• Enclosure Material: PC + ABS
• Product Weight: 3.53oz / 100g
• Dimensions: 4-21/64″x2-51/64″x29/32″ / 110x71x23mm

Package:

• 1 x Access Control Keypad
• 1 x English User Manual
