Fail Secure Electric Latch Bolt Lock W/Cylinder Knob for Wooden Meal Glass Door


This  electric latch bolt lock is a fail secure (NO) lock, suitable for wooden doors, metal doors, glass doors , fireproof doors and etc. It adopts superior strength aluminum alloy and has LED light indicating the status of the lock. Special photoelectricity control and MOV provides reverse current protection.

SKU: UT-YB-600C Categories: ,

Fail Secure Electric Latch Bolt Lock W/Cylinder Knob for Wooden Meal Glass Door



  • Low Temperature, safe & Durable
  • Low Power, Environmental Protection
  • Special photoelectricity control, three steps current application
  • MOV Provides Reverse Current Protection
  • Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt
  • Double protection for loading current
  • Auto-relock if no Action within 5 secs
  • Certificate: CE&MA
  • Photoelectricity Control, Low Temperature
    A: The Low Current is Changed immediately
    B: When door frame doesn’t coincide with door leaf, door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature
    C:The Photoelectricity Control Technology, prevent the machanical defect


UT YB 600C 3

  • Fail Secure: Locked when power is removed

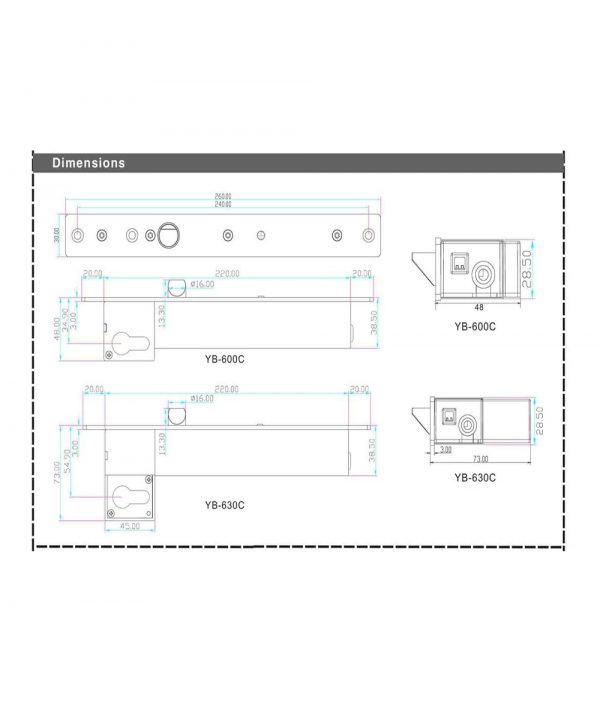

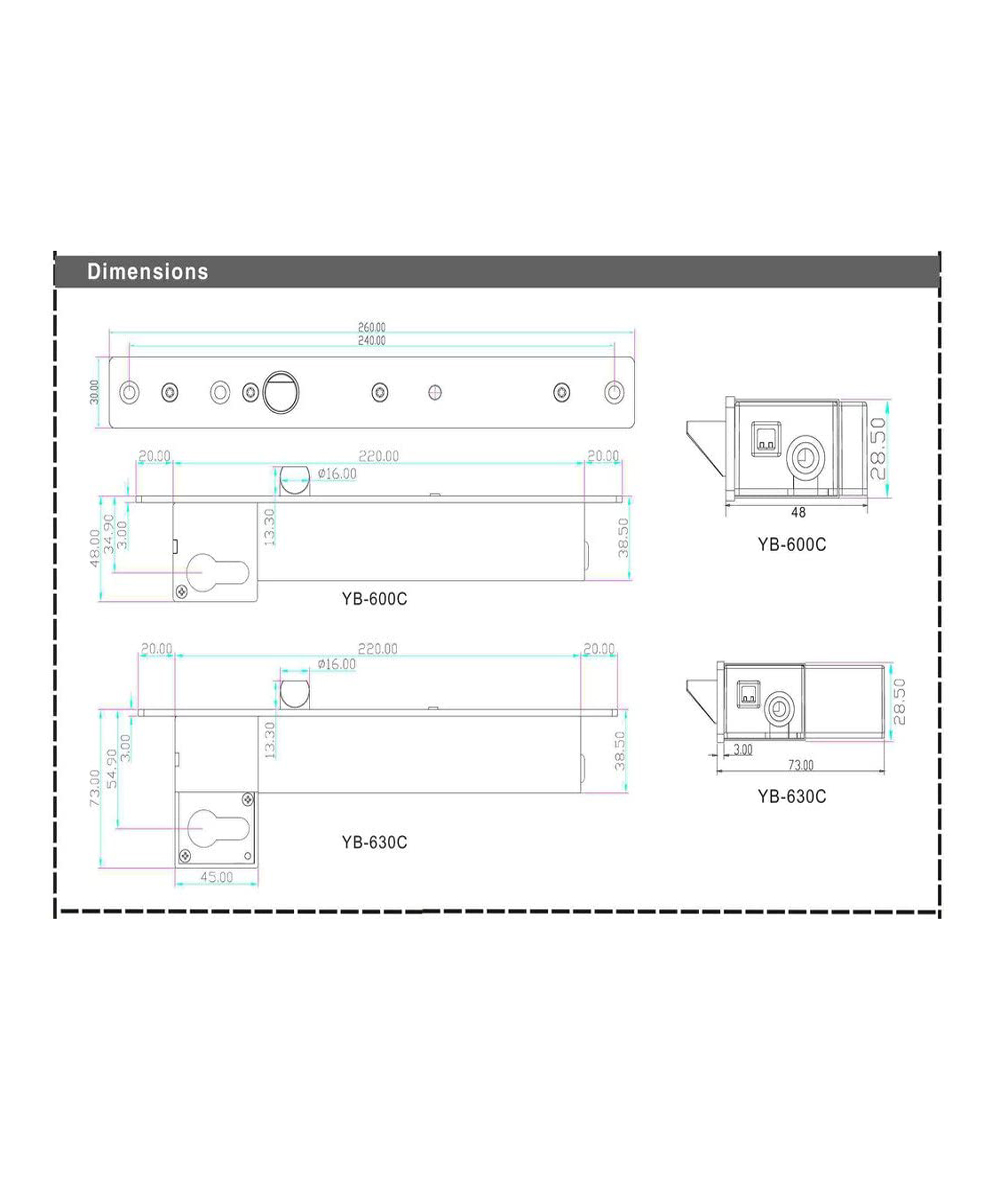

  • Lock Body: 260Lx30Wx48H(mm) / 10.2Lx1.2Wx1.9H(in)
  • Magnetic Plate: 100Lx25Wx2.5H(mm) / 3.9Lx1Wx0.1H(in)
  • Bolt: 16mm DIA, stainless steel 16mm throw
  • Voltage: DC12V
  • Start Current: 1200mA
  • Standby Current: 200mA
  • Suitable For: Wooden Door, Glass Door, Metal Door, Fireproof Door
  • LED: Light on indicates locked, light off indicates unlocked
  • Autolock Time Delay: 0/3/6/9sec
  • Operating temp: -10℃~55℃(14℉~131℉)
  • Operating Humidity: 0~90%(non-condensing)
  • Special Designed: Tested to 500000 operations

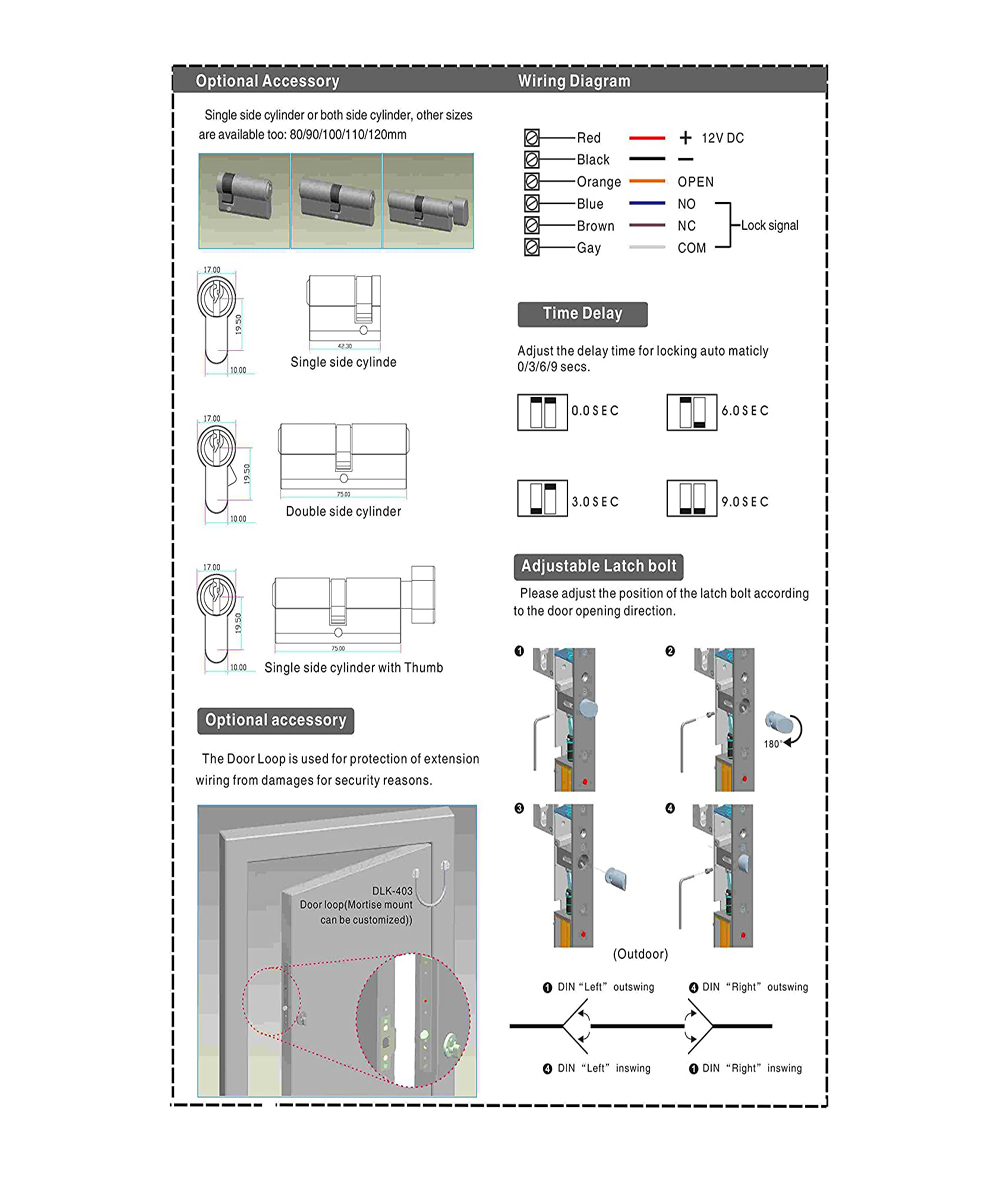

  • Signal Output: Lock signal(NO/NC/COM)
  • Material: 304 stainless steel, wire draw finishing
  • Induction Distance: Within 8mm / 0.3in
  • Weight: 1.8kg / 3.97lb


  • 1 x Electric Lock
  • 1 x User manual

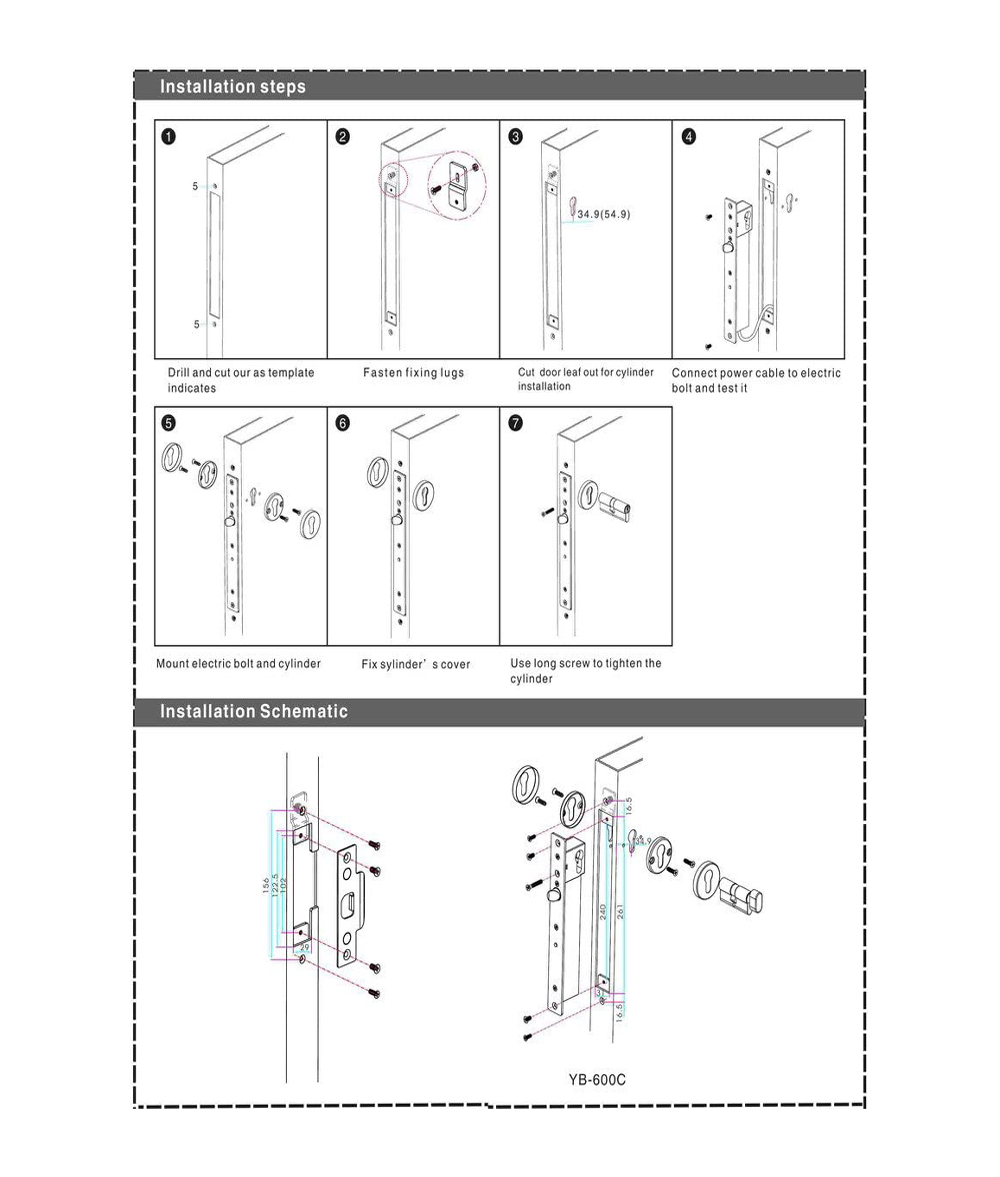

  • 1 x Screws and Installation Kit
  • Tips: Default come with single side cylinder with Thumb

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 1.8 kg
