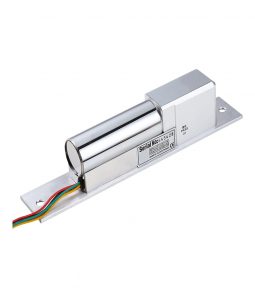

Electric Bolt Lock Voltage 12-24VDC Fail Safe with Signal Time Open Wire

Electric Bolt Lock Voltage 12-24VDC Fail Safe with Signal Time Open Wire

Features:

• Low Temperature, safe & Durable
• Low Power, Environmental Protection
• Special photoelectricity control,three steps current application
• Long Life with 500000 cycles
• MOV Provides Reverse Current Protection
• Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt
• Autolock Time Delay: 0/3/6/9sec
• Door statue signal output contact(NC.COM)
• Double protection for loading current
• Auto-relock if no Action within 5 secs
• Certificate:CE&MA
• Photoelectricity Control,Low Temperature
• A:The Low Current is Changed immediately
  B:When door frame doesn’t coincide with door leaf,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
  C:The Photoelectricity Control Technology,prevent the machanical defect

Specifications:

• Fail Safe: Locked when energized

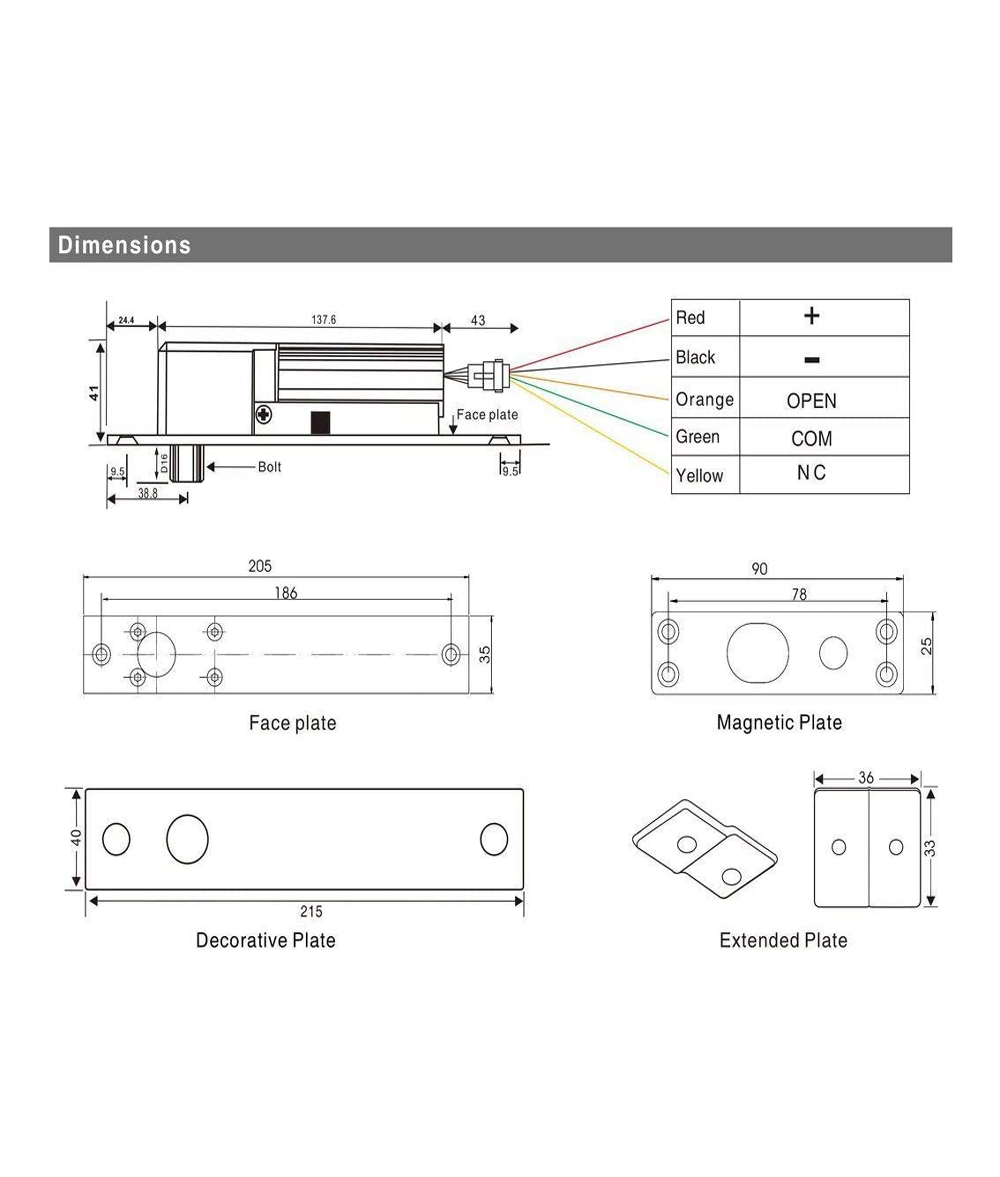

• Lock Body: 205Lx35Wx41H(mm)
• Magnetic Plate: 90Lx25Wx2H(mm)
• Voltage: DC12V-DC24V
• Start Current: 12V/900mA，24V/730mA
• Standby Current: 12V/100mA，24V/70mA
• Solid Bolt: Polishing housing, 800Kg Holding Force
• Suitable For: Wooden Door,Glass Door,Metal Door

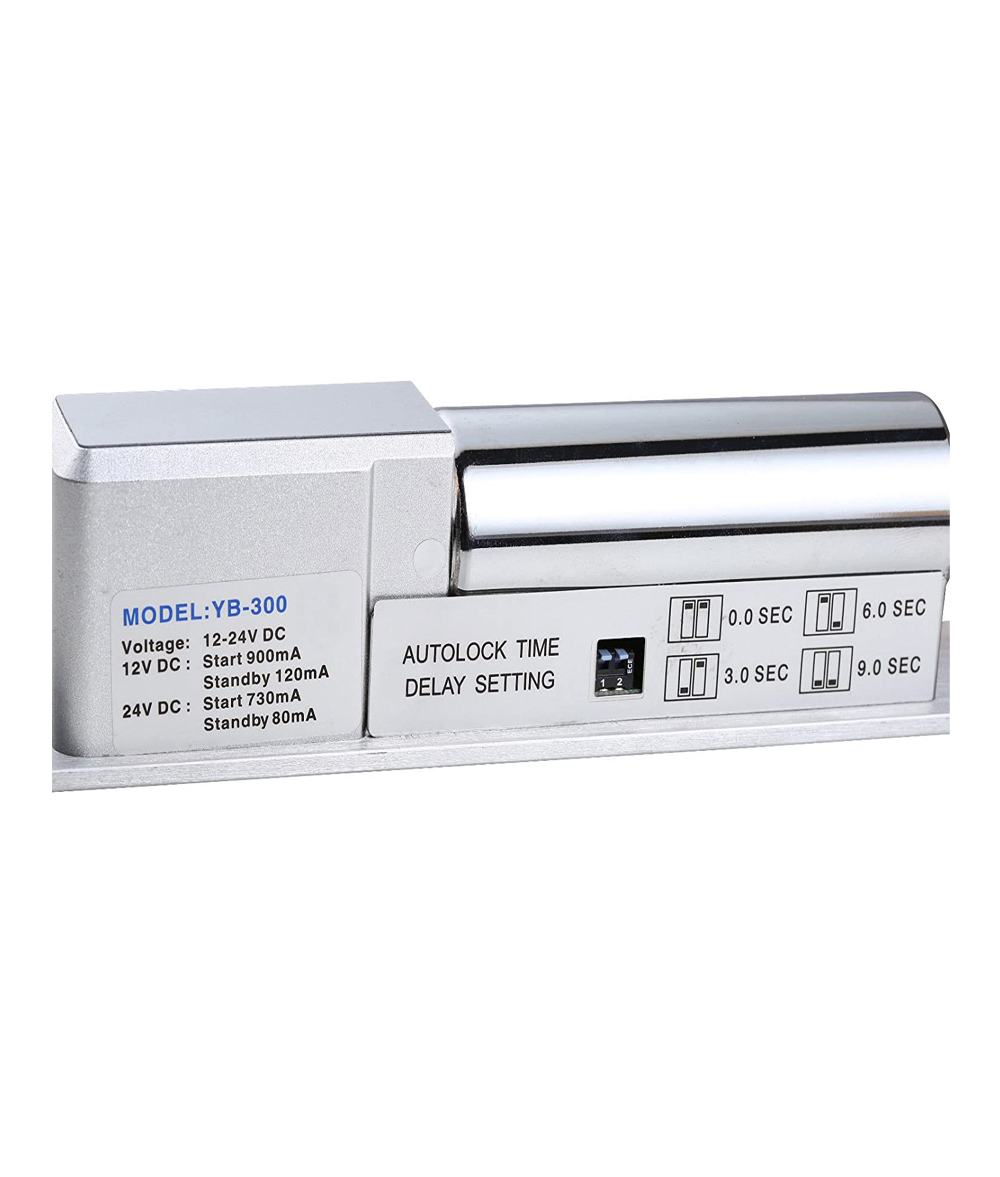

• Autolock Time Delay: 0/3/6/9sec
• Signal Output: Door status Output,NC/COM
• Surface Temp: Low Temperature
• Induction Distance: 8mm
• Operating temp: -10~+55C(14~131F)
• Operating Humidity: 0~90%(non-condensing)
• Special Designed: Tested to 500000 operations
• Face place material: High Aluminum
• Weight: 0.74kg

Package:

• 1 x Electric Bolt Lock
• 1 x Panel cover
• 1 x Induction lock
• 1 x Screw kit
