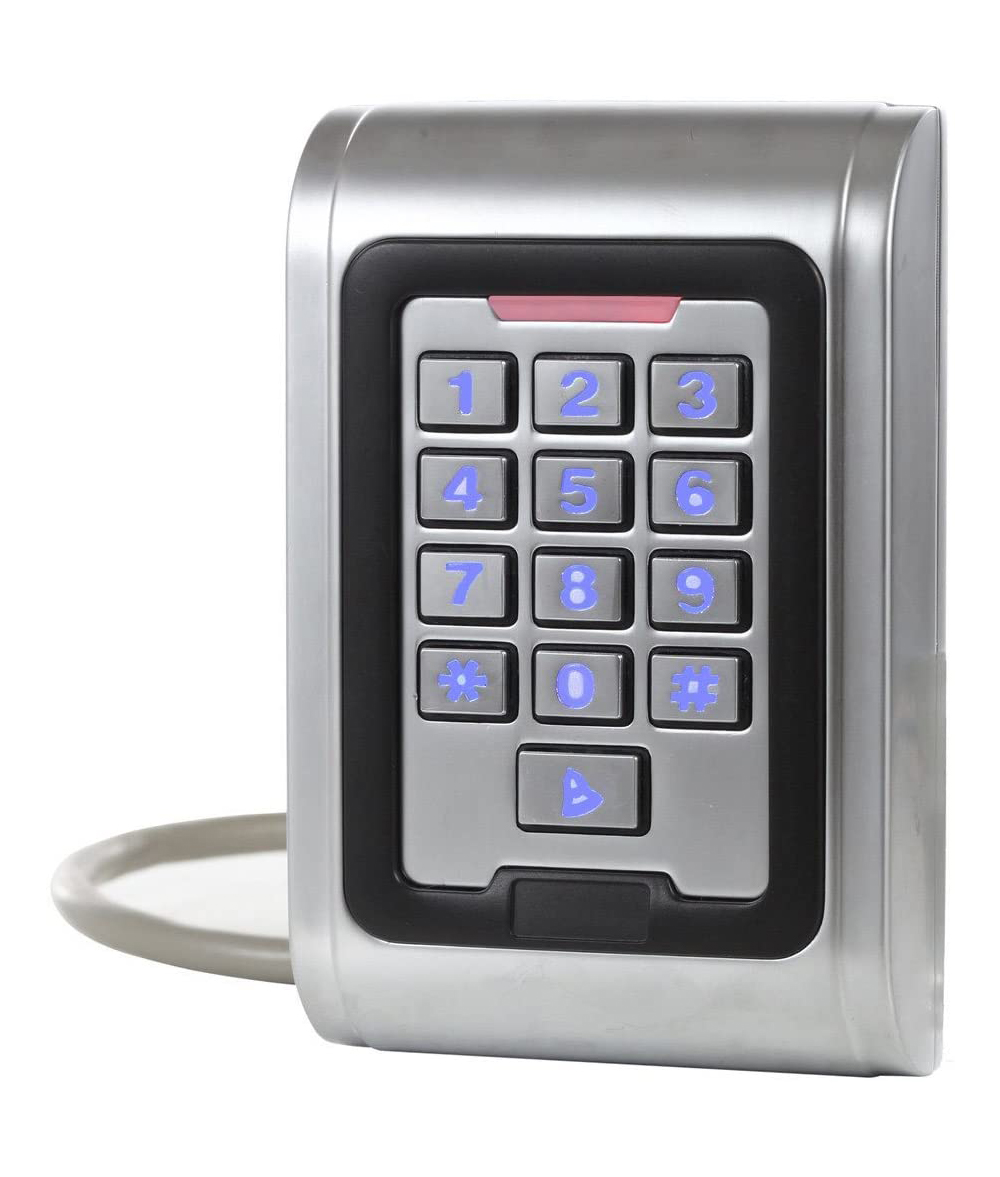

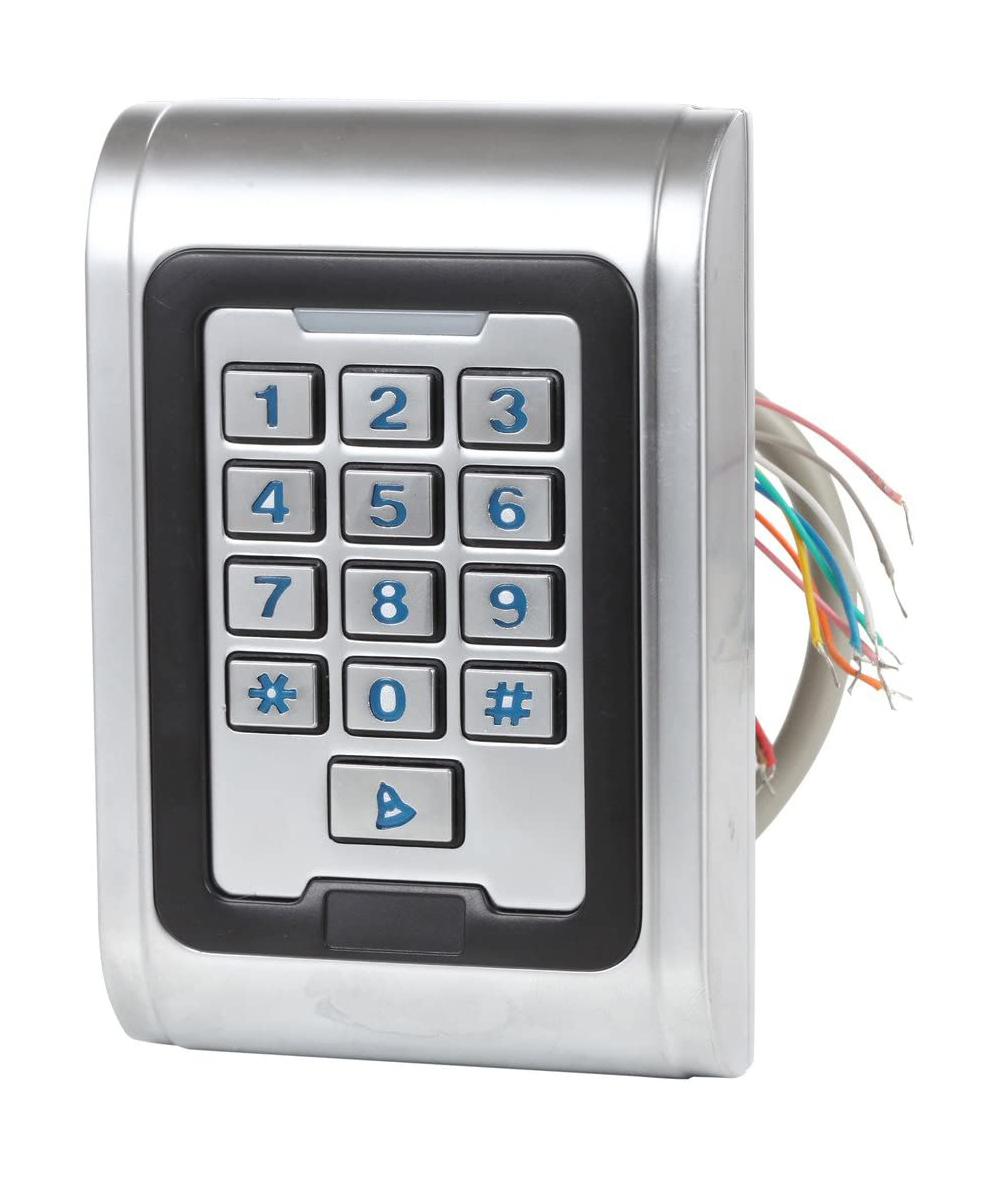

Access Control Keypad Standalone Wiegand 26 Reader Anti-Vandal Waterproof IP68 Metal Case

Access Control Keypad Standalone Wiegand 26 Reader Anti-Vandal Waterproof IP68 Metal Case

Features:

• Waterproof,conforms to IP68
• Strong Zinc Alloy Electroplated anti-vandal case
• Full programming from the keypad
• 2000 users,Supports Card, PIN, Card + PIN
• Can be used as a stand alone keypad
• Backlight keys
• Wiegand 26 input for connection to external reader
• Wiegand 26 output for connection to a controller
• Adjustable door output time,alarm time,door open time
• Very low power consumption (30mA)
• Fast operationg speed,<20ms with 2000 users
• Lock output current short circuit protection
• Easy to install and program
• Built-in light dependent resistor (LDR) for anti tamper
• Buili-in buzzer
• Red,yellow and green LEDs display the working status

Specifications:

• Operating Voltage: DC12V
• User Capacity: 2000
• Card Reading Distance: 3~6cm / 1.18-2.36in
• Current: <30mA (Standby);<60mA (Active)
• Lock Output Load: <3A
• Alarm Output Load: <20 A
• Operation Temperature: -45℃~60℃ / -49℉~140℉
• Operating Humidity: 10%~90% RH
• Waterproof: Conforms to IP68
• Adjustable Door Relay time: 0~99 seconds
• Wiegand Interface: Wiegand 26 bit

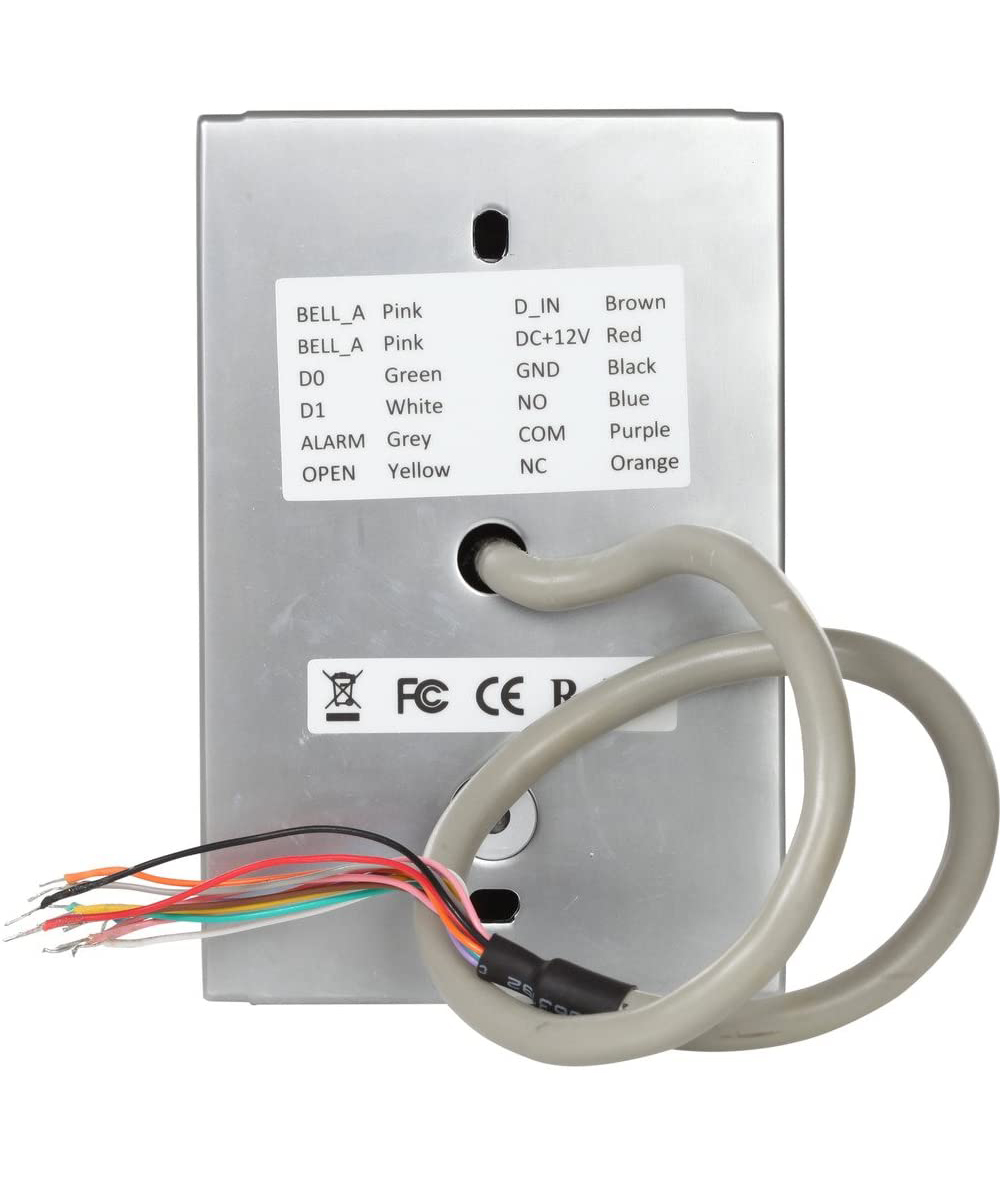

• Wiring Connections: Electric Lock,Exit Button,External Alarm,External Reader
• Compatible Cards: EM4100 standard cards
• Frequency: 125Khz
• Dimension: Approx. 120(W)x80(H)x25(D)mm / 4.72(W)x3.15(H)x0.98(D)in
• Net Weight: Approx. 590g / 1.3lb

Package:

• 1 x Metal Access Control
• 1 x Installation Kit
• 1 x User Manual
