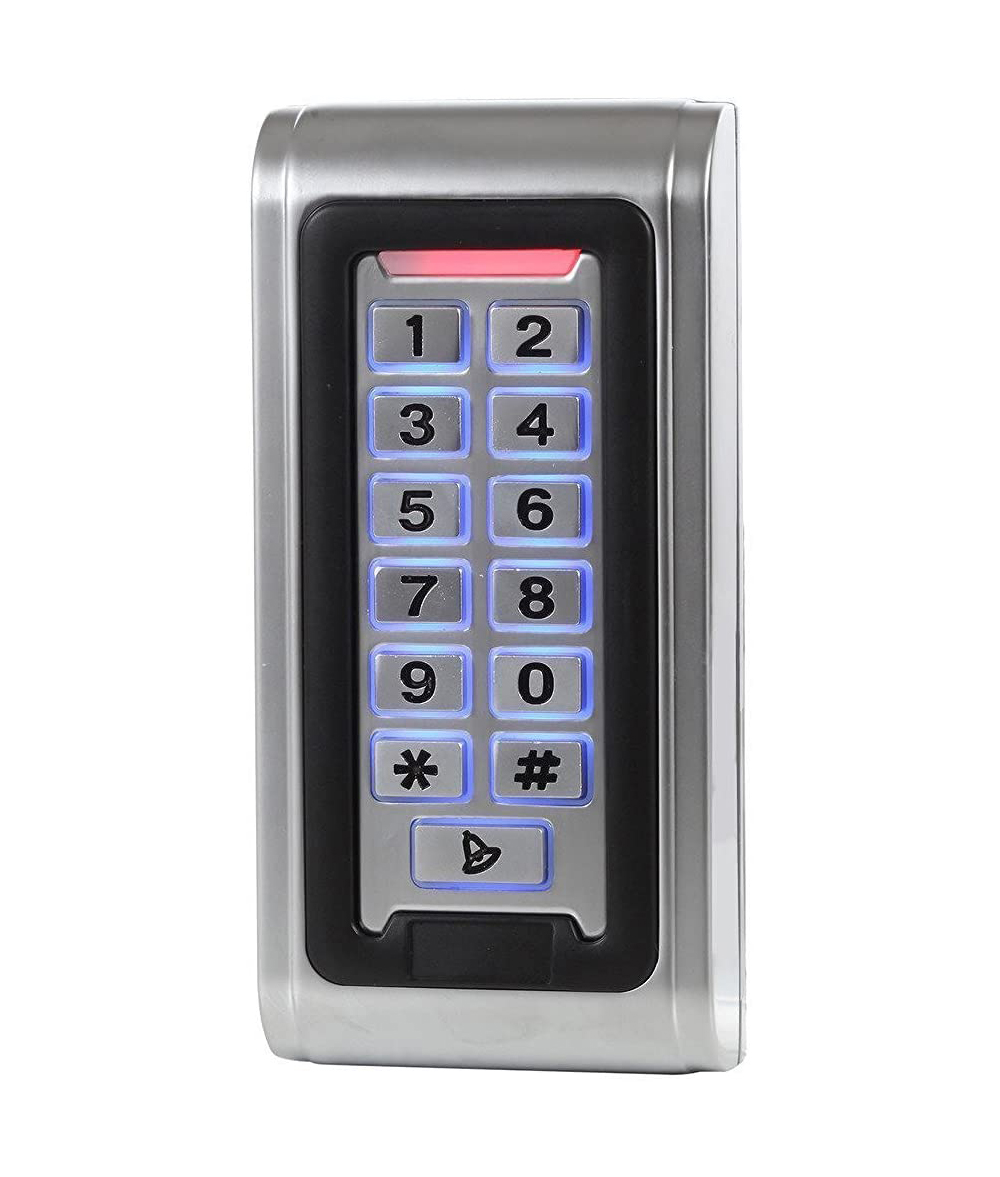

13.56MHZ IC Waterproof Metal Case Stand-alone Access Control Keypad with Wiegand 26-bit Interface

13.56MHZ IC Waterproof Metal Case Stand-alone Access Control Keypad with Wiegand 26-bit Interface

Features:

• Full programming from the keypad.
• Supports Card, PIN, Card + PIN, Card or PIN.
• Can be used as standalone keypad.
• Adjustable door open time.
• Very low power consumption.
• Backlit keys.
• Lock output current short circuit protection.
• With bell function, supports external bell.
• Audible keystroke echo.
• Red, blue, white, yellow and green LED indicators display the working status.
• Wiegand 26 input for connection to external reader or Wiegand 26 output for connection to a controller.

Specifications:

• Operating Voltage: 12VDC
• Card Type: 13.56MHz IC card (Can’t support some encrypted cards,such as HID, Cobra, APCiK, etc.)
• Lock Output Load: Max 1.5A
• Time Delay : 0-99s (Adjustable)
• Card User Capacity: 2000
• PIN User Capacity: 500
• Idle Current: <50mA
•  Waterproof Level : IP66
• Operating Temperature: -40°F-140°F
• Operating Humidity: 10%-90%RH
• Enclosure Material: Zinc Alloy
• Key Material: Plastic
• Product Weight: 1.01lb
• Dimensions: 4-7/8″ x 2-33/64″ x 1-9/32″

Package:

• 1 x Keypad with 10″ of Cable
• 1 x English User Manual
• 4 x Plastic Anchors
• 4 x Self-Tapping Screw
