NC Type Surface Mounted Wired Magnetic Window Metal Door Contact (Pack of 1)

$14.25

This NC type surfae mounted wired magnetic door contact is used to detect door if it is opened or moved. It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility, ideal for metal door.

SKU: UT-RZ-52 Categories: ,

NC Type Surface Mounted Wired Magnetic Window Metal Door Contact (Pack of 1)



Features:

  • Ideal for metal door
  • Detecting door gap by opening, Be used to detect door if it is opened or moved
  • It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility
  • Leads with 1007UL #22AWG 260mm

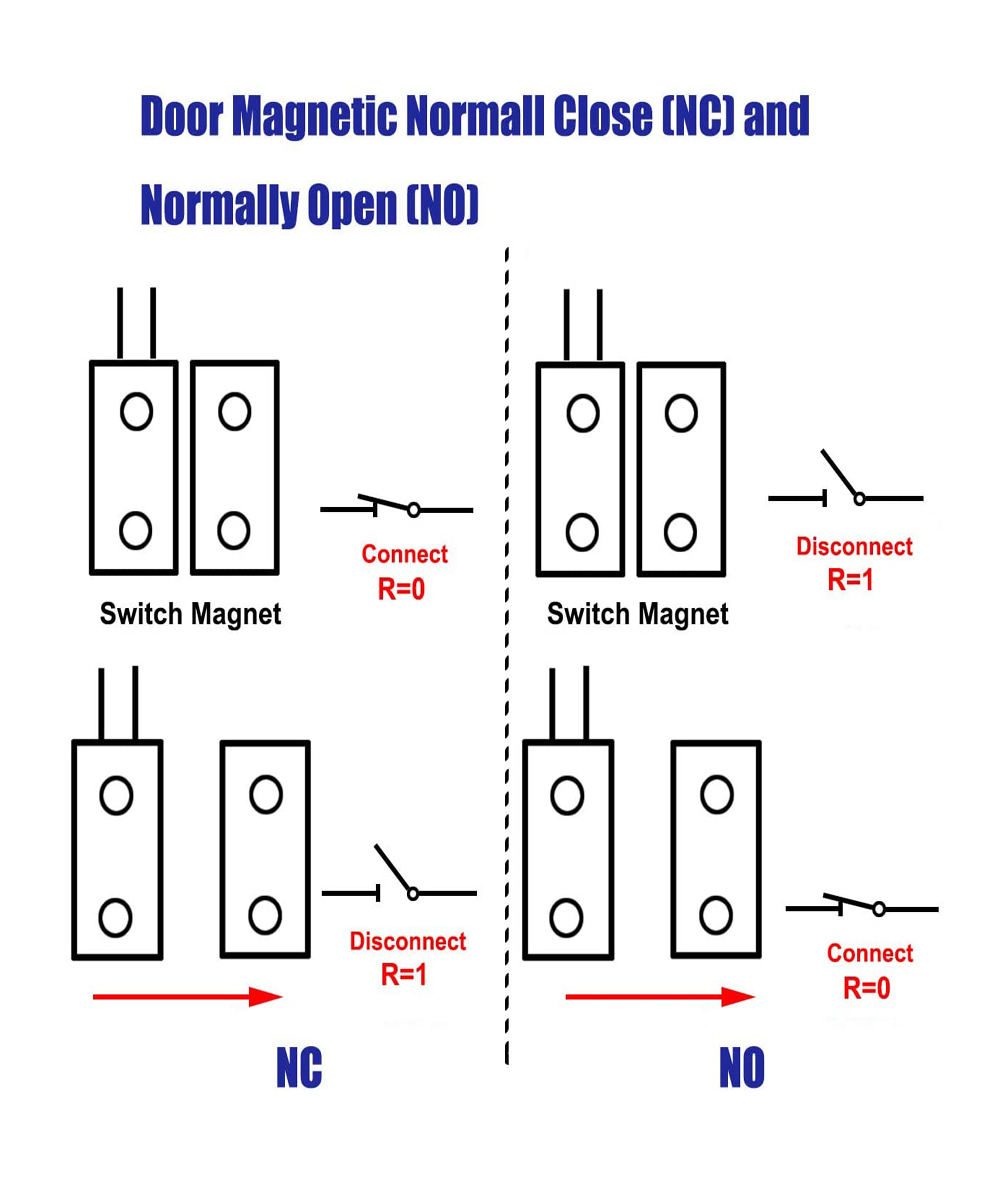

  • NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).

Specifications:

UT RZ 52 3

  • Material: Zinc alloy
  • Surface installation
  • Zinc alloy housing, sliver grey
  • 10W/100VDC/0.5A in MAX
  • Leads with 1007UL #22AWG 260mm

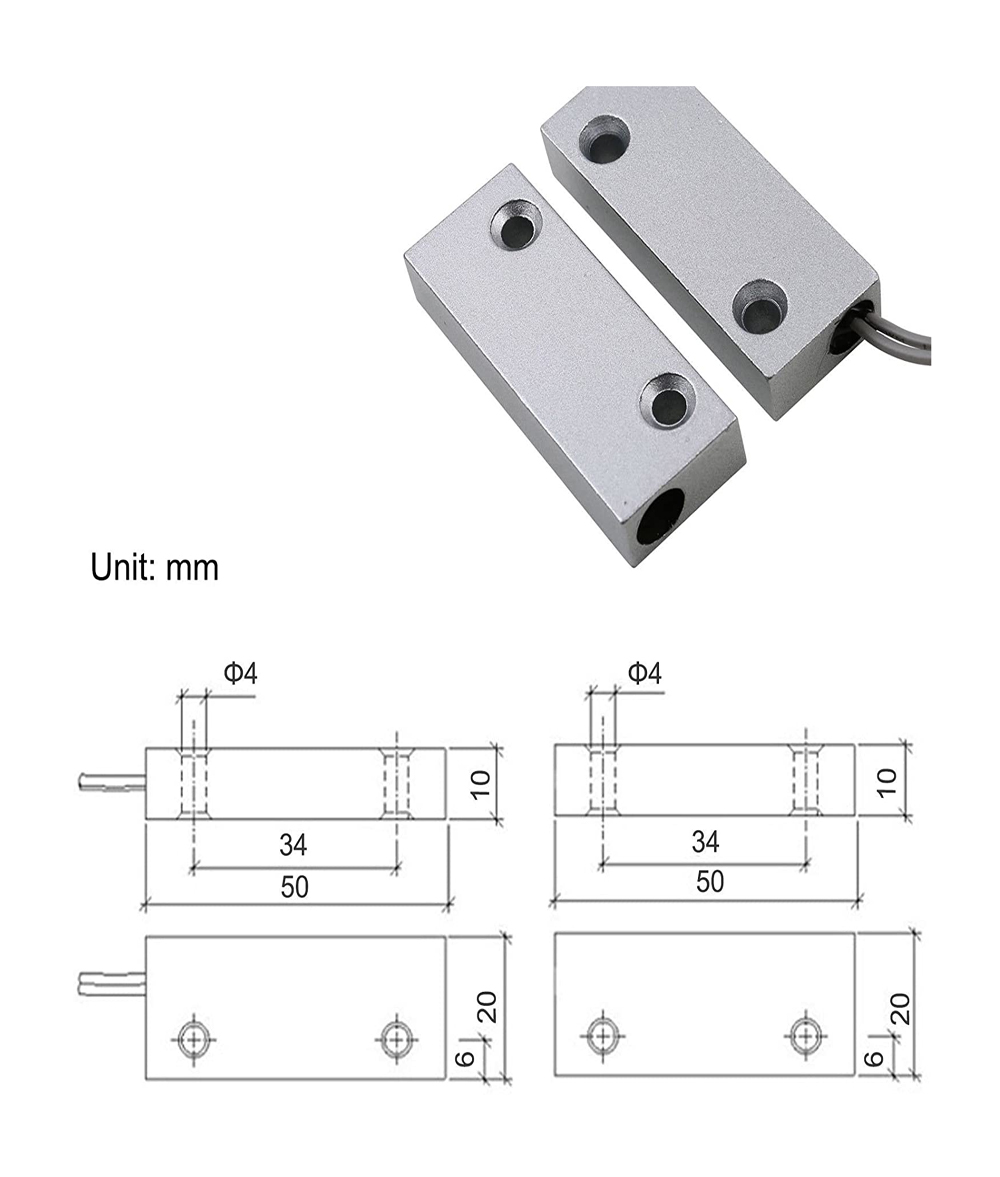

  • Size: 50x20x10mm / 1.97×0.79×0.39in
  • Detecting Distance: 25-35mm / 0.98-1.38in
  • NC,COM (NORMALLY CLOSED: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
  • Ideal for metal door
  • Detecting door gap by opening, Be used to detect door if it is opened or moved
  • It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility

Note:

  • Please allow slight size differences due to manual measurement

Package:

  • 1 x Wired door sensor
  • 4 x Screws

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 0.12 kg
