NC Type Wired Magnetic Roller Shutter Door Contact Sensor Detector

$18.20

This NC type wired magnetic door contact is ideal for roller shutter doors, great for use in family and factory window, door. etc. High quality, smart sensitivity, strong flexibility, and very easy to install.

SKU: UT-RZ-60B Categories: ,

NC Type Wired Magnetic Roller Shutter Door Contact Sensor Detector



Features:

  • Screw surface mount contact, metal housing.
  • Cable Material: 1007UL #22AWG
  • Great for use in family and factory window, door. etc.
  • Idea for roller shutter doors

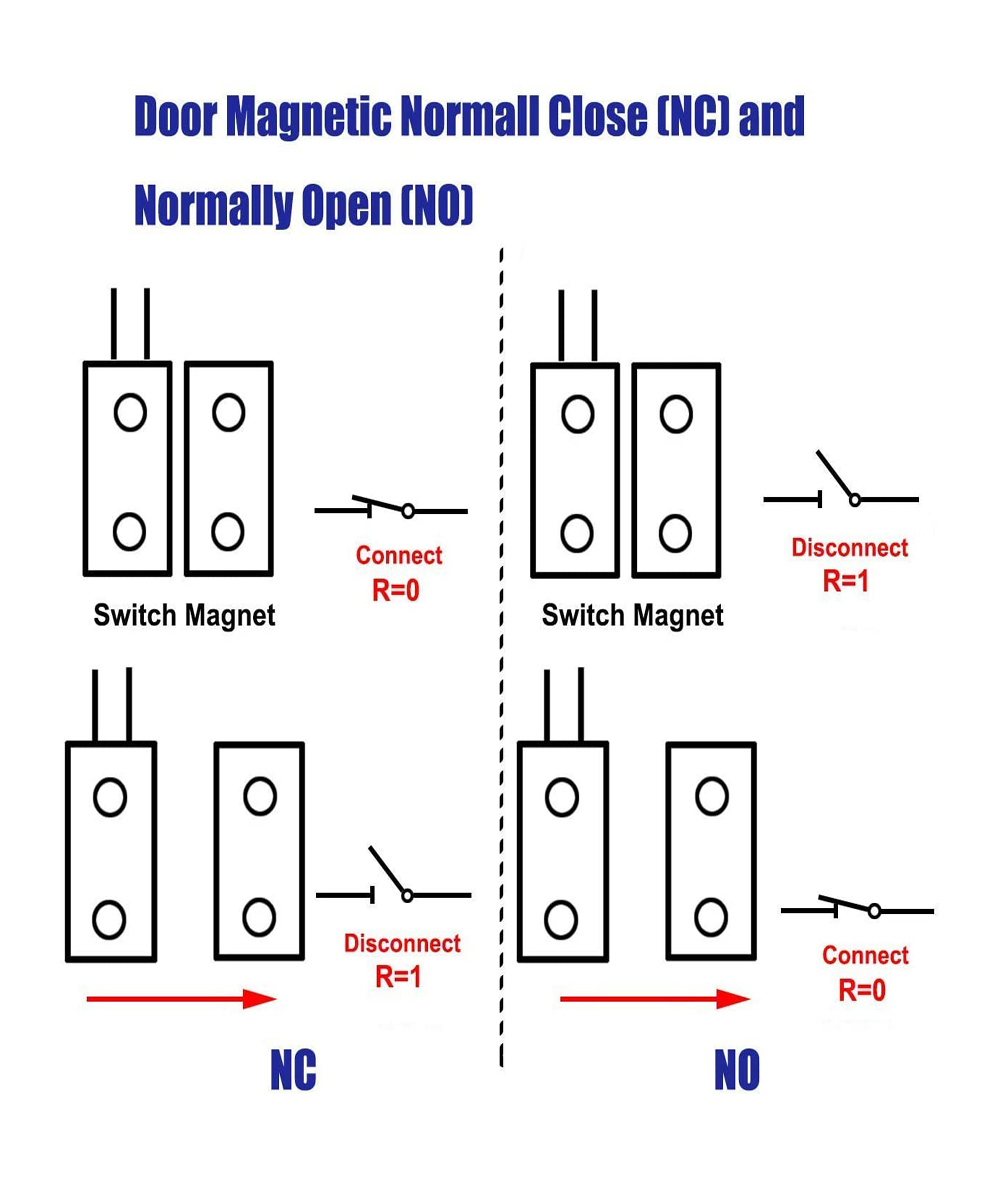

  • NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
  • Comes with four installation screws.

Specifications:

UT RZ 60B 2

  • Detector Dimensions: 104x50x9.5mm / 4.09×1.97×0.37in
  • Magnet Dimensions: 107×19.8x17mm / 4.21×0.78×0.67in
  • Working Distance: 50-70mm / 1.97×2.76in
  • Dry Contact Output: NC,COM (NORMALLY CLOSED: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
  • Color: Sliver Grey
  • Housing Material: Zinc Alloy
  • Cable Material: 1007UL #22AWG
  • 370mm flexible Steel goose-neck cable protector conduit + Additional 100mm extra-long cable

Note:

  • Please allow slight size differences due to manual measurement

Package:

  • 1 x Wired contact
  • 4 x Mount screws
