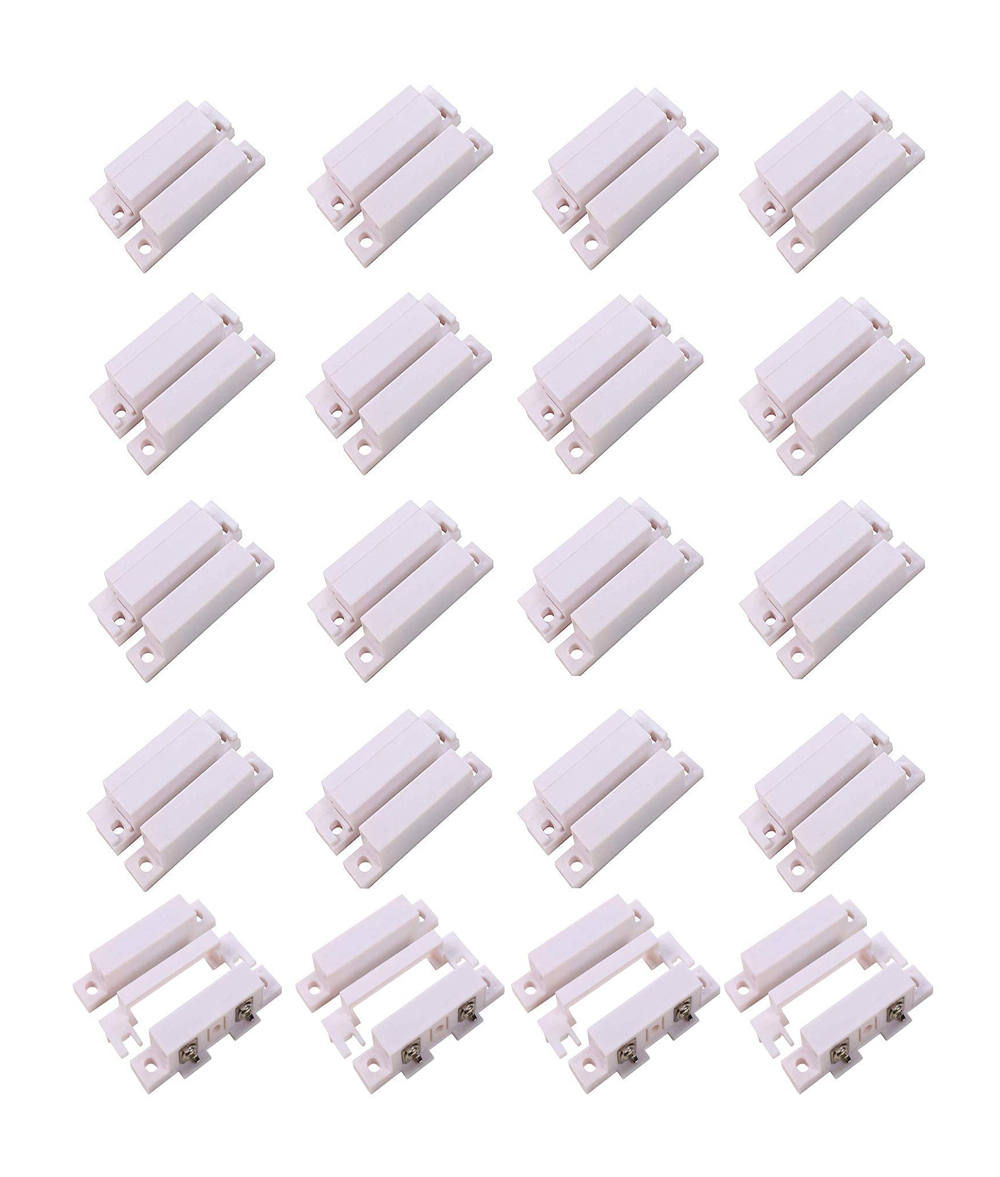

NC Magnetic Window Door Contact Open Alarm Sensor Screw-Terminal Surface Mount Using Side tabs (Pack of 20)

$61.99

This NC mode door contact switch is an electrical switch operated by an applied magnetic field, designed for use with alarm systems. It is great for use in family and factory wooden windor, door, etc.

SKU: UT-RZ-31NC-20Packs Categories: ,

NC Magnetic Window Door Contact Open Alarm Sensor Screw-Terminal Surface Mount Using Side tabs (Pack of 20)



Features:

  • Contact reed switch is SPST, deactivated rhodium on gold under-plating, which results in a long life
  • The switch is an electrical switch operated by an applied magnetic field
  • Designed for use with alarm systems.
  • Great for use in family and factory wooden windor, door, etc.
  • NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).

Specifications:

  • Switch Type: NC (Normal colsed type)
  • Size: 64x19x13mm
  • Sensing Distances: 15~25mm
  • 10W/100V/0.5A in MAX
  • Housing Material: ABS plastic
  • Terminals: Screw-type
  • Mounting Tabs: Yes
  • Contact Rating: 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
  • Operating Temperature: -15º~+160º F (-25º~70º C)
  • Switch Cycles: 50 Million (0.1mA@5VDC)
  • Color: White

Package:

  • 20 x Door Contact
