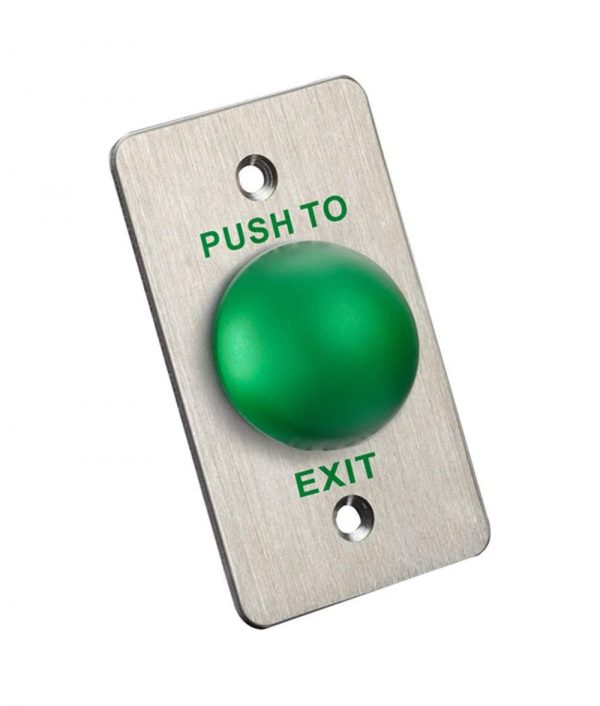

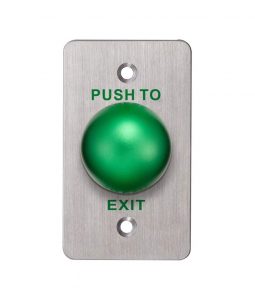

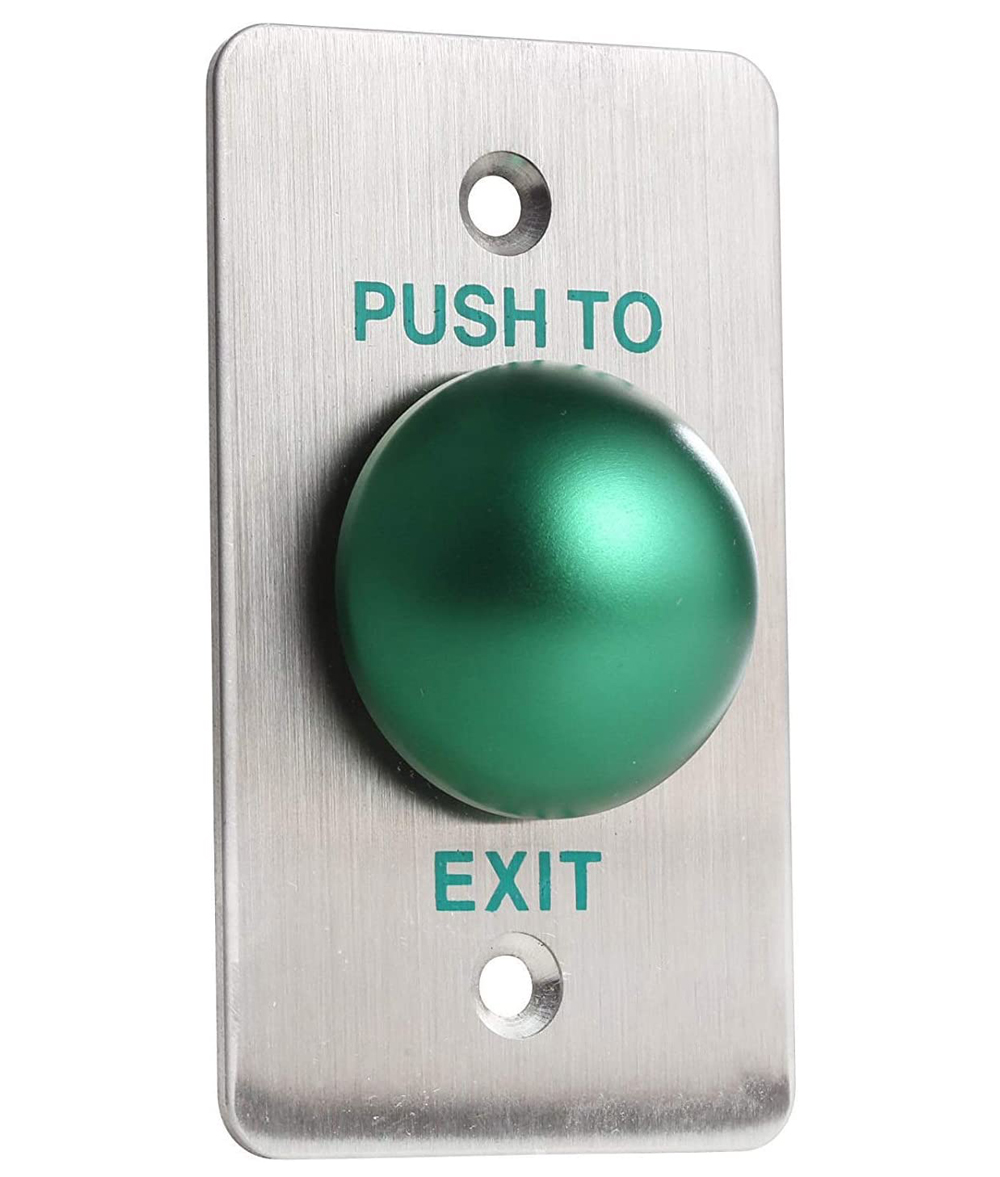

Stainless Steel Panel Push to Exit Button for Door Access Control (Rectangle)

Stainless Steel Panel Push to Exit Button for Door Access Control (Rectangle)

Features:

• Design with no Mechanical Bolt.
• Aluminum Panel with Elegant Style
• 500000 Cycles tests.
• Standard structure: 304 stainless steel panel with metal button
• Mechanical life: 500000 tested
• Two Contact Output,Suitable for all kinds of Locks.
• The Best Choice for Access Control.

Specifications:

• Dimensions: 86Lx50Wx40.1H(mm) / 3-25/64″ x 1-31/32″ x 1-37/64″
• Standard structure: 304 stainless steel panel with metal button
• Current rating: 3A@36VDC Max
• Output contact: NO/NC/COM
• Mechanical life: 500000 tested
• Suitable for door: All kinds of doors
• Operating temp: -10℃~+55℃(14℉~131℉)
• Operating humidity: 0-95% (relative humidity)
• Panel Material: 304 stainless steel panel with wiredrawing finish
• Back box finish: 304 stainless steel panel with wiredrawing finish
• Weight: 0.18kg / 0.4lb

Package:
