I Bracket Installation Groove of Armature Plate for 280KG 600Lbs Magnetic Lock

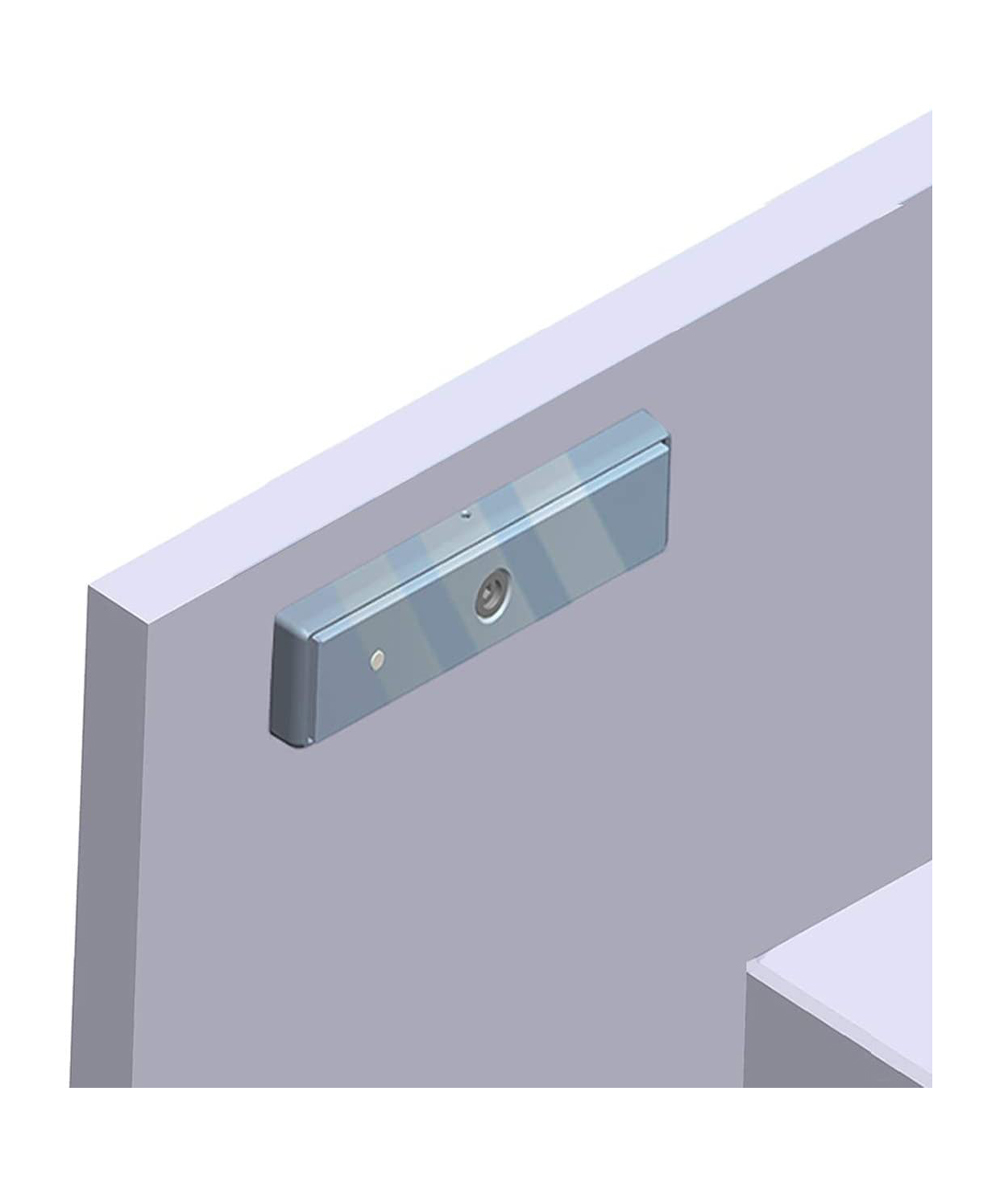

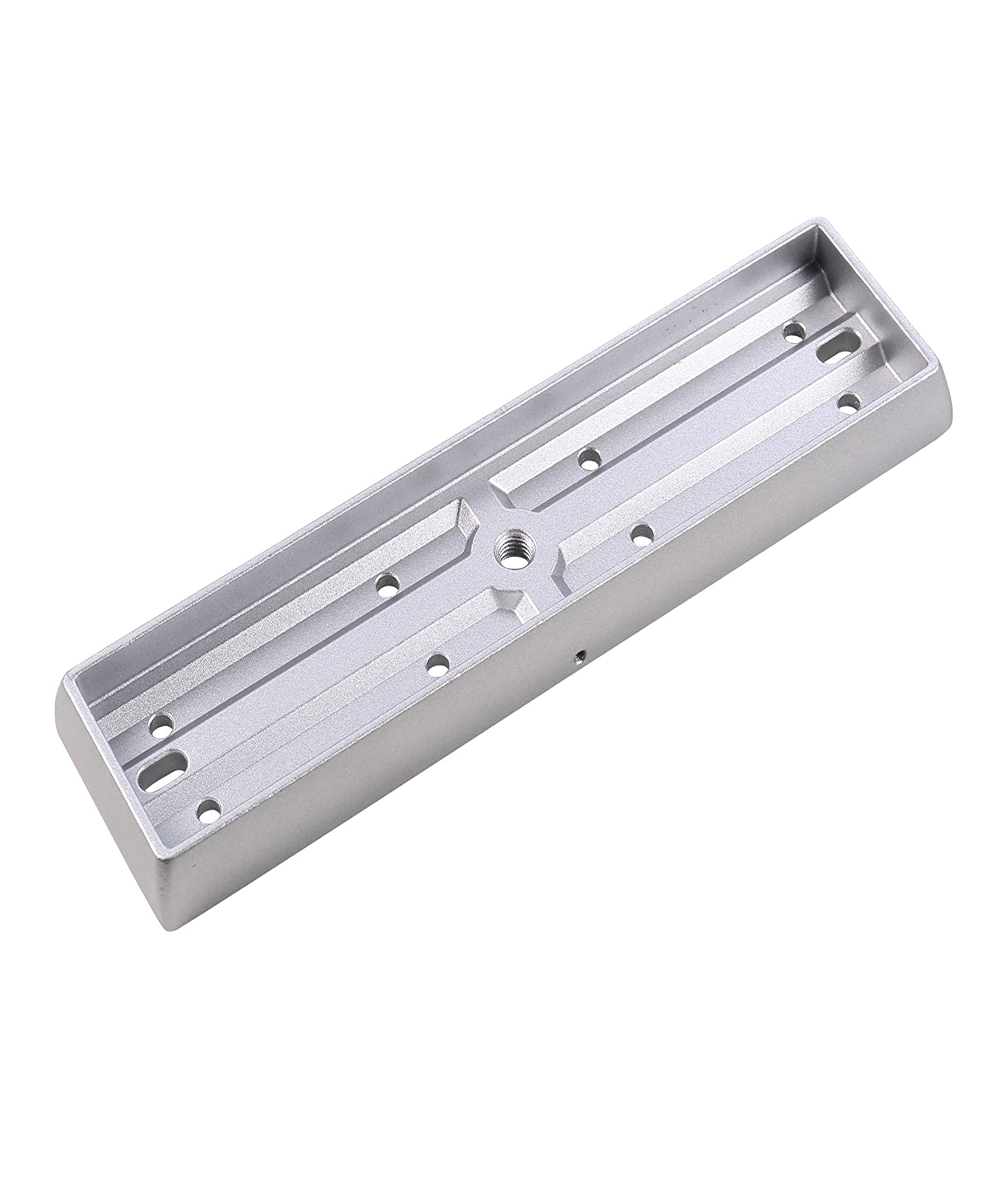

- I bracket is used to install the plate on the door leaf.
- Material are High Strength Aluminum,Firm and Durable.
- Easy, fast and accurate armature installing compared to traditional installation method.
- Special Design, Suitable for metal door,narrow frame door, fire door, particularly thick door, and the door that is not easy to penetrate through the screw, etc.

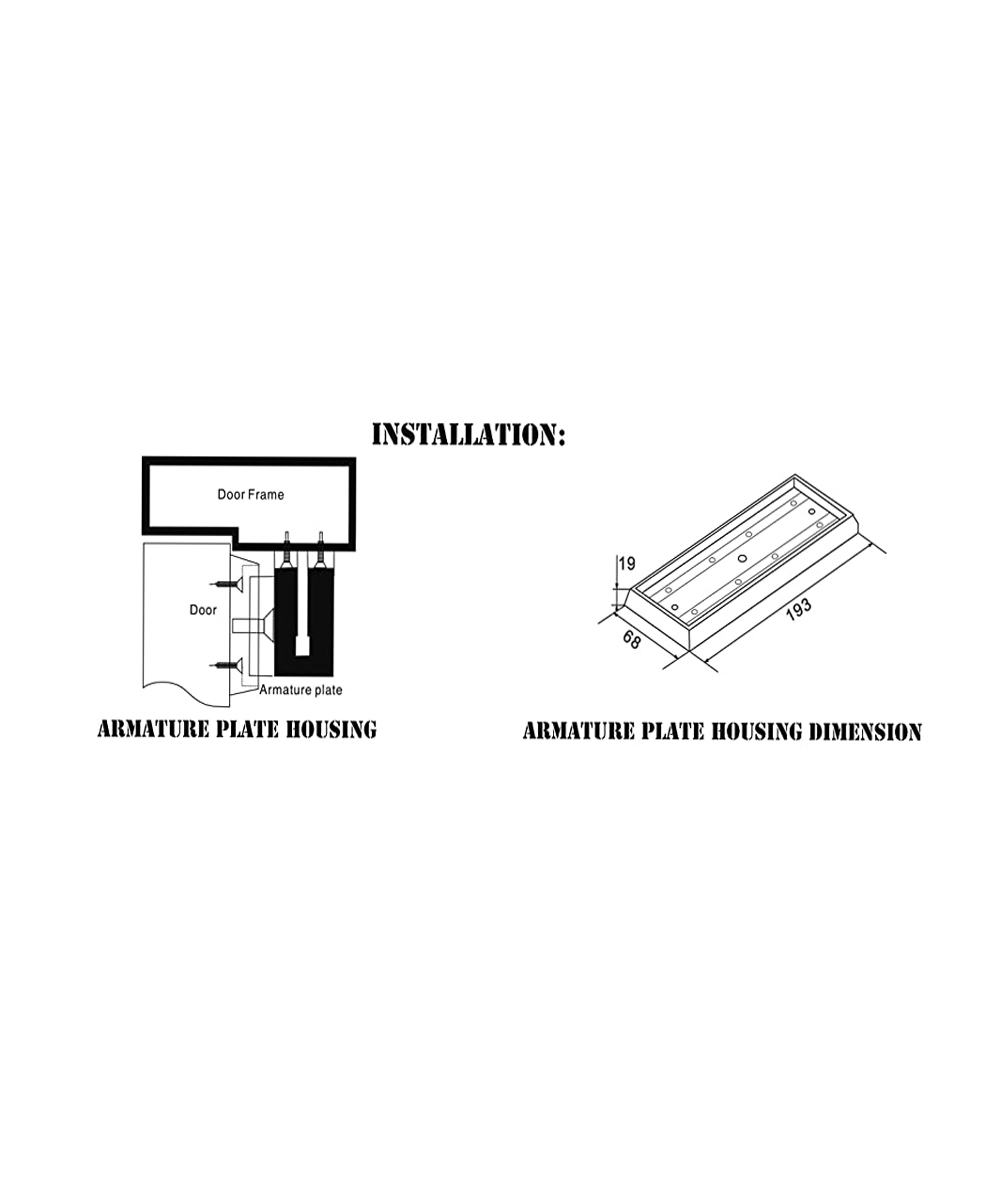

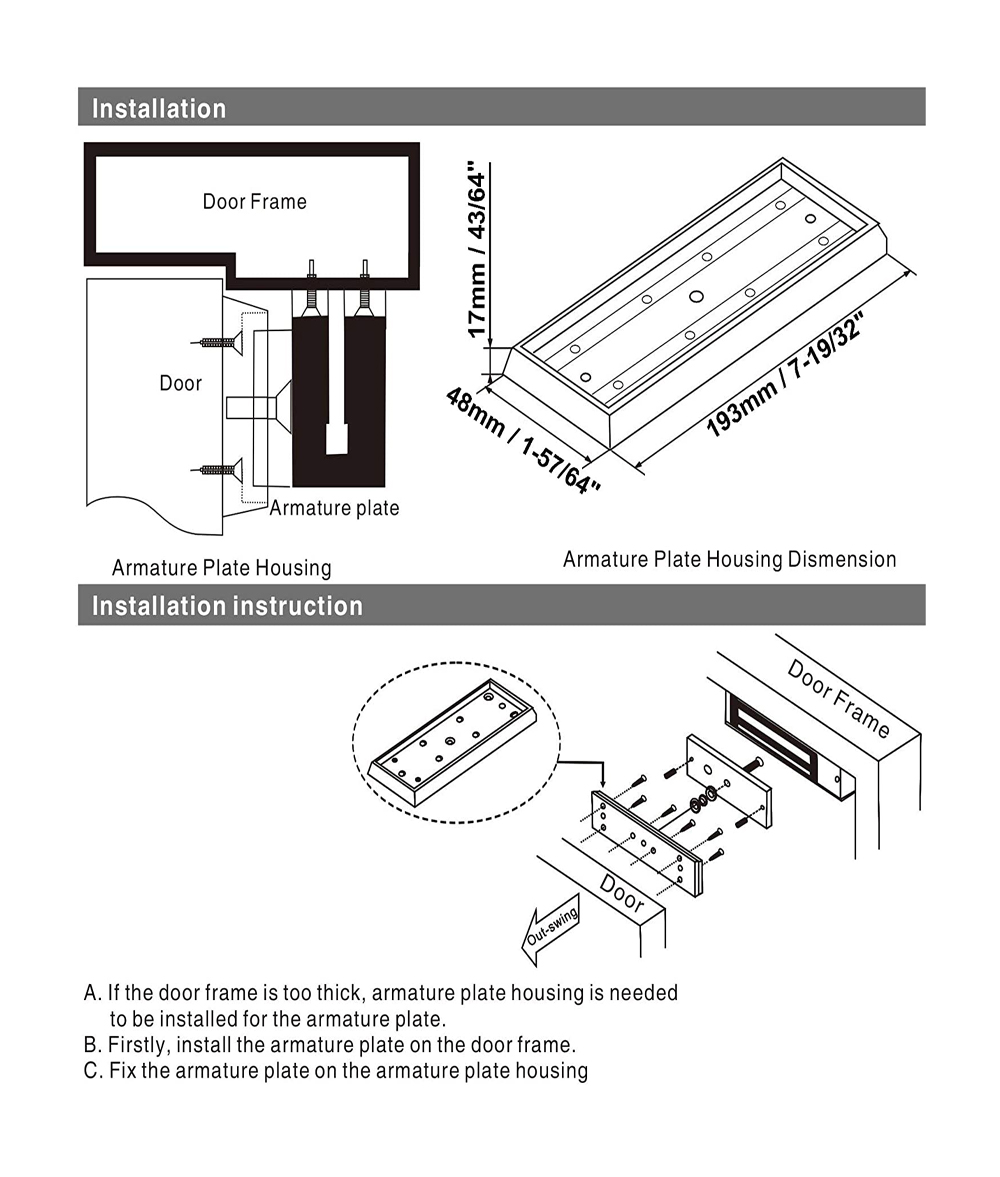

- If the door frame is too thick, armature plate housing is needed to be installed for the armatur plate
- More improved vandal-resistant purpose as the armature plate fixing is invisible from the other side of door.
- Dimension: 193x48x17mm / 7.60″ x 1.89″ x 0.67″
- Material: High Strength Aluminum, Sandblast Finished
- Suitable: Narrow Door
- Opening Mode: 90 Degree Door
- Finished for Shell: Anodized aluminum
- Product Weight: 190g
- 1 x I Bracket
- 1 x English Manual
