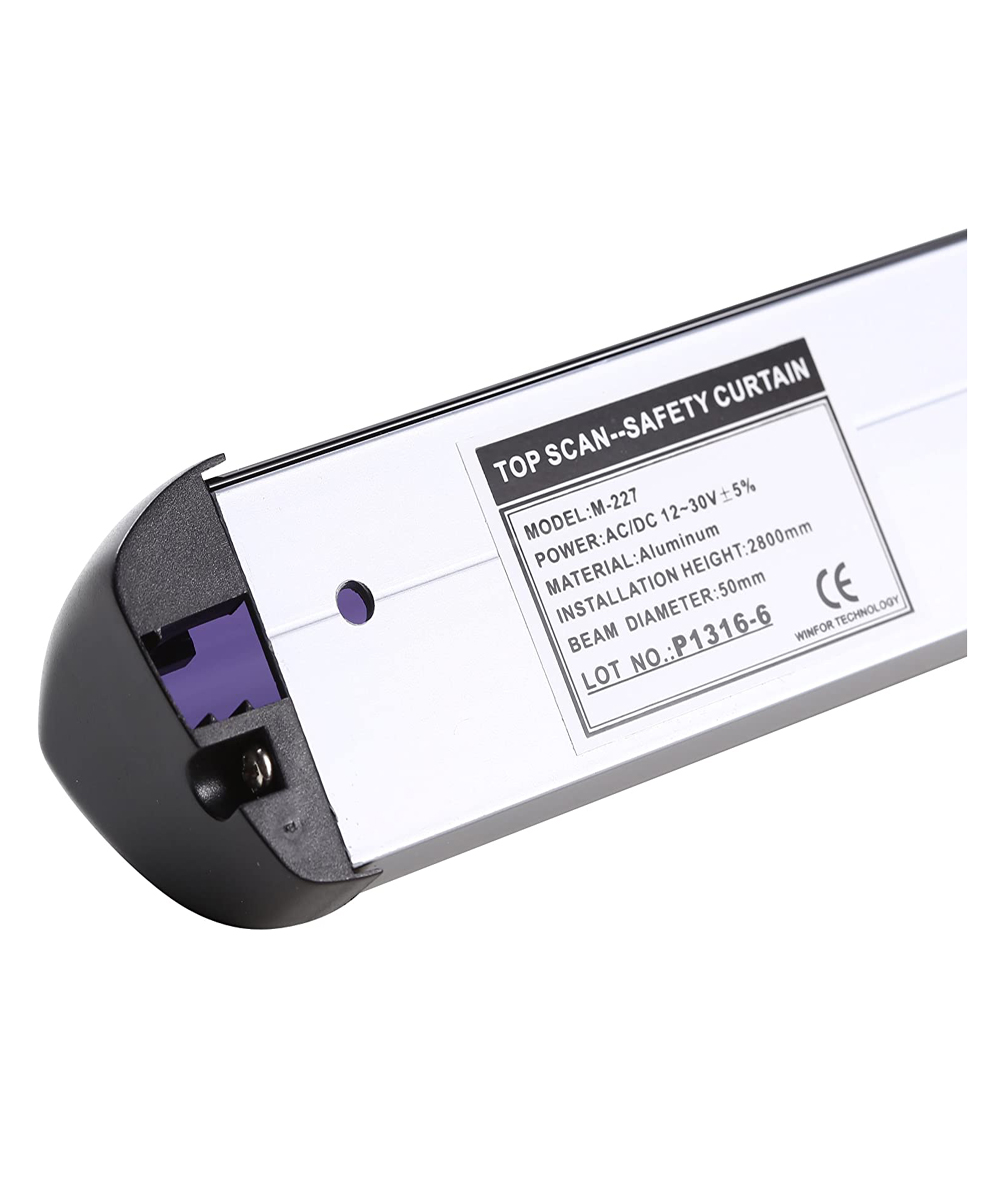

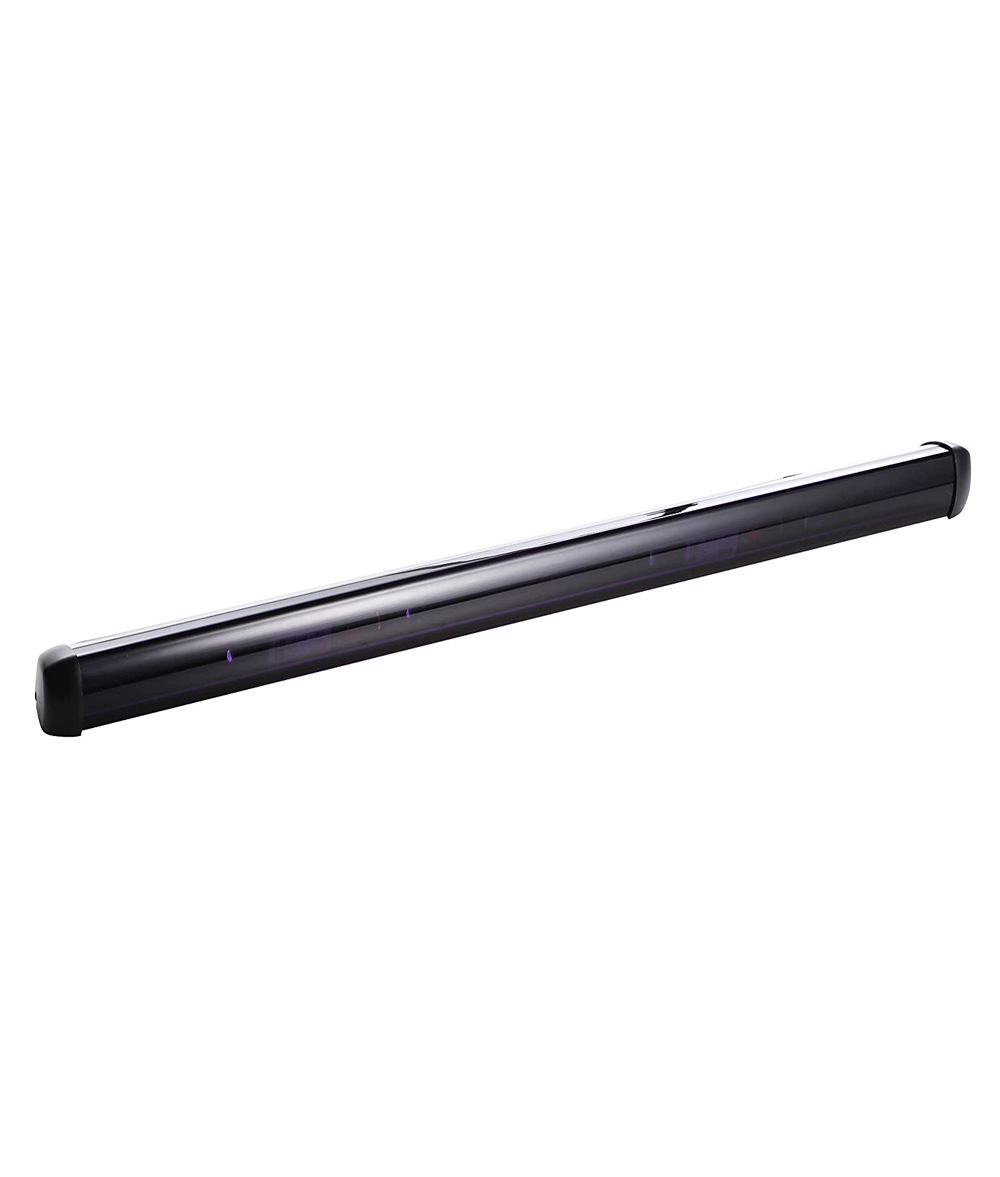

Infrared Rotation Door Motion Top Scanner Presence Detect Sensor Moving Safety Curtain for Auto-Door System

Infrared Rotation Door Motion Top Scanner Presence Detect Sensor Moving Safety Curtain for Auto-Door System

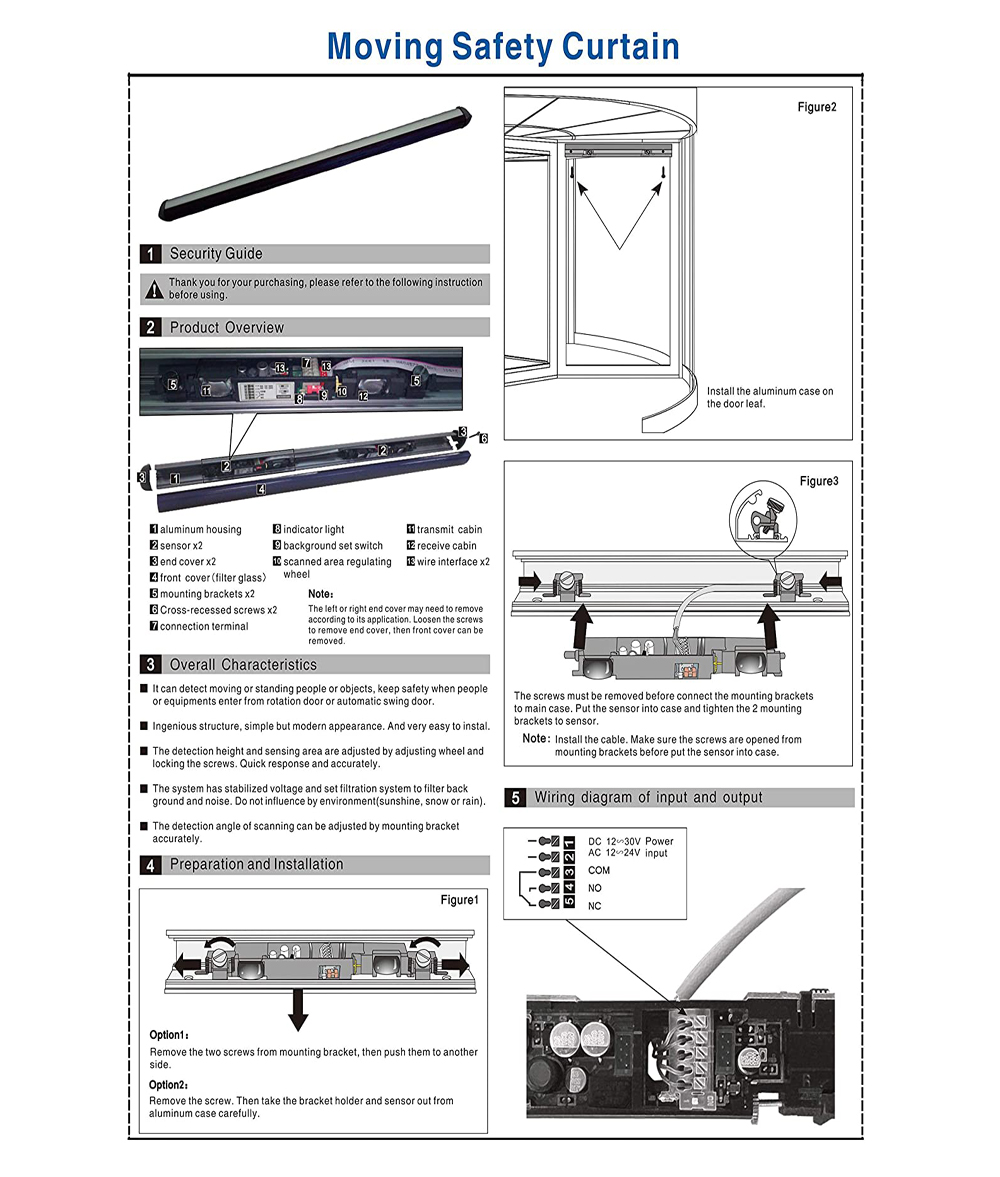

Features:

• It can detect moving or standing people or objects,keep safety when people or equipments enter from rotation door or automatic swing door
• Ingenious structure,simple but modern appearance.And very easy to install

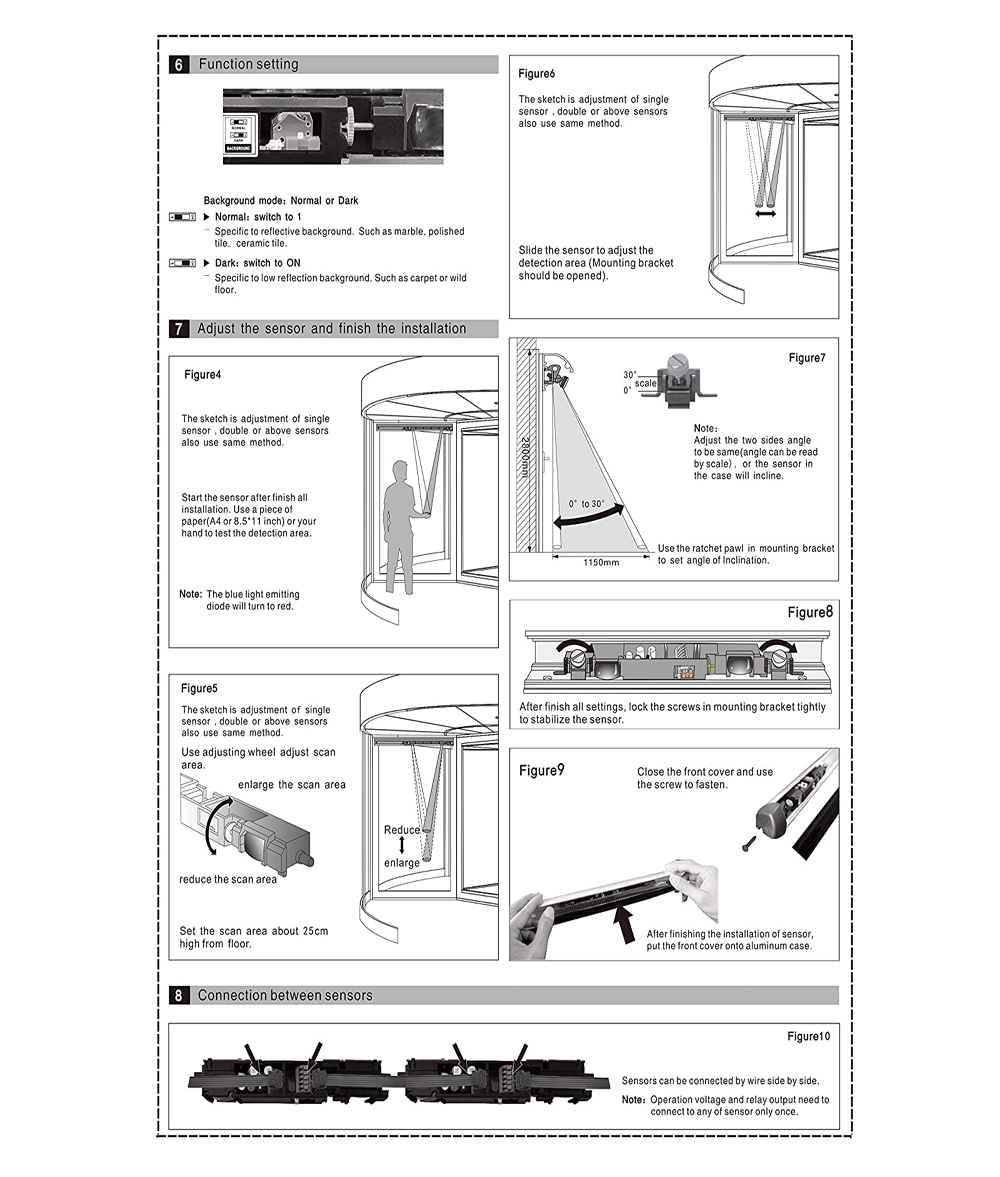

• The detection height and sensing area are adjusted by adjusting wheel and locking the screws. Quick response and accurately
• The system has stabilized voltage and set filtration system to filter background and noise. Don’t influence by environment(sunshin,snow or rain)
• The detection angle of scanning can be adjusted by mounting bracket accurately

Specifications:

• Scan aera setting: Mechanical adjustment of wheels 500-2800mm / 19.69-110.24in(Triangle principle)
• Ambient temperature: -20℃~60℃ / -4℉~140℉ (Deviate from set scan aera 60℃/ 140℉)
• Distinguish black/white: Max. 20%. Whtie: scan area is larger. Nlack: Scan area is smaller (The distinguish between black and white according to scan area set)
• Detection area diameter: approx. 75mm/2.95in light spot (Apply in 2000mm/78.74in scan area)
• Type of ray: Infrared ray (880nm pulse modulaton infrared light)
• Operation voltage: AC/DC12-36V
• Current consumption: <100mA
• Signal output: Relay,switch point;Highest alternating voltage 48VDC/AC;Highest alternation current 0.5A DC/AC;Highest alternating capacitance 550 volt-ampere/24watts
• Detection response time: <100ms
• Operate mode: Motion or standstill mode (Self-adaption)
• Function indicator: LED (Blue-standby,Red-detect)
• IP: IP52
• Housing material: AL/ABS
• Sensor dimension: 620Lx31Wx20H(mm) / 24.41Lx1.22Wx0.79H(in)

Package:

• 1 x Motion top scan
