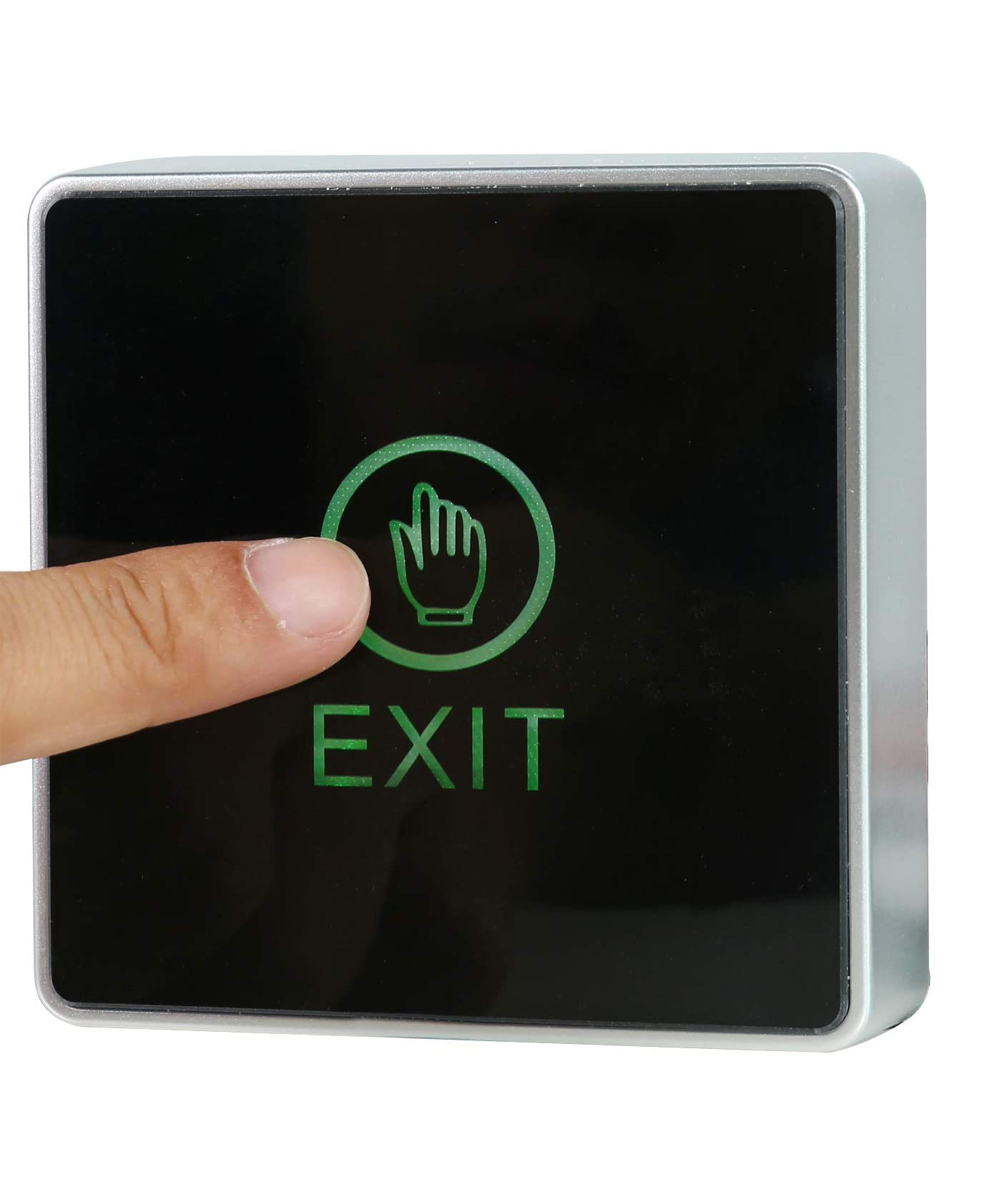

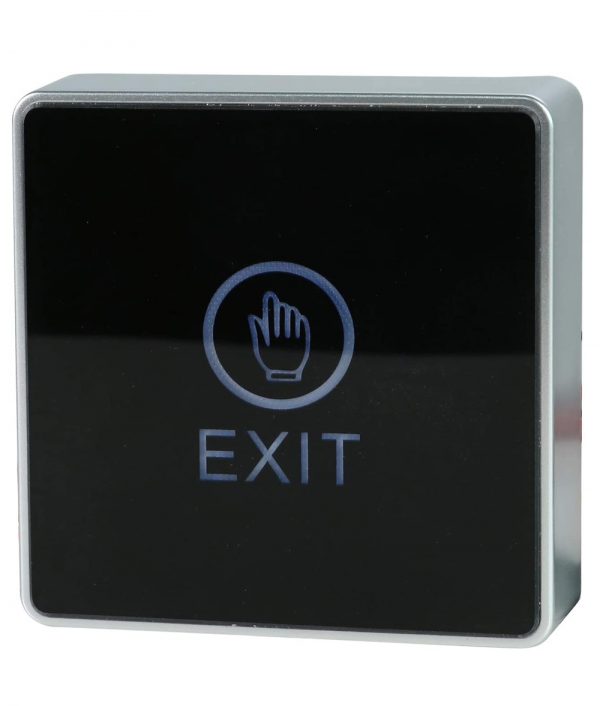

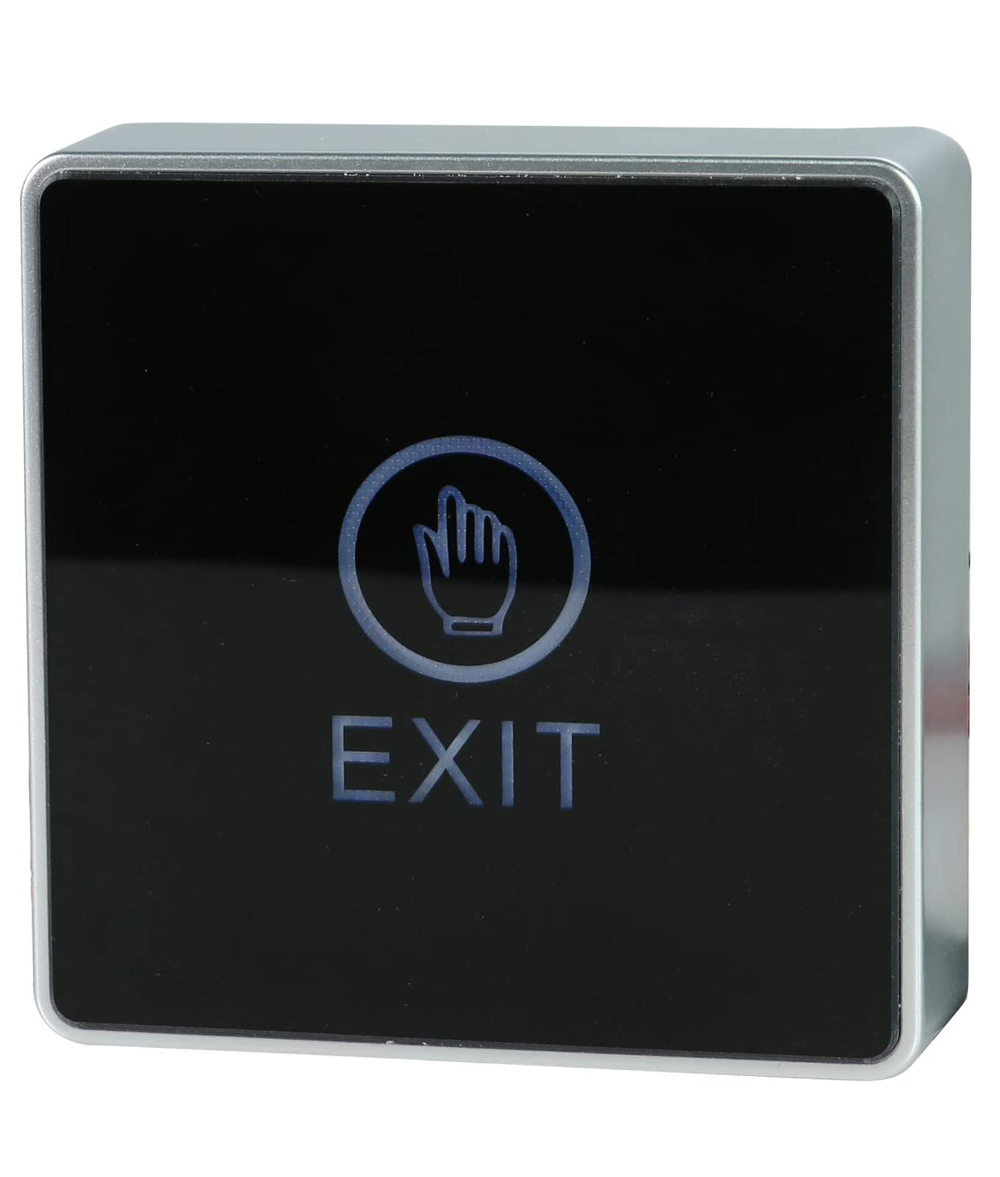

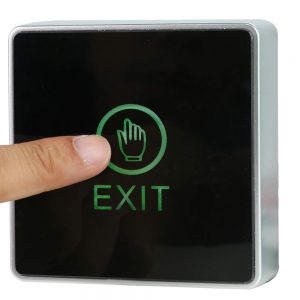

Touch to Exit Button Switch for Door Access Control System

$17.30

  • PC panel and special bottom box for easy installation in a varirty of situations.
  • The time delay is adjustable from 0-15 seconds.
  • The LED indicator makes the device clearly distinguishable at night for nighttime use.
  • Easy to place on walls, good choice for Door Access Control System.
  • Suitable for use in buildings, residential communities, offices, hotels, hospitals, sports venues, and other places
SKU: UT0611-02 Categories: ,

Touch to Exit Button Switch for Door Access Control System



Features:

  • PC panel and special bottom box for easy installation in a varirty of situations.
  • The time delay is adjustable from 0-15 seconds.
  • The LED indicator makes the device clearly distinguishable at night for nighttime use.
  • Easy to place on walls, good choice for Door Access Control System.
  • Suitable for use in buildings, residential communities, offices, hotels, hospitals, sports venues, and other places.

Specifications

  • Working Voltage: 12VDC
  • Operating Current: ≤60mA
  • Output Contact: NO/NC/COM
  • Contacting Rating: 3A@36VDC
  • Mechanical Life: 500,000 tests
  • Time Delay: 0-15s (adjustable)
  • Operating Humidity: 0%~95%RH
  • Operating Temperature: 22℉~140℉
  • LED Indicator: Red—Standby, Green—Operation
  • Enclosure Material: Plastic
  • Panel Material: PC
  • Dimensions: 3-25/64″x3-25/64″x1-13/32″ [86x86x35.9mm]
  • Product Weight: 5.22oz [148g]

Package:

  • 1 x Touch Exit Button
  • 1 x User manual
  • 1 x Installation Drawing
  • 1 x Accessories Package
Weight 0.09 kg
Dimensions 8.6 × 8.6 × 2.6 cm
