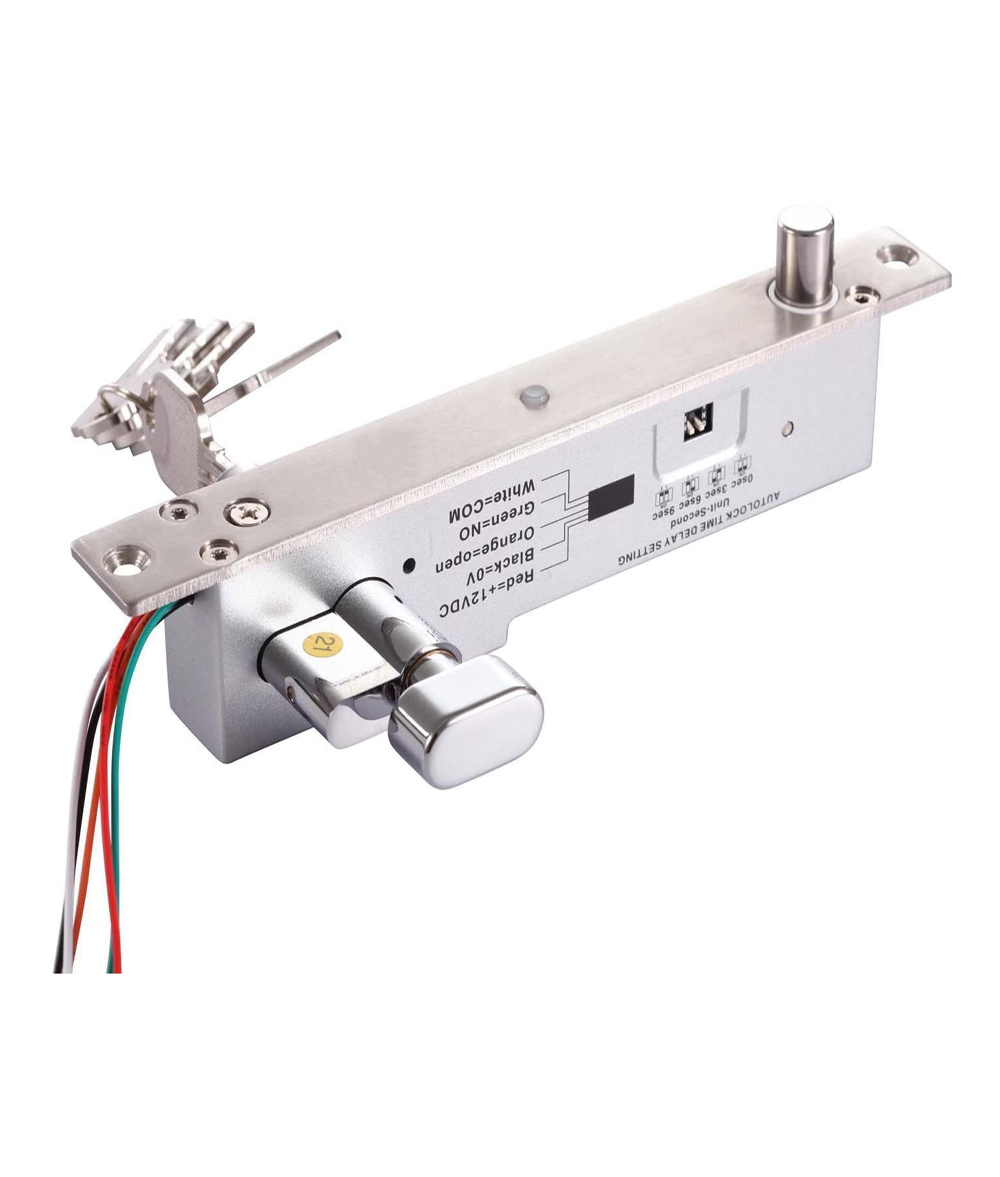

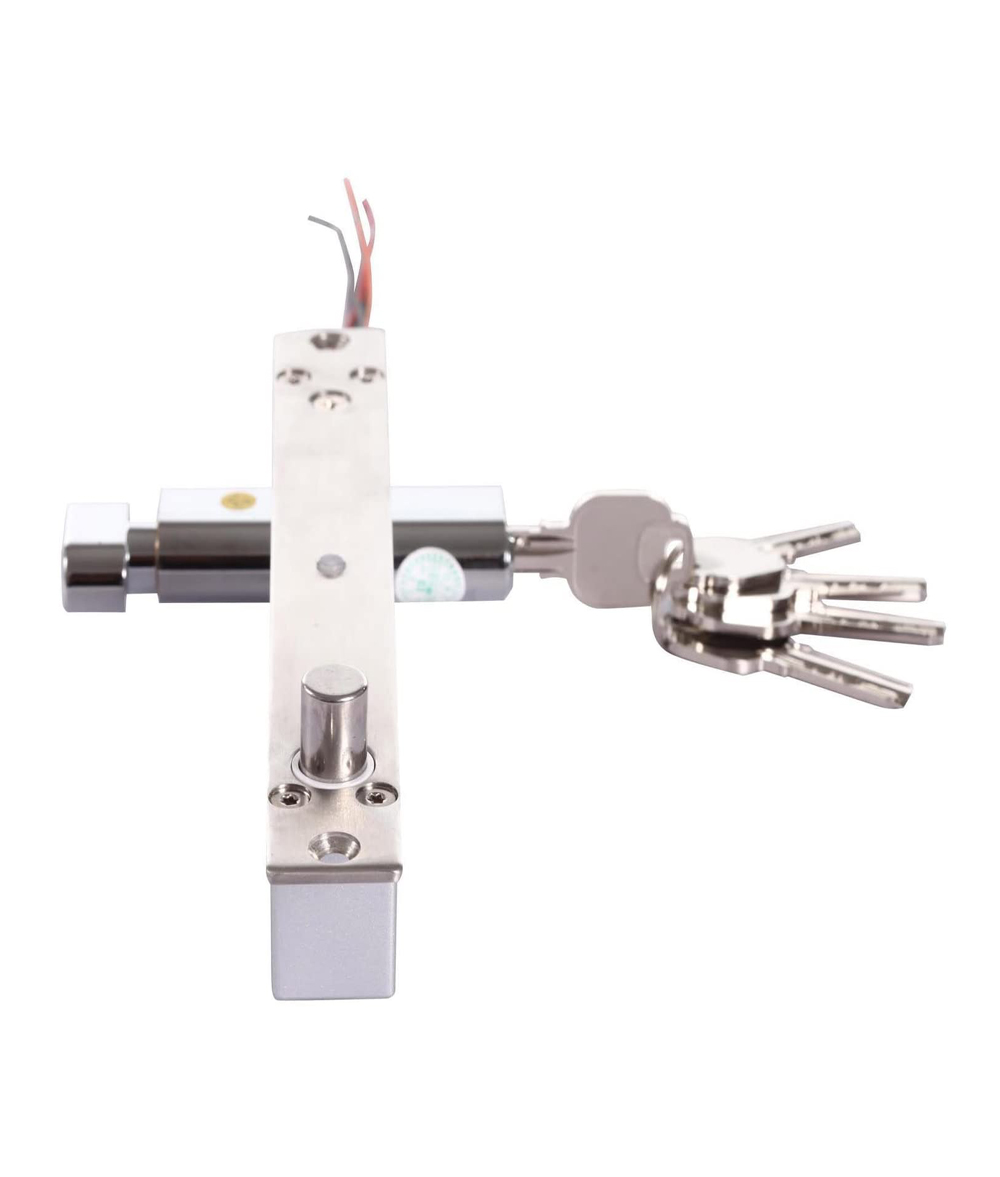

Drop Bolt Lock Key Open Fail Secure Sturdiness Electric Manual Open Cylinder

Drop Bolt Lock Key Open Fail Secure Sturdiness Electric Manual Open Cylinder

Features:

• Photoelectricity Controlling, no mechanical defect
• Low Temperature, safe & Durable
• Low Power, Environmental Protection
• Special photoelectricity control, three steps current application
• Long Life with 500000 cycles
• MOV Provides Reverse Current Protection
• Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt
• Autolock Time Delay: 0/3/6/9 sec
• Door statue signal output contact NO/COM
• Double protection for loading current
• Auto-relock if no Action within 5 secs
• Certificate: CE&MA
• Photoelectricity Control, Low Temperature
  A: The Low Current is Changed immediately
  B: When door frame doesn’t coincide with door leaf, door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature.
  C: The Photoelectricity Control Technology, prevent the mechanical defect.

Specifications:

• Fail secure, Locked when power is removed
• Face Plate: 210Lx25WX42H(mm) / 8.27Lx0.98Wx1.65H(inch)
• Strike: 90Lx25Wx3H(mm) / 3.54Lx0.98Wx0.12H(in)
• Bolt: 16mm/0.63in DIA, stainless steel 13mm/0.51 in throw
• Voltage: DC12V
• Start Current: 960mA
• Standby Current: 180mA
• Solid Bolt Holding Force: 1000Kg / 2204lb
• Autolock Time Delay: 0/3/6/9 sec
• Door statue signal output contact: NO/COM
• Cylinder: One side is key, another side is knob
• Surface Temp: Low Temperature
• Induction Distance: 8mm/0.31in
• Operating Humidity: 0~90% (non-condensing)
• Special Designed: Tested to 500000 operations
• Face place material: 304 stainless steel, wire draw finishing
• Weight: 1.0kg / 2.2lb

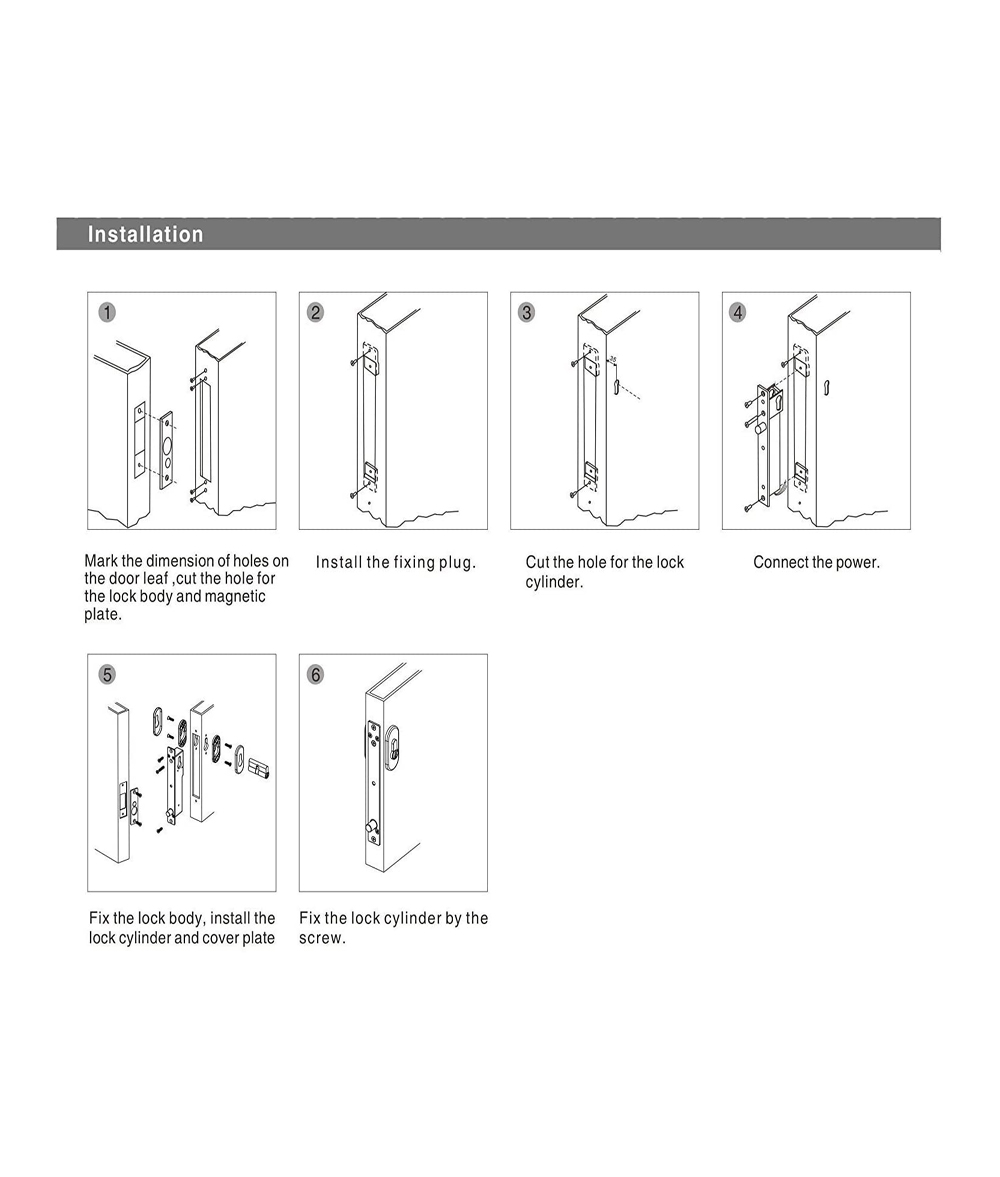

Installation:

Package:

• 1 x Electric Lock
• 1 x Screw Kit
• 1 x Manual
