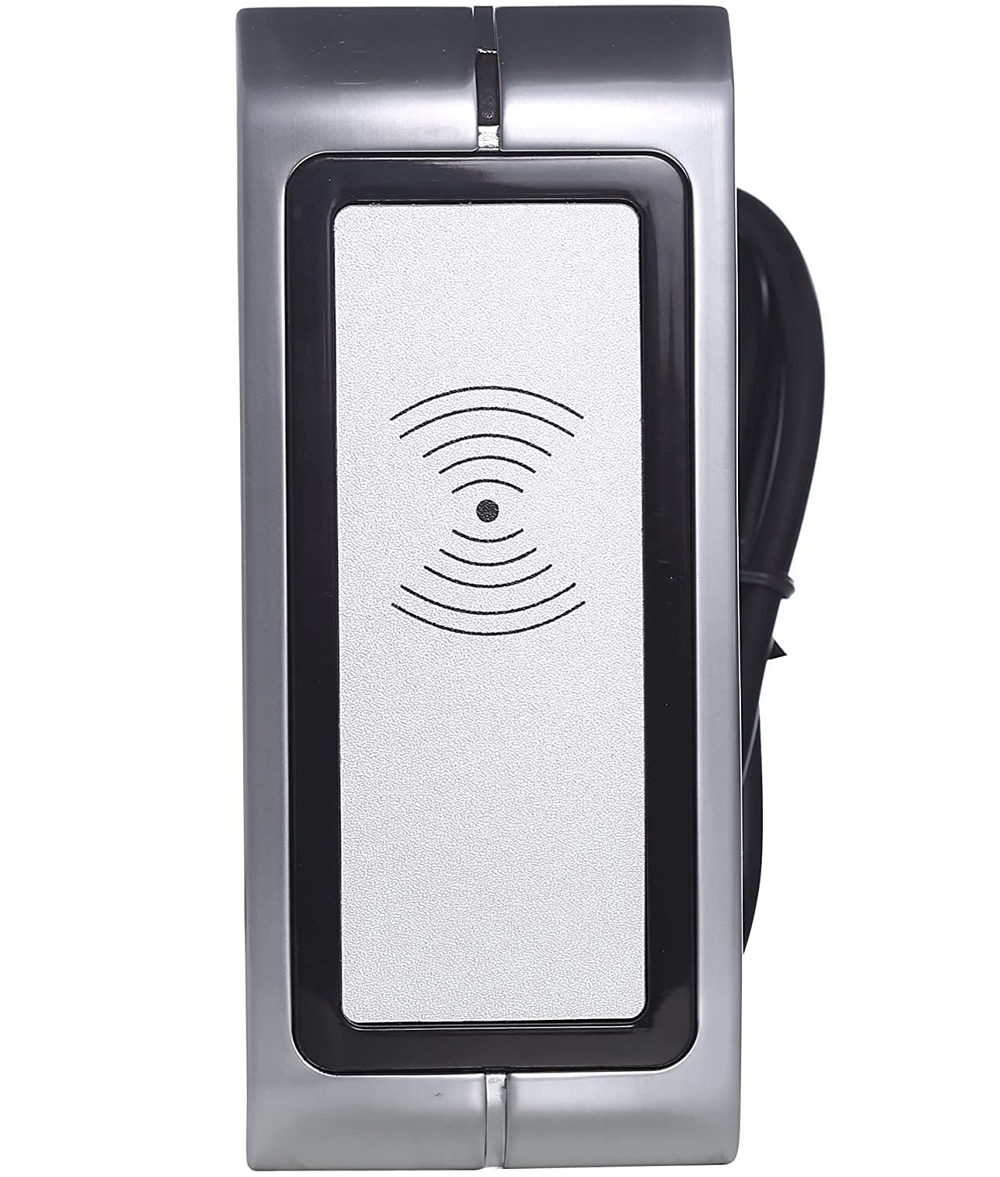

Metal Structure IP65 Wiegand 26 bit 125KHz RFID Card Reader for EM Card

Metal Structure IP65 Wiegand 26 bit 125KHz RFID Card Reader for EM Card

Features:

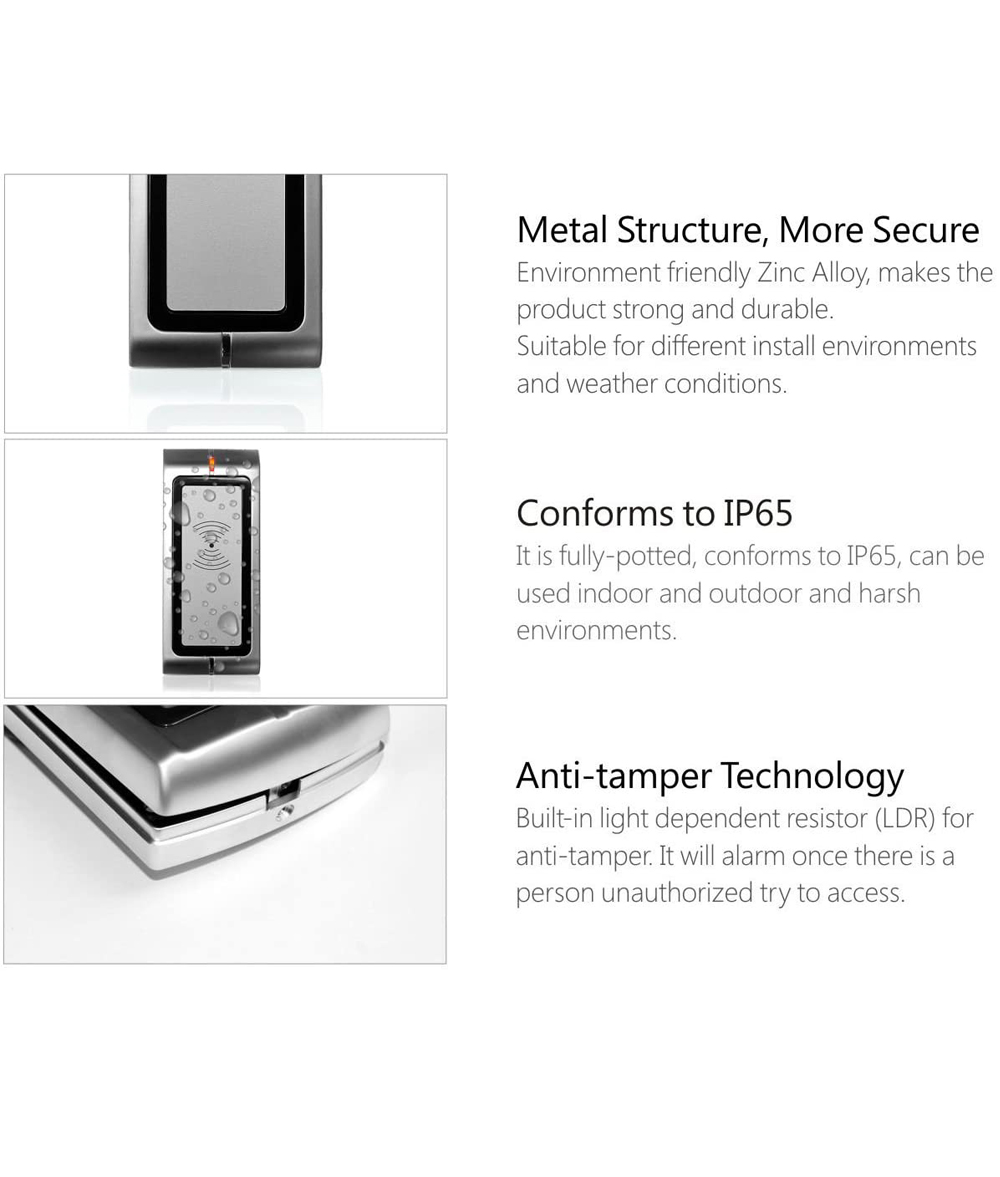

• Appearance: metal structure, safe, anti-vandal
• Support Card: 125KHz EM
• Output Format: 26bit is factory default setting
• Ultra-low Power Consumption: <30mA

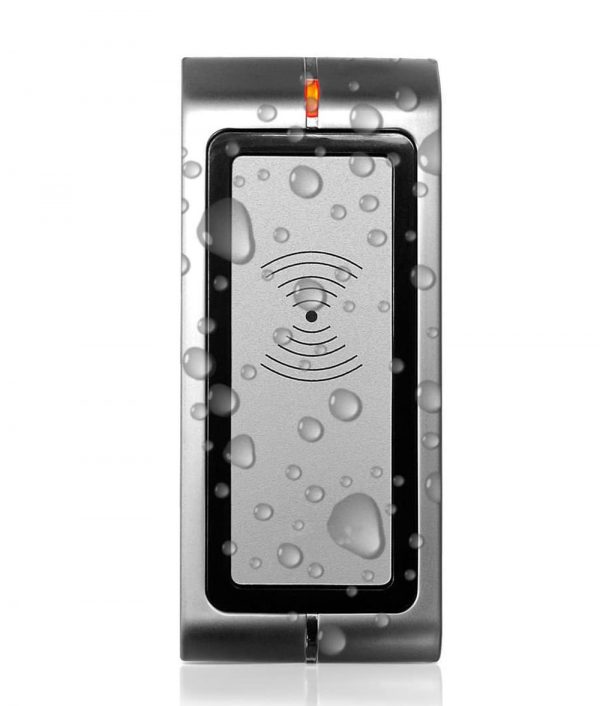

• Comforms to IP65: It is fully-potted, conforms to IP65, can be used for indoor or outdoor and harsh environments.
• Anti-taper Technology: Built-in light dependent resistor (LDR) for anti-tamper. It will alarm once there is a person unauthorized try to access.
• Testing: electrical fast transient burst generator 3.5KV, electrostatic immunity tester 15KV, high and low temperature tester -40℃~60℃ / -40℉~140℉
• Suit For: Storage, bank, prison etc

Specifications:

• Supply Voltage: 12VDC
• Standby Current: <30mA
• Support Cards: 125Khz EM
• Response time: 0.1s (typical)
• Output format for EM card: Wiegand 26 compulsively
• Card Reading Range: 3-6cm / 1.18-2.36in
• Operating Temperature: -40℃~60℃ / -40℉~140℉
• Level of Protection: IP65
• Transmit Distance: 100m / 328ft
• Cable Length: 90-100cm / 35.43-39.37in
• Dimension: L135xW58xH26(mm) / L5.31xW2.28xH1.02(in)

Installation Procedure:

1. Mark 4 dots (A,B,C,D) on the wall for screws and 1 dot (F) for the cable, then drill hole (A,B,C,D) in 6mm diameter, and drill the hole (F) in 10mm diameter.
2. Plug the Rubber Bungs into the 4 holes (A,B,C,D). Fix the back cover firmly on the wall with Self-tapping screws.
3. Thread the cable through the cable hole.
4. Attach the front cover to the back cover, and use the screw E to fix it.

Package:

• 1 x Card Reader
• 1 x User Manual
• 4 x Rubber Bungs
• 4 x Self Tapping Screws
• Tip: As the RFID reader controlled by access control board, please refer to the manual of access control board for operate it.
