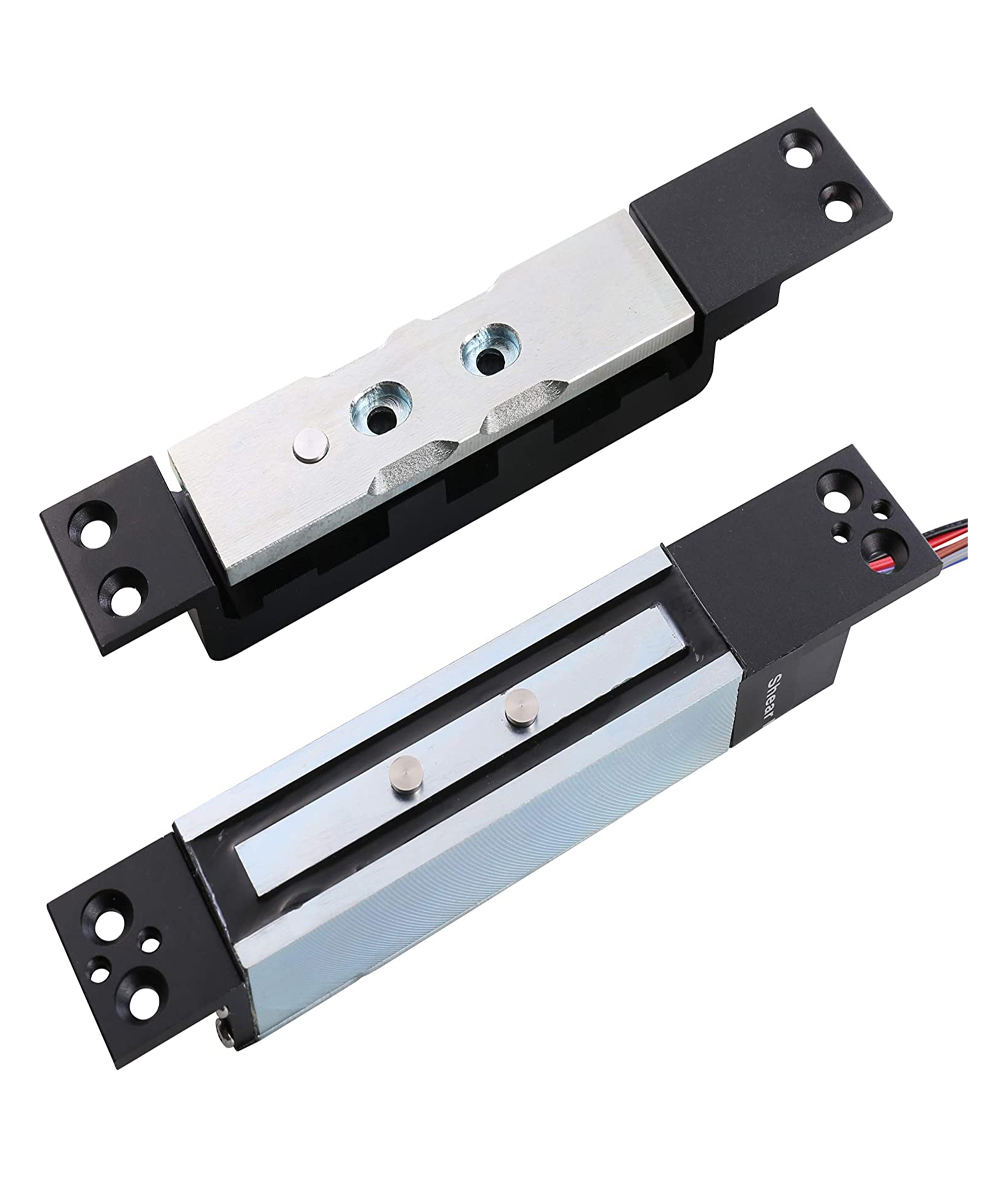

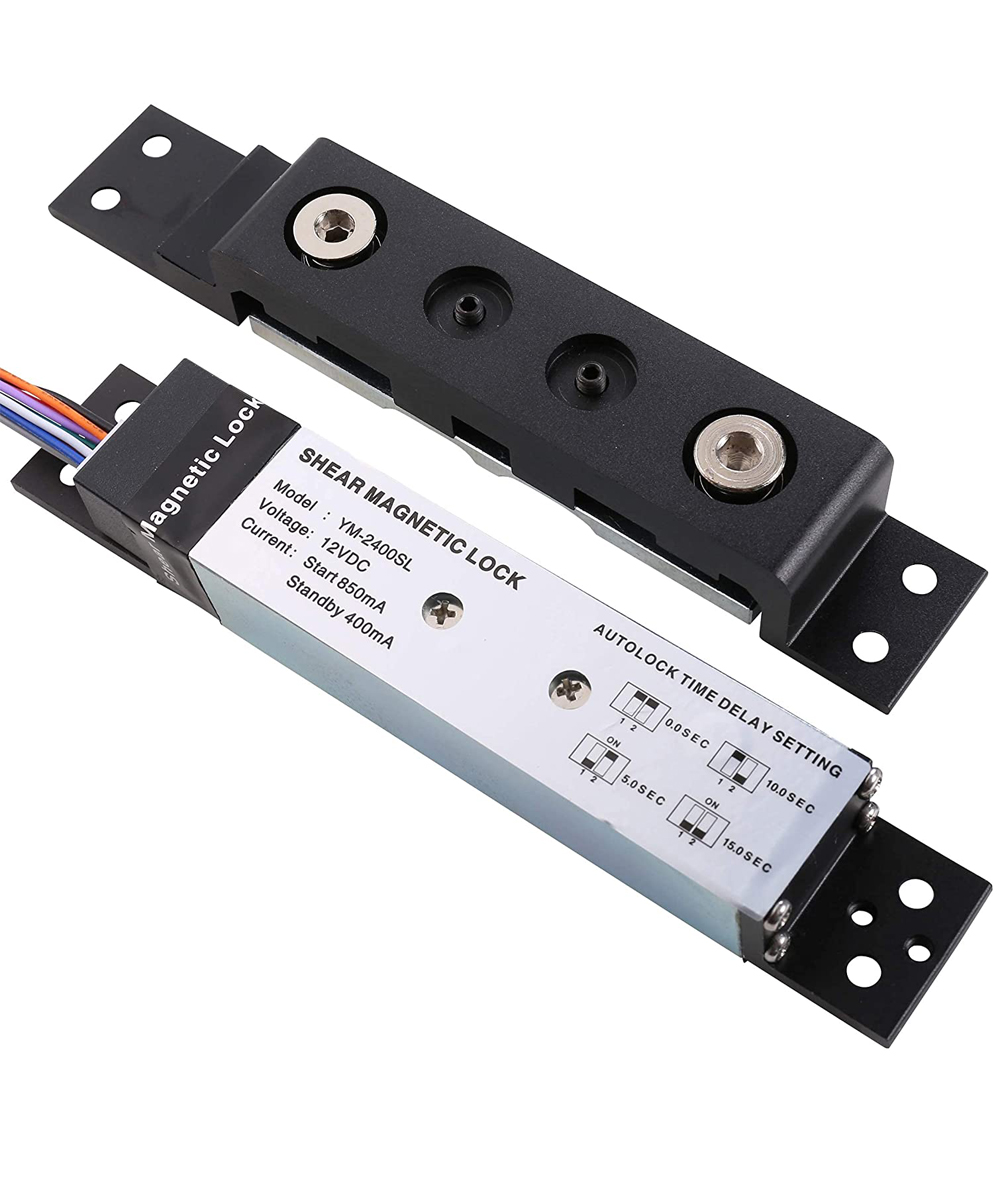

2600lb Holding Force 12VDC Voltage Shear Electric Magnetic Lock Concealed Mount with Door Static Sensor
- Suitable for 90 or 180 degrees double swing doors.
- When the lock is unlocked, it will lock the door automatically according to the program.
- One-piece design and small size, which will be easy to install to any kinds of door frame.
- By using electromagnetic force and latch design, the holding force of this shearing lock can achieve up to 1200kg.
- Works with sliding, single-action, and double-action (swing-through) doors and gates
- With both features of electromagnetic lock and electric drop bolt with embedded mounting function
- Applicable for inward-opening door, outward-opening door and 180 degrees two-way opening door
- Optional for 0/5/10/15S seconds delay time
- Small size, large shear force holding force can up to 2600Lbs

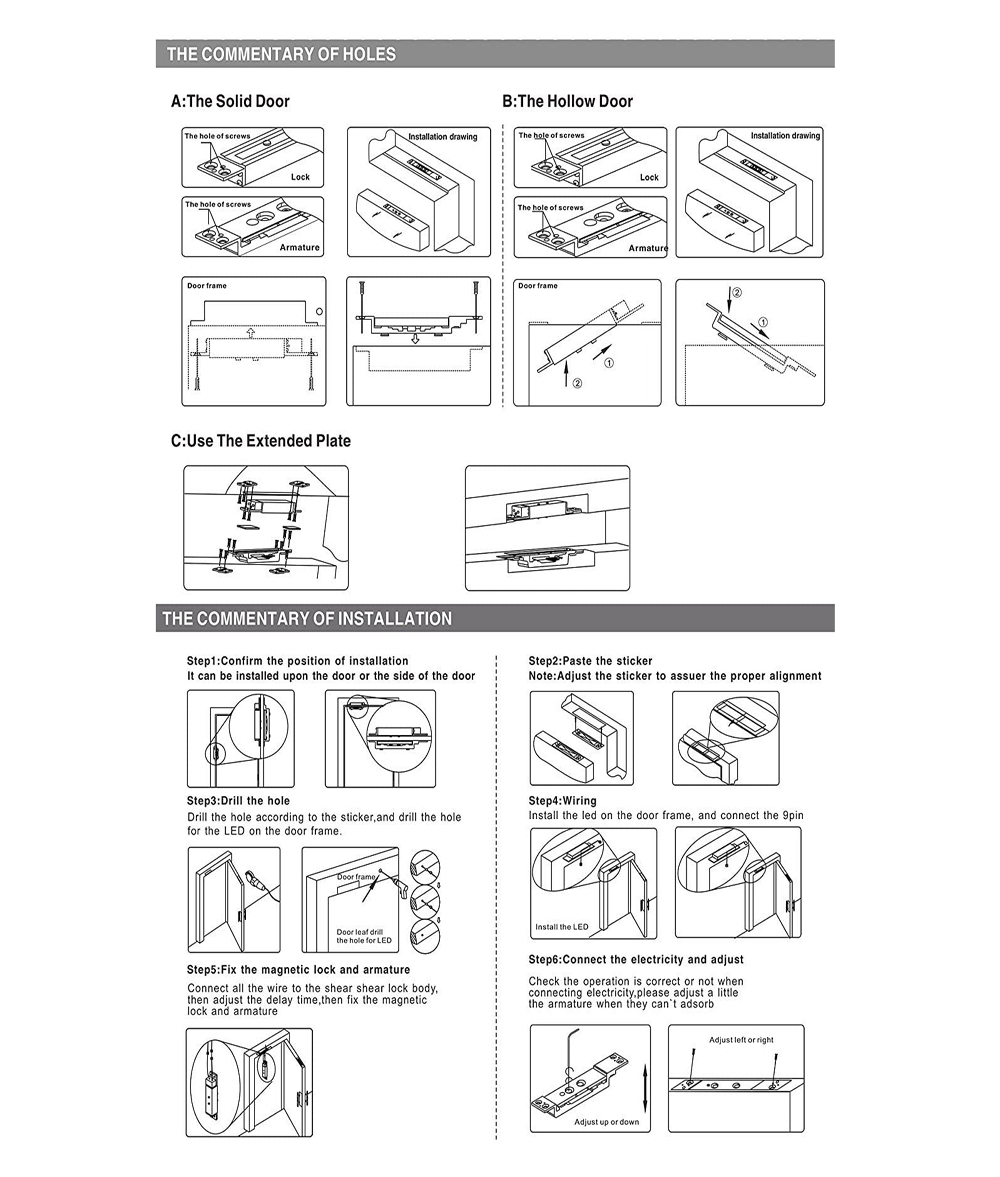

- Unique integrated design easy installation
- Relock Function: When the lock is unlocked, it will lock the door automatically according to the program.
- Smart circuit design: With time delay function, door signal output and lock signal output
- All-metal lock body: With integral profiles and precise work, this lock is stronger and more durable.
- Ultra durable electromagnetic design: Professional and durable electromagnetic design with over 500,000 times qualified test.
- With both magnetic and latch design: By using electromagnetic force and latch design, the holding force of this shearing lock can achieve up to 1200kg
- Armature plate with guide groove: With guide grooves at both sides of the armature plate
- Door/lock status sensor: A set of NO/COM door signal output contact and a set of NO/NC/COM lock signal output contact

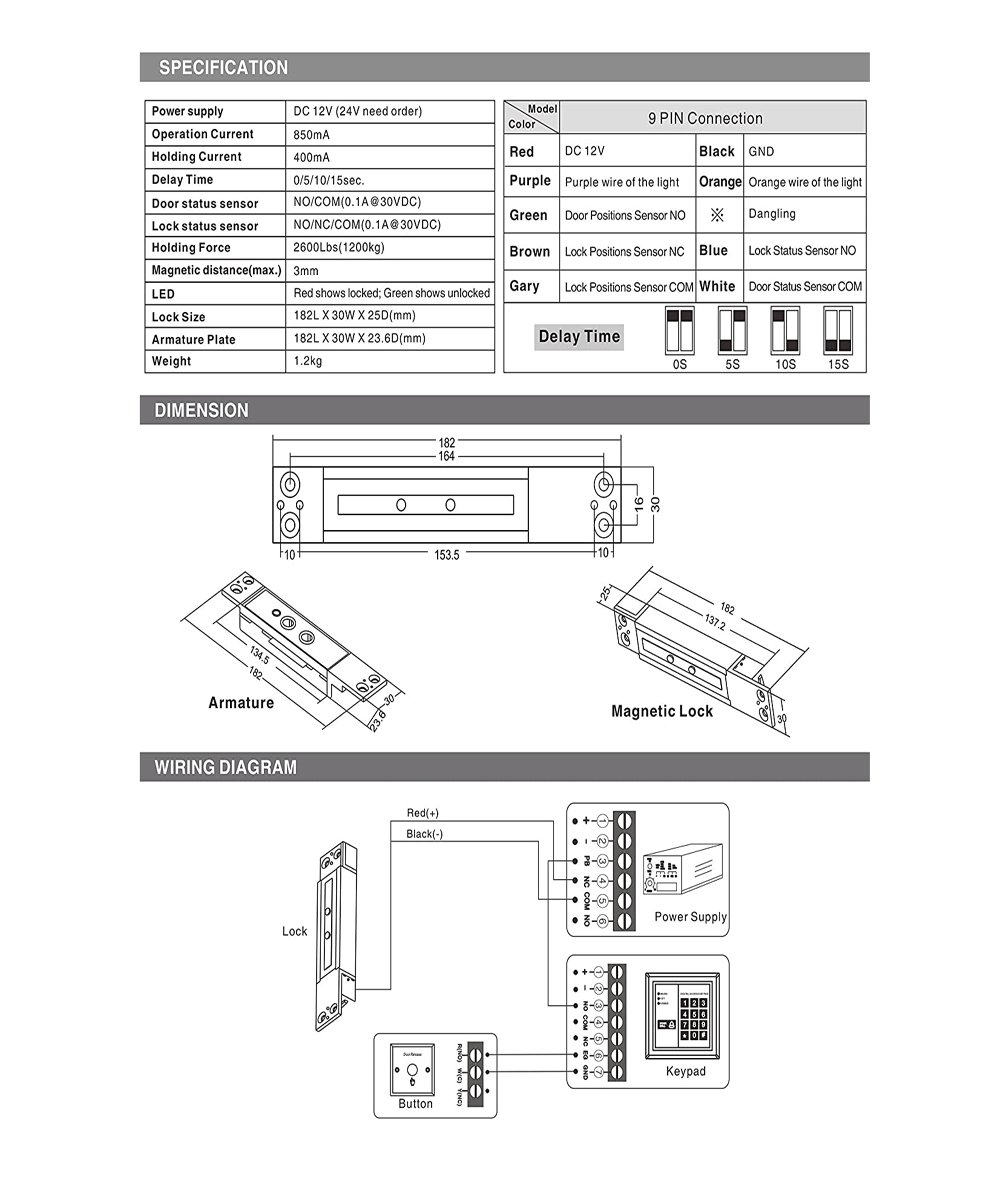

- Lock Size: 182Lx30Wx25D(mm) / 7.17Lx1.18Wx0.98H(in), Armature Plate: 182Lx30Wx23.6D(mm) / 7.17Lx1.18Wx0.93D(in）
- Power: 12VDC
- Operation Current: 850mA
- Holding Current: 400mA
- Delay Time: 0/5/10/15 sec
- Door status sensor: NO/COM(0.1A@30VDC)
- Lock status sensor: NC/NO/COM(0.1A@30VDC)
- Holding Force: 2600Lbs / 1200kg
- Magnetic distance(max.): 3mm / 0.12in
- LED: Red shows locked; Green shows unlocked
- Weight: 1.2kg / 2.65lb
- 1 x Electric Magnetic Lock
- 1 x User manual
- 1 x Installation Kit
