Electromagnetic Door Holder 110lb Holding Force with Release Button – Floor Mount

$76.00

  • This is a floor mount door holder. Which adopts low power consumption, that makes it more environment friendly and more durable. Professional anti-residual magnetism design ensures highest security. the fire door wil be released automatically when fire alarms. The build-out release button for testing and build-in MOV is the special Component to reverse current protection.
  • Reliable Fail-Safe mechanism
  • Low Power Consumption, Environmental Protection
  • Manual door release button
  • Automatically close the smoke proof door when fire happens
SKU: UT-YD-605 Categories: ,

Electromagnetic Door Holder 110lb Holding Force with Release Button – Floor Mount



Features:

  • This is a floor mount door holder, which adopts low power consumption, that makes it more environment friendly and more durable. Professional anti-residual magnetism design ensures highest security. the fire door wil be released automatically when fire alarms. The build-out release button for testing and build-in MOV is the special Component to reverse current protection.
  • Col linear Load: 50kg / 110pounds
  • The Standard Voltage is 24VDC when finished
  • Reliable Fail-Safe mechanism
  • MOV Provides Reverse Current Protection
  • Low Power Consumption, Environmental Protection
  • Anti-Residual Magnetism Design
  • Professional Design, Dual Insulate Housing
  • Automatically close the smoke proof door when fire happens
  • Manual door release button
  • CE Certificate

Specifications:

UT YD 605 2 1

  • Dimensions: L116xW93xH118(mm) / 4.57″x3.66″x4.65″
  • Holding Force: 50kg / 110Lbs
  • Voltage: DC24V+10% (12VDC need order)
  • Current Draw: 12V/180mA, 24V/70mA
  • Optional: Manual door release button
  • Suitable for: All Kinds of Single & Double Smokeproof Door
  • Surface Temp: ≤+20℃ / 68℉
  • Operating Temp: -10℃~+55℃(14℉-131℉), Suitable Humidity: 0~90%(relative humidity)
  • Finishes for Shell: High Temperature Paint and Environmental Protection
  • Finishes for Armature: Zinc
  • Weight: 1.4kg / 3.1lb

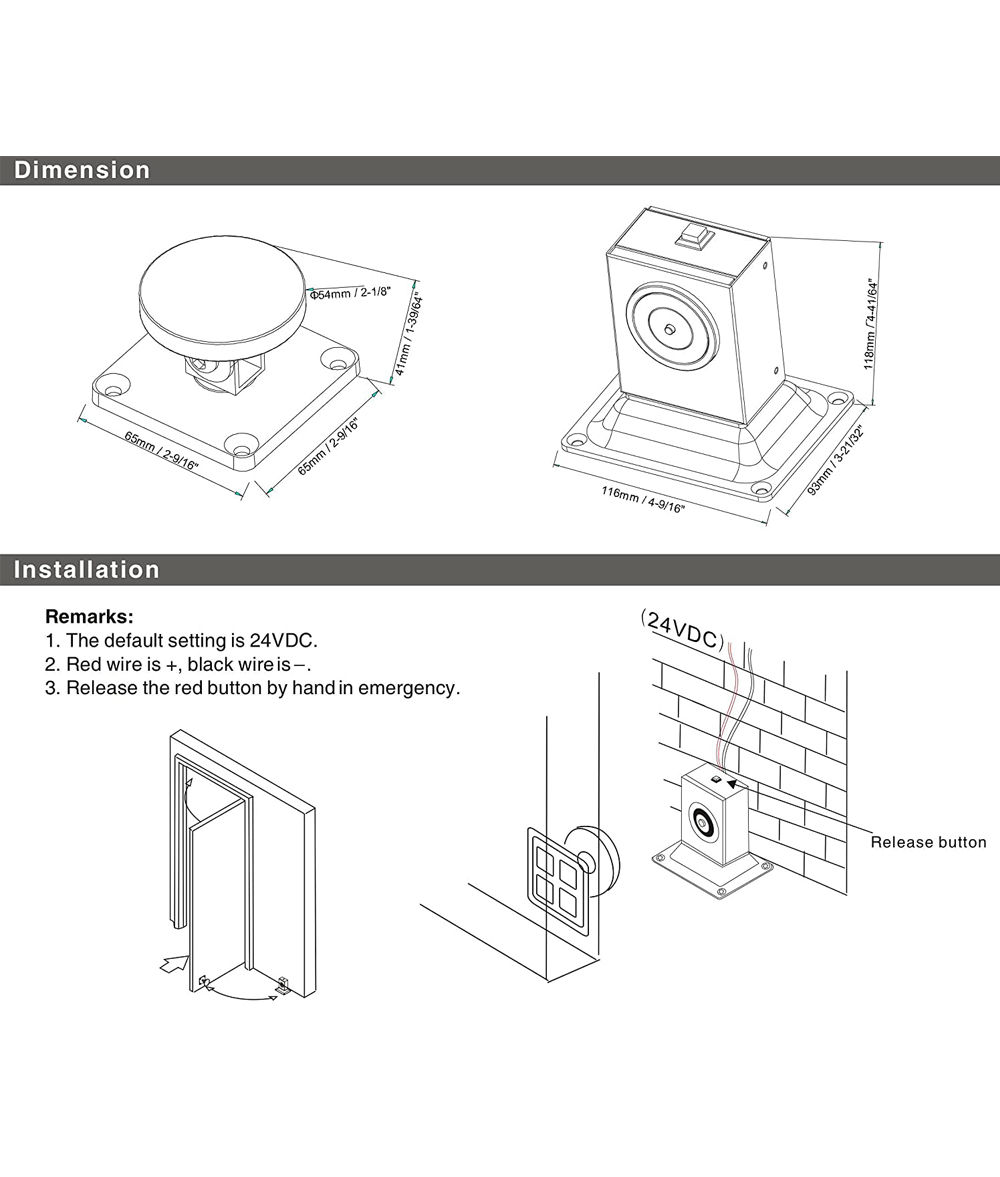

Installation:

Remarks:

  • The default setting is 24VDC
  • Red wire is +. black wire is –
  • Release the red button by hand in emergency

Package:

  • 1 x Door Holder

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.



Weight 1.4 kg
Dimensions 11.6 × 9.3 × 11.8 cm
