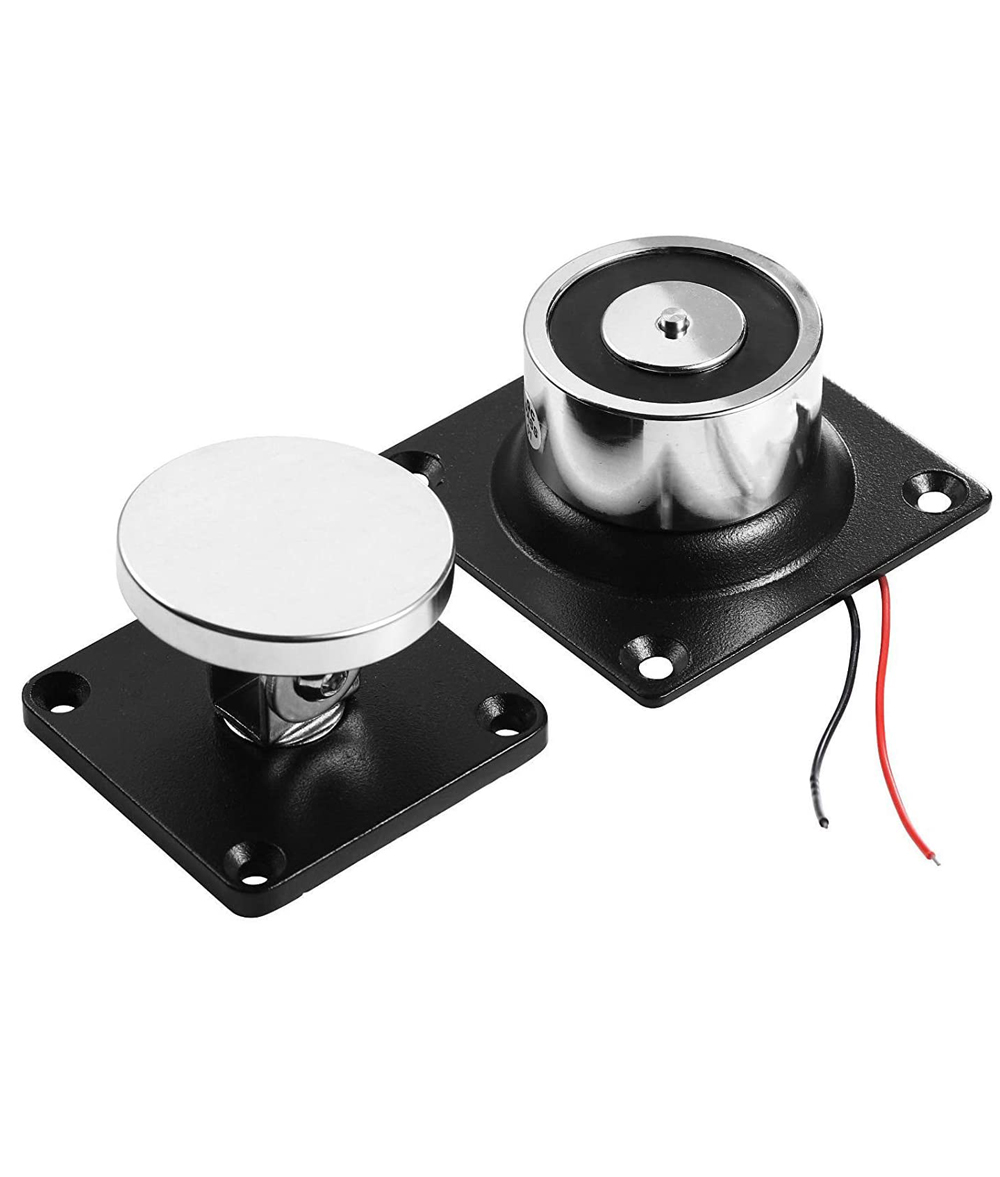

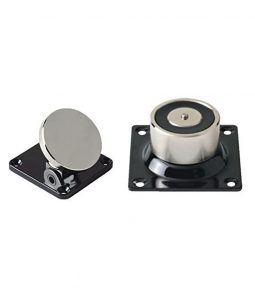

Electromagnetic Door Holder 350-lb Holding – Basic Wall Mount – Without Release Button

$79.80

  • This is a standard type wall mount door holder, which adopts low power consumption, that makes it more environment friendly and more durable. can withstand 180kg(350pounds) holding force (Collinear Load).Professional anti-residual magnetism design ensures highest security. Automatically close the smoke proof door when fire happens.
  • Dual Voltage 12/24VDC(Adjustable)
  • Wall mounting direction
  • MOV Provides Reverse Current Protection
  • Attention: This electromagnetic door holder doesn’t include release button
SKU: UT-YD-601L Categories: ,

Electromagnetic Door Holder 350-lb Holding – Basic Wall Mount – Without Release Button



Features:

  • This is a standard type wall mount door holder, which adopts low power consumption, that makes it more environment friendly and more durable. can withstand 180kg(350pounds) holding force (Collinear Load).Professional anti-residual magnetism design ensures highest security. Automatically close the smoke proof door when fire happens.It also contains build-out release button for testing and build-in MOV which reverse current protection.
  • Collinear Load 180kg / 350Lbs
  • Dual Voltage 12/24VDC(Adjustable)
  • The Standard Voltage is 24VDC when Finished
  • Wall mounting direction
  • MOV Provides Reverse Current Protection
  • Low Power consumption
  • Anti-Residual Magnetism Design
  • Reliable Fail-Safe Mechanism
  • Professional Design, Dual Insulate Housing
  • Automatically close the smoke proof door when fire happens
  • CE Certificate
  • Attention: This electromagnetic door holder doesn’t include release button

Specifications:

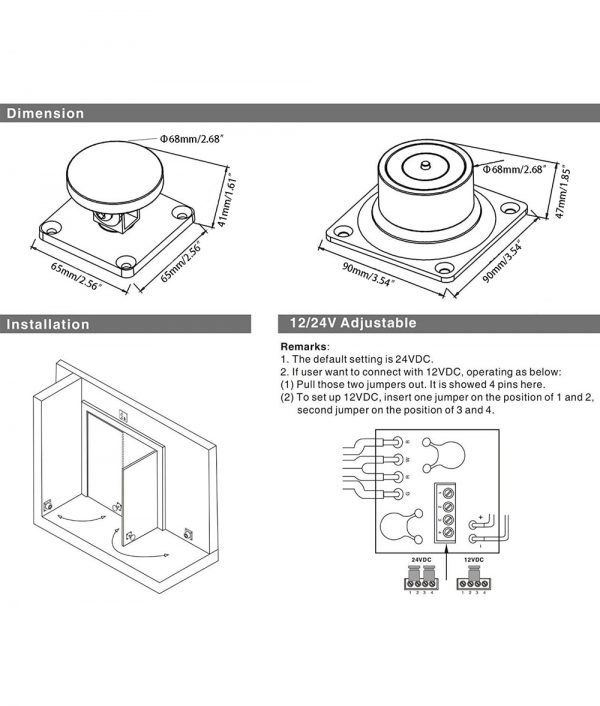

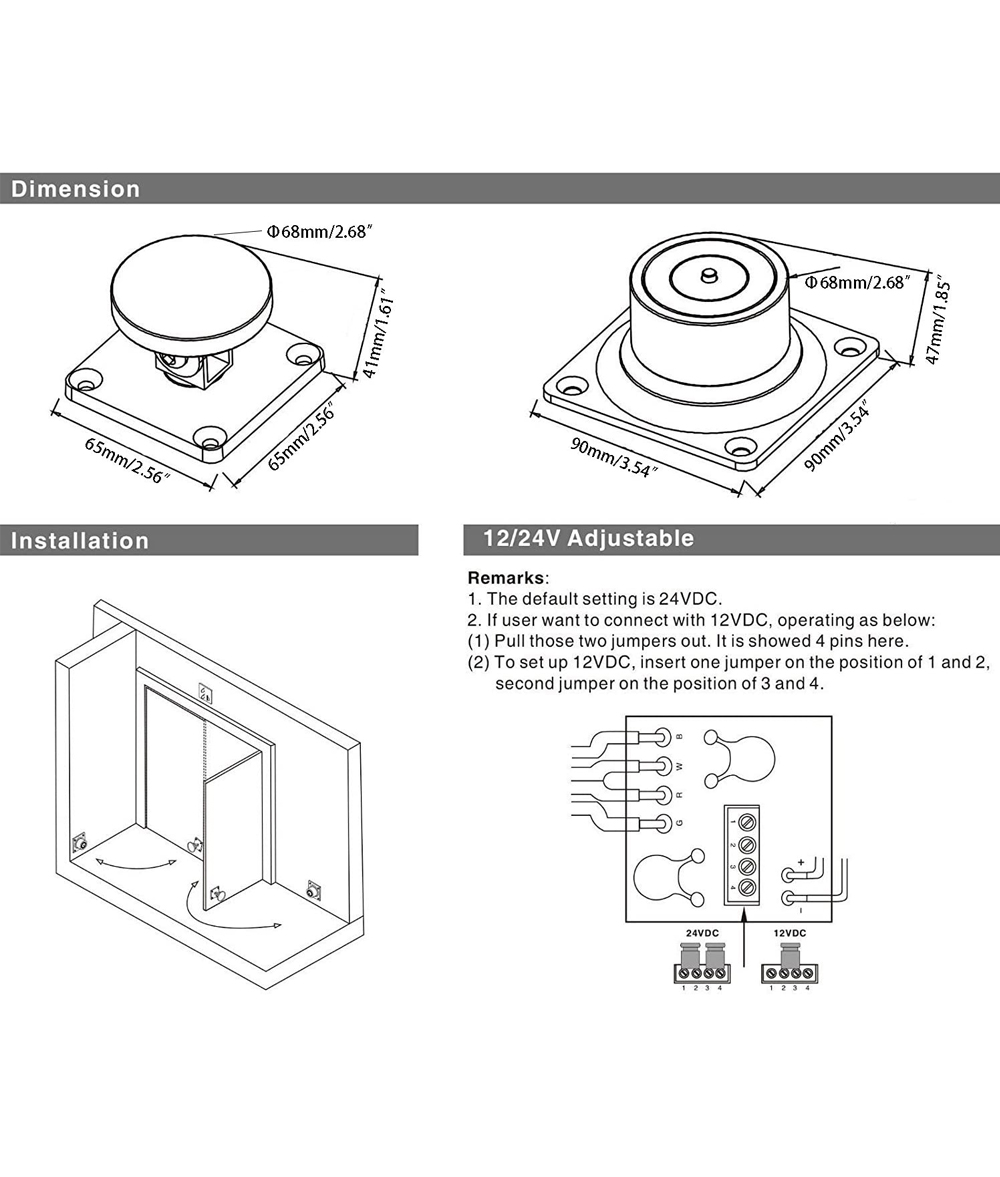

UT YD 601L 3

  • Dimensions: L90xW90xH47(mm) / 3.5″x3.5″x1.9″
  • Holding Force: 180kg / 350Lbs
  • Voltage: 12/24VDC +/- 10% (Adjustable)
  • Current Draw: 12V/140mA, 24V/120mA
  • Suitable for: All kinds of Single & Double Smokeproof Door
  • Surface Temp: less than +20℃ / 68℉
  • Operating Temp: -10℃~+55℃(14℉-131℉)
  • Suitable Humidity: 0~90%(relative humidity)
  • Finishes for Shell: High Temperature Paint and Environmental Protection Zinc
  • Finishes for Armature: Zinc
  • Weight: 1.0kg / 2.2lb

Remarks:

  • The default setting is 24VDC
  • If user want to connect with 12VDC,operating as bellow:

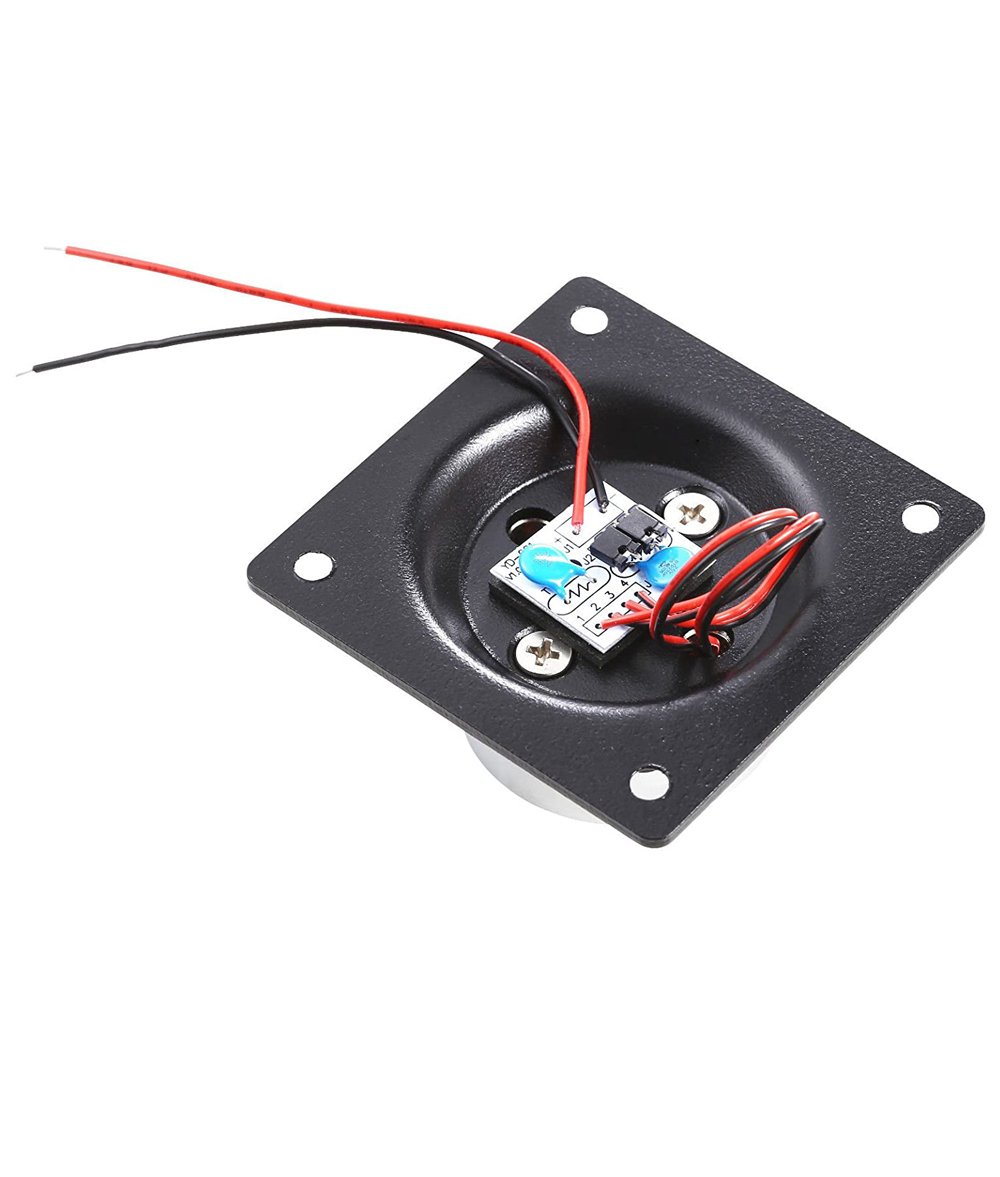

  • 1 Pull those two jumpers out. It is showed 4 pins here.
  • 2 To set up 12VDC, insert one jumper on the position of 1 and 2, second jumper on the position of 3 and 4.

Package:

  • 1 x Door Holder
