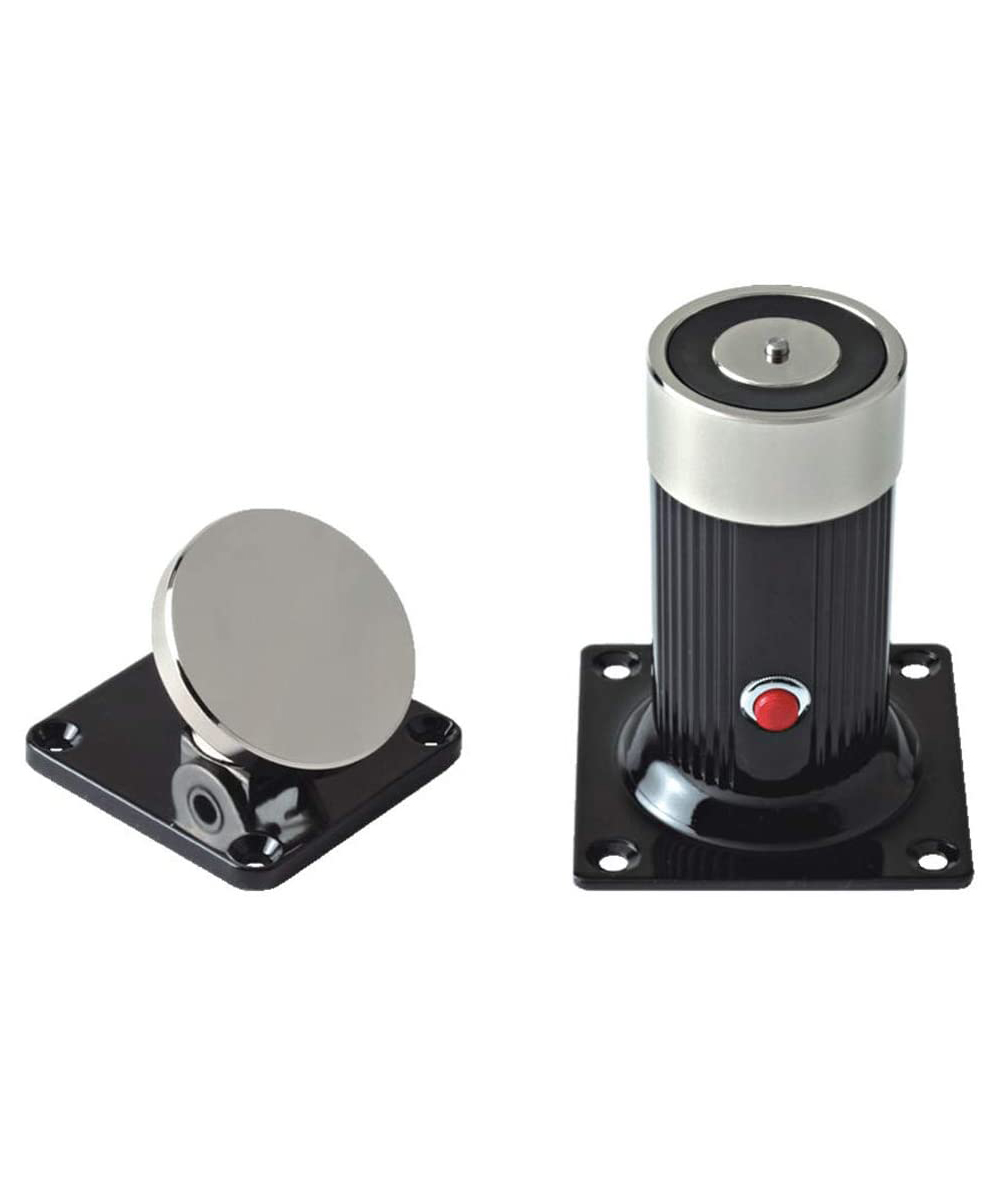

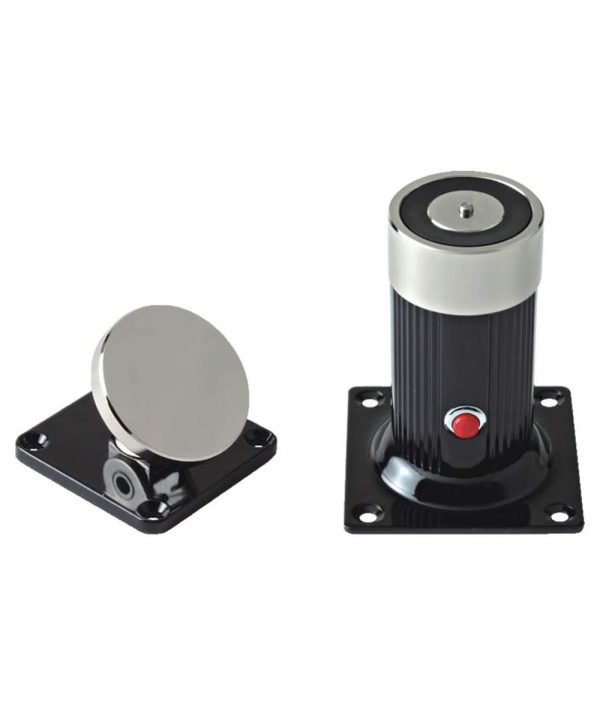

110Lbs 50kg Holding Force Extended Wall Mount Smokeproof Door Holder with Signal

$72.00

  • Collinear Load Test 50kg / 110Lbs
  • Dual Voltage 12/24 VDC(Adjustable)
  • Wall mounting direction
  • Reliable Fail-Safe mechanism
  • Double-insulated coil
SKU: UT-YD-602-S Categories: ,

110Lbs 50kg Holding Force Extended Wall Mount Smokeproof Door Holder with Signal



Features:

  • Collinear Load Test 50kg / 110Lbs
  • Dual Voltage 12/24 VDC(Adjustable)
  • Wall mounting direction
  • Reliable Fail-Safe mechanism
  • Double-insulated coil

Specifications:

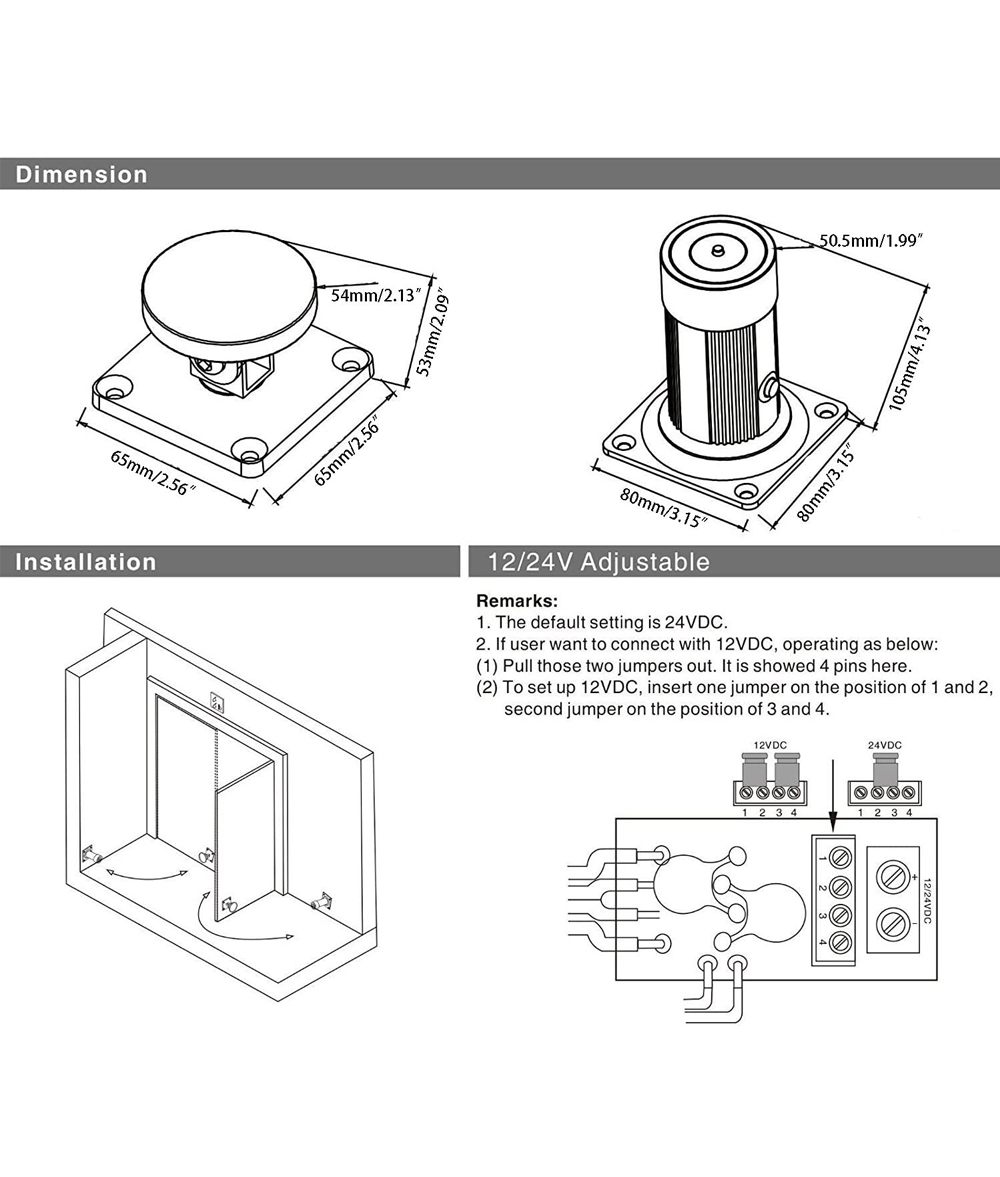

  • Dimensions: L80xW80xH105(mm) / 3.1″x3.1″x4.1″
  • Holding Force: 50kg / 110Lbs
  • Voltage: 12/24VDC+/- 10%(Adjustable)
  • Current Draw: 12V/140mA 24V/70mA
  • Signal output: NO/NC/COM
  • Suitable for: All kinds of Single & Double Smokeproof Door
  • Surface Temp: less than +20℃ / 68℉
  • Operating Temp: -10℃~+55℃(14℉-131℉)
  • Suitable Humidity: 0~90%(relative humidity)
  • Finishes for Shell: High Temperature Paint and Environmental Protection Zinc
  • Finishes for Armature: Zinc
  • Weight: 1.0kg / 2.2lb

Remarks:

  • The default setting is DC24V
  • If user want to connect with 12VDC, operating as bellow:
  • (1: Pull those two jumpers out. It is showed 4 pins here.
  • (2: To set up 12VDC, insert one jumper on the position of 1 and 2, second jumper on the position of 3 and 4.

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 1 kg
Dimensions 8 × 8 × 10.5 cm
