Fail Secure 12VDC Electric Bolt Lock 2000kg / 4409lb Holding Force with Adjusting Ball Signal & Time
- To prevent the damage of the lock caused by the improper locking position.
- To align the position of the magnetic plate and the bolt in a short time, which can reduce the relock time of the electric bolt.
- Fail secure – Locked when power is removed,with all-metal construction.with 304 stainless steel solid bolt and 4409lb holding force.
- It can operate at the temperature of 60 ℃(140℉) or -40℃(-40℉) below zero based on the all-metal linkage parts.
- With the diversified design of durable magnetic valve, special photoelectric control system, ultra-low temperature and power consumption design, anti-intrusion and smart circuit.
- Low Temperature, safe & Durable.
- Low Power, Environmental Protection.
- Special photoelectricity control,three steps current application.
- Long Life with 500000 Operations.
- MOV Provides Reverse Current Protection.
- Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.

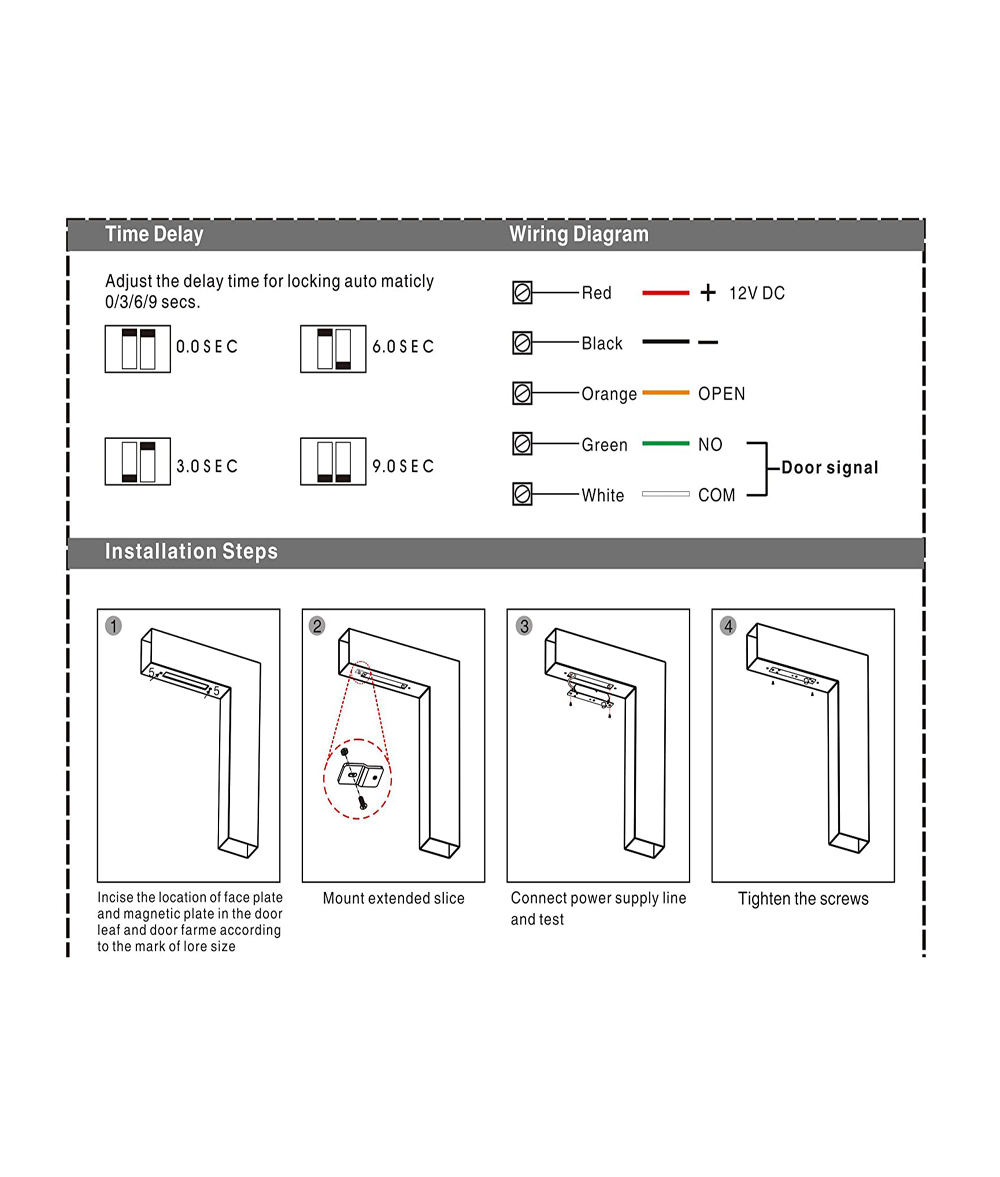

- Autolock Time Delay: 0,3,6,9sec.
- Lock signal:NO/NC/COM;Door signal:NO/COM.
- Double protection for loading current.
- Auto-relock if no Action within 5 secs.
- Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology,prevent the machanical defect.
- Feature: Fail Secure- Locked when power is removed

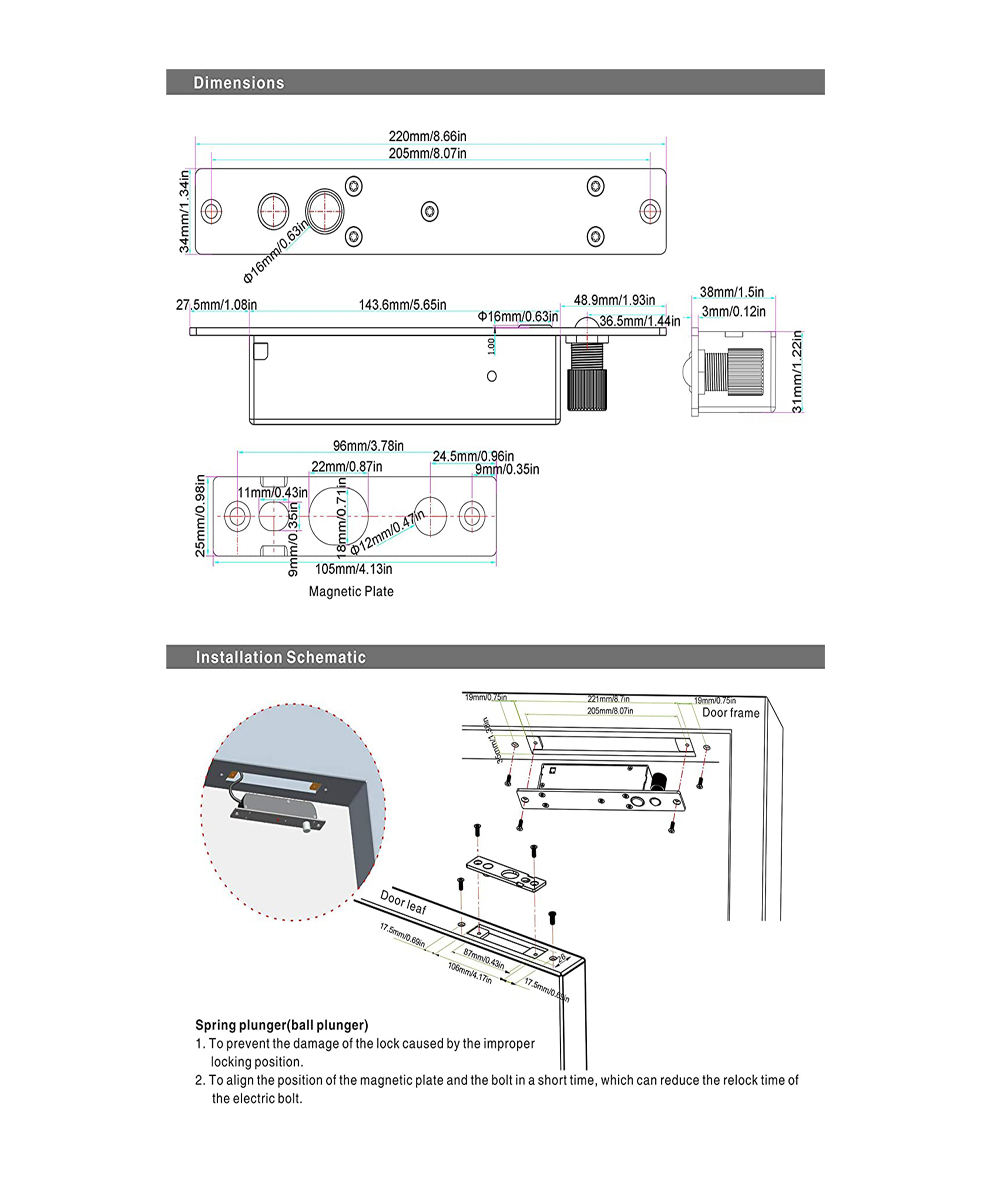

- Lock Body(LxWxH): 220x34x38mm / 8.66×1.34×1.5in
- Magnetic Plate(LxWxH): 105x25x3mm / 4.13×0.98×0.12in
- Bolt: 16(length) * 16(diameter)(mm) / 0.63(Length) * 0.63(diameter)(inch)
- Voltage: 12VDC±10%
- Start Current: 1200mA
- Standby Current: 200mA
- Signal Output: Door signal: NO/COM
- Suitable For: Wooden door, metal door, fireproof door, glass door
- Detection Distance: Within 8mm
- Material: 304 stainlesssteel , wiredrawfinishing
- Weight 1.0kg
- 1 x Electric Bolt Lock (Fail Secure NO Mode)
More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.
There are no reviews yet.
