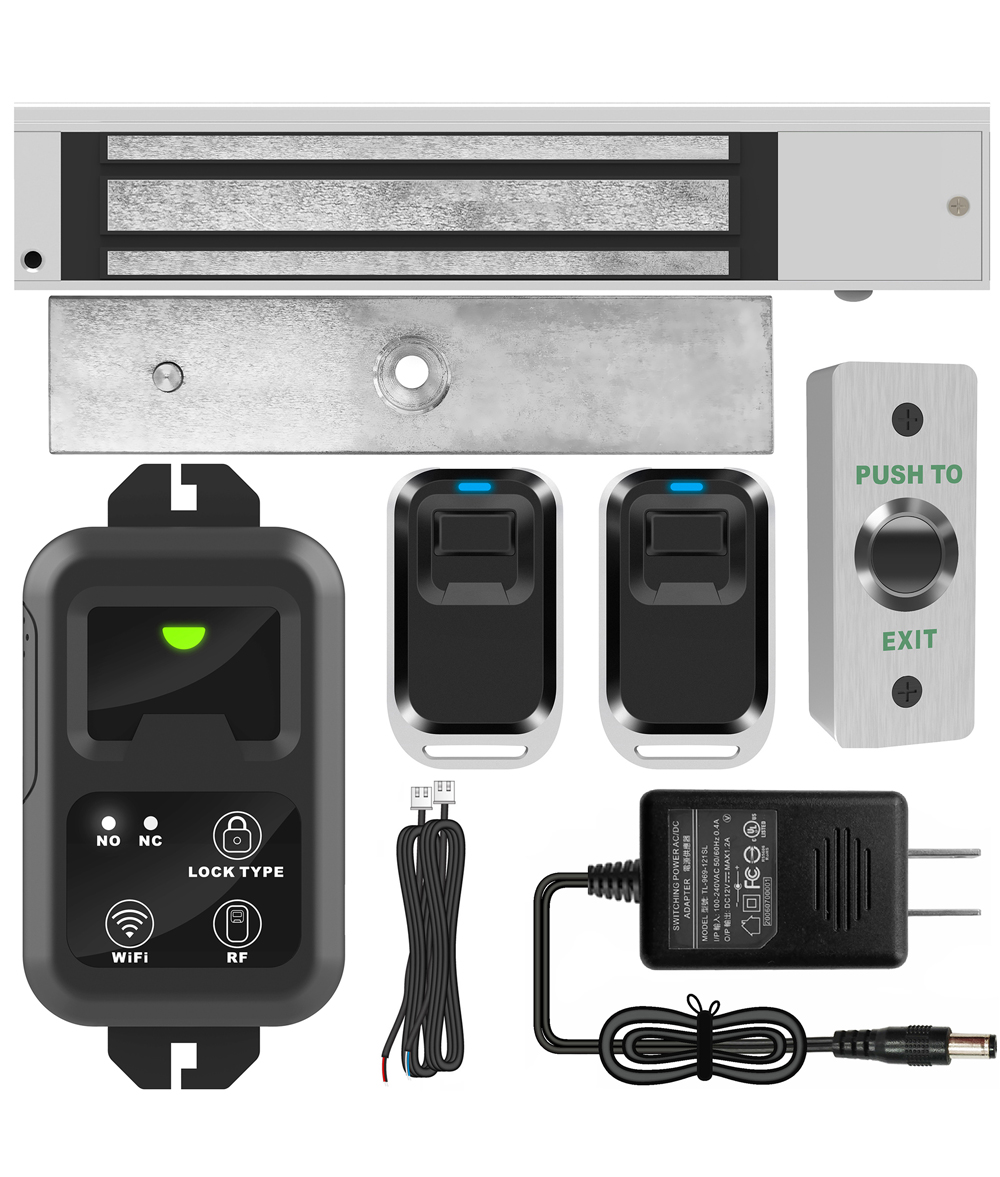

2.4GHz WiFi Outswinging Indoor 600lb Electic Magnetic Door Lock System Kit with Remote and Smartphone app Control
- The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can program up to 40 transmitters, and it has a range of 160 feet.
- The function of the receiver is that when the power is on, the lock of your kit is locked and when you press the remote the lock will unlock temporarily to open the door.
- Requires 2.4GHz Wi-Fi connection. Quick & easy installation without the need of a professional.
- Tuya Smart is a smart home center that can let you control and manage your favorite smart devices of different brands in a single APP.
- Easy Use: Transmits data to a cloud platform through the Wi-Fi Router, which enables you to remotely control the connected appliances via free Tuya Smart App.You can download the iOS version in App Store and the Android version in Google Play.
- Grouping Function: It allows users to assign all added devices to different groups so that they can easily check and manage the devices. To use this feature, simply click the drop-down menu on the top of device list.
- Smart Scene: The smart scene allows users to use one device to automatically trigger ON/OFF one or more devices.
- Share Control: Device owners can share control of their own devices to other Tuya Smart users. Invite your family members to control your smart home together!
- Scheduled Timing: User can reset repeat or single timing schedules to turn on/off devices according to your needs.Imaging that the door is off in the evening and on in the morning every day automatically.
- Loop Timing: A loop timer allows users to turn on/off the door at preset intervals.
- Tuya Smart provides a multi-language version, which supports Chinese, English, Danish, French, Russian, Italian, Polish, Deutsch, Spanish, Japanese etc.
- Tuya Smart offers cloud service at a global scale, ranging from Asia, North America, South America to Europe, etc.
- An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.
WiFi Remote Receiver:
- Wi-Fi Standard: 2.4GHz (Can’t support 5GHz)
- Voltage: 12VDC
- RF Frequency: 433MHz
- Output Current: 1A
- Built-in Buzzer: Yes
- Working Mode: Momentary/Toggle
- DC Encoding Type: Learning code
- Adjustable Locking Delay: 0/5/10sec
- Firing Range: 160 feet(open) in theory, 15%-30% in reality
- No. of Transmitters that are able to connect to one Receiver: Up to 40
- Working voltage: 6VDC (Built-in button battery)
- Operating Current: 8mA
- Powerd by: 2pcs CR2016/3V batteries (Included)
- Service Life of the Battery: 50000 cycles tested
- Transmitting Frequency: 433MHZ
- Key: 1 Key
- Case material: Plastic
Electric Magnetic Lock:
- Collinear Load Test 280kg / 600pounds
- Output Contact: NO/NC/COM
- LED: Red shows locked; Green shows unlocked
- Input Voltage: 12VDC
- Current: 520mA
- Holding: 280kg/600Lbs
- Fail Safe mode: Unlocked while power is removed
- Lock Size: 250×48.8×27.9(mm) / 9.84×1.92×1.10(inch)
- Armature Plate Dimension: 180×38.8×13(mm) / 7.09×1.53×0.51(inch)
Push to Exit Button:
- Dimensions: 90Lx35Wx26.5H(mm) / 3.54Lx1.38Wx1.04H(inch)
- Standard Structure: Stainless steel Panel, Steel Button
- Mechanical Life: 500000 tested
- Current Rating: 3A@36VDC Max
- Output Contact: NO/COM
- Operating Temp: 10～+55℃(14-131F)
- Operating Humidity: 0-95% (relative humidity)
- Panel Material: Stainless steel Panel, Wire Drawing Finished
- Suitable for hollow door
- Type: 12V 1A Power Supply Wall Charger
- Input: AC100V-240V 50/60Hz
- Max Output: DC12V / 1A (1000mA)
- AC Cord length: 4 feet / 1.2 meter
- Wire Type: 22AWG
- Output transformer adapter : 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
- Net weight: 66g / 2.3oz
- Certificate: FCC

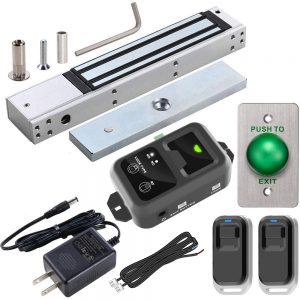

- 1 x Electric Magnetic Lock
- 1 x Remote Receiver
- 2 x Remote Transmitters
- 1 x Push to Exit Button
- 1 x Power Adapter
- 1 x English Manual
