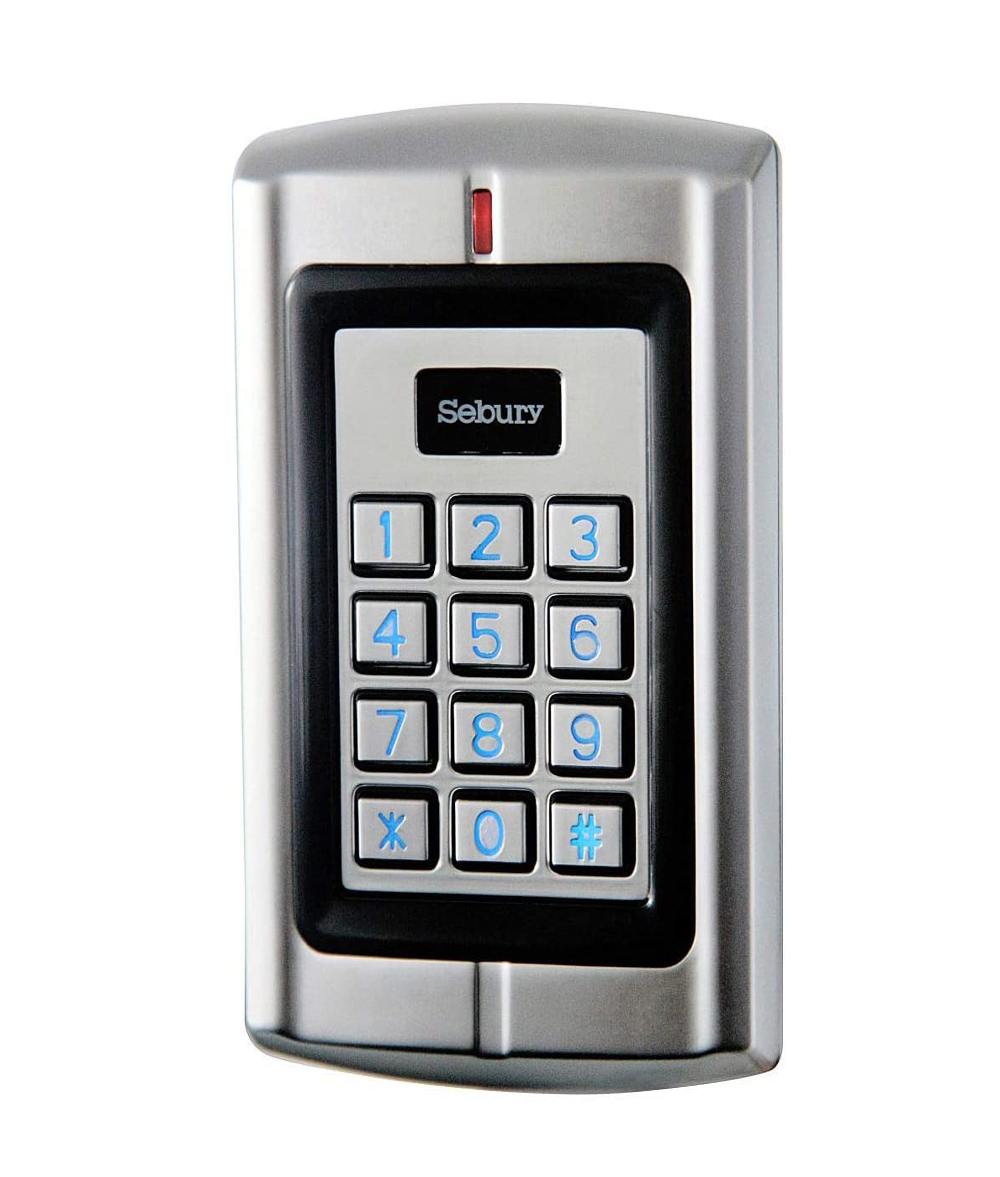

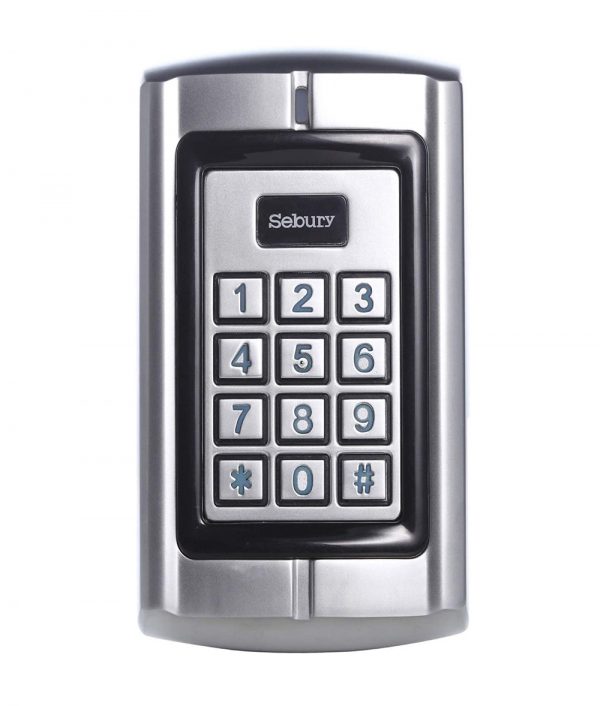

Waterproof Stand-Alone Access Control Keypad for 13.56MHz IC & CPU Card

Waterproof Stand-Alone Access Control Keypad for 13.56MHz IC & CPU Card

Features:

• Metal structure, anti-vandal, safe, waterproof design
• 1,500 users
• Support 3 Modes Access: Card, PIN, Card+PIN
• Card Type: IC & CPU (13.56MHz, ISO14443A)
• PIN length: 4-6 digits
• Backlight keypad
• Wiegand 26 or 34 bit input or output, can be programmed
• Pulse mode, toggle mode
• Very Low Power Consumption (<35mA), long service life and stable performance
• Application in High-Security Places: warehouses, banks, prisons, etc
• High speed search: filled with 1,500 users, the search time <0.1 seconds
• With manager cards for adding or deleting card user easily
• Protective Properties: IP65 fully-potted
• With anti-demolition alarm function, anti-static interference 15KV Product Certification: CE

Specifications:

• Operating Voltage: 12-18VAC / 12-24VDC
• Card Type: IC & CPU (13.56MHz, ISO14443A)
• Adjustable Door Relay Time: 1-99s
• Static Current: <35mA
• Wiegand Interface: Wiegand 26 or 34 bit
• Card Read Rang: 3-6cm
• Reader Induction Time: <0.1s
• Operating Temperature: -40C~60C
• Operating Humidity: 0-95%
• Lock Output Load: 1A
• Alarm Output Load: 3A
• Antistatic: 15KV
• Environment: Conforms to IP65
• Wiring Length: 90-100cm
• Dimensions: L128mmxW82mmxH28m

Package:

• Digital Keypad: 1PCS
• User Manual: 1 PCS
• Screw Driver: 1 PCS
• Rubber Bungs: 4 PCS
• Self Tapping Screws: 4 PCS
• Diode: 1PCS
