IP65 Rated Waterproof Outdoor Gate Electric Magnetic Lock Access Control System Kit with Remote Control


  • The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the wireless receiver, which can program up to 40 remotes, and it has a range of 160 feet.
  • EASY USE: Transmits data to a cloud platform through the Wi-Fi Router, which enables you to remotely control the connected appliances via free eWeLink App.You can download the iOS version in App Store and the Android version in Google Play.
  • SHARE CONTROL: Share control with your family and friends. Also you can DIY set this by yourself easy handling and can be activated immediately and stably.
  • For outdoor use IP65 rated ensure the remote will be protected against entry of dust and splashes of water.
SKU: UT-RW02W-280W Category:

IP65 Rated Waterproof Outdoor Gate Electric Magnetic Lock Access Control System Kit with Remote Control

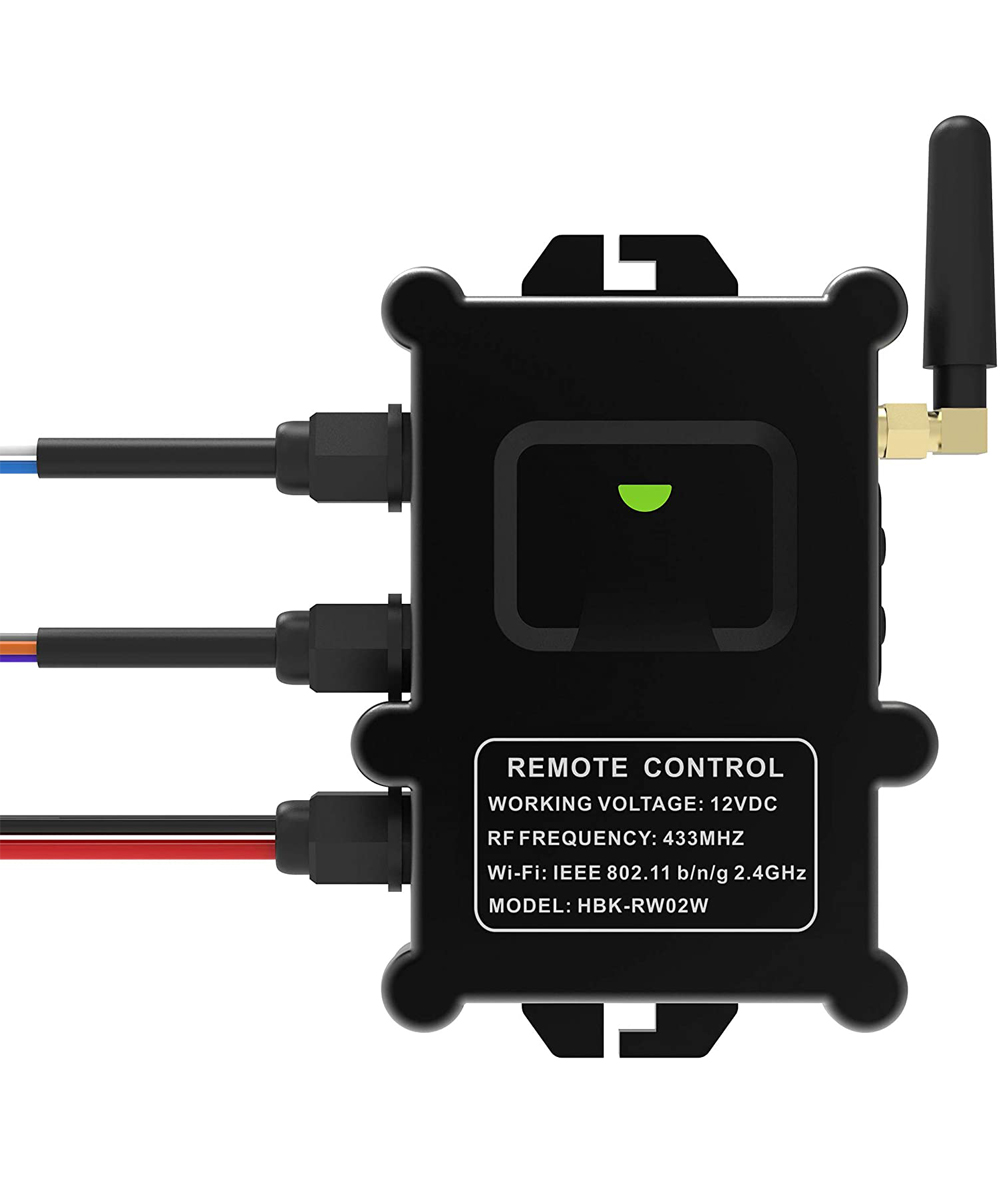

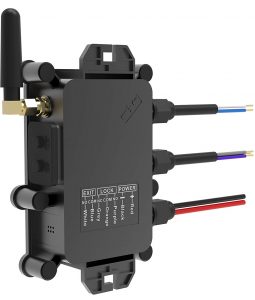

Remote Receiver:

UT RW02W 280W 3

  • Working Voltage: 12VDC
  • RF Channels: One
  • Wi-Fi Standard: IEEE 802.11 b/n/g 2.4GHz
  • RF Frequency: 433MHz
  • No. of Remotes that are able to connect to one Receiver: Up to 40
  • DC Encoding Type: Learning code
  • Waterproof Level: IP65
  • Material of Case: ABS+PC
  • Firing Range: 160 feet (open) in theory, 15%-30% in reality
  • Work Mode: Momentary/Toggle
  • Working Temperature: -40°C~60°C

UT KIT 280KG 814A 4

  • Non-waterproof
  • Working Voltage: 6VDC (Built-in button battery)
  • Operating Current: 10MA
  • Powered by: 2pcs CR2016/3V batteries
  • Service Life of the Battery: 50000 cycles tested
  • Transmitting Frequency: 433MHz
  • Case Material: Plastic + PC
  • Key: 1 Key
  • EncodingType: Fixed code

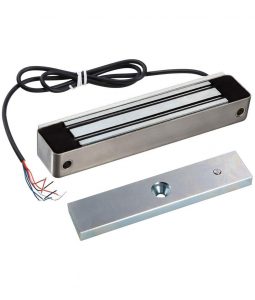

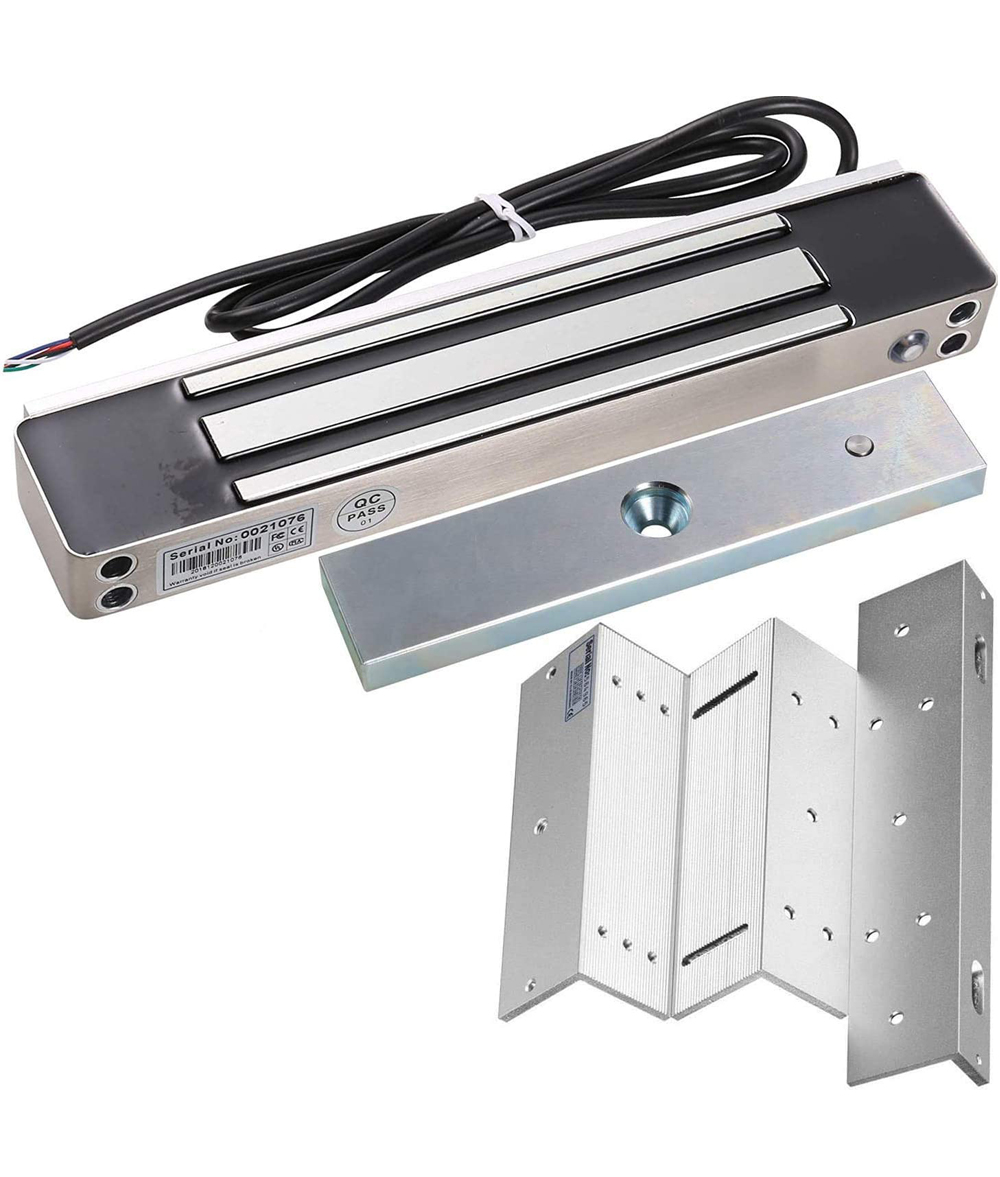

Electric Magnetic Lock:

UT KIT YM280W PBK815 2

  • IP-68 rated waterproof, Indoor and Outdoor can be installed
  • Size: 235Lx46Wx25.5H(mm) / 9.25″x1.81″x1″
  • Holding Force: 280kg / 600Lbs
  • Input Voltage: 12 or 24VDC
  • Current: 12V/520mA or 24V/260mA
  • Suitable: Wooden door,Glass door,Metal door,Fireproof door
  • Signal Output: Lock Signal NO/COM
  • Operating Temp: -10℃~+55℃(14℉-131℉)


Exit Button:

UT KIT 280FW 814A 5

  • Dimensions: 90Lx35Wx20H(mm) /
  • Contact Area: <100ohm
  • Material of Panel: SUS304 Stainless Steel
  • Operating Temperature: -20℃~+50℃ / -4℉~122℉
  • Wire color: White: NO/COM
  • Current Standby: 20mA
  • Output Contact: NO/COM
  • Current Rating: 1A@12VDC(Max.)
  • Waterproof Level: IP-68

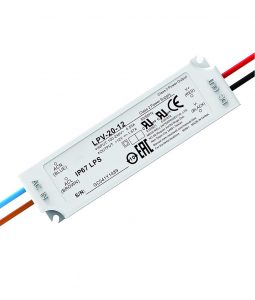

Waterproof Power Adapter:

UT RW02W 280W 6

  • Fully encapsulate with IP 67 level
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Class 2 power unit
  • Output Voltage: 12VDC
  • Output Rated Current: 1.67A
  • Output Rated Power: 20W
  • Input Voltage Range: 100-240VAC
  • Input Frequency: 47-63Hz
  • Working TEMP.: -30℃~70℃

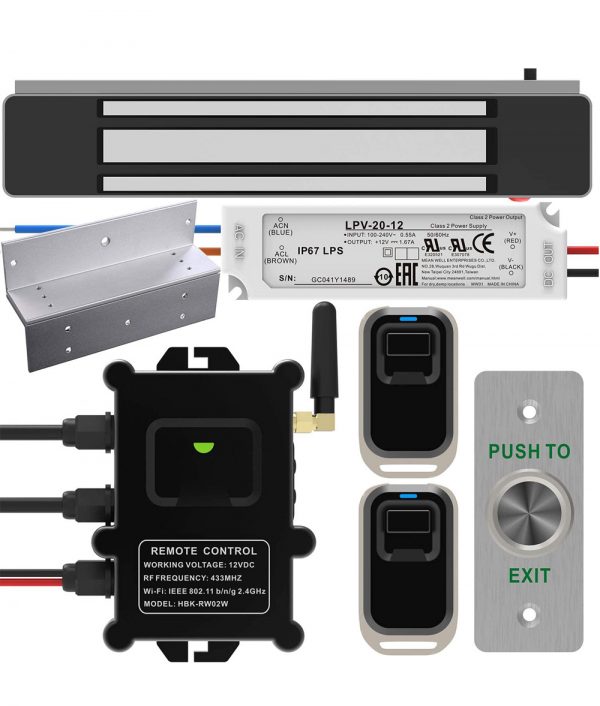

  • 1 x Remote Receiver
  • 2 x Transmitter
  • 1 x Power Adapter
  • 1 x Electric Magnetic Lock
  • 1 x Z&L Bracket for Lock
  • 1 x Push to Exit Button
  • 1 x English Manual
