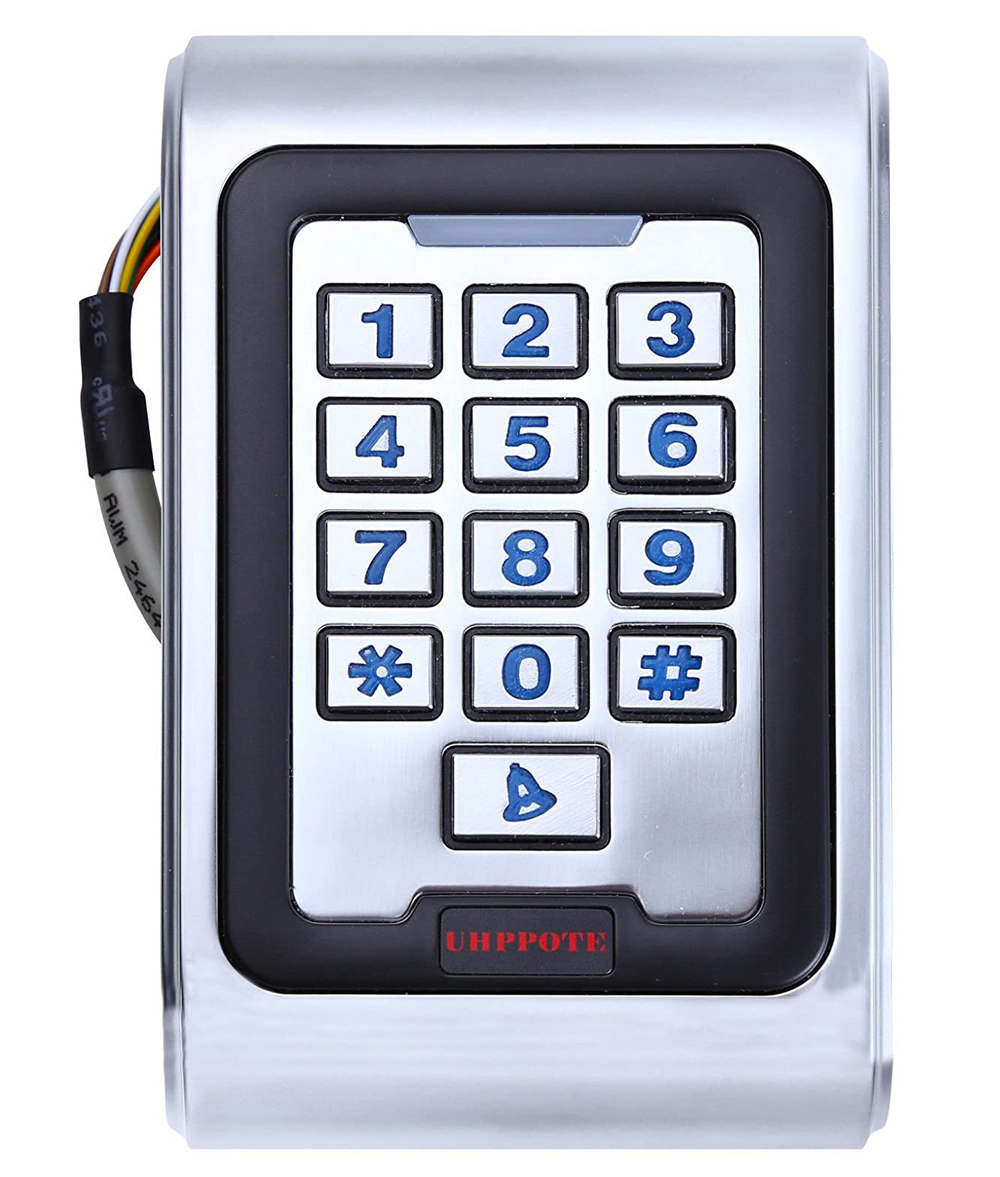

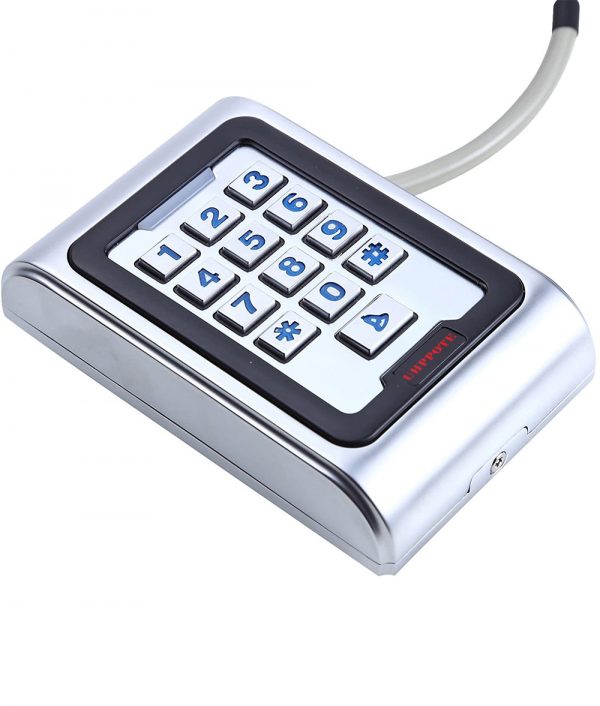

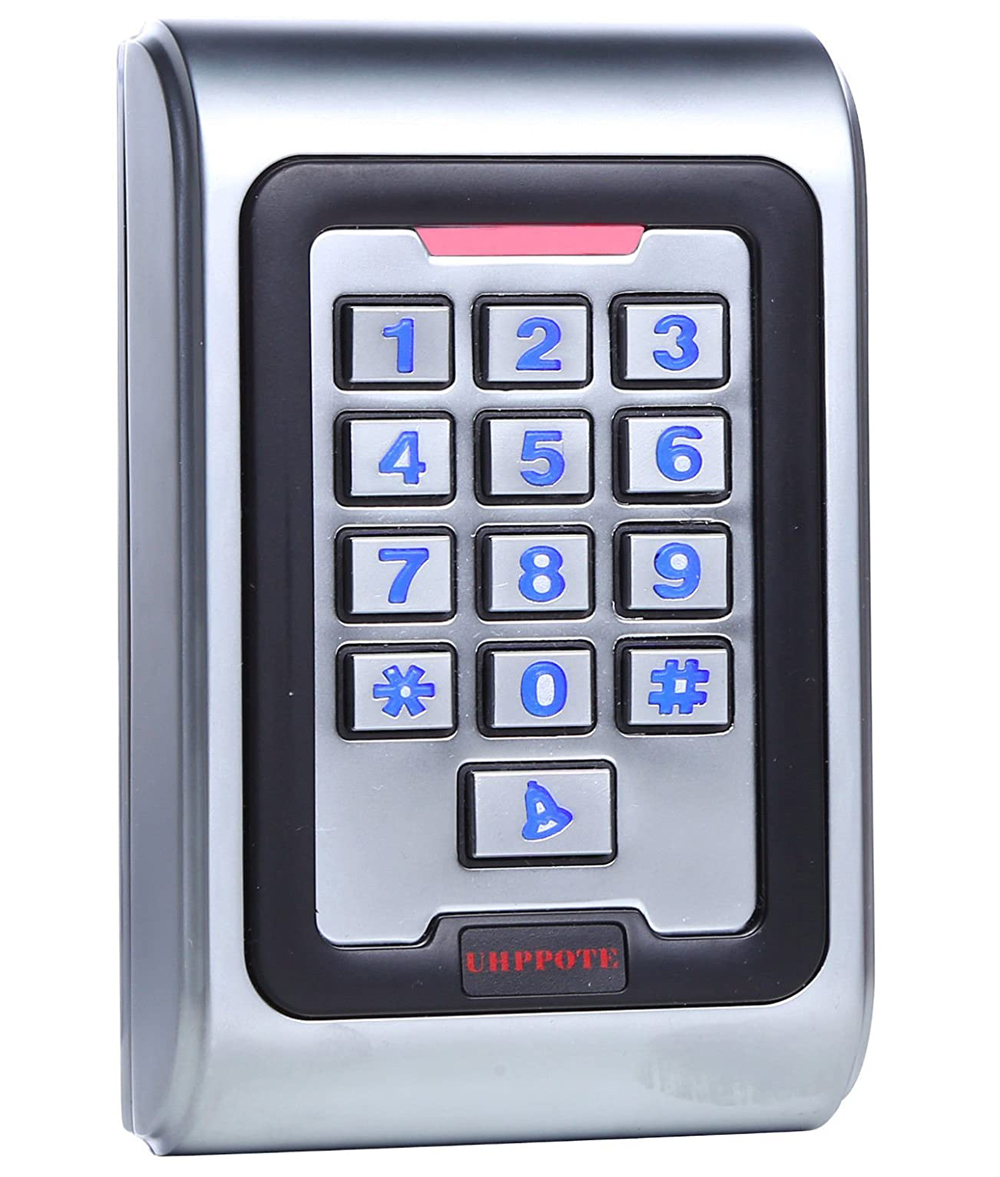

Metal Zinc Alloy Case Access Control Keypad IP68 Waterproof Standalone with Backlight

Metal Zinc Alloy Case Access Control Keypad IP68 Waterproof Standalone with Backlight

Features:

• Waterproof, conforms to IP68
• Strong Zinc Alloy Electroplated anti-vandal case
• Full programming from the keypad
• 2000 users, supports Card, PIN, Card+PIN
• Can be used as a standalone keypad
• Backlight keys
• Wiegand 26 input for connection to external reader or Wiegand 26 output for connection to a controller
• Adjustable Door Output time, Alarm time, Door Open time
• Very low power consumption (30mA)
• Fast operating speed, < 20ms with 2000 users
• Lock output current short circuit protection
• Easy to install and program
• Built in light dependent resistor (LDR) for anti tamper
• Built in buzzer
• Red, Yellow and Green LEDs display the working status

Specifications:

• Operating Voltage: 12VDC
• User Capacity: 2000
• Card Reading Distance: 3-6cm / 1.18-2.36″
• Frequency: 125KHZ
• Active Current: < 60mA
• Idle Current: 25±5mA
• Lock Output Load: Max 3A
• Alarm Output Load: Max 20A
• Operating Temperature: -45°C~60°C / -49℉~140℉
• Operating Humidity: 10%~90% RH
• Waterproof: Conforms to IP68
• Adjustable Door Relay Time: 0-99 seconds
• Adjustable Alarm Time: 0-3 minutes
• Wiegand Interface: Wiegand 26 bit
• Digital backlit keypad
• Streamline design, with modern and fashion.
• Waterproof, anti-vandal.
• Completely solve the metal shield of card reader
