Pedal Inductive Foot Sensor Switch for Hospital Laboratory Automatic Door

Pedal Inductive Foot Sensor Switch for Hospital Laboratory Automatic Door

Features:

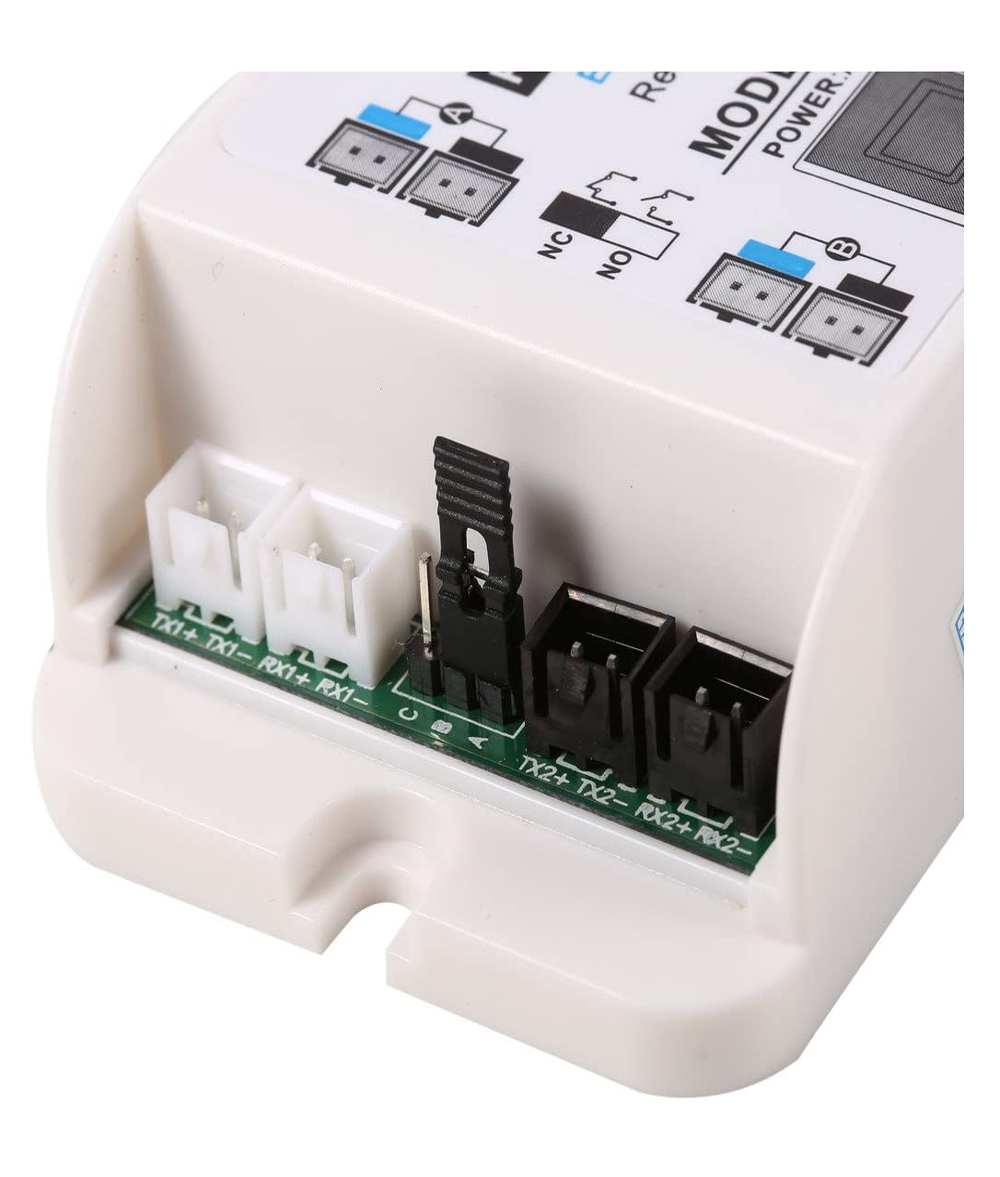

• With pull in & out socket for easy wiring
• Adopt microcomputer control with exquisite design of stainless steel wire cover
• Installation with hidden screw hole, easy to be fixed and stable performance
• Widely be used in the operating room of hospital and laboratory to prevent hand pollution
• Detection mode: Receive the open signal by the truncation of infrared ray which operated by foot
• Active infrared ray of modulation-demodulation controlled by microcomputer

Specifications:

• Technical measure: Active infrared ray of modulation and demodulation
• Recommend installation height: 0.3m height from the ground
• Detection mode: Truncation of infrared ray by foot operated to produce the open signal
• Reaction time: Relay output <45ms
• Supply power: AC/DC 12-30V
• Power consumption: 82mA
• Supervisory signal: 4.5S MA
• Singal direction: Indicator with red light when infrared ray emitted and received effectively. Indicator with green light when the infrared ray truncated by foot operated
• Operation temperature: -20℃~+55℃ / -4℉~131℉
• Interference immunity: Sunlight 81000LUX
• Incandescent lamp: 36000LUX
• Electronic microwave: Consistent with 89/336/CEE criteria

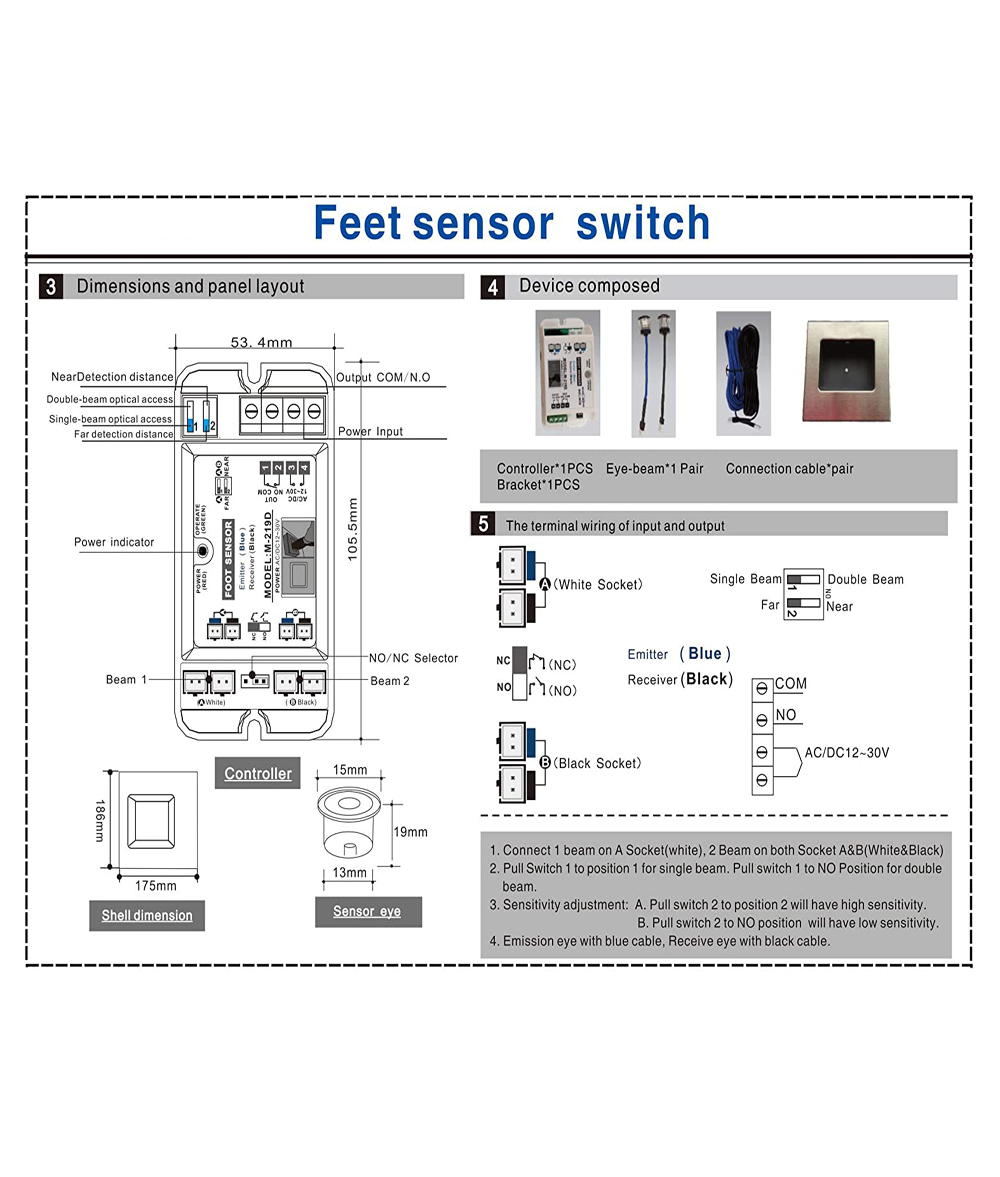

Appearance dimension:

• 105.5Lx53.4Wx28.5H(mm) / 4.15Lx2.1Wx1.12H(in) (Main controller)
• 19x13mm / 0.75×0.51in (Electric eyes)

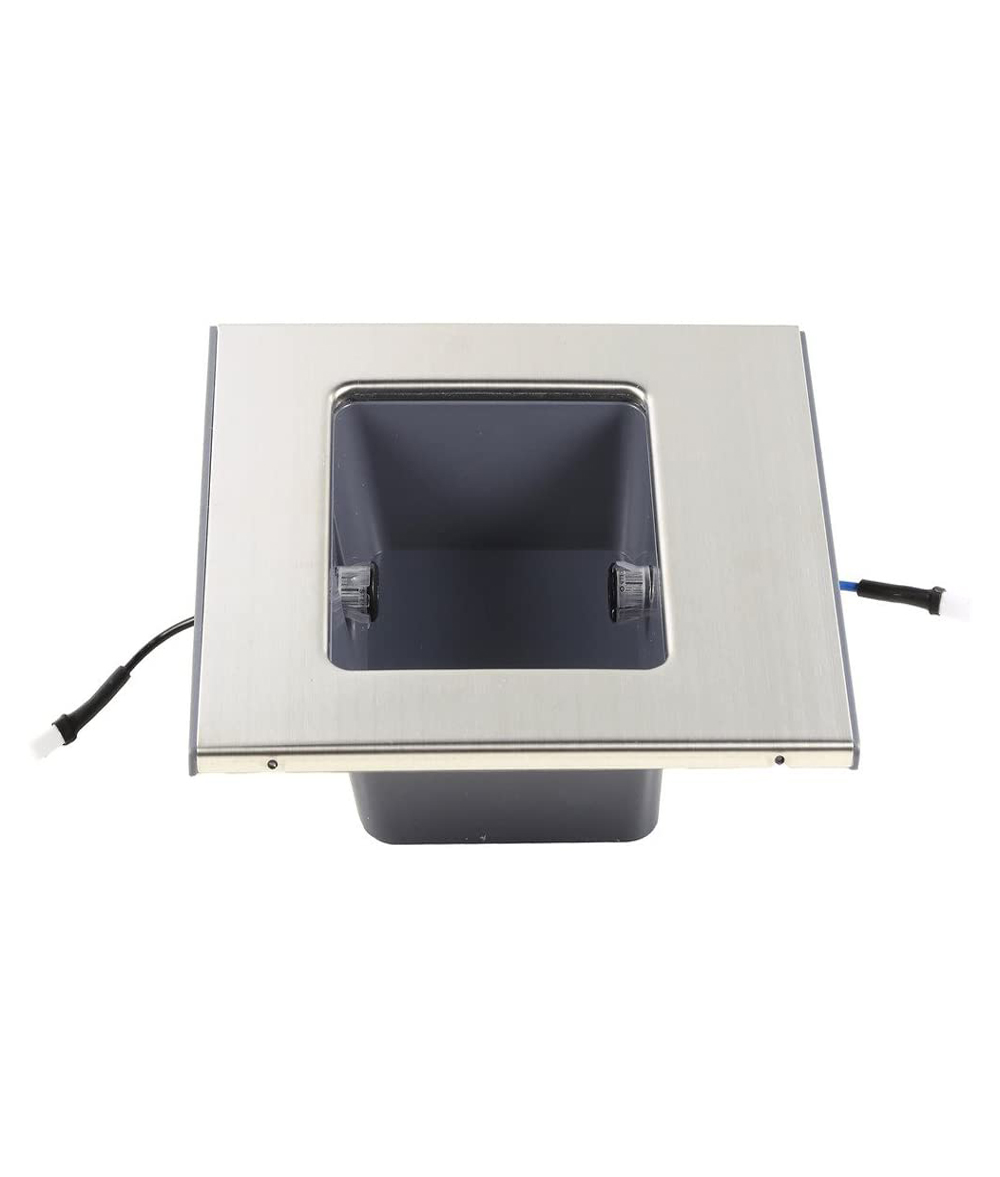

• 186x175x53mm / 7.32×6.89×2.09in (Bracket)
• Output signal: Relay NO signal contact
• Total weight: About 1000g / 1.1lb

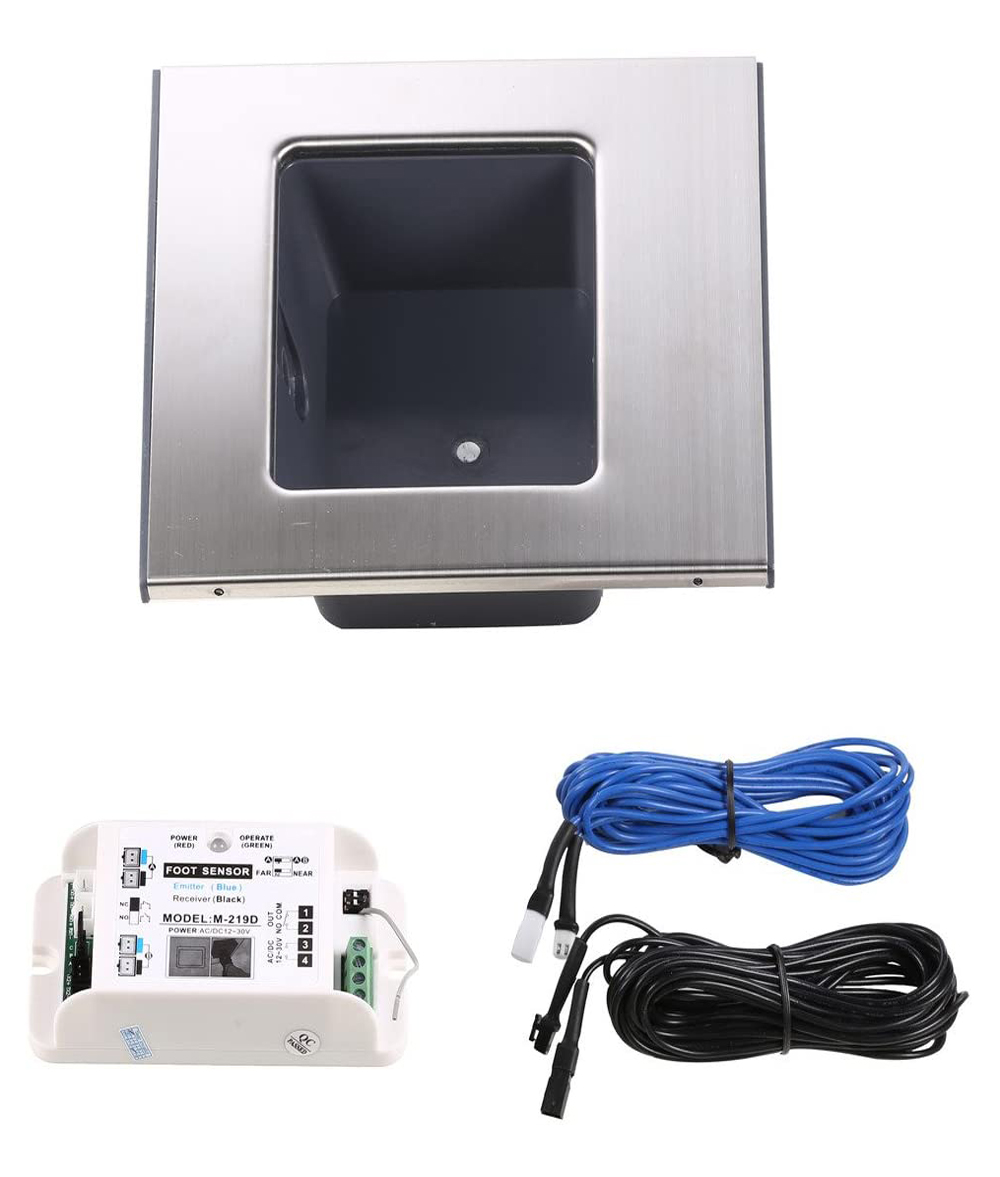

Package:

• 1 x Main controller
• 1 x Bracket
• 2 x Electric eyes
• 2 x Connection Cables
