6 Emit Ray Reflective Type Infrared Detector Sensor for Auto-Door Control System

6 Emit Ray Reflective Type Infrared Detector Sensor for Auto-Door Control System

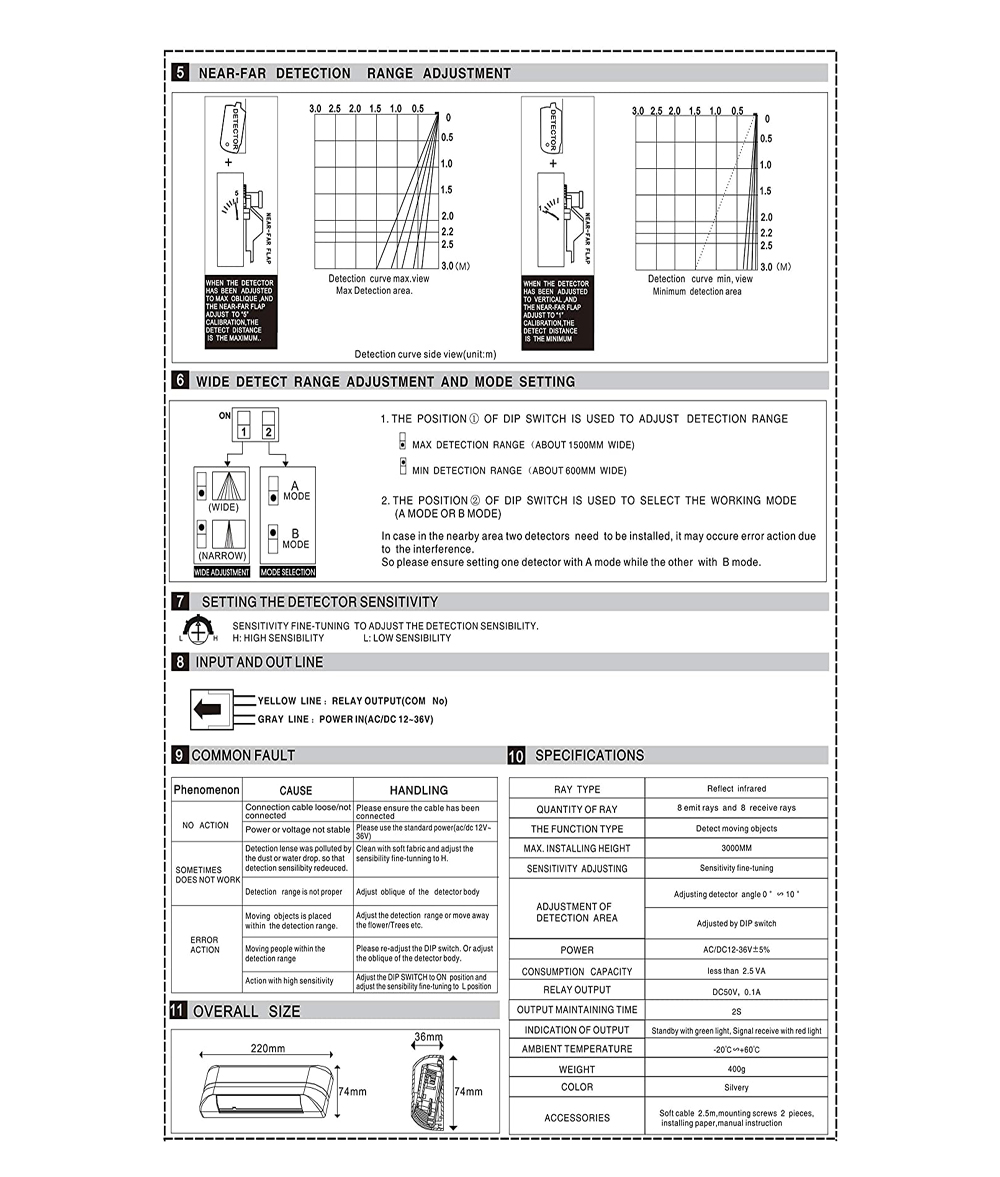

Specifications:

• Ray Type: Reflect infrared
• Quantity of Ray: 6 emit rays and 6 receive rays
• The Function Type: Detect moving objects
• Max. Installing height: 3m / 9.84ft
• Sensitivity Adjusting: Sensitivity fine-tuning
• Adjustment of Detection Area: Adjusting detector angle 0~10 degree. Adjusted by DIP switch
• Power: AC/DC12-36V
• Consumption Capacity: Less than 2.5A
• Relay Output: DC50V, 0.1A
• Output Maintainning Time: 2S
• Indication of Output: Standby with green light, Singal receive with red light
• Ambeient Temperature: -20℃~60℃ / -4℉~140℉
• Weight: 400g / 0.88lb
• Size: 221Lx74Wx35H(mm) / 8.7Lx2.91Wx1.38H(in)
• Color: Silver
• Lenght of Connection Cable: 2.5m / 8.2ft

Package:

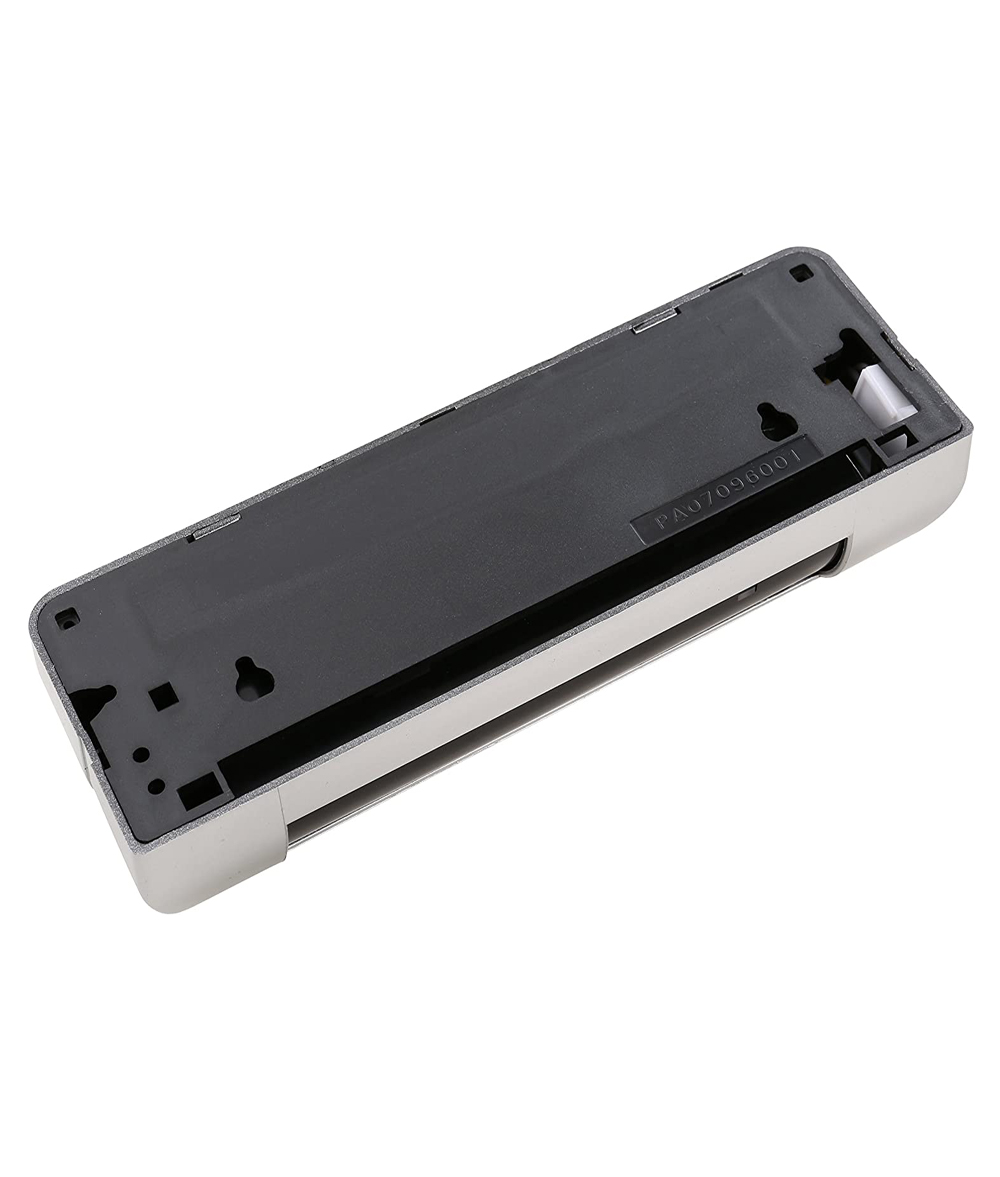

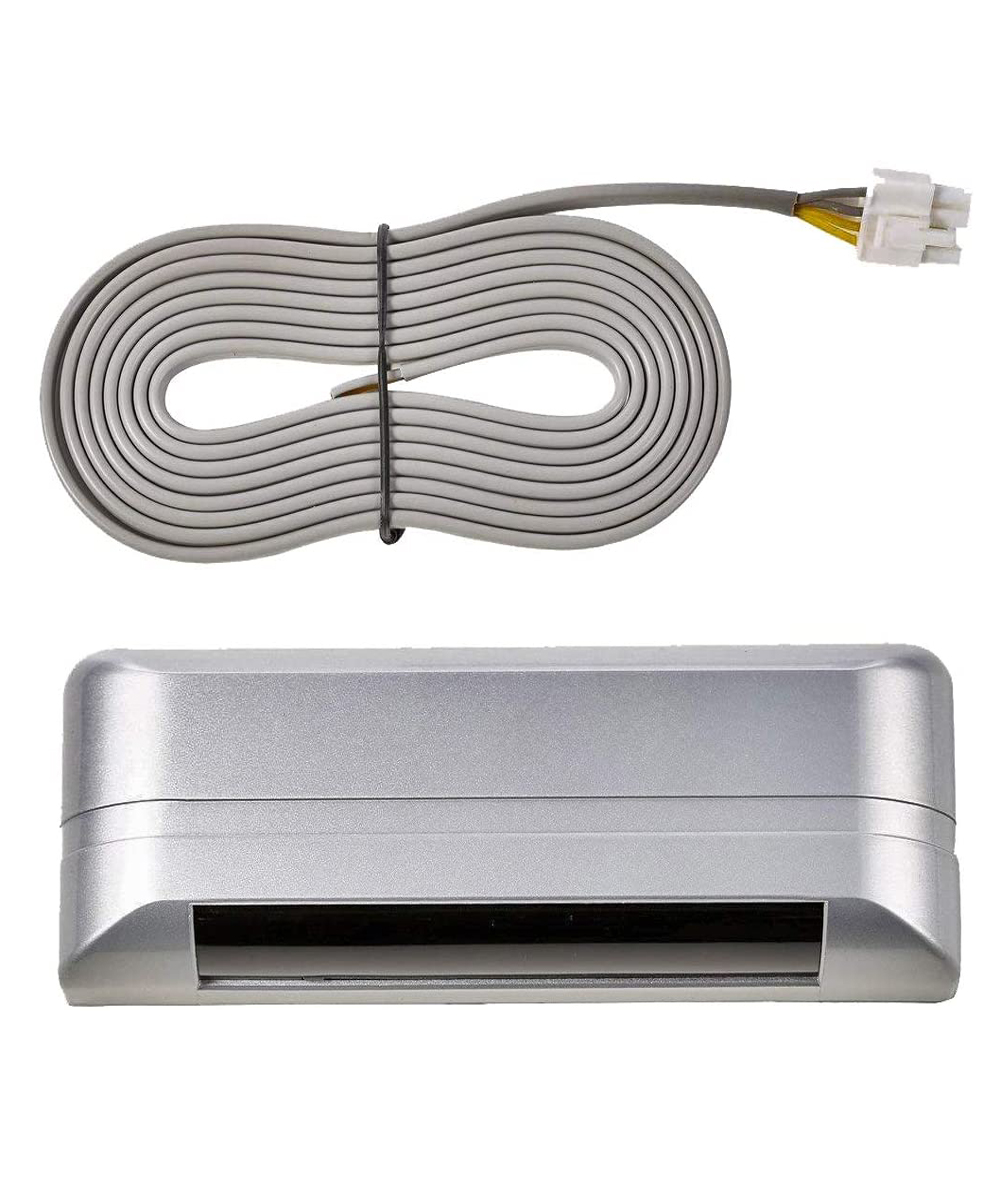

• 1 x Infrared Sensor
• 1 x Connection Cable
