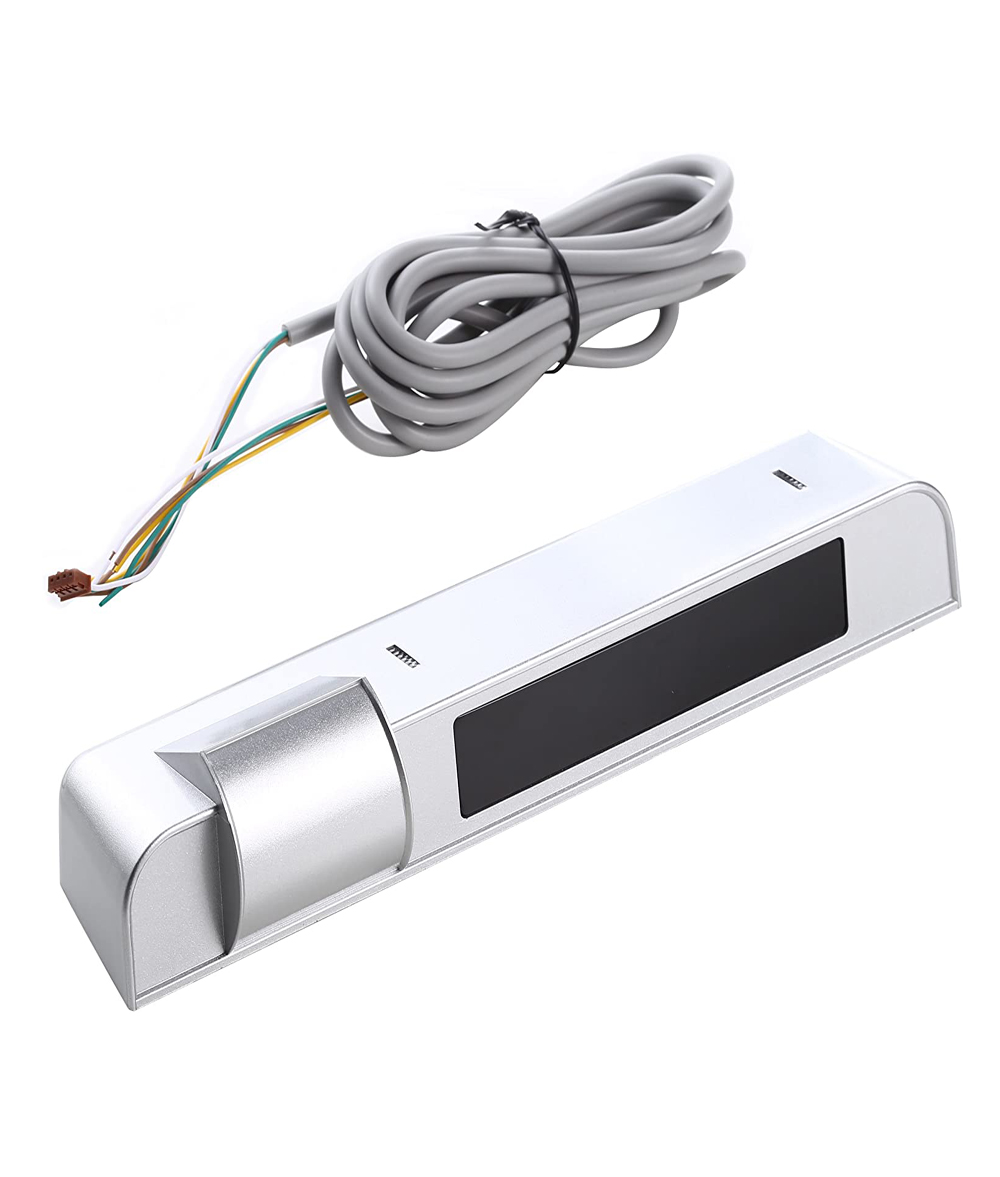

Combined Radar Activation and Infrared Safety Sensor for Auto-Door Control System
Features:
- Power supply: AC/DC12-30V
- Max. installation Height: 2500mm / 98.43in
- Combined radar activation and infrared safety sensor is used for automatic sliding door,folding door and curver door.Radar technolog is for door activation.Infrared technology is for door safety entrance.
- Have function of background self-learn.Can learn background automatically when power on.Suit all kinds of occasons always self-correction once be influenced by quake,distortion,move,dark and sunshine.Ensure the sensor can work durable.
- Microwave technology adopts the Germany Micorwave sensor module,ignore the influence by temperature and humidity with reliable working performance.
Specifications:
- Power supply: AC/DC12-30V
- Cable Lenght: 2.5m / 98.43in
- Signal Output: Relay
- Max. installation Height: 2500mm / 98.43in
- Static Power: 65mA
- Action Current: 130mA
- Dimension: 260.3Lx53.4Wx44H(mm) / 10.25Lx2.1Wx1.73H(in)
- Cover: ABS
Infrared Safety:
- Ray Source: Infrared 940mm / 37in
- Quantity of Ray: 8 emit rays and 8 receive rays
- Self-learing time: 10s
- Operation Indicate: Standby by Blue LED, action by Red LED
- Temperature: -40℃~60℃ / -40℉~140℉
- Output time: 500ms
- Respond: Less than 100ms
- Optical surface: PMMA
Microwave Activation:
- Technology: Microwave processor
- Frequency: 24.125GHz
- Emission Power: <20dBm EIRP
- Transmission Frequency density: <5mW/cm2
- Detection Mode: Movement
- Detecton Range: 4m(W)x2m(D) / 157.48in(W)x78.74in(D)
- Output time: 0.5s
- Temperature: -20℃~55℃ / -4℉~131℉
Package:
- 1 x Combined Radar Activation & Infrared Safety Sensor
