Auto-Door Wireless Receive Controller & Hand Pressure Switch


  • Adopt uniformity frequency, high stability of wireless signal receiving and sending.
  • With large capacity output, available to be used with auto door, electric lock and access controller.
  • Wide voltage design, the input voltage can be DC12-30V.
  • This product with self-learning code design, the transmitter code can be learned into the controller before use it. Up to 20pcs transmitter can be learned.
SKU: UT-CNB-202G + CNB-202F Category:

Auto-Door Wireless Receive Controller & Hand Pressure Switch

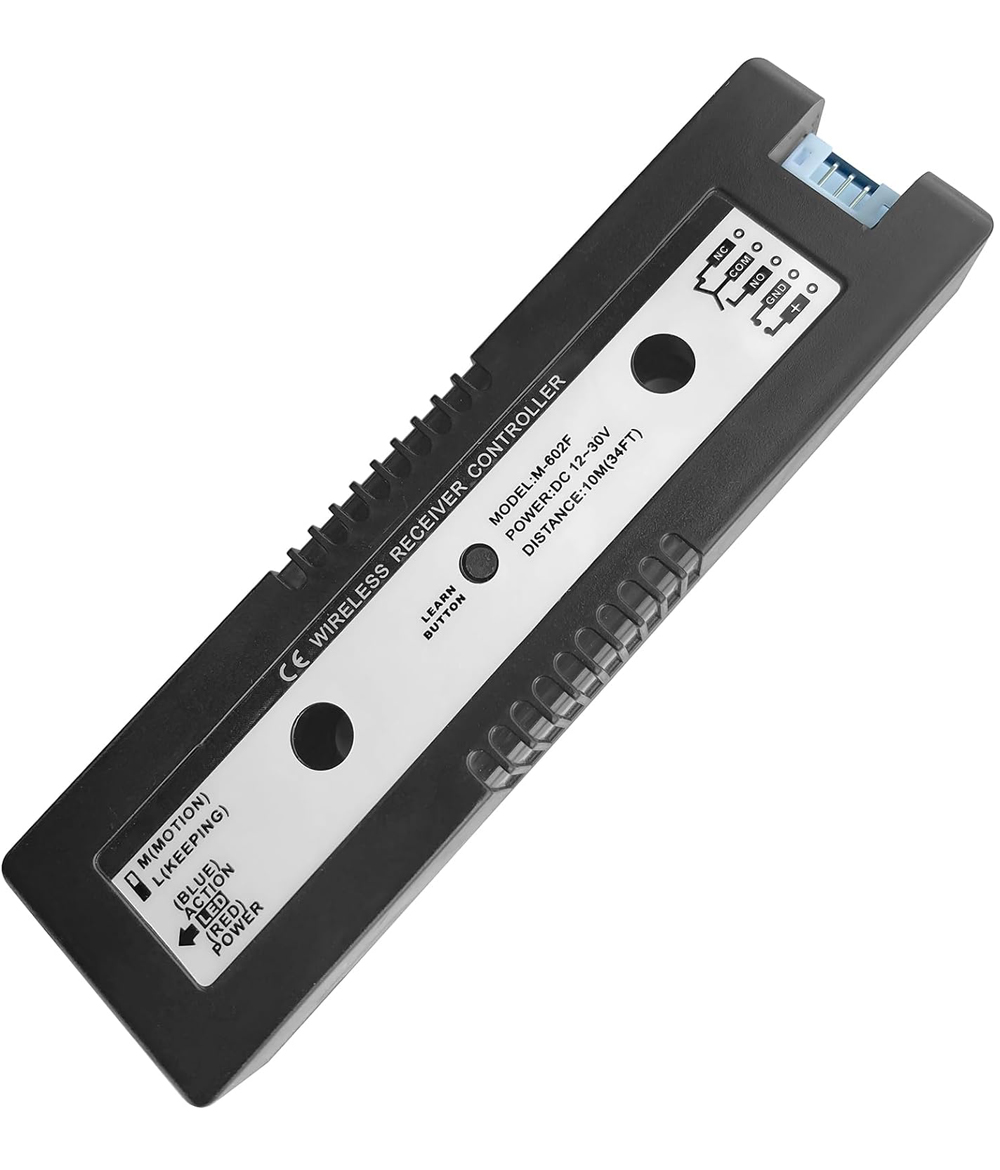

Specifications of receiver:
  • Power Supply: DC12-30V
  • Static Current: 34mA(DC12V)
  • Action Current: 62mA(DC12V)
  • Main Contact Capacity: 1A 24VDC
  • Receiver Sensitivity: -95dbm
  • Contact Suction Holding Time: 1.5s
  • Product Size: 110Lx30Wx15H(mm) / 4-21/64”L x 1-3/16”W x 19/32”H

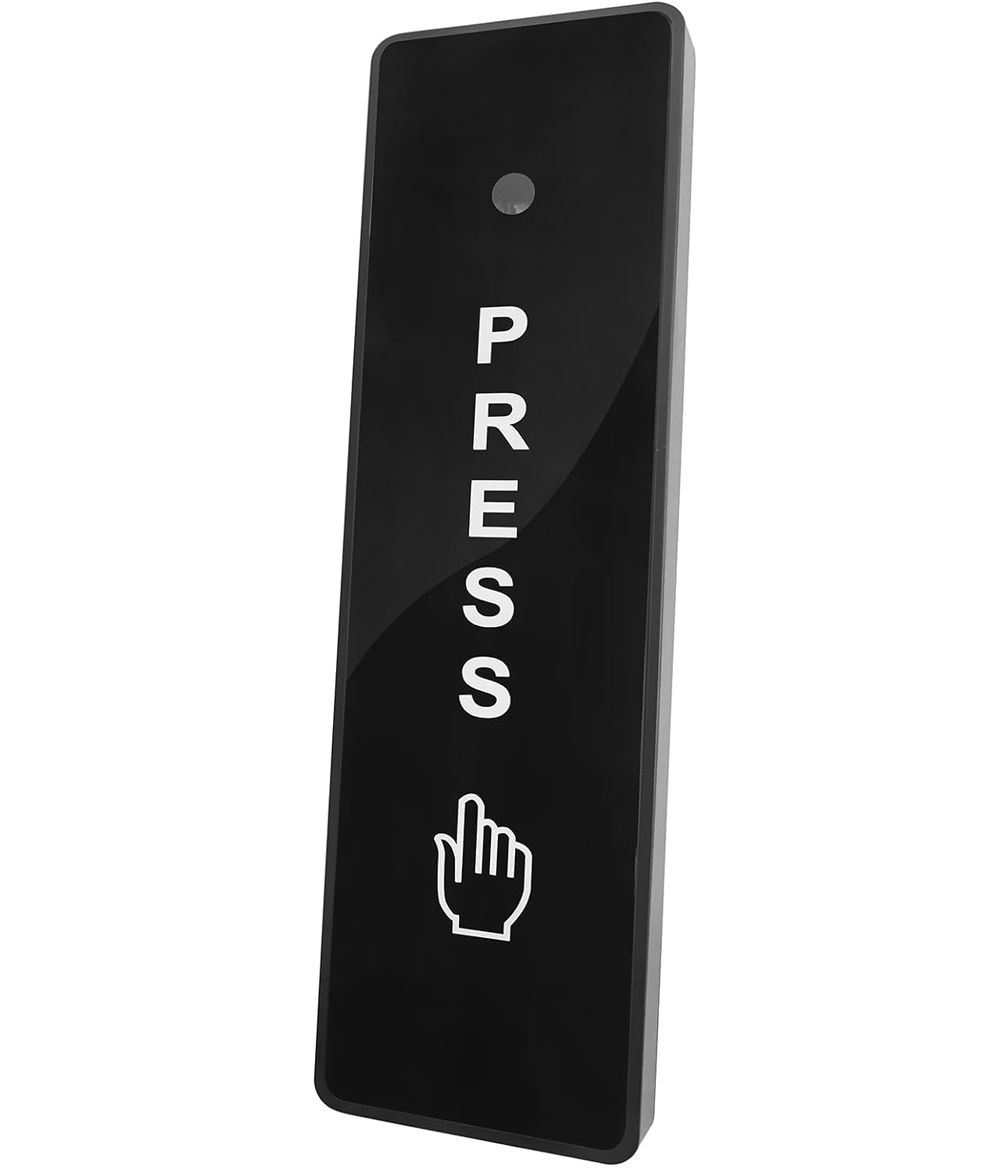

Specifications of Transmitter:
  • Power Supply: 3V(AAA battery*2pcs)
  • Standby Current: ≤10μA
  • Emission Current: 13mA
  • Battery Life: 200 times/day, can use 15 months
  • Product Size: 150Lx40Wx12.5H(mm) / 5-29/32”L x 1-37/64”W x 31/64”H

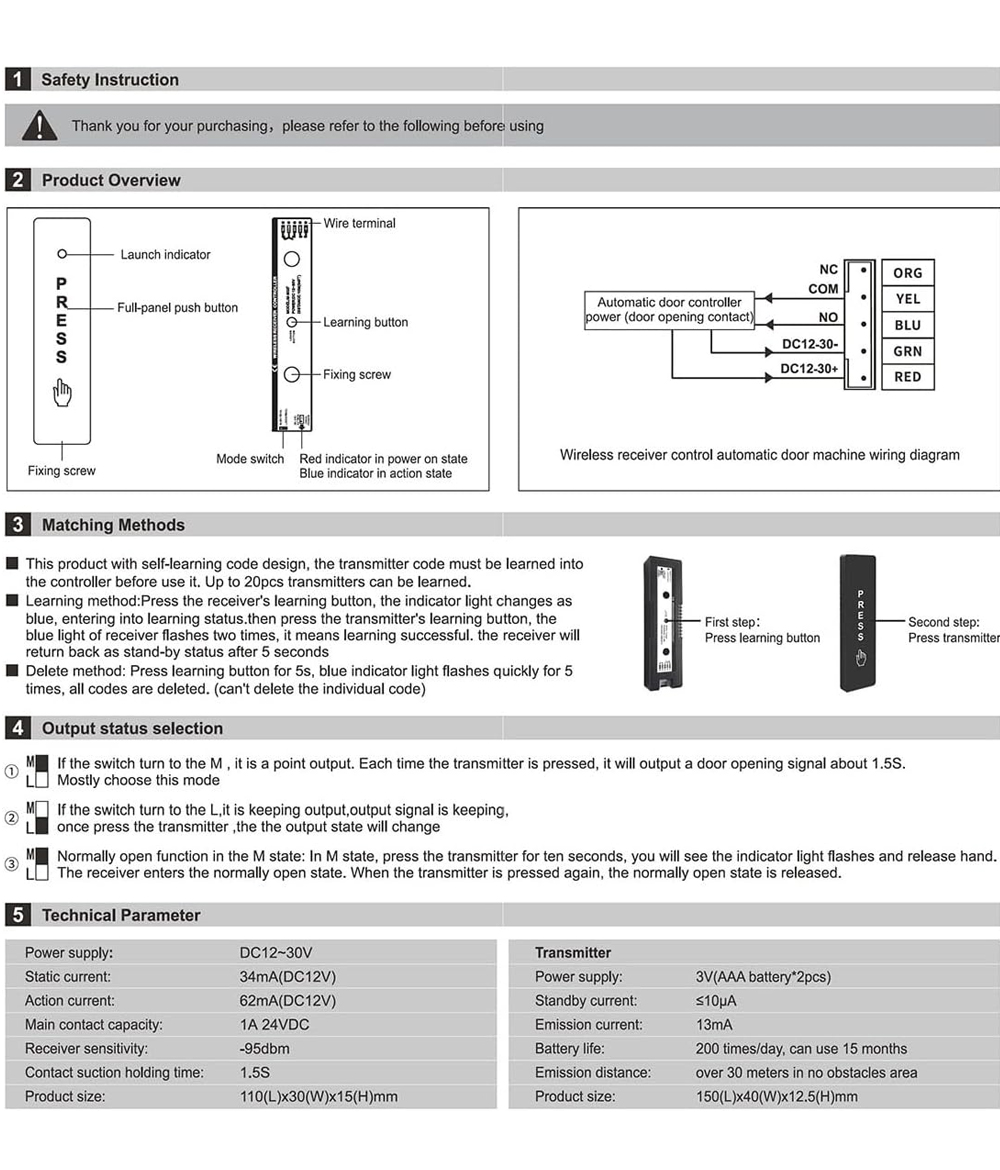

Matching Method:
  • Learn Method: Press the receiver’s learning button, the indicator changes as blue, entering into learning status. Then press the transmitter’s learning button, the blue light of receiver flashes two times, it means learning is successful. The receiver will return back as stand-by status after 5 seconds.
  • Delete Method: Press learning button for 5s, blue indicator light flashes quickly for 5 times, all codes are deleted. (Can’t delete individual code.)

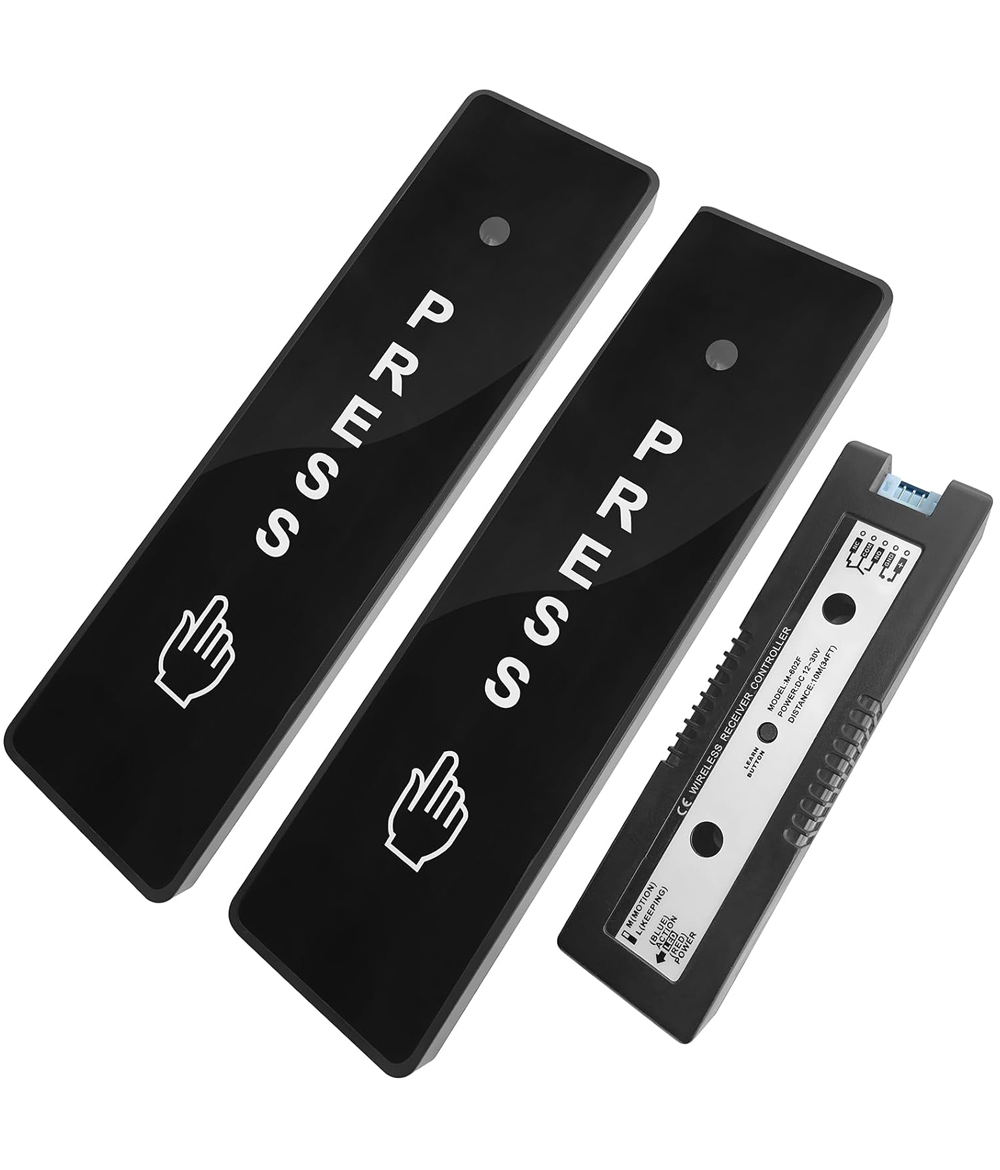

Package includes:
  • 1 x Wireless receive controller
  • 2 x Wireless hand pressure switch


Weight 0.34 kg
