NC Magnetic Window Door Contact Open Alarm Sensor Screw-Terminal Surface Mount Using Side tabs (Pack of 10)

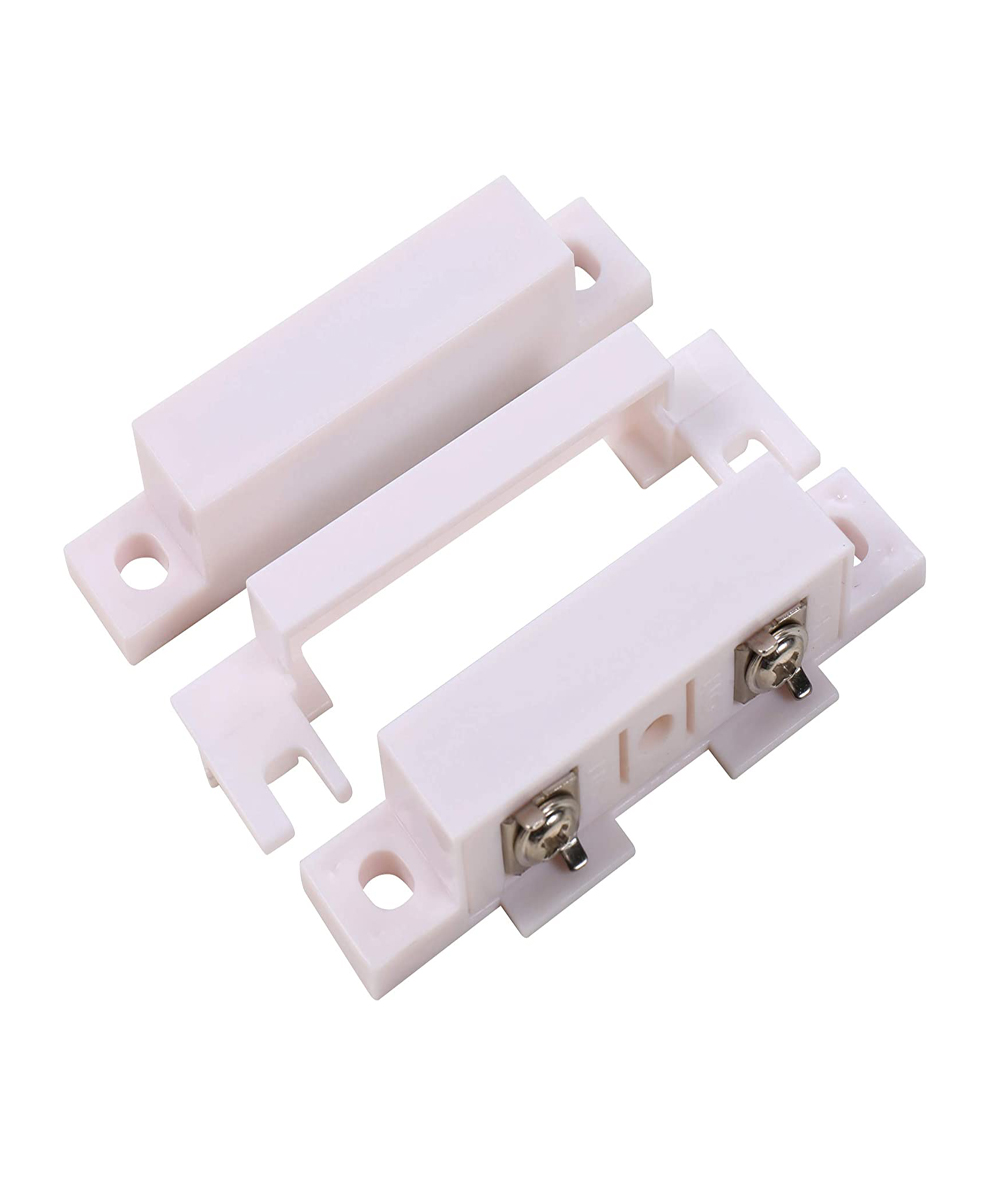

- Surface-mount magnetic contacts, Screw mount using side tabs
- ABS plastic case has lip to prevent wires from accidentally touching metal mountings and slotted mounting holes for easier gap adjustment
- Great for use in family and factory wooden windor, door, etc.
- The switch is an electrical switch operated by an applied magnetic field

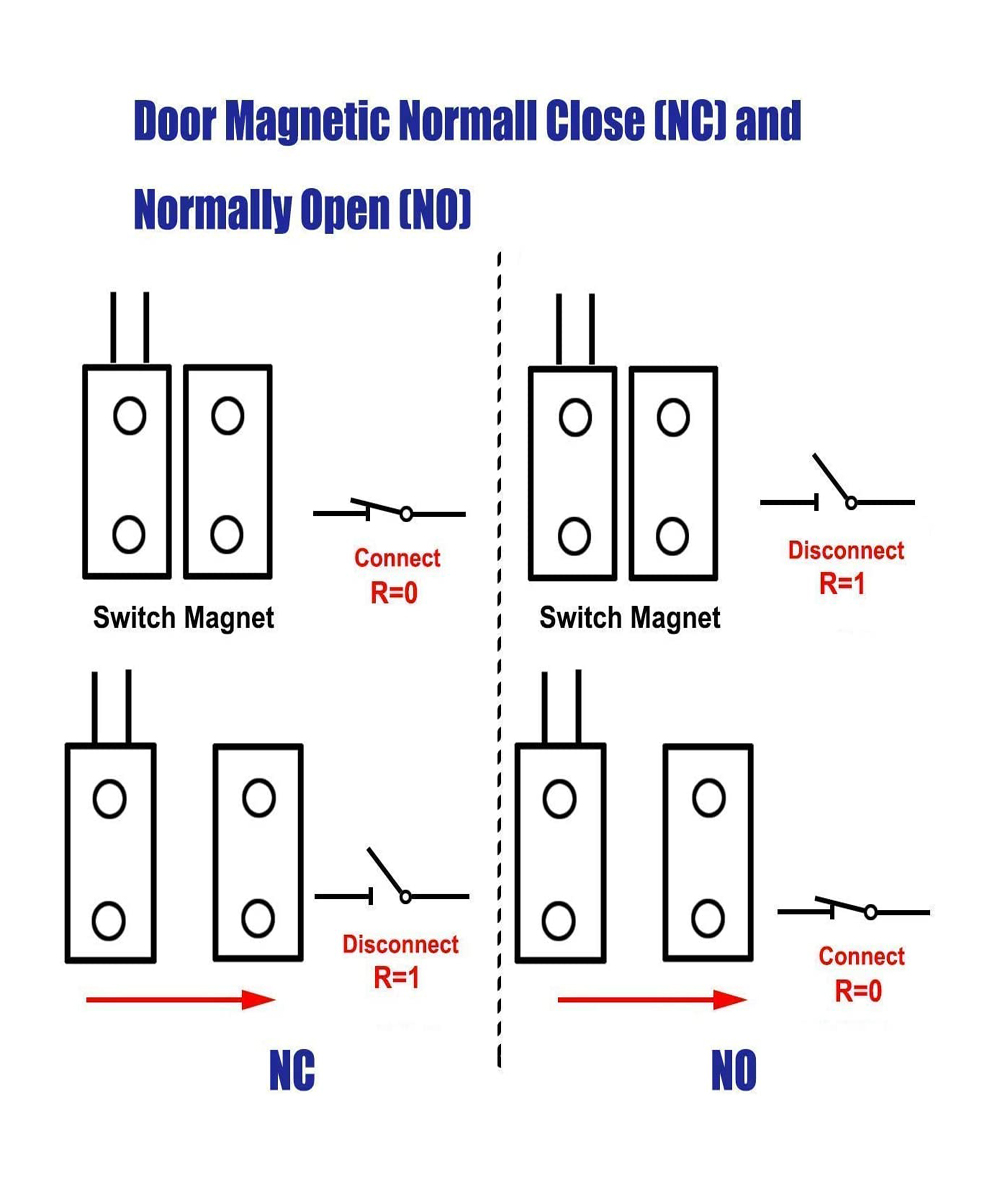

- NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
- Switch Type: NC (Normal colsed type)
- Size: 64x19x13mm
- Sensing Distances: 15~25mm
- 10W/100V/0.5A in MAX
- Housing Material: ABS plastic
- Terminals: Screw-type
- Mounting Tabs: Yes
- Contact Rating: 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
- Operating Temperature: -15º~+160º F (-25º~70º C)
- Switch Cycles: 50 Million (0.1mA@5VDC)
- Color: White

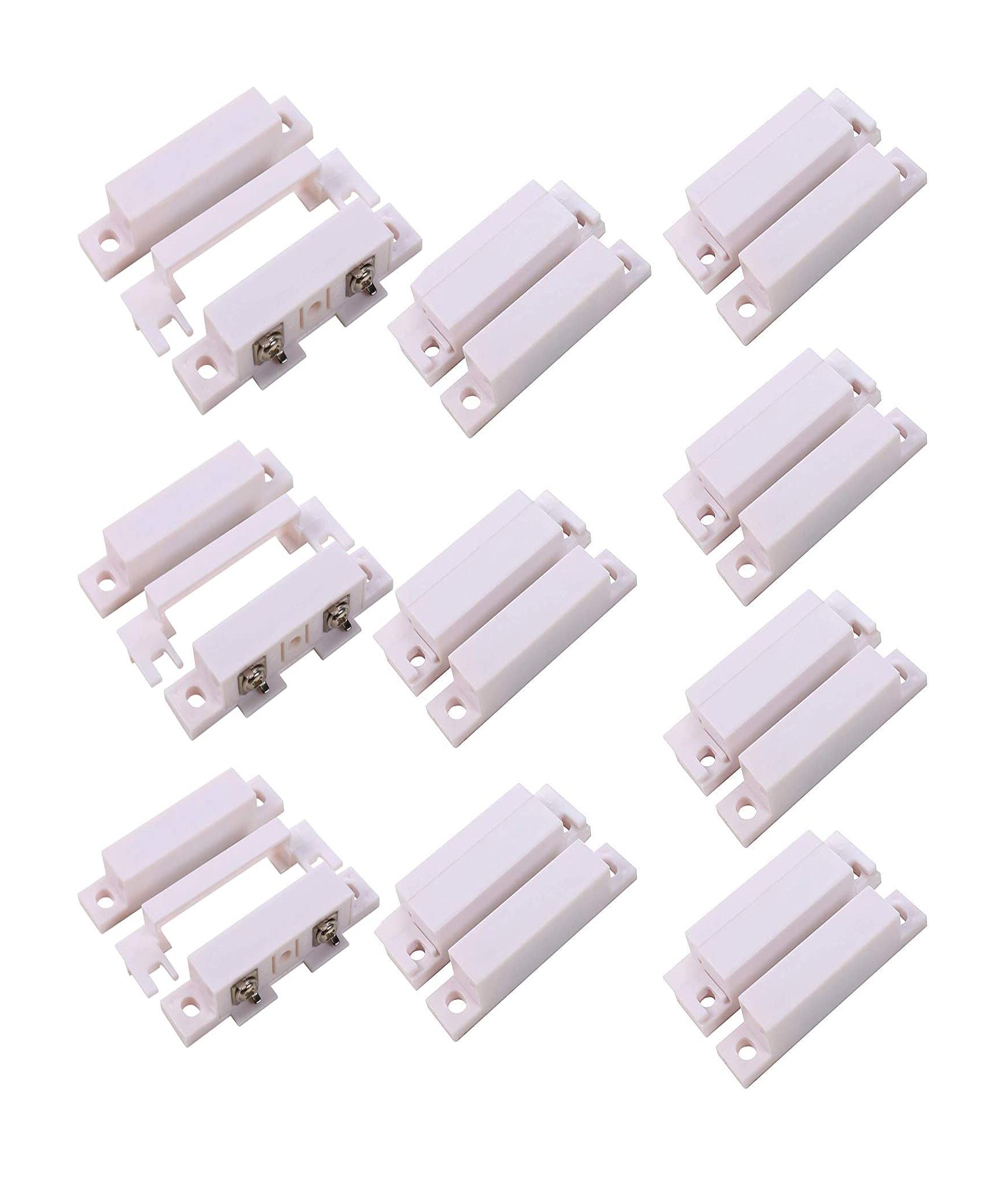

- 10 x Door Contact
