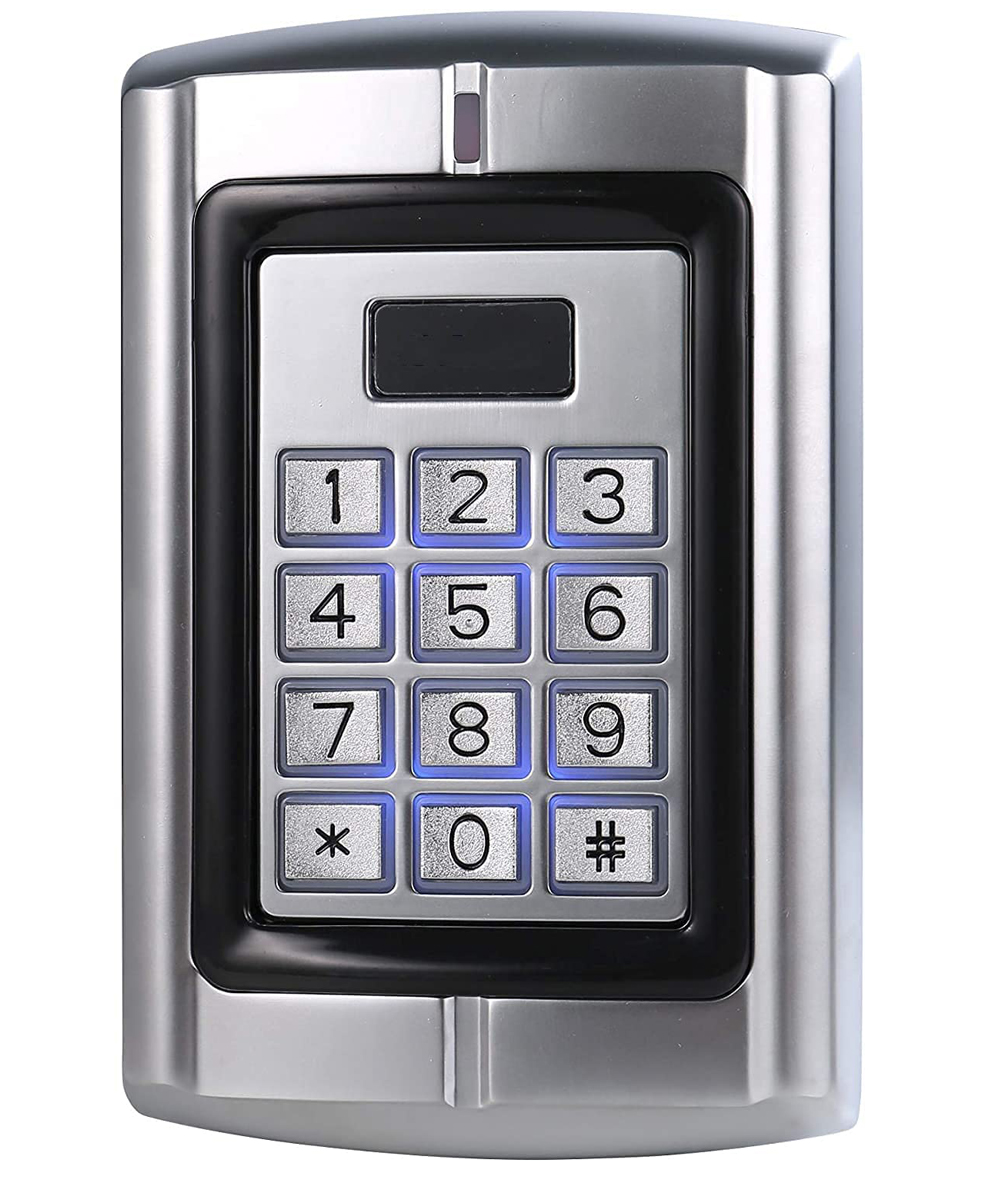

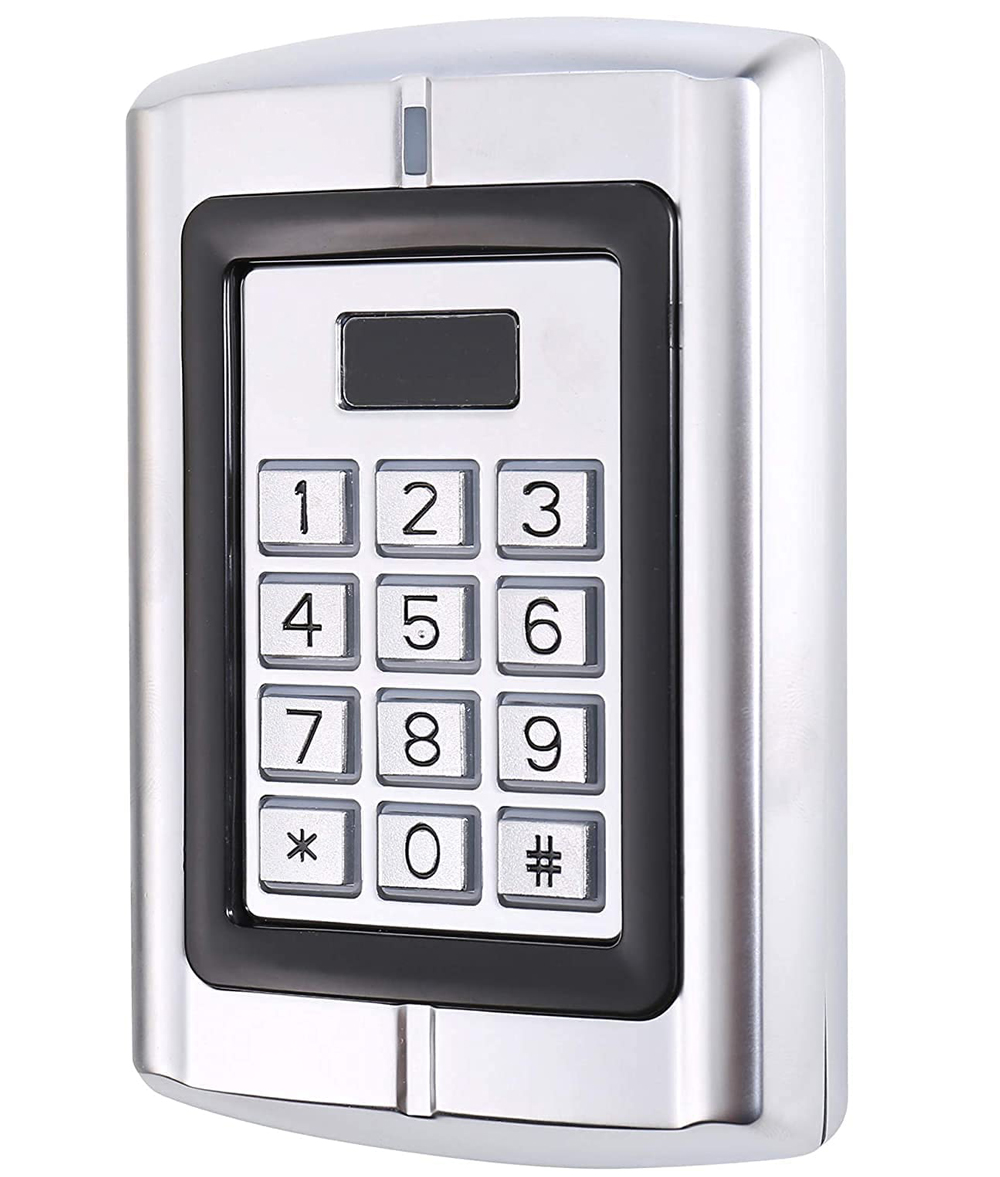

125KHz RFID EM ID Card Metal Stand-Alone Access Control Keypad

$45.60

  • Metal shell, anti-explosion; Nom-Waterproof
  • Support 125KHz EM card (Can’t support HID, Cobra, APCiK etc)
  • 3 access modes: Card, Card or PIN, Card with PIN
  • Codes: 1 Master,1000 cards and 1000 codes
  • Wiring connections: Electric lock / remote request to exit / door open detection / external alarm
SKU: US-BC-2000 Categories: ,

125KHz RFID EM ID Card Metal Stand-Alone Access Control Keypad



Features:

  • The Access Control Keypad uses the latest microprocessor technology to operate door strikes and security systems that require a momentary (timed) or latching dry contact closure.
  • All programming is done through the keypad. Codes and operating parameters are stored within the microprocessor and can not be lost due to power failure.
  • The Access Control Keypad can store 1000 prox cards and user 4 digit password codes. Each 4 digit password code has 10,000 possible combinations. The unit has one relay output with 5 Amp changeover contacts.
  • Model: Sebury BC-2000
  • Metal shell, anti-explosion; Non-Waterproof
  • Support 125KHz EM card (Can’t support HID, Cobra, APCiK etc)
  • Low power consumption (Standby input current: <20mA)
  • 3 access modes: Card, Card or PIN, Card with PIN
  • Relay output load can be 3A max
  • Antistatic interference: 12KV
  • Operating temperature: 0℃~60℃ (32℉~140℉)
  • Note: Non-waterproof. Not support Wiegand 26 output, so can’t connection as an external reader

Specifications:

US BC 2000 2 1

  • Input Voltage:12VDC
  • Door relay: 5Am 12VDC
  • Tamper protection: Negative loop, normally closed
  • Codes: 1 Master, 1000 cards and 1000 codes
  • Alarm output load: 150mA pull current
  • Keypad: 12 keys, 3 LED status indicators
  • Standby Input Current: Less than 20mA
  • Card Type: RFID compatible card
  • Frequency: 125Khz
  • Read range: 50-80mm / 2-3.1in
  • Wiring connections: Electric lock / remote request to exit / door open detection / external alarm
                      • Memory: Non volatile eeprom memory
                      • Keypad housing: Metal
                      • Dimension: 128x82x28mm / 5.04×3.23×1.1in
                      • Net weight: 500g / 1.1lb

Package:

  • 1 x Metal Keypad
  • 1 x English User Manual
  • 1 x Flat head screw
  • 4 x Wall fixing plugs
  • 4 x Sell tapping screws
  • 1 x Diode (1N4004)

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 0.5 kg
Dimensions 12.8 × 8.2 × 2.8 cm
