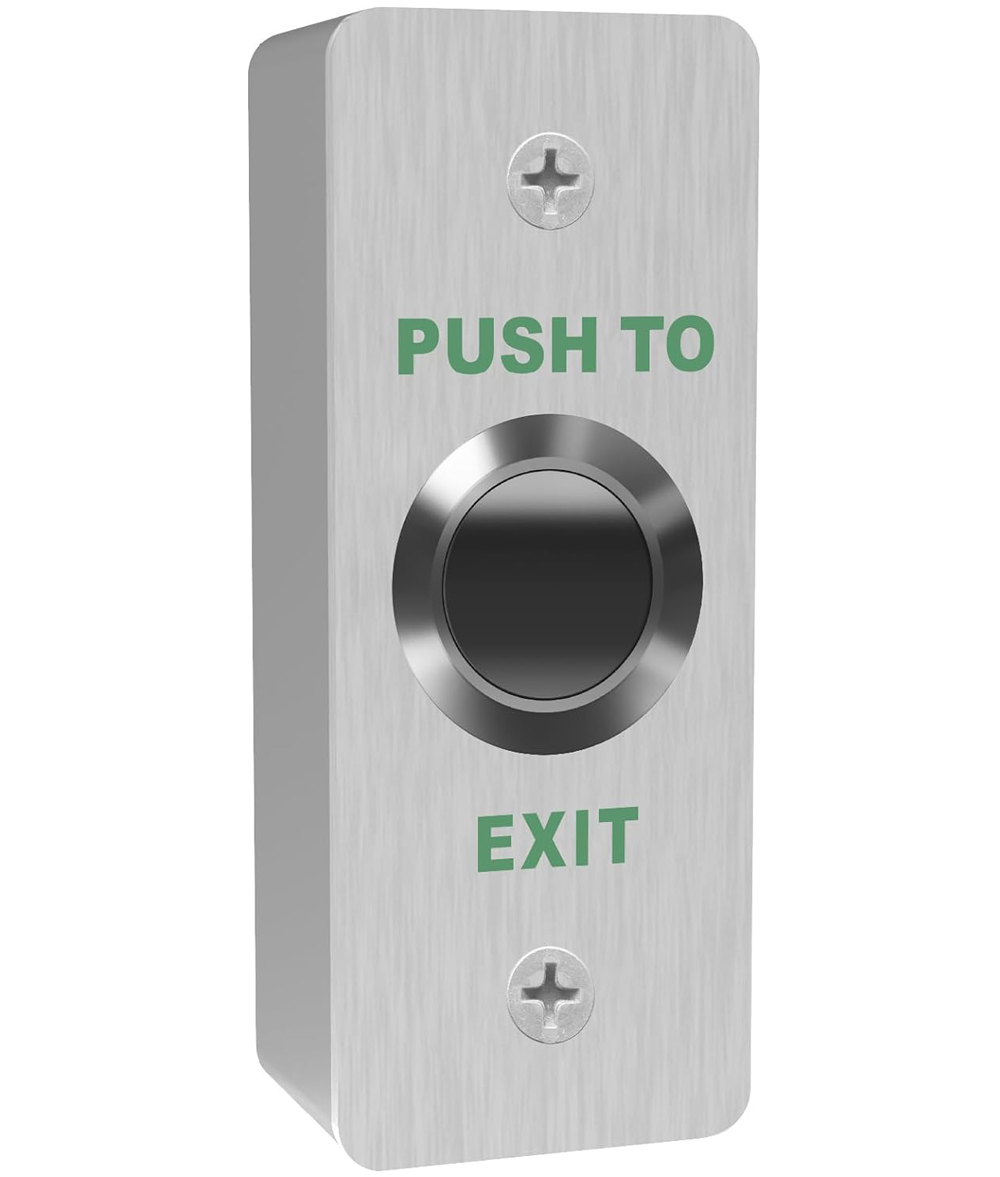

Momentary Push to Exit Button Stainless Steel Panel with Back Mounted Box for Door Access Control

Momentary Push to Exit Button Stainless Steel Panel with Back Mounted Box for Door Access Control

Describe：

• The push to exit button is made of high quality stainless steel.
• Back mounted box is included.
• Momentary switches only remain in their on state as long as they’re being pressed.
• Good choice for Door Access Control System.
• The door release exit button can be used for any access control application and is commonly used in offices, banks, gas stations, department stores and so on.

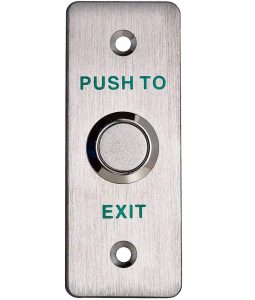

Exit Button:

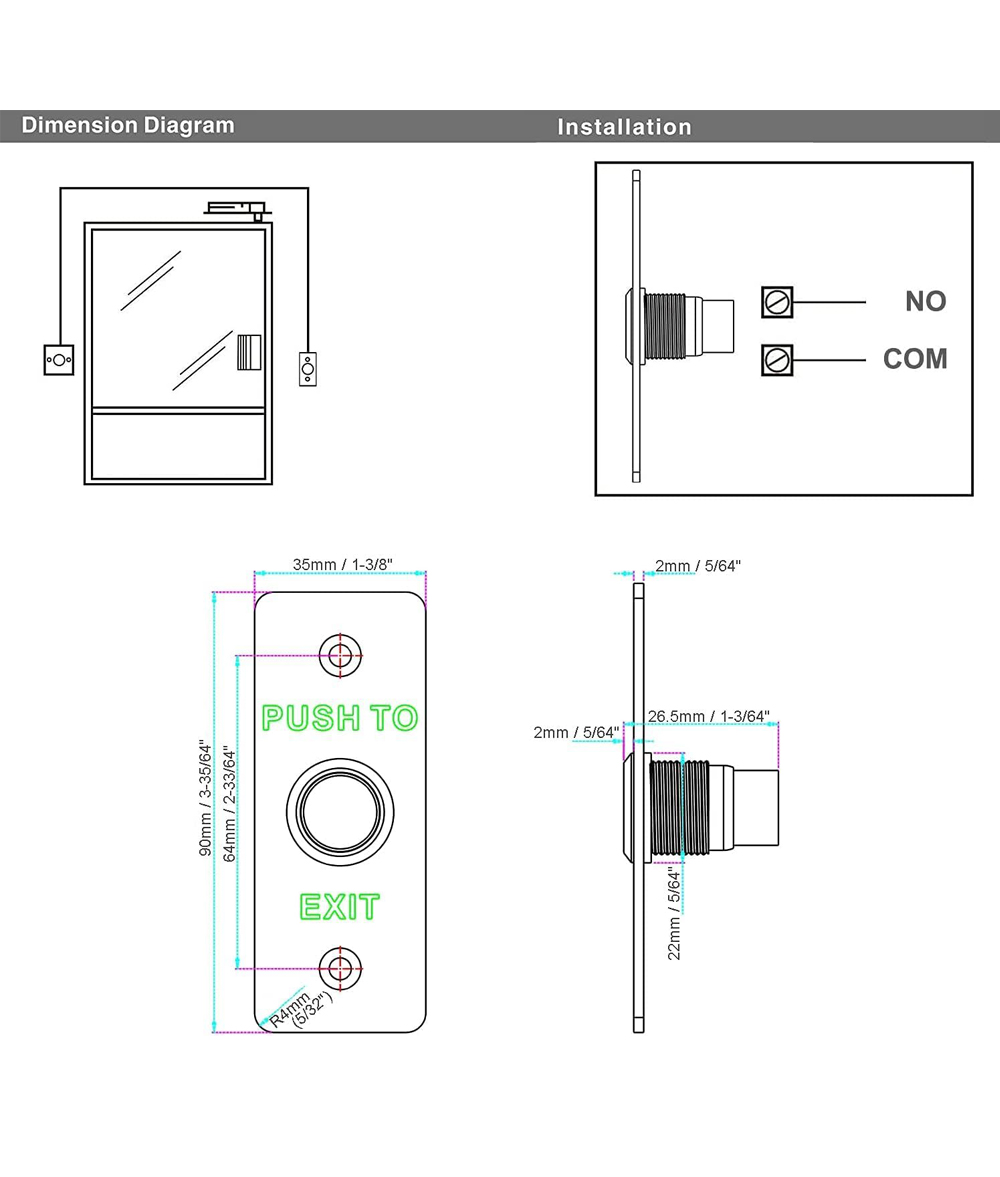

• Dimensions (LxWxH): 3-35/64″x1-3/8″x1-3/64″ (90x35x26.5mm)
• Standard Structure: Stainless steel panel, steel button
• Current Rating: 3A@36VDC Max.
• Mechanical Life: 500,000 tests
• Suitable for Door: Hollow Door

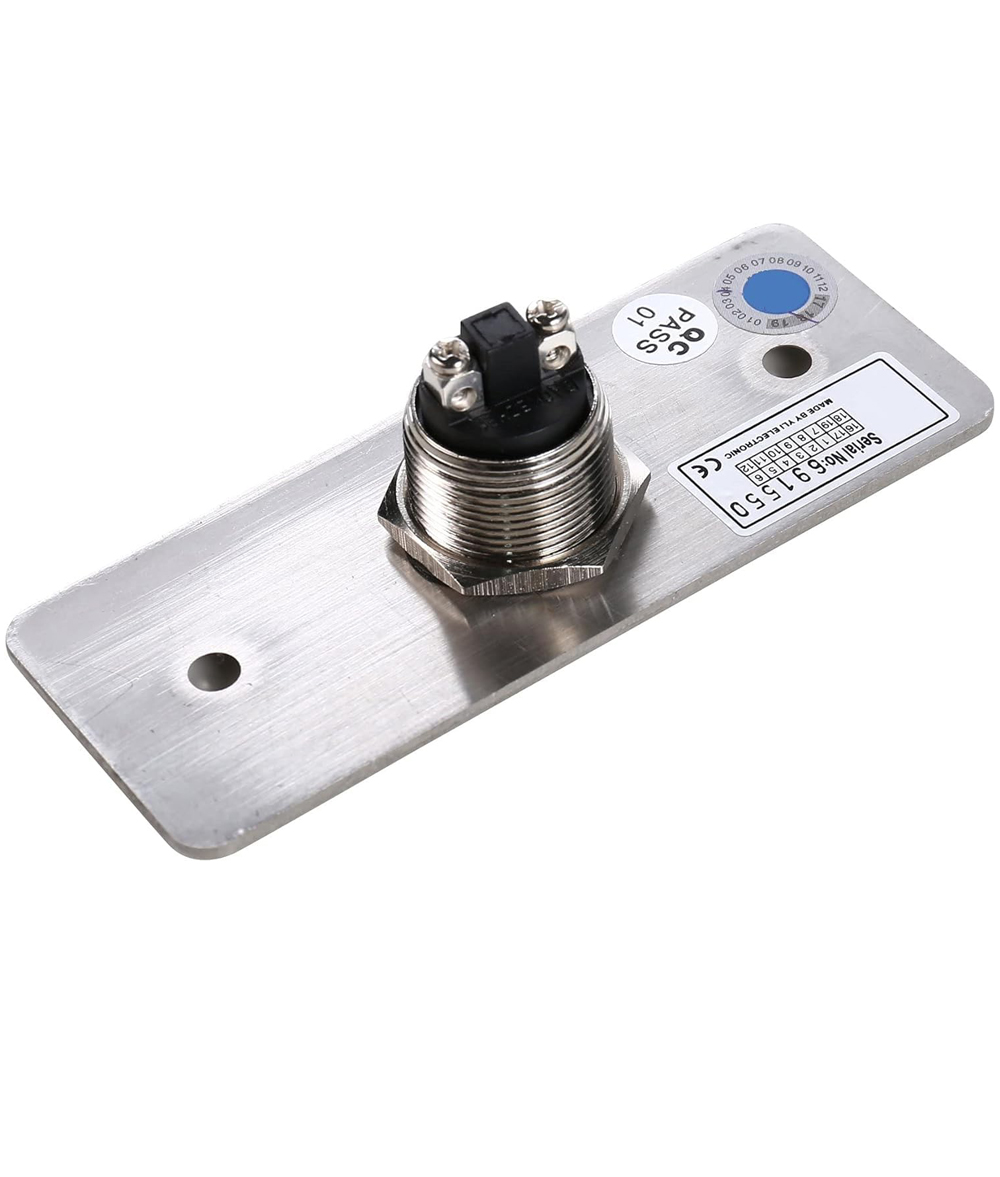

• Output Contact: NO/COM
• Operating Temperature: 14℉~131℉ (-10℃～55℃)
• Operating Humidity: 0-95% (Relative humidity)
• Panel Material: Stainless steel panel, wire drawing finished
• Terminal Type: Screw
• Working Type: Momentary (Press & Hold – ON, Release – OFF)
• Product Weight: 2.12oz (60g)

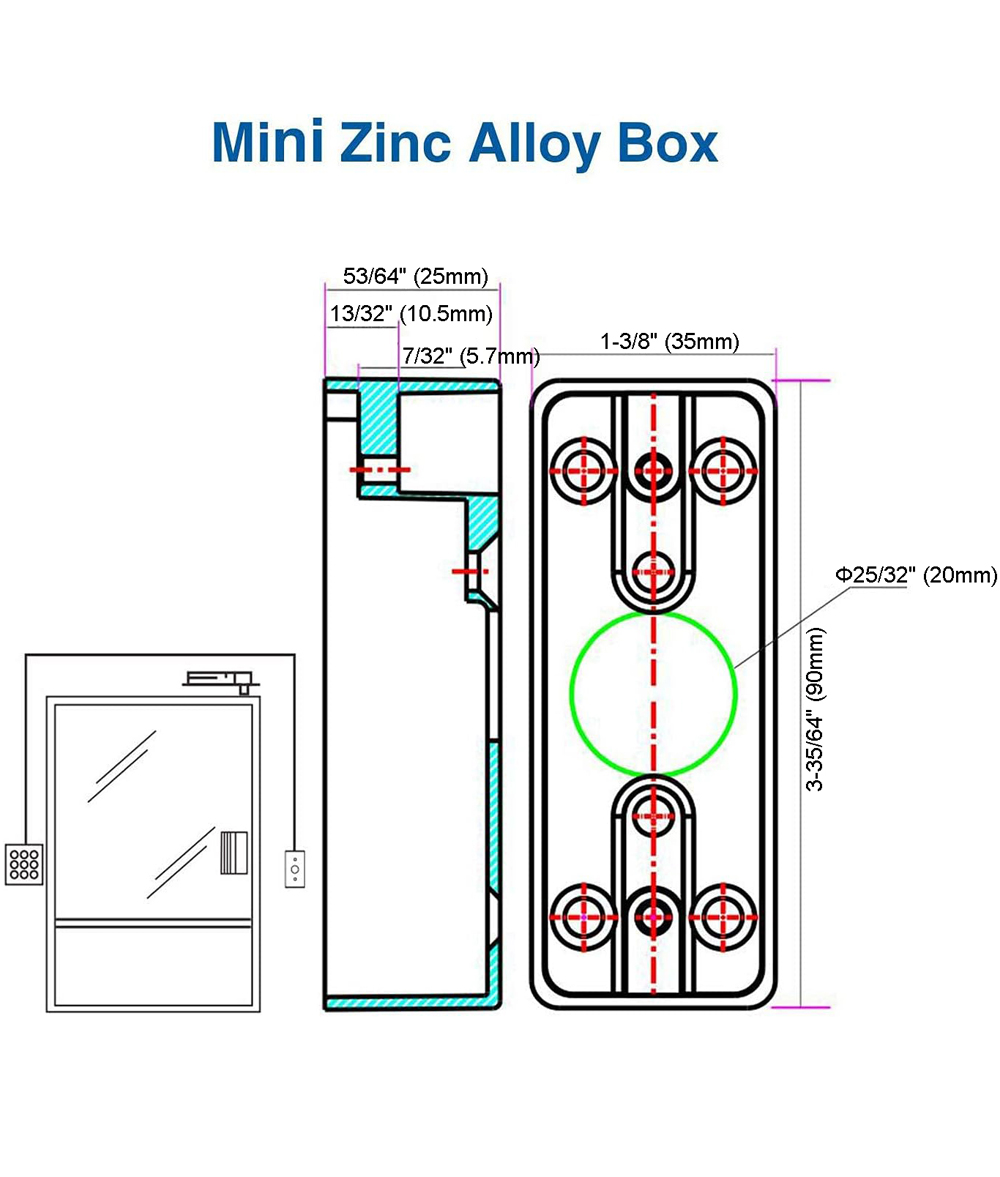

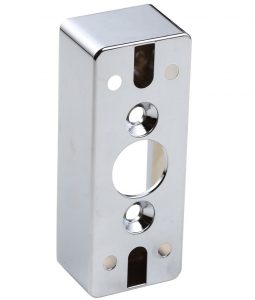

Back Mounted Box:

• Single-gang surface-mount backbox, 63/64″ deep, a single-gang housing for surface mount installation in hard wall or open office environments.
• Dimensions (LxWxH): 3-35/64″x1-3/8″x63/64″ (90x35x25mm)
• Standard Instruction: Zinc alloy material and surface is coated with chrome
• Net Weight: 3.7oz (105g)

Package List:

• 1 x Push to Exit Button
• 1 x Back Mounted Box
• 1 x User Manual
