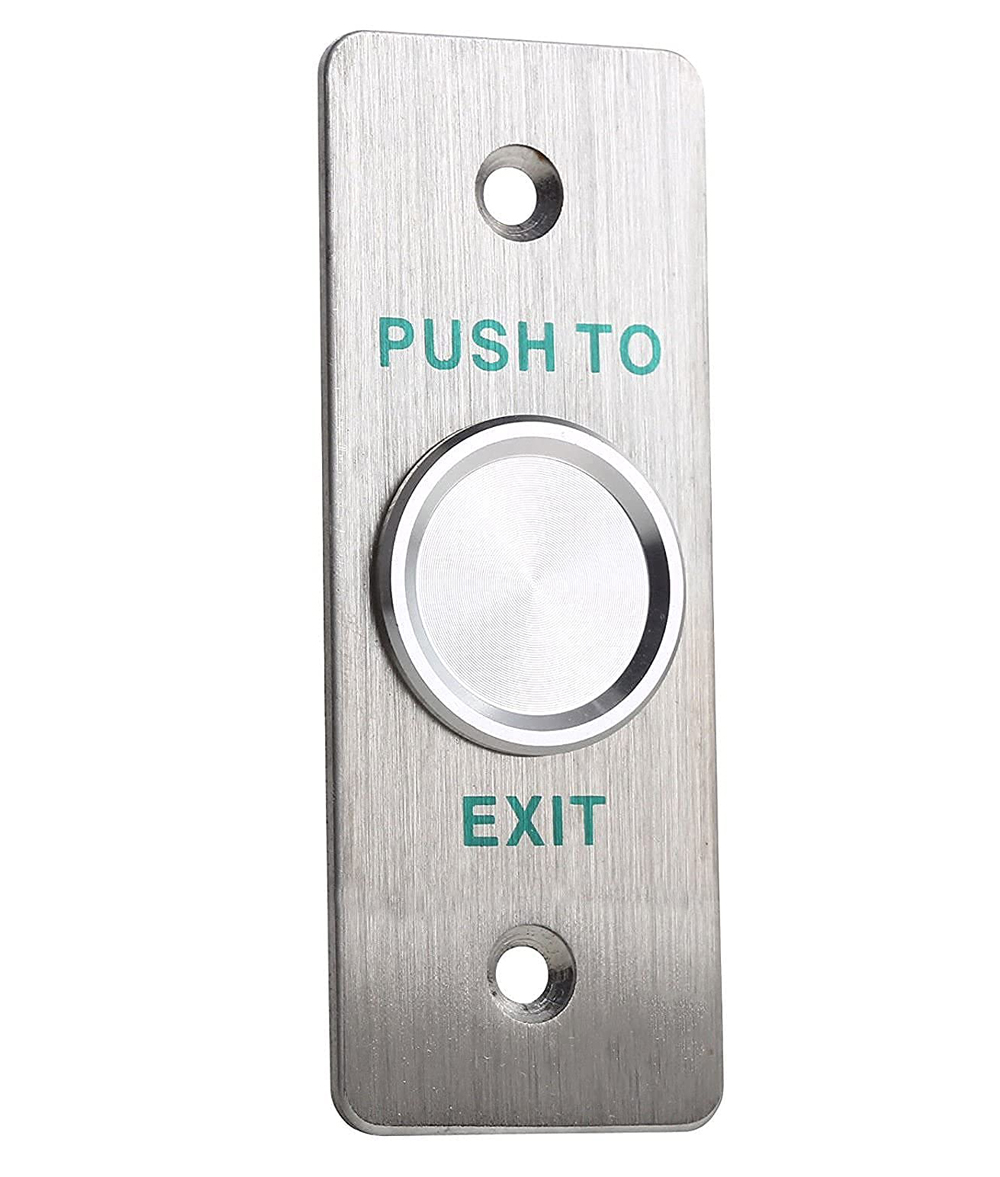

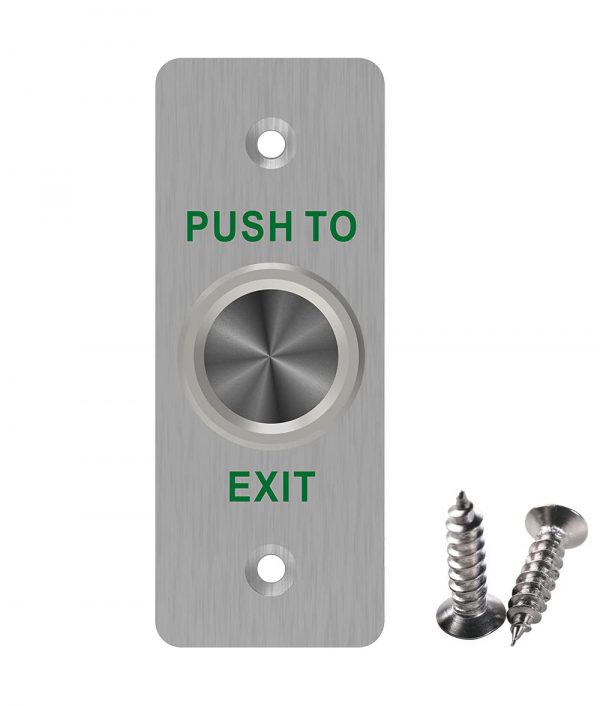

Piezoelectric Push to Exit Button Outdoor Waterproof Rated IP68 for Door Access Control

Piezoelectric Push to Exit Button Outdoor Waterproof Rated IP68 for Door Access Control

Features:

• Stainless steel Panel with Elegant Style
• NO/COM Contact Output,Suitable for all kinds of Locks

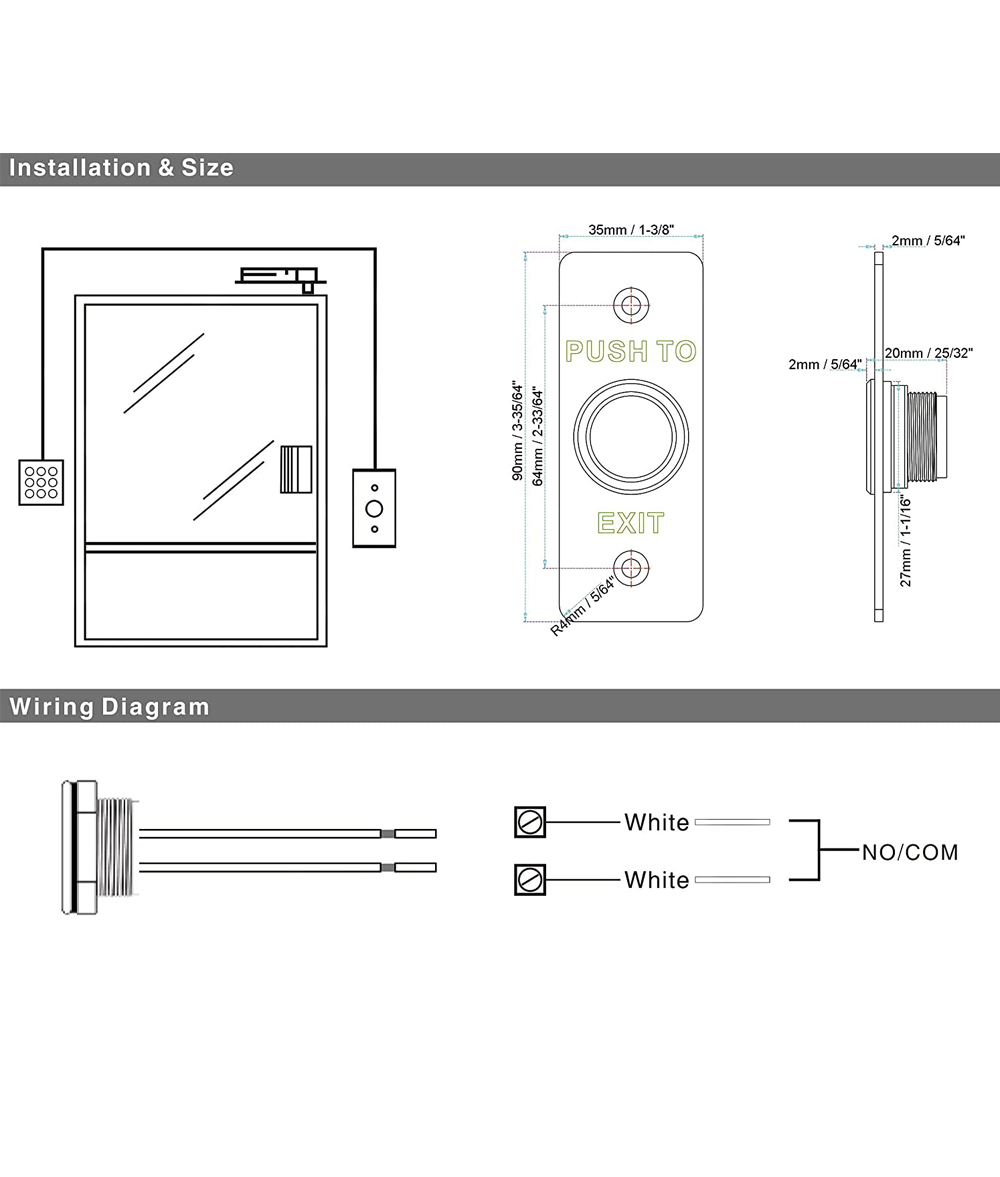

• Dimensions: 90Lx35Wx20H(mm) / 3-35/64″ x 1-3/8″ x 25/32″
• Directly dry contact input, no external power supply
• 500000 Cycles tests.
• This door release exit button can be used for any access control application and is commonly used in offices, banks, gas stations, department stores and many more

Specifications：

• Dimensions: 90Lx35Wx20H(mm) / 3.5″x1.4″x0.8″
• Contact Area: <100ohm
• Material of Panel: SUS304 Stainless Steel
• Operating Temperature: -20℃~+50℃ / -4℉~122℉

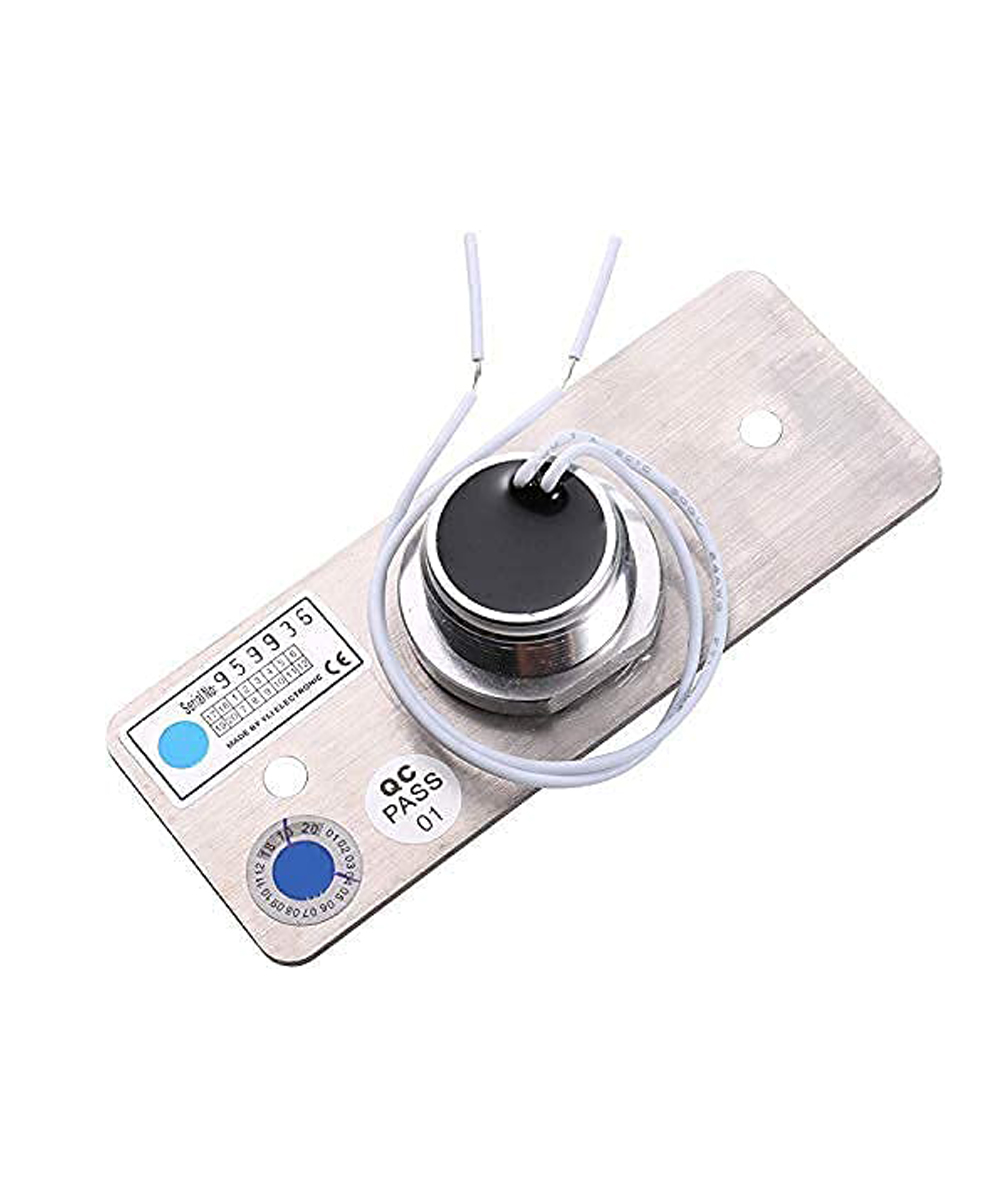

• Wire color: White: NO/COM
• Current Standby: 20mA
• Output Contact: NO/COM
• Current Rating: 1A@12VDC(Max.)
• Waterproof Level: IP-68
• Weight: 0.07kg / 2.47oz

Attention:

• Please buy the mounted back box separately.

Package:
