Outswinging Single Door Access Control 1200Lbs Force Magnetic Lock Remote Kit

$252.00

  • The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can program up to 40 remotes, and it has a range of 164 feet.
  • The function of the receiver is that when the power is on, the lock of your kit is locked and when you press the remote the lock will unlock temporarily to open the door.
  • 0/5/10 seconds locking delay time adjustable, default is 5 seconds
  • An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.
  • Fail Safe, NC mode (Unlocked when power is removed)
SKU: UT-KIT-YM-500-814A Category:

Outswinging Single Door Access Control 1200Lbs Force Magnetic Lock Remote Kit



Describe:
  • The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the receiver, which can program up to 40 remotes, and it has a range of 164ft.
  • The function of the receiver is that when the power is on, the lock of your kit is locked and when you press the remote once the lock will unlock temporarily to open the door.
  • An exit button is included in this magnetic lock system kit, and you could exit from indoors easily by pushing it once.
  • 0/5/10 seconds locking delay time adjustable, default is 5 seconds.

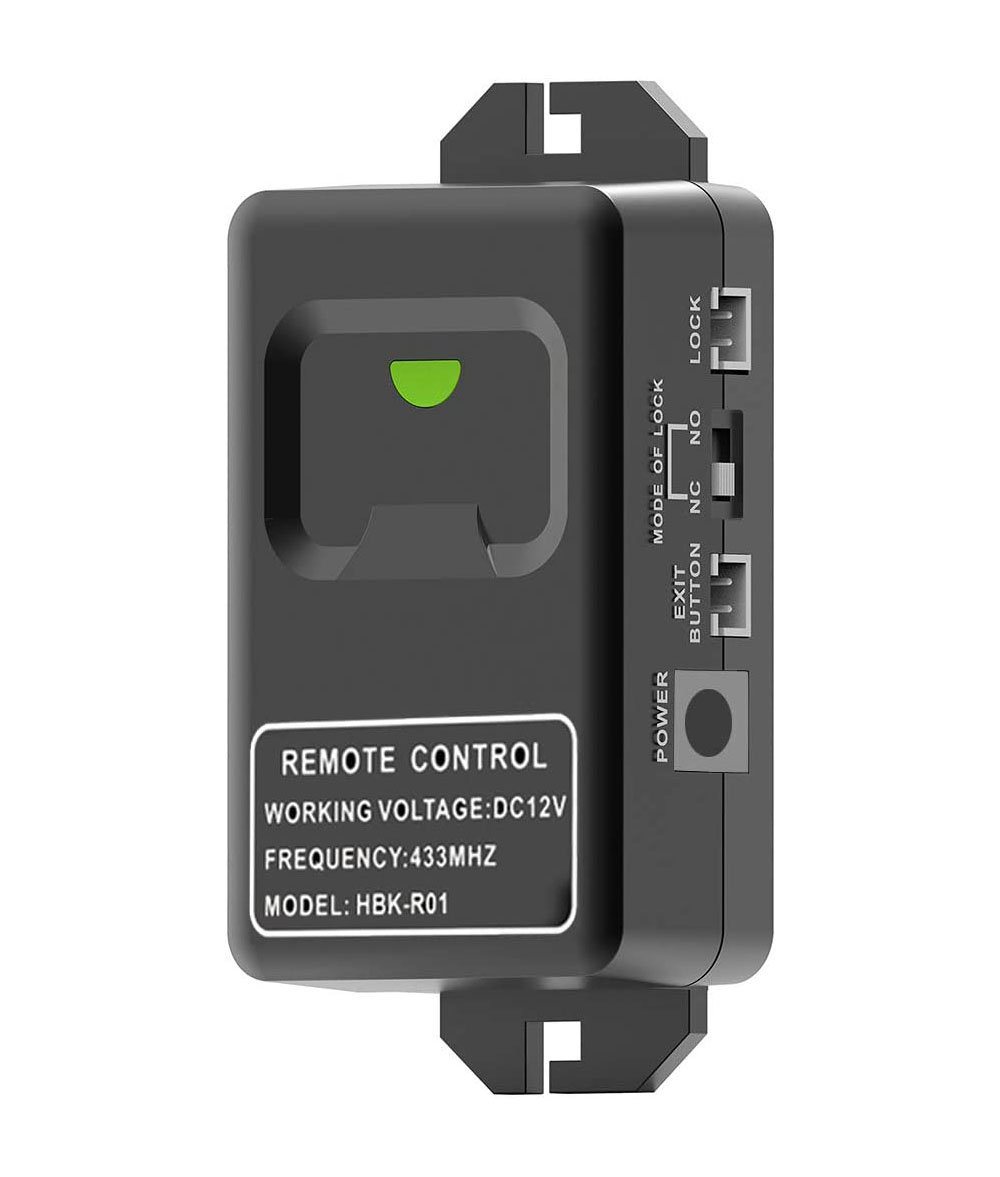

Wireless Remote Control:

R01 2

  • Voltage: 12VDC
  • Frequency: 433MHz
  • RF channels: One
  • No. of Remotes that are able to connect to one Receiver: Up to 40
  • DC Encoding Type: Learning code
  • Working Range: 164ft in open aera, 15%-30% in reality
  • Adjustable Locking Delay: 0/5/10sec
  • Working Mode: Momentary/Toggle
Electric Magnetic Lock:

UT KIT YM 500 814A 3

  • Size (LxWxH): 265×71.8×38.8(mm) / 10-7/16″x2-53/64″x1-17/32″
  • Armature plate (LxWxH): 185x60x13(mm) / 7-9/32″x2-23/64″x33/64″
  • Voltage: 12VDC
  • Surface Temp: Less than +20℃ / 68℉
  • Operating Temp: -10℃~+55℃(14℉-131℉)
  • Suitable Humidity: 0~95%(non-condensing)
  • Finishes for Shell: Anodized aluminum
  • Finishes for Magnetic: Zinc
  • Finishes for Armature: Zinc
  • Weight: 4.5kg / 9.9lb
Push to Exit Button:

UT KIT 280KG 814A 8

  • Dimensions (LxWxH): 90x35x26.5(mm) / 3-35/64″x1-3/8″x1-3/64″
  • Standard Structure: Stainless steel Panel, Steel Button
  • Mechanical Life: 500000 tested
  • Current Rating: 3A@36VDC Max
  • Output Contact: NO/COM
  • Operating Temp: 10~+55℃(14-131F)
  • Operating Humidity: 0-95% (relative humidity)
  • Panel Material: Stainless steel Panel, Wire Drawing Finished
  • Suitable for hollow door
Power Adapter:

UT KIT 280KG 814A 9

  • Type: 12V 1A Power Supply Wall Charger
  • Input: AC100V-240V 50/60Hz
  • Max Output: DC12V / 1A (1000mA)
  • AC Cord length: 4 feet / 1.2 meter
  • Wire Type: 22AWG
  • Output transformer adapter : 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
  • Net weight: 66g / 2.3oz
  • Certificate: FCC

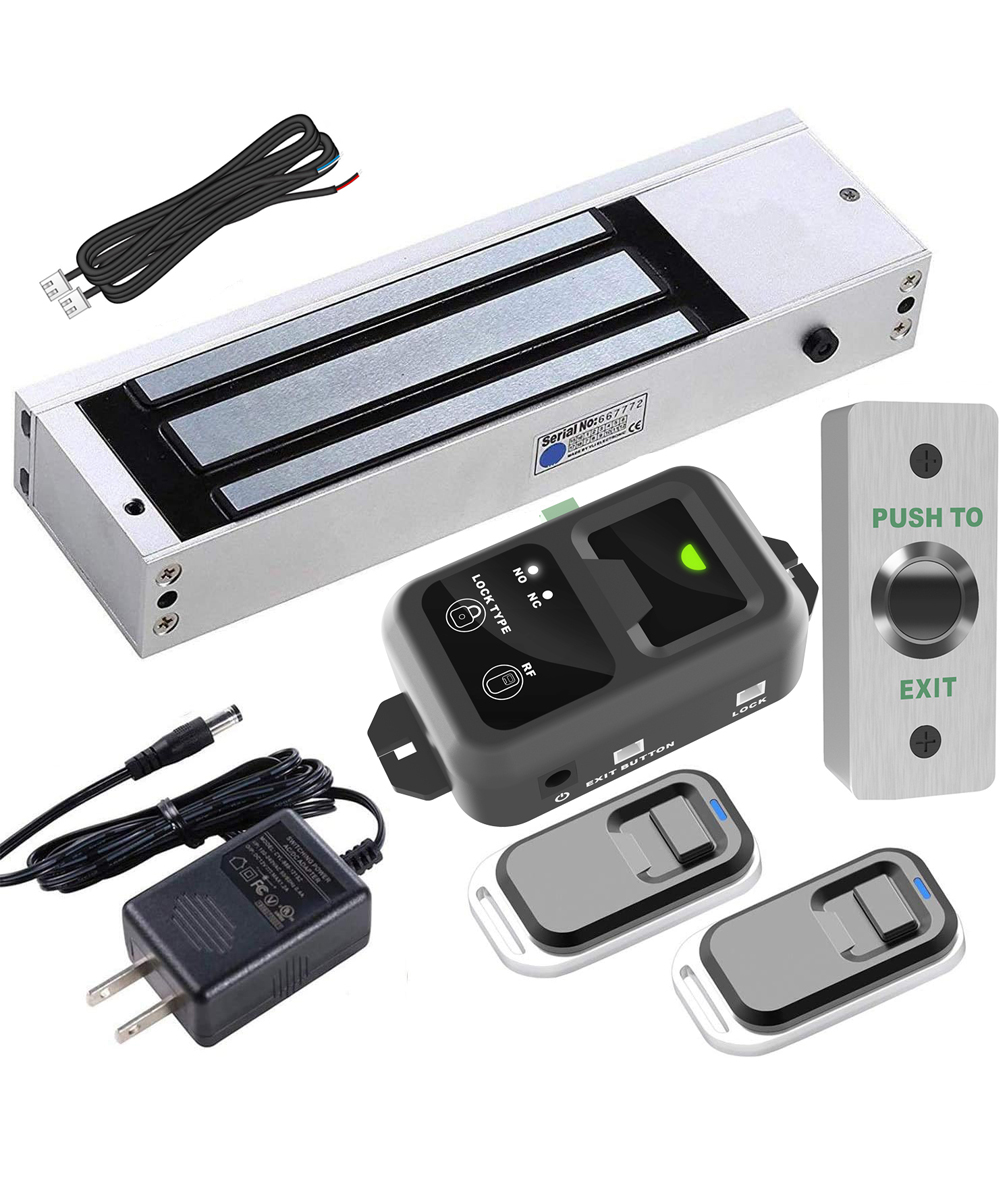

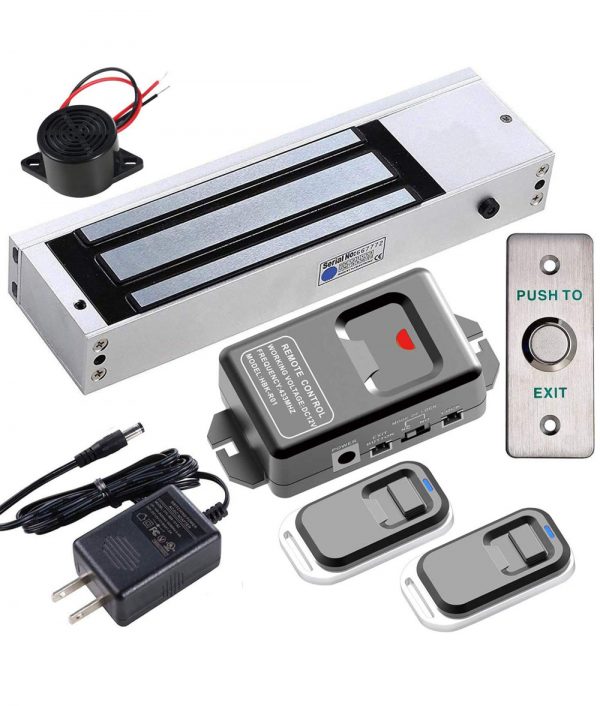

Package Included:
  • 1 x Electric Magnetic Lock
  • 1 x Remote Receiver
  • 2 x Remote Rransmitter
  • 1 x Exit Button
  • 1 x Power Adapter
  • 1 x English Manual
