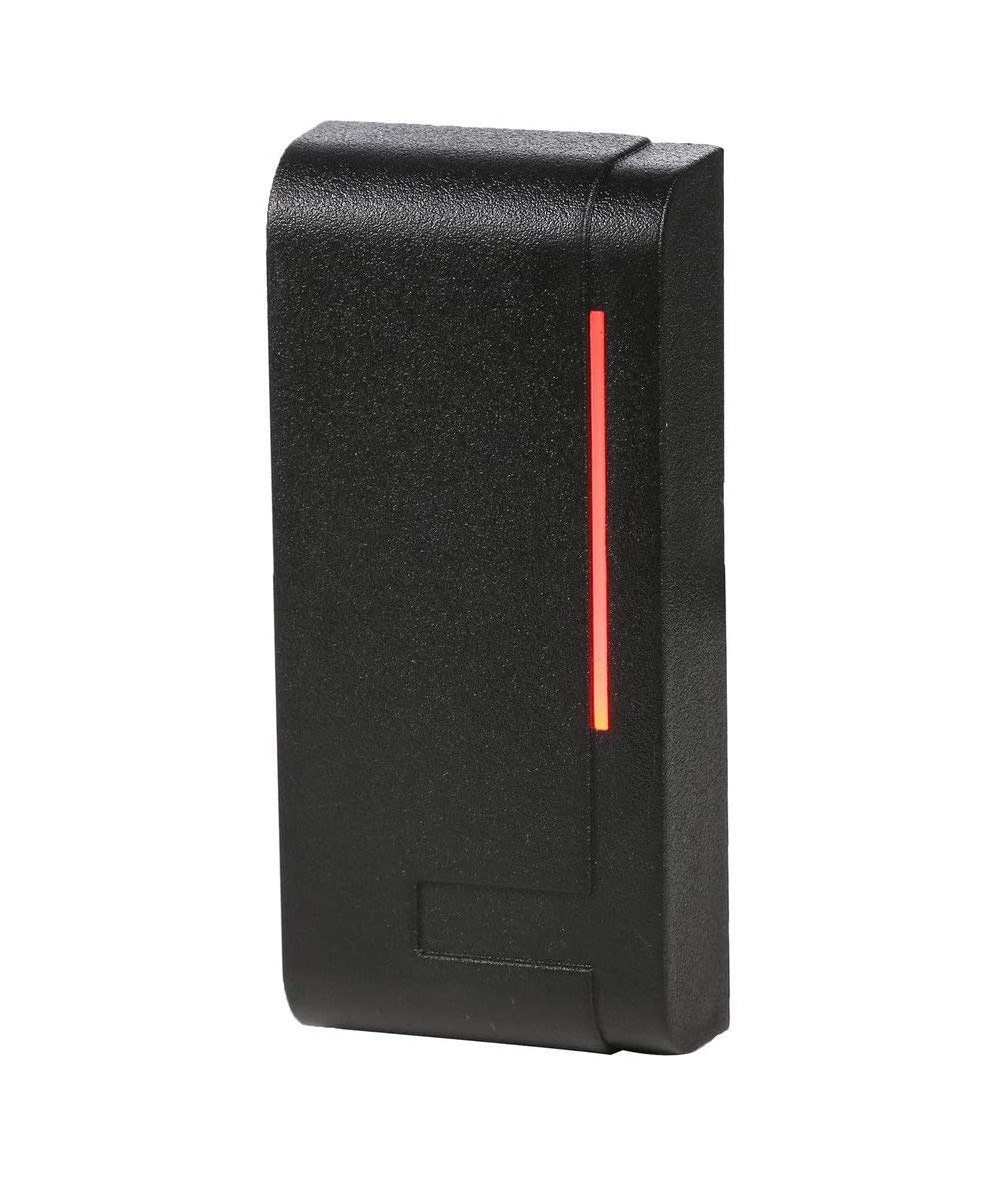

Wiegnad 26 bit IC 13.56Mhz Card RFID Reader Work for Access Controller
- This RFID card reader needs to work with Wiegand protocol access controller, such as control board, fingerprint device or master controller and it can’t work alone.
- Wiegand 26 bit output for connect to a controller
- Supports 13.56Mhz IC card
- Less than 0.2 second Response Speed
- Less than 0.5 seconds Proximity Time Distance
- Built-in Antenna
- Built-in LED (Double Color LED)
- Built-in Loud Speaker (Buzzer)
- Real Time Data Transfer
- Frequency: 13.56MHz
- Card Type: Standard 13.56Mhz IC card (Can’t support HID, Indala, Cobra, APCiK, Paradox, Radio, Honeywell,etc)
- Response Speed: Less than 0.2 second
- Proximity Time Distance: Less than 0.5 seconds
- Reading range: 2~15cm / 0.79-5.91in
- Dimension: 100mmx46mmx21mm / 3.94″x1.81″x0.83″
- Input Voltage: DC12V
- Current: Max. 70mA
- Please notice that our wiegand reader can’t be compatible with some encrypted cards, such as HID,Cobra,APCiK,Paradox,etc.

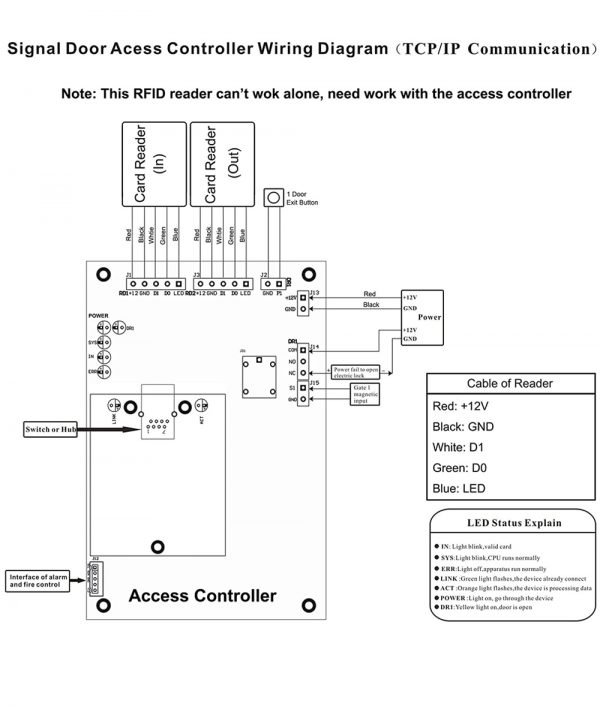

- Can’t work alone,need work with access control panel.
- 1 x RFID Card Reader (As it is a reader, the manual is not included.)
